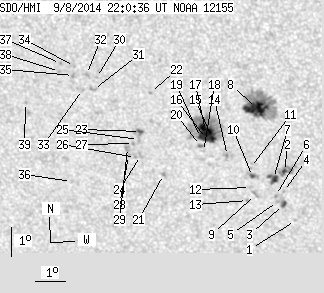

SDO HMI 2014-09-08 22:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.86 | 217.13 | 29.77 | 122.48 | -19.87 | 107.10 | -9.14 | 161.82 | 0.4812 | 624.8 | 458.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-08 22:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.67 | -22.85 | 109.48 | -6.75 | 167.79 | 0.5144 | 766.0 | 468.8 | |
| 1.60 | 10.25 | 0.91 | 5.82 | -21.15 | 109.21 | -7.03 | 166.49 | 0.4904 | 1027.1 | 728.3 | |
| 1.43 | 3.48 | 0.82 | 2.00 | -22.29 | 109.12 | -7.12 | 166.89 | 0.5075 | -394.4 | -183.9 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -21.84 | 109.14 | -7.09 | 166.72 | 0.5008 | 601.0 | 425.1 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -22.19 | 108.93 | -7.31 | 166.50 | 0.5067 | 830.0 | 588.7 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -21.99 | 108.87 | -7.36 | 166.30 | 0.5039 | 788.0 | 649.3 | |
| 4.63 | 8.11 | 2.64 | 4.62 | -21.40 | 108.84 | -7.40 | 165.94 | 0.4954 | 839.7 | 638.4 | |
| 20.68 | 67.74 | 11.54 | 37.75 | -19.02 | 108.41 | -7.83 | 163.74 | 0.4620 | 1079.7 | 542.8 | |
| 0.00 | 2.94 | 0.00 | 1.69 | -21.96 | 108.22 | -8.02 | 165.12 | 0.5060 | 855.0 | 563.8 | |
| 1.25 | 4.81 | 0.71 | 2.74 | -21.34 | 108.15 | -8.08 | 164.67 | 0.4972 | 913.4 | 635.1 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -21.03 | 108.11 | -8.13 | 164.40 | 0.4929 | 406.0 | 470.3 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -21.72 | 108.07 | -8.17 | 164.72 | 0.5031 | 322.0 | 233.8 | |
| 0.00 | 1.34 | 0.00 | 0.77 | -22.18 | 107.94 | -8.30 | 164.75 | 0.5101 | 784.0 | 538.0 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -20.64 | 107.38 | -8.86 | 162.83 | 0.4902 | 961.0 | 784.9 | |
| 3.57 | 71.66 | 2.02 | 40.43 | -20.07 | 106.92 | -9.31 | 161.62 | 0.4840 | 901.0 | 557.3 | |
| 2.05 | -15.00 | 1.16 | -15.00 | -20.07 | 106.73 | -9.51 | 161.26 | 0.4850 | 811.7 | 999999 | |
| 14.44 | -15.00 | 8.15 | -15.00 | -19.80 | 106.71 | -9.52 | 161.04 | 0.4812 | 1244.7 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -20.52 | 106.60 | -9.64 | 161.35 | 0.4921 | 610.0 | 421.3 | |
| 2.05 | -15.00 | 1.16 | -15.00 | -20.04 | 106.53 | -9.70 | 160.89 | 0.4856 | 804.3 | 999999 | |
| 0.00 | 2.14 | 0.00 | 1.21 | -20.31 | 106.52 | -9.72 | 161.05 | 0.4896 | 725.0 | 590.9 | |
| 0.00 | 1.43 | 0.00 | 0.82 | -21.34 | 105.23 | -11.01 | 159.53 | 0.5106 | 823.0 | 700.9 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -18.56 | 105.00 | -11.23 | 156.91 | 0.4728 | 864.0 | 754.9 | |
| 1.16 | 4.90 | 0.66 | 2.79 | -19.88 | 104.58 | -11.65 | 157.28 | 0.4939 | 950.5 | 767.7 | |
| 0.00 | 2.94 | 0.00 | 1.69 | -20.70 | 104.52 | -11.72 | 157.84 | 0.5056 | 684.0 | 464.7 | |
| 0.00 | 1.60 | 0.00 | 0.92 | -20.16 | 104.50 | -11.74 | 157.36 | 0.4982 | 696.0 | 721.1 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -20.78 | 104.35 | -11.89 | 157.61 | 0.5076 | 627.0 | 507.5 | |
| 0.00 | 1.52 | 0.00 | 0.87 | -20.30 | 104.32 | -11.92 | 157.17 | 0.5012 | 1010.0 | 843.7 | |
| 0.00 | 1.60 | 0.00 | 0.92 | -20.71 | 104.12 | -12.11 | 157.18 | 0.5081 | 662.0 | 534.2 | |
| 0.00 | 4.46 | 0.00 | 2.55 | -20.44 | 104.11 | -12.12 | 156.93 | 0.5044 | 867.0 | 708.2 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -18.10 | 103.28 | -12.96 | 153.38 | 0.4776 | -765.0 | -545.3 | |
| 0.00 | 3.12 | 0.00 | 1.76 | -18.51 | 103.15 | -13.08 | 153.55 | 0.4840 | -502.0 | -471.9 | |
| 0.00 | 2.41 | 0.00 | 1.36 | -18.01 | 102.96 | -13.27 | 152.73 | 0.4786 | -939.0 | -770.9 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -18.52 | 102.79 | -13.45 | 152.94 | 0.4866 | -589.0 | -386.5 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -17.75 | 102.59 | -13.65 | 151.82 | 0.4778 | -770.0 | -644.8 | |
| 0.00 | 1.60 | 0.00 | 0.91 | -18.06 | 102.53 | -13.70 | 152.03 | 0.4822 | -870.0 | -776.9 | |
| 0.00 | 1.25 | 0.00 | 0.73 | -21.66 | 102.14 | -14.10 | 154.76 | 0.5329 | -604.0 | -420.7 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -17.67 | 102.14 | -14.10 | 150.95 | 0.4799 | -951.0 | -769.7 | |
| 0.00 | 1.60 | 0.00 | 0.91 | -17.94 | 102.08 | -14.15 | 151.14 | 0.4839 | -829.0 | -616.6 | |
| 0.00 | 1.25 | 0.00 | 0.72 | -19.02 | 100.87 | -15.37 | 150.25 | 0.5070 | -743.0 | -594.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
