SDO HMI 2014-09-08 22:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 273.74 | 1479.69 | 156.06 | 844.12 | 15.35 | 87.14 | -29.10 | 71.52 | 0.4967 | 251.6 | 24.6 | |
|
previous
or next observation for the same group /

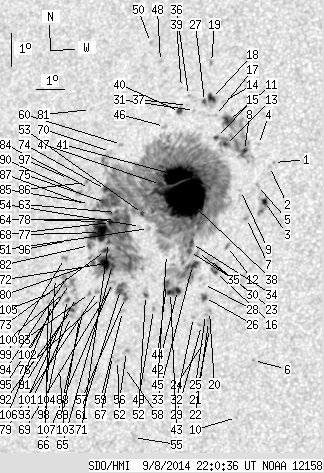

back to the solar disc SDO HMI 2014-09-08 22:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.64 | 17.04 | 90.81 | -25.42 | 66.14 | 0.4507 | -822.0 | -666.6 | |
| 0.00 | 1.60 | 0.00 | 0.89 | 16.91 | 90.69 | -25.55 | 66.49 | 0.4518 | -675.0 | -503.9 | |
| 2.14 | 12.48 | 1.18 | 6.91 | 15.84 | 90.66 | -25.57 | 68.80 | 0.4472 | -981.6 | -188.9 | |
| 0.00 | 1.52 | 0.00 | 0.85 | 17.56 | 90.21 | -26.03 | 65.45 | 0.4618 | -683.0 | -533.7 | |
| 0.00 | 2.23 | 0.00 | 1.24 | 16.31 | 90.36 | -25.88 | 67.97 | 0.4538 | 906.0 | 528.8 | |
| 0.00 | 1.16 | 0.00 | 0.64 | 11.00 | 90.83 | -25.40 | 79.61 | 0.4299 | -770.0 | -637.6 | |
| 0.00 | 2.32 | 0.00 | 1.29 | 15.29 | 90.11 | -26.12 | 70.30 | 0.4530 | -956.0 | -718.5 | |
| 1.69 | 80.31 | 0.95 | 45.15 | 17.35 | 89.74 | -26.49 | 66.18 | 0.4673 | -468.4 | 344.7 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 16.13 | 89.78 | -26.45 | 68.70 | 0.4612 | -569.0 | -367.0 | |
| 0.00 | 0.98 | 0.00 | 0.54 | 9.25 | 90.40 | -25.84 | 83.73 | 0.4345 | -748.0 | -555.7 | |
| 6.06 | -8.00 | 3.42 | -8.00 | 18.24 | 89.03 | -27.20 | 64.86 | 0.4816 | 808.6 | 999999 | |
| 0.00 | 2.14 | 0.00 | 1.19 | 14.40 | 89.56 | -26.67 | 72.47 | 0.4578 | -632.0 | -580.5 | |
| 1.43 | -8.00 | 0.80 | -8.00 | 17.50 | 89.05 | -27.19 | 66.32 | 0.4778 | 1113.5 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.76 | 18.81 | 88.75 | -27.48 | 63.92 | 0.4883 | 681.0 | 473.9 | |
| 1.25 | -8.00 | 0.71 | -8.00 | 17.70 | 88.69 | -27.54 | 66.14 | 0.4836 | 961.6 | 999999 | |
| 0.98 | 6.95 | 0.55 | 3.88 | 13.59 | 89.25 | -26.99 | 74.34 | 0.4600 | -964.7 | -768.8 | |
| 0.00 | 1.34 | 0.00 | 0.76 | 18.37 | 88.54 | -27.69 | 64.92 | 0.4889 | 27.0 | -34.0 | |
| 4.37 | 13.64 | 2.49 | 7.76 | 18.88 | 88.31 | -27.93 | 64.08 | 0.4947 | 988.5 | 658.4 | |
| 0.00 | 2.05 | 0.00 | 1.17 | 19.99 | 88.10 | -28.13 | 62.13 | 0.5033 | 885.0 | 760.4 | |
| 0.00 | 2.32 | 0.00 | 1.29 | 12.40 | 89.18 | -27.06 | 76.94 | 0.4580 | -983.0 | -816.7 | |
| 0.00 | 0.98 | 0.00 | 0.55 | 11.89 | 89.23 | -27.00 | 78.04 | 0.4561 | -978.0 | -852.0 | |
| 0.00 | 2.41 | 0.00 | 1.34 | 12.10 | 89.17 | -27.06 | 77.60 | 0.4574 | -912.0 | -843.8 | |
| 0.00 | 5.70 | 0.00 | 3.19 | 13.97 | 88.95 | -27.28 | 73.65 | 0.4655 | -577.0 | -581.6 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 11.55 | 89.13 | -27.11 | 78.81 | 0.4570 | -649.0 | -476.0 | |
| 0.00 | 1.25 | 0.00 | 0.70 | 12.30 | 89.05 | -27.19 | 77.19 | 0.4597 | -934.0 | -783.0 | |
| 2.14 | 4.28 | 1.19 | 2.39 | 12.81 | 88.95 | -27.28 | 76.11 | 0.4623 | -976.3 | -755.1 | |
| 1.16 | -18.00 | 0.66 | -18.00 | 18.77 | 88.07 | -28.16 | 64.43 | 0.4974 | 897.4 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.35 | 13.20 | 88.87 | -27.36 | 75.31 | 0.4645 | -475.0 | -396.7 | |
| 0.00 | 2.85 | 0.00 | 1.59 | 11.96 | 88.95 | -27.29 | 77.95 | 0.4605 | -770.0 | -745.9 | |
| 0.00 | 3.03 | 0.00 | 1.70 | 14.16 | 88.54 | -27.69 | 73.41 | 0.4721 | 504.0 | 414.8 | |
| 0.00 | 1.07 | 0.00 | 0.61 | 18.48 | 87.76 | -28.47 | 65.18 | 0.5001 | 613.0 | 468.0 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 12.19 | 88.64 | -27.59 | 77.55 | 0.4656 | -918.0 | -807.0 | |
| 5.62 | 1205.49 | 3.15 | 688.16 | 13.76 | 88.42 | -27.82 | 74.30 | 0.4727 | 783.8 | 72.9 | |
| 2.58 | -33.00 | 1.45 | -33.00 | 14.42 | 88.30 | -27.94 | 72.97 | 0.4765 | 842.8 | 999999 | |
| 1.69 | -33.00 | 0.95 | -33.00 | 14.18 | 88.26 | -27.98 | 73.50 | 0.4763 | 703.3 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.51 | 18.93 | 87.46 | -28.77 | 64.52 | 0.5064 | 688.0 | 643.7 | |
| 0.00 | 0.80 | 0.00 | 0.46 | 18.62 | 87.49 | -28.75 | 65.09 | 0.5046 | 368.0 | 415.9 | |
| 114.98 | -33.00 | 65.14 | -33.00 | 15.78 | 87.89 | -28.35 | 70.40 | 0.4870 | 1517.9 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.41 | 19.16 | 87.16 | -29.07 | 64.27 | 0.5115 | 98.0 | 86.4 | |
| 2.23 | 4.10 | 1.28 | 2.35 | 18.42 | 87.23 | -29.00 | 65.61 | 0.5071 | 798.2 | 571.0 | |
| 34.85 | -33.00 | 19.85 | -33.00 | 16.46 | 87.50 | -28.74 | 69.24 | 0.4951 | 1218.9 | 999999 | |
| 3.57 | -33.00 | 2.01 | -33.00 | 12.97 | 87.99 | -28.25 | 76.09 | 0.4770 | -869.8 | 999999 | |
| 3.83 | -33.00 | 2.16 | -33.00 | 12.90 | 87.75 | -28.48 | 76.32 | 0.4804 | -1005.8 | 999999 | |
| 2.41 | -33.00 | 1.36 | -33.00 | 13.13 | 87.58 | -28.65 | 75.89 | 0.4835 | -726.5 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.15 | 14.04 | 87.46 | -28.77 | 74.08 | 0.4876 | -221.0 | -244.0 | |
| 0.00 | 2.32 | 0.00 | 1.33 | 17.93 | 86.77 | -29.46 | 66.79 | 0.5112 | 608.0 | 486.2 | |
| 3.65 | -33.00 | 2.09 | -33.00 | 16.15 | 86.93 | -29.30 | 70.11 | 0.5019 | 732.0 | 999999 | |
| 0.00 | 1.78 | 0.00 | 1.04 | 19.91 | 86.24 | -30.00 | 63.44 | 0.5276 | 588.0 | 420.0 | |
| 0.00 | 1.52 | 0.00 | 0.86 | 12.35 | 87.22 | -29.02 | 77.60 | 0.4871 | -828.0 | -667.6 | |
| 0.00 | 0.80 | 0.00 | 0.47 | 20.47 | 85.75 | -30.49 | 62.74 | 0.5368 | 688.0 | 572.4 | |
| 0.00 | 1.78 | 0.00 | 1.02 | 14.79 | 86.71 | -29.52 | 72.86 | 0.5006 | -298.0 | -232.1 | |
| 0.80 | 4.46 | 0.46 | 2.53 | 12.75 | 86.88 | -29.35 | 76.86 | 0.4929 | 625.7 | 119.4 | |
| 1.43 | -33.00 | 0.82 | -33.00 | 15.23 | 86.43 | -29.81 | 72.11 | 0.5060 | 387.6 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.46 | 14.83 | 86.42 | -29.82 | 72.89 | 0.5049 | -204.0 | -225.6 | |
| 0.00 | 3.30 | 0.00 | 1.87 | 8.45 | 86.91 | -29.33 | 85.66 | 0.4878 | -549.0 | -543.7 | |
| 0.00 | 2.50 | 0.00 | 1.42 | 11.02 | 86.41 | -29.82 | 80.45 | 0.4970 | -901.0 | -779.0 | |
| 2.14 | 14.26 | 1.22 | 8.18 | 12.65 | 86.18 | -30.05 | 77.25 | 0.5030 | -1022.9 | -830.9 | |
| 0.00 | 0.36 | 0.00 | 0.20 | 10.54 | 86.40 | -29.84 | 81.44 | 0.4967 | -735.0 | -706.2 | |
| 0.00 | 2.41 | 0.00 | 1.38 | 12.22 | 86.13 | -30.10 | 78.11 | 0.5030 | -679.0 | -600.3 | |
| 0.00 | 1.87 | 0.00 | 1.09 | 17.28 | 85.31 | -30.92 | 68.71 | 0.5287 | 758.0 | 475.1 | |
| 5.44 | -57.00 | 3.12 | -57.00 | 12.88 | 85.97 | -30.26 | 76.85 | 0.5065 | -1006.3 | 999999 | |
| 0.00 | 1.69 | 0.00 | 0.97 | 10.73 | 86.13 | -30.11 | 81.08 | 0.5009 | -767.0 | -560.4 | |
| 1.07 | -33.00 | 0.62 | -33.00 | 15.20 | 85.49 | -30.75 | 72.52 | 0.5193 | -1209.1 | 999999 | |
| 2.94 | -33.00 | 1.70 | -33.00 | 14.99 | 85.49 | -30.75 | 72.93 | 0.5187 | -1350.5 | 999999 | |
| 1.78 | -33.00 | 1.03 | -33.00 | 13.62 | 85.58 | -30.65 | 75.52 | 0.5138 | -1279.2 | 999999 | |
| 0.00 | 3.48 | 0.00 | 2.00 | 13.08 | 85.66 | -30.57 | 76.55 | 0.5115 | -860.0 | -756.8 | |
| 0.00 | 1.25 | 0.00 | 0.71 | 10.84 | 85.94 | -30.30 | 80.89 | 0.5039 | -689.0 | -501.0 | |
| 3.12 | -33.00 | 1.81 | -33.00 | 14.89 | 85.32 | -30.91 | 73.18 | 0.5207 | -1356.6 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.72 | 12.89 | 85.61 | -30.62 | 76.93 | 0.5118 | -803.0 | -627.7 | |
| 0.00 | 1.25 | 0.00 | 0.73 | 17.04 | 84.95 | -31.28 | 69.31 | 0.5328 | 461.0 | 220.0 | |
| 1.16 | -33.00 | 0.67 | -33.00 | 14.28 | 85.34 | -30.89 | 74.33 | 0.5188 | -991.5 | 999999 | |
| 9.09 | -33.00 | 5.26 | -33.00 | 13.64 | 85.33 | -30.91 | 75.56 | 0.5175 | -1171.5 | 999999 | |
| 2.41 | -33.00 | 1.39 | -33.00 | 14.03 | 85.27 | -30.96 | 74.83 | 0.5192 | -1000.5 | 999999 | |
| 2.50 | -33.00 | 1.45 | -33.00 | 15.88 | 84.98 | -31.26 | 71.45 | 0.5286 | -871.2 | 999999 | |
| 6.42 | -33.00 | 3.73 | -33.00 | 15.48 | 85.04 | -31.19 | 72.16 | 0.5264 | -919.0 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.77 | 12.60 | 85.33 | -30.91 | 77.56 | 0.5154 | -566.0 | -514.1 | |
| 27.18 | -33.00 | 15.79 | -33.00 | 14.56 | 85.01 | -31.23 | 73.90 | 0.5243 | -1046.7 | 999999 | |
| 3.74 | -33.00 | 2.18 | -33.00 | 14.89 | 84.92 | -31.32 | 73.31 | 0.5265 | -938.2 | 999999 | |
| 0.00 | 2.50 | 0.00 | 1.44 | 12.77 | 85.16 | -31.08 | 77.27 | 0.5181 | -682.0 | -623.5 | |
| 1.25 | -33.00 | 0.72 | -33.00 | 13.61 | 84.90 | -31.34 | 75.74 | 0.5236 | -592.0 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.37 | 18.28 | 83.96 | -32.27 | 67.53 | 0.5508 | 548.0 | 398.3 | |
| 1.43 | -33.00 | 0.83 | -33.00 | 14.14 | 84.67 | -31.56 | 74.79 | 0.5281 | -722.6 | 999999 | |
| 0.00 | 2.14 | 0.00 | 1.24 | 12.69 | 84.88 | -31.35 | 77.48 | 0.5220 | -830.0 | -682.0 | |
| 0.00 | 1.16 | 0.00 | 0.68 | 15.87 | 84.39 | -31.85 | 71.68 | 0.5368 | -807.0 | -719.5 | |
| 0.00 | 0.36 | 0.00 | 0.21 | 15.42 | 84.46 | -31.77 | 72.49 | 0.5343 | -530.0 | -596.5 | |
| 0.00 | 1.60 | 0.00 | 0.94 | 16.05 | 84.24 | -31.99 | 71.41 | 0.5393 | -959.0 | -799.6 | |
| 0.00 | 0.80 | 0.00 | 0.47 | 15.38 | 84.32 | -31.91 | 72.61 | 0.5362 | -542.0 | -455.3 | |
| 0.00 | 1.60 | 0.00 | 0.93 | 12.10 | 84.71 | -31.53 | 78.65 | 0.5236 | -684.0 | -592.9 | |
| 0.00 | 1.34 | 0.00 | 0.78 | 11.91 | 84.62 | -31.61 | 79.02 | 0.5245 | -700.0 | -610.1 | |
| 0.45 | 3.12 | 0.26 | 1.83 | 15.72 | 84.00 | -32.23 | 72.09 | 0.5416 | -810.8 | -654.8 | |
| 0.00 | 2.50 | 0.00 | 1.45 | 12.54 | 84.43 | -31.81 | 77.87 | 0.5283 | -787.0 | -684.3 | |
| 1.87 | 6.95 | 1.09 | 4.05 | 12.17 | 84.30 | -31.94 | 78.60 | 0.5296 | -752.4 | -671.7 | |
| 0.00 | 1.25 | 0.00 | 0.73 | 11.96 | 84.32 | -31.91 | 78.99 | 0.5289 | -676.0 | -593.1 | |
| 0.00 | 1.25 | 0.00 | 0.73 | 13.25 | 84.07 | -32.16 | 76.62 | 0.5347 | -783.0 | -642.9 | |
| 0.00 | 14.26 | 0.00 | 8.34 | 12.95 | 84.12 | -32.12 | 77.17 | 0.5335 | -677.0 | -704.7 | |
| 0.00 | 1.60 | 0.00 | 0.94 | 14.25 | 83.88 | -32.35 | 74.83 | 0.5395 | -618.0 | -500.5 | |
| 0.00 | 1.52 | 0.00 | 0.90 | 16.12 | 83.56 | -32.68 | 71.52 | 0.5490 | -578.0 | -459.6 | |
| 0.89 | 1.96 | 0.52 | 1.15 | 12.46 | 84.11 | -32.12 | 78.09 | 0.5327 | -897.8 | -747.9 | |
| 0.00 | 2.94 | 0.00 | 1.73 | 13.69 | 83.82 | -32.41 | 75.86 | 0.5392 | -620.0 | -523.6 | |
| 0.00 | 1.25 | 0.00 | 0.73 | 12.66 | 83.97 | -32.26 | 77.73 | 0.5351 | -761.0 | -701.2 | |
| 0.00 | 0.53 | 0.00 | 0.31 | 11.88 | 84.04 | -32.19 | 79.19 | 0.5329 | -367.0 | -295.8 | |
| 0.00 | 1.52 | 0.00 | 0.89 | 12.50 | 83.81 | -32.42 | 78.07 | 0.5371 | -629.0 | -536.2 | |
| 0.00 | 0.80 | 0.00 | 0.47 | 10.33 | 84.09 | -32.15 | 82.10 | 0.5306 | -639.0 | -532.0 | |
| 0.00 | 1.07 | 0.00 | 0.63 | 13.07 | 83.58 | -32.65 | 77.07 | 0.5413 | -388.0 | -299.5 | |
| 0.00 | 3.12 | 0.00 | 1.83 | 12.67 | 83.60 | -32.63 | 77.80 | 0.5404 | -512.0 | -470.4 | |
| 0.00 | 1.43 | 0.00 | 0.84 | 12.27 | 83.59 | -32.65 | 78.53 | 0.5400 | -480.0 | -416.9 | |
| 0.00 | 1.60 | 0.00 | 0.94 | 12.38 | 83.42 | -32.81 | 78.36 | 0.5425 | -517.0 | -389.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
