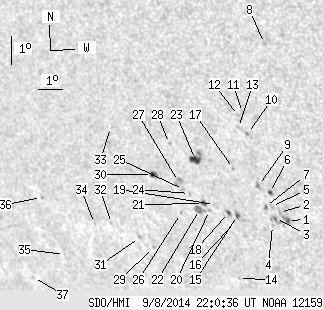

SDO HMI 2014-09-08 22:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.35 | 79.12 | 9.94 | 55.05 | -20.21 | 80.61 | -35.63 | 128.82 | 0.7032 | 222.8 | 187.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-08 22:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.25 | 3.83 | 0.84 | 2.59 | -20.97 | 83.43 | -32.81 | 131.91 | 0.6822 | 817.0 | 788.7 | |
| 0.00 | 1.78 | 0.00 | 1.20 | -20.72 | 83.18 | -33.06 | 131.41 | 0.6826 | 845.0 | 638.5 | |
| 0.53 | 6.68 | 0.36 | 4.54 | -20.93 | 82.97 | -33.26 | 131.49 | 0.6862 | 774.2 | 582.7 | |
| 0.00 | 0.89 | 0.00 | 0.61 | -21.19 | 82.79 | -33.45 | 131.63 | 0.6899 | 506.0 | 370.6 | |
| 0.00 | 2.05 | 0.00 | 1.39 | -20.53 | 82.92 | -33.32 | 130.98 | 0.6836 | 595.0 | 498.7 | |
| 0.89 | 1.87 | 0.60 | 1.26 | -20.05 | 82.96 | -33.28 | 130.45 | 0.6796 | -473.0 | -445.5 | |
| 0.36 | 1.69 | 0.24 | 1.15 | -20.55 | 82.68 | -33.55 | 130.80 | 0.6860 | 614.0 | 513.9 | |
| 0.00 | 1.87 | 0.00 | 1.20 | -15.06 | 83.80 | -32.43 | 124.86 | 0.6334 | 496.0 | 329.0 | |
| 0.00 | 2.67 | 0.00 | 1.81 | -19.85 | 82.58 | -33.65 | 129.89 | 0.6817 | 756.0 | 637.6 | |
| 0.00 | 1.25 | 0.00 | 0.83 | -18.11 | 82.56 | -33.67 | 127.76 | 0.6689 | 682.0 | 638.0 | |
| 0.00 | 1.07 | 0.00 | 0.71 | -17.41 | 82.52 | -33.71 | 126.87 | 0.6643 | 736.0 | 578.7 | |
| 0.00 | 1.16 | 0.00 | 0.77 | -17.53 | 82.35 | -33.89 | 126.87 | 0.6669 | 741.0 | 598.3 | |
| 0.00 | 0.98 | 0.00 | 0.65 | -17.93 | 82.26 | -33.98 | 127.30 | 0.6707 | 652.0 | 472.7 | |
| 0.00 | 0.80 | 0.00 | 0.57 | -23.15 | 80.89 | -35.35 | 132.35 | 0.7220 | 595.0 | 424.3 | |
| 0.98 | 3.30 | 0.68 | 2.28 | -20.94 | 81.48 | -34.75 | 130.30 | 0.7004 | 886.7 | 709.8 | |
| 0.00 | 0.80 | 0.00 | 0.56 | -21.20 | 81.30 | -34.94 | 130.45 | 0.7040 | 632.0 | 541.7 | |
| 0.00 | 0.98 | 0.00 | 0.67 | -19.34 | 81.74 | -34.50 | 128.61 | 0.6862 | -558.0 | -549.3 | |
| 0.98 | 3.12 | 0.68 | 2.17 | -20.87 | 81.15 | -35.09 | 129.95 | 0.7030 | 659.7 | 514.8 | |
| 0.00 | 0.80 | 0.00 | 0.56 | -20.63 | 80.66 | -35.58 | 129.30 | 0.7060 | 459.0 | 369.9 | |
| 0.00 | 0.53 | 0.00 | 0.37 | -20.86 | 80.39 | -35.84 | 129.37 | 0.7101 | 641.0 | 546.7 | |
| 1.60 | 2.94 | 1.13 | 2.06 | -20.63 | 80.22 | -36.02 | 128.97 | 0.7102 | 689.1 | 470.9 | |
| 0.00 | 6.06 | 0.00 | 4.27 | -20.85 | 79.99 | -36.24 | 129.06 | 0.7138 | 667.0 | 523.1 | |
| 5.62 | 10.43 | 3.88 | 7.20 | -19.15 | 80.29 | -35.94 | 127.27 | 0.6991 | -853.8 | -664.2 | |
| 0.00 | 1.25 | 0.00 | 0.88 | -20.33 | 79.74 | -36.50 | 128.27 | 0.7127 | 185.0 | 156.2 | |
| 0.00 | 1.96 | 0.00 | 1.38 | -20.21 | 79.53 | -36.70 | 127.98 | 0.7138 | -460.0 | -414.4 | |
| 0.00 | 0.62 | 0.00 | 0.45 | -21.06 | 79.17 | -37.07 | 128.69 | 0.7230 | 440.0 | 424.3 | |
| 0.00 | 5.53 | 0.00 | 3.89 | -19.95 | 79.40 | -36.83 | 127.58 | 0.7133 | -677.0 | -650.8 | |
| 0.00 | 0.98 | 0.00 | 0.68 | -18.68 | 79.38 | -36.86 | 126.05 | 0.7051 | -641.0 | -513.6 | |
| 0.00 | 1.25 | 0.00 | 0.92 | -22.34 | 77.65 | -38.58 | 129.08 | 0.7454 | 649.0 | 554.4 | |
| 2.14 | 4.72 | 1.53 | 3.37 | -19.80 | 78.39 | -37.84 | 126.68 | 0.7220 | -747.2 | -667.8 | |
| 0.00 | 1.16 | 0.00 | 0.86 | -22.04 | 77.17 | -39.07 | 128.41 | 0.7478 | 727.0 | 541.8 | |
| 0.00 | 0.45 | 0.00 | 0.34 | -21.65 | 76.11 | -40.13 | 127.27 | 0.7550 | 262.0 | 344.6 | |
| 0.00 | 0.53 | 0.00 | 0.38 | -18.34 | 77.08 | -39.16 | 124.05 | 0.7257 | -389.0 | -448.5 | |
| 0.00 | 0.89 | 0.00 | 0.68 | -21.72 | 75.36 | -40.88 | 126.86 | 0.7622 | 138.0 | 150.4 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -22.94 | 73.59 | -42.65 | 127.12 | 0.7847 | 518.0 | 416.3 | |
| 0.00 | 0.80 | 0.00 | 0.63 | -21.02 | 73.29 | -42.95 | 124.80 | 0.7768 | 562.0 | 417.6 | |
| 0.00 | 1.16 | 0.00 | 0.96 | -23.90 | 71.77 | -44.46 | 127.10 | 0.8051 | -453.0 | -458.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
