SDO HMI 2014-09-08 23:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 290.78 | 1527.85 | 164.84 | 867.20 | 15.38 | 87.19 | -28.49 | 71.21 | 0.4882 | 318.7 | 11.5 | |
|
previous
or next observation for the same group /

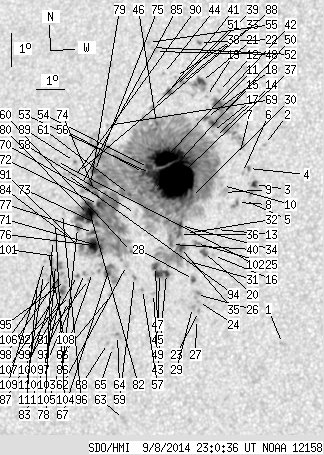

back to the solar disc SDO HMI 2014-09-08 23:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.50 | 0.00 | 1.35 | 11.04 | 92.17 | -23.51 | 79.00 | 0.4006 | -760.0 | -427.4 | |
| 0.00 | 1.43 | 0.00 | 0.79 | 17.04 | 90.89 | -24.80 | 65.71 | 0.4418 | -892.0 | -708.7 | |
| 2.59 | 8.91 | 1.42 | 4.91 | 15.80 | 90.71 | -24.98 | 68.51 | 0.4385 | -1007.3 | -186.3 | |
| 0.80 | 2.41 | 0.44 | 1.33 | 16.28 | 90.43 | -25.25 | 67.65 | 0.4446 | 620.1 | 452.0 | |
| 0.00 | 0.89 | 0.00 | 0.49 | 15.30 | 90.43 | -25.26 | 69.79 | 0.4404 | -263.0 | -157.1 | |
| 0.00 | 1.43 | 0.00 | 0.79 | 16.15 | 90.24 | -25.44 | 68.05 | 0.4467 | 219.0 | 85.1 | |
| 0.00 | 0.80 | 0.00 | 0.44 | 16.69 | 90.06 | -25.62 | 67.01 | 0.4518 | 568.0 | 385.8 | |
| 0.53 | 4.37 | 0.30 | 2.41 | 15.23 | 90.19 | -25.49 | 70.08 | 0.4435 | -928.0 | -706.1 | |
| 0.00 | 6.51 | 0.00 | 3.61 | 15.51 | 89.67 | -26.02 | 69.77 | 0.4523 | -142.0 | -194.8 | |
| 0.00 | 0.80 | 0.00 | 0.45 | 15.72 | 89.60 | -26.08 | 69.35 | 0.4541 | -17.0 | 22.4 | |
| 6.60 | 73.72 | 3.70 | 41.23 | 18.18 | 89.09 | -26.59 | 64.58 | 0.4728 | 782.4 | 270.0 | |
| 0.00 | 1.25 | 0.00 | 0.70 | 18.58 | 89.03 | -26.66 | 63.83 | 0.4758 | 863.0 | 565.9 | |
| 0.00 | 1.43 | 0.00 | 0.79 | 14.37 | 89.57 | -26.11 | 72.28 | 0.4495 | -742.0 | -533.9 | |
| 0.00 | 1.87 | 0.00 | 1.05 | 17.20 | 89.14 | -26.54 | 66.54 | 0.4672 | 369.0 | 379.0 | |
| 3.74 | -11.00 | 2.10 | -11.00 | 17.59 | 89.01 | -26.67 | 65.82 | 0.4710 | 989.6 | 999999 | |
| 0.00 | 2.14 | 0.00 | 1.18 | 13.58 | 89.56 | -26.12 | 74.02 | 0.4470 | -617.0 | -415.2 | |
| 0.00 | 1.07 | 0.00 | 0.60 | 17.34 | 89.02 | -26.67 | 66.32 | 0.4697 | 986.0 | 801.5 | |
| 1.16 | -11.00 | 0.65 | -11.00 | 17.76 | 88.74 | -26.95 | 65.65 | 0.4756 | 938.3 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.55 | 18.40 | 88.63 | -27.05 | 64.44 | 0.4803 | -397.0 | -266.1 | |
| 2.50 | 6.15 | 1.38 | 3.41 | 13.65 | 89.21 | -26.48 | 74.01 | 0.4525 | -982.9 | -706.1 | |
| 4.01 | 18.45 | 2.27 | 10.45 | 18.85 | 88.37 | -27.31 | 63.73 | 0.4862 | 1027.0 | 609.5 | |
| 0.53 | 2.05 | 0.30 | 1.17 | 20.05 | 88.08 | -27.60 | 61.65 | 0.4965 | 890.7 | 733.9 | |
| 0.00 | 1.60 | 0.00 | 0.89 | 11.86 | 89.24 | -26.45 | 77.95 | 0.4476 | -892.0 | -795.4 | |
| 0.00 | 1.07 | 0.00 | 0.59 | 12.16 | 89.20 | -26.48 | 77.29 | 0.4487 | -962.0 | -828.7 | |
| 0.00 | 4.46 | 0.00 | 2.48 | 13.91 | 88.93 | -26.75 | 73.56 | 0.4574 | -981.0 | -745.0 | |
| 0.00 | 4.64 | 0.00 | 2.57 | 12.37 | 89.11 | -26.57 | 76.86 | 0.4505 | -791.0 | -820.0 | |
| 0.00 | 0.89 | 0.00 | 0.49 | 11.61 | 89.19 | -26.49 | 78.51 | 0.4477 | -788.0 | -638.6 | |
| 1.34 | 3.12 | 0.74 | 1.73 | 12.81 | 88.96 | -26.73 | 75.93 | 0.4539 | -973.9 | -793.3 | |
| 0.00 | 2.94 | 0.00 | 1.63 | 11.97 | 89.02 | -26.67 | 77.77 | 0.4511 | -907.0 | -782.1 | |
| 2.67 | 1231.98 | 1.50 | 699.82 | 15.32 | 88.57 | -27.11 | 70.73 | 0.4675 | 995.5 | 62.4 | |
| 0.00 | 4.28 | 0.00 | 2.38 | 13.35 | 88.72 | -26.96 | 74.85 | 0.4589 | 16.0 | 35.6 | |
| 0.00 | 1.78 | 0.00 | 1.00 | 14.19 | 88.51 | -27.17 | 73.14 | 0.4645 | 608.0 | 318.4 | |
| 0.00 | 4.10 | 0.00 | 2.34 | 18.78 | 87.66 | -28.02 | 64.33 | 0.4954 | 783.0 | 601.9 | |
| 2.41 | -30.00 | 1.35 | -30.00 | 14.42 | 88.31 | -27.38 | 72.74 | 0.4683 | 813.6 | 999999 | |
| 4.19 | -30.00 | 2.34 | -30.00 | 13.76 | 88.39 | -27.29 | 74.11 | 0.4650 | 908.7 | 999999 | |
| 2.23 | -30.00 | 1.25 | -30.00 | 14.15 | 88.31 | -27.38 | 73.31 | 0.4674 | 772.2 | 999999 | |
| 115.26 | -30.00 | 64.95 | -30.00 | 15.81 | 87.94 | -27.75 | 70.05 | 0.4785 | 1518.0 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.56 | 18.95 | 87.42 | -28.27 | 64.16 | 0.4997 | 614.0 | 518.0 | |
| 0.00 | 0.80 | 0.00 | 0.46 | 18.65 | 87.47 | -28.21 | 64.71 | 0.4974 | 583.0 | 501.3 | |
| 0.62 | -30.00 | 0.35 | -30.00 | 13.83 | 88.07 | -27.62 | 74.08 | 0.4700 | 600.7 | 999999 | |
| 1.96 | 5.70 | 1.12 | 3.26 | 18.48 | 87.25 | -28.44 | 65.16 | 0.4996 | 854.0 | 638.4 | |
| 38.95 | -30.00 | 22.07 | -30.00 | 16.49 | 87.51 | -28.17 | 68.89 | 0.4872 | 1208.5 | 999999 | |
| 2.59 | -30.00 | 1.45 | -30.00 | 12.94 | 88.00 | -27.68 | 75.97 | 0.4686 | -938.7 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.41 | 19.02 | 86.97 | -28.72 | 64.31 | 0.5061 | 572.0 | 511.0 | |
| 5.17 | -30.00 | 2.90 | -30.00 | 12.93 | 87.76 | -27.93 | 76.08 | 0.4722 | -917.6 | 999999 | |
| 1.25 | -30.00 | 0.71 | -30.00 | 17.48 | 86.99 | -28.69 | 67.24 | 0.4986 | 617.5 | 999999 | |
| 2.67 | -30.00 | 1.50 | -30.00 | 13.13 | 87.59 | -28.09 | 75.71 | 0.4751 | -705.2 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.87 | 19.68 | 86.55 | -29.14 | 63.34 | 0.5150 | 705.0 | 536.4 | |
| 0.00 | 1.96 | 0.00 | 1.10 | 12.31 | 87.62 | -28.06 | 77.42 | 0.4729 | -833.0 | -624.8 | |
| 1.69 | -30.00 | 0.96 | -30.00 | 15.43 | 87.17 | -28.51 | 71.17 | 0.4881 | 588.7 | 999999 | |
| 0.00 | 2.41 | 0.00 | 1.38 | 17.96 | 86.76 | -28.92 | 66.44 | 0.5039 | 715.0 | 560.4 | |
| 0.00 | 0.36 | 0.00 | 0.21 | 19.80 | 86.38 | -29.31 | 63.24 | 0.5179 | 667.0 | 600.0 | |
| 4.99 | -30.00 | 2.84 | -30.00 | 15.94 | 87.02 | -28.66 | 70.22 | 0.4920 | 800.9 | 999999 | |
| 4.10 | -30.00 | 2.33 | -30.00 | 16.12 | 86.93 | -28.76 | 69.92 | 0.4941 | 734.8 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.83 | 19.94 | 86.24 | -29.45 | 63.06 | 0.5205 | 631.0 | 459.4 | |
| 3.39 | -30.00 | 1.93 | -30.00 | 15.96 | 86.77 | -28.91 | 70.31 | 0.4957 | 748.4 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.65 | 12.41 | 87.22 | -28.46 | 77.32 | 0.4790 | -841.0 | -756.7 | |
| 0.00 | 4.28 | 0.00 | 2.43 | 14.70 | 86.67 | -29.01 | 72.85 | 0.4929 | -287.0 | -220.0 | |
| 0.00 | 1.87 | 0.00 | 1.06 | 12.76 | 86.90 | -28.79 | 76.70 | 0.4845 | 615.0 | 356.6 | |
| 0.45 | -30.00 | 0.25 | -30.00 | 13.54 | 86.69 | -28.99 | 75.17 | 0.4894 | 679.0 | 999999 | |
| 1.25 | -30.00 | 0.71 | -30.00 | 15.26 | 86.38 | -29.31 | 71.85 | 0.4990 | 299.2 | 999999 | |
| 0.00 | 2.94 | 0.00 | 1.67 | 13.10 | 86.57 | -29.11 | 76.09 | 0.4901 | -451.0 | -432.2 | |
| 0.00 | 4.46 | 0.00 | 2.51 | 8.45 | 86.95 | -28.73 | 85.65 | 0.4788 | -645.0 | -481.5 | |
| 0.00 | 3.12 | 0.00 | 1.77 | 10.97 | 86.50 | -29.18 | 80.46 | 0.4873 | -804.0 | -781.4 | |
| 0.00 | 1.25 | 0.00 | 0.71 | 10.60 | 86.37 | -29.32 | 81.24 | 0.4889 | -682.0 | -571.4 | |
| 0.00 | 2.59 | 0.00 | 1.47 | 12.20 | 86.15 | -29.53 | 78.04 | 0.4945 | -684.0 | -616.9 | |
| 5.26 | 24.42 | 3.00 | 13.93 | 12.91 | 85.95 | -29.73 | 76.65 | 0.4988 | -1014.6 | -781.8 | |
| 0.00 | 1.25 | 0.00 | 0.71 | 10.71 | 86.18 | -29.50 | 81.05 | 0.4919 | -756.0 | -581.9 | |
| 0.00 | 1.16 | 0.00 | 0.67 | 17.31 | 85.23 | -30.45 | 68.44 | 0.5223 | 714.0 | 603.8 | |
| 0.98 | -30.00 | 0.56 | -30.00 | 15.05 | 85.47 | -30.21 | 72.61 | 0.5113 | -1401.2 | 999999 | |
| 2.41 | -30.00 | 1.38 | -30.00 | 13.62 | 85.57 | -30.11 | 75.36 | 0.5059 | -1161.6 | 999999 | |
| 2.14 | -30.00 | 1.23 | -30.00 | 14.89 | 85.31 | -30.37 | 72.98 | 0.5130 | -1354.1 | 999999 | |
| 2.32 | -30.00 | 1.33 | -30.00 | 14.31 | 85.33 | -30.35 | 74.10 | 0.5112 | -979.3 | 999999 | |
| 2.14 | -30.00 | 1.24 | -30.00 | 15.25 | 85.15 | -30.54 | 72.36 | 0.5164 | -1094.2 | 999999 | |
| 3.65 | -30.00 | 2.12 | -30.00 | 15.88 | 85.01 | -30.68 | 71.21 | 0.5204 | -723.9 | 999999 | |
| 9.63 | -30.00 | 5.54 | -30.00 | 13.64 | 85.32 | -30.37 | 75.40 | 0.5097 | -1170.1 | 999999 | |
| 2.14 | -30.00 | 1.23 | -30.00 | 14.03 | 85.26 | -30.42 | 74.66 | 0.5114 | -963.3 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.82 | 12.82 | 85.39 | -30.29 | 76.98 | 0.5068 | -771.0 | -574.8 | |
| 4.10 | -30.00 | 2.37 | -30.00 | 15.48 | 84.93 | -30.75 | 72.00 | 0.5202 | -1098.9 | 999999 | |
| 25.05 | -30.00 | 14.47 | -30.00 | 14.57 | 85.00 | -30.68 | 73.72 | 0.5166 | -1071.5 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.61 | 12.60 | 85.28 | -30.40 | 77.44 | 0.5080 | -717.0 | -571.1 | |
| 3.39 | -30.00 | 1.96 | -30.00 | 14.90 | 84.91 | -30.77 | 73.12 | 0.5187 | -953.9 | 999999 | |
| 0.00 | 2.14 | 0.00 | 1.23 | 12.77 | 85.11 | -30.57 | 77.15 | 0.5108 | -742.0 | -685.8 | |
| 1.96 | -30.00 | 1.13 | -30.00 | 13.55 | 84.90 | -30.79 | 75.70 | 0.5156 | -493.6 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.52 | 15.43 | 84.57 | -31.11 | 72.24 | 0.5251 | -787.0 | -650.8 | |
| 1.60 | -30.00 | 0.93 | -30.00 | 14.15 | 84.66 | -31.02 | 74.62 | 0.5203 | -675.4 | 999999 | |
| 0.53 | 1.60 | 0.31 | 0.93 | 12.70 | 84.87 | -30.81 | 77.35 | 0.5142 | -828.5 | -692.3 | |
| 0.00 | 2.23 | 0.00 | 1.30 | 15.81 | 84.40 | -31.29 | 71.58 | 0.5287 | -865.0 | -656.5 | |
| 0.36 | 1.43 | 0.21 | 0.83 | 16.14 | 84.23 | -31.45 | 71.04 | 0.5321 | -906.2 | -773.4 | |
| 0.00 | 0.62 | 0.00 | 0.36 | 15.69 | 84.31 | -31.38 | 71.85 | 0.5296 | -739.0 | -584.4 | |
| 0.00 | 0.89 | 0.00 | 0.52 | 13.72 | 84.62 | -31.06 | 75.46 | 0.5199 | -232.0 | -199.9 | |
| 0.00 | 1.25 | 0.00 | 0.72 | 12.08 | 84.70 | -30.99 | 78.59 | 0.5156 | -830.0 | -665.3 | |
| 0.00 | 1.07 | 0.00 | 0.62 | 11.89 | 84.65 | -31.03 | 78.96 | 0.5160 | -743.0 | -587.8 | |
| 0.00 | 2.32 | 0.00 | 1.36 | 15.73 | 84.01 | -31.68 | 71.88 | 0.5339 | -756.0 | -651.7 | |
| 0.00 | 2.41 | 0.00 | 1.39 | 12.52 | 84.46 | -31.22 | 77.79 | 0.5198 | -881.0 | -749.8 | |
| 0.00 | 0.71 | 0.00 | 0.42 | 14.54 | 84.06 | -31.63 | 74.08 | 0.5299 | -485.0 | -277.5 | |
| 2.50 | 6.33 | 1.45 | 3.67 | 12.18 | 84.36 | -31.32 | 78.47 | 0.5207 | -803.9 | -736.9 | |
| 0.00 | 1.96 | 0.00 | 1.14 | 12.72 | 84.29 | -31.40 | 77.44 | 0.5227 | -949.0 | -801.7 | |
| 0.00 | 1.52 | 0.00 | 0.88 | 11.96 | 84.35 | -31.33 | 78.88 | 0.5205 | -618.0 | -545.6 | |
| 0.98 | 4.72 | 0.57 | 2.75 | 12.44 | 84.18 | -31.50 | 78.00 | 0.5237 | -896.0 | -526.5 | |
| 0.00 | 1.07 | 0.00 | 0.62 | 13.22 | 84.07 | -31.61 | 76.54 | 0.5268 | -738.0 | -585.6 | |
| 0.00 | 2.94 | 0.00 | 1.73 | 16.10 | 83.57 | -32.11 | 71.37 | 0.5411 | -542.0 | -461.6 | |
| 0.00 | 10.07 | 0.00 | 5.86 | 12.98 | 84.03 | -31.65 | 77.01 | 0.5268 | -511.0 | -704.8 | |
| 0.00 | 1.25 | 0.00 | 0.73 | 14.25 | 83.84 | -31.84 | 74.68 | 0.5322 | -555.0 | -470.9 | |
| 0.00 | 2.85 | 0.00 | 1.67 | 13.70 | 83.82 | -31.86 | 75.72 | 0.5313 | -534.0 | -465.2 | |
| 0.00 | 3.30 | 0.00 | 1.92 | 12.58 | 83.94 | -31.74 | 77.79 | 0.5274 | -547.0 | -610.6 | |
| 0.00 | 0.89 | 0.00 | 0.52 | 11.85 | 84.04 | -31.64 | 79.15 | 0.5249 | -469.0 | -369.0 | |
| 0.00 | 1.87 | 0.00 | 1.09 | 13.35 | 83.72 | -31.96 | 76.38 | 0.5320 | -503.0 | -377.5 | |
| 0.00 | 1.07 | 0.00 | 0.63 | 13.04 | 83.62 | -32.06 | 76.99 | 0.5328 | -457.0 | -384.1 | |
| 0.00 | 2.67 | 0.00 | 1.56 | 12.65 | 83.64 | -32.04 | 77.72 | 0.5319 | -502.0 | -460.1 | |
| 0.00 | 0.89 | 0.00 | 0.52 | 12.39 | 83.46 | -32.23 | 78.24 | 0.5341 | -529.0 | -431.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
