SDO HMI 2014-09-08 23:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.15 | 79.54 | 11.12 | 55.36 | -20.43 | 80.17 | -35.51 | 129.19 | 0.7033 | 223.8 | 231.7 | |
|
previous
or next observation for the same group /

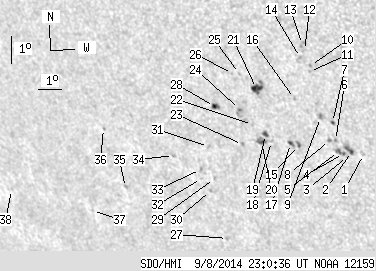

back to the solar disc SDO HMI 2014-09-08 23:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.60 | -21.03 | 83.93 | -31.75 | 132.89 | 0.6728 | 493.0 | 457.4 | |
| 1.07 | 4.99 | 0.72 | 3.35 | -20.96 | 83.49 | -32.19 | 132.43 | 0.6764 | 817.5 | 763.8 | |
| 0.00 | 1.43 | 0.00 | 0.96 | -21.15 | 83.29 | -32.39 | 132.47 | 0.6797 | 586.0 | 483.4 | |
| 0.36 | 4.46 | 0.24 | 3.01 | -21.05 | 83.16 | -32.52 | 132.25 | 0.6802 | 736.0 | 644.4 | |
| 0.89 | -4.00 | 0.60 | -4.00 | -21.00 | 82.98 | -32.70 | 132.04 | 0.6814 | 810.2 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.84 | -20.63 | 82.96 | -32.73 | 131.58 | 0.6787 | 771.0 | 642.0 | |
| 0.53 | 1.52 | 0.36 | 1.01 | -20.01 | 82.99 | -32.69 | 130.89 | 0.6736 | -450.7 | -410.0 | |
| 0.00 | 1.87 | 0.00 | 1.26 | -20.64 | 82.72 | -32.96 | 131.41 | 0.6811 | 717.0 | 540.6 | |
| 0.00 | 2.23 | 0.00 | 1.49 | -19.88 | 82.56 | -33.12 | 130.37 | 0.6767 | 758.0 | 659.4 | |
| 0.00 | 1.16 | 0.00 | 0.77 | -18.13 | 82.58 | -33.11 | 128.26 | 0.6634 | 810.0 | 665.4 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -18.34 | 82.49 | -33.19 | 128.45 | 0.6657 | 625.0 | 532.9 | |
| 0.00 | 1.52 | 0.00 | 1.00 | -17.65 | 82.45 | -33.23 | 127.55 | 0.6610 | 452.0 | 444.8 | |
| 0.00 | 3.03 | 0.00 | 1.99 | -17.45 | 82.42 | -33.26 | 127.28 | 0.6599 | 494.0 | 628.7 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -17.89 | 82.25 | -33.43 | 127.69 | 0.6649 | 761.0 | 554.4 | |
| 0.36 | 2.76 | 0.24 | 1.90 | -20.91 | 81.45 | -34.23 | 130.67 | 0.6952 | 905.2 | 664.4 | |
| 0.00 | 1.07 | 0.00 | 0.72 | -19.30 | 81.70 | -33.99 | 128.97 | 0.6809 | -670.0 | -578.4 | |
| 1.25 | 3.03 | 0.86 | 2.09 | -20.86 | 81.15 | -34.53 | 130.38 | 0.6977 | 515.9 | 406.2 | |
| 0.00 | 1.34 | 0.00 | 0.93 | -20.85 | 80.40 | -35.28 | 129.78 | 0.7047 | 693.0 | 526.6 | |
| 1.43 | 2.94 | 0.99 | 2.05 | -20.63 | 80.22 | -35.46 | 129.39 | 0.7048 | 735.4 | 519.4 | |
| 2.23 | 5.62 | 1.56 | 3.93 | -20.88 | 79.99 | -35.69 | 129.51 | 0.7088 | 598.4 | 538.3 | |
| 5.62 | 11.41 | 3.85 | 7.81 | -19.07 | 80.27 | -35.41 | 127.58 | 0.6934 | -838.7 | -651.2 | |
| 0.00 | 1.25 | 0.00 | 0.87 | -20.32 | 79.79 | -35.89 | 128.70 | 0.7068 | 249.0 | 198.9 | |
| 0.00 | 1.43 | 0.00 | 1.01 | -21.05 | 79.19 | -36.50 | 129.10 | 0.7176 | 575.0 | 470.8 | |
| 0.36 | 4.19 | 0.25 | 2.93 | -19.85 | 79.40 | -36.28 | 127.85 | 0.7073 | -853.0 | -697.9 | |
| 0.00 | 0.80 | 0.00 | 0.55 | -18.61 | 79.72 | -35.97 | 126.61 | 0.6957 | -378.0 | -452.8 | |
| 0.00 | 0.62 | 0.00 | 0.43 | -18.64 | 79.43 | -36.25 | 126.43 | 0.6987 | -421.0 | -478.3 | |
| 0.00 | 1.78 | 0.00 | 1.34 | -24.43 | 77.47 | -38.21 | 131.64 | 0.7559 | 567.0 | 469.1 | |
| 2.05 | 4.19 | 1.45 | 2.97 | -19.82 | 78.40 | -37.28 | 127.10 | 0.7168 | -734.8 | -601.5 | |
| 0.00 | 1.25 | 0.00 | 0.92 | -22.33 | 77.64 | -38.04 | 129.45 | 0.7405 | 637.0 | 539.6 | |
| 0.00 | 1.34 | 0.00 | 0.99 | -22.77 | 77.33 | -38.35 | 129.72 | 0.7461 | 479.0 | 383.5 | |
| 0.00 | 1.52 | 0.00 | 1.10 | -21.23 | 77.74 | -37.94 | 128.27 | 0.7323 | 530.0 | 440.9 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -22.38 | 77.09 | -38.60 | 129.12 | 0.7458 | 502.0 | 438.0 | |
| 0.00 | 1.52 | 0.00 | 1.12 | -22.07 | 77.15 | -38.54 | 128.81 | 0.7432 | 785.0 | 578.7 | |
| 0.00 | 1.52 | 0.00 | 1.13 | -21.67 | 76.14 | -39.54 | 127.68 | 0.7498 | 309.0 | 310.5 | |
| 0.00 | 0.71 | 0.00 | 0.56 | -22.99 | 73.59 | -42.09 | 127.52 | 0.7803 | 485.0 | 456.6 | |
| 0.00 | 1.07 | 0.00 | 0.83 | -21.00 | 73.36 | -42.32 | 125.15 | 0.7711 | 551.0 | 414.0 | |
| 0.00 | 0.98 | 0.00 | 0.81 | -23.96 | 71.70 | -43.98 | 127.45 | 0.8015 | -567.0 | -452.5 | |
| 0.00 | 0.80 | 0.00 | 0.71 | -23.59 | 68.02 | -47.66 | 125.04 | 0.8295 | -607.0 | -439.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
