SDO HMI 2014-09-08 23:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.58 | 182.72 | 31.44 | 161.11 | -16.35 | 64.59 | -51.10 | 115.50 | 0.8284 | 226.3 | 59.6 | |
|
previous
or next observation for the same group /

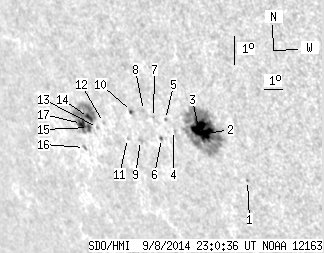

back to the solar disc SDO HMI 2014-09-08 23:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.73 | -17.70 | 68.27 | -47.42 | 118.64 | 0.8014 | 467.0 | 398.3 | |
| 10.61 | 120.69 | 8.90 | 101.51 | -16.30 | 66.80 | -48.88 | 116.35 | 0.8092 | 923.8 | 257.4 | |
| 13.19 | -2.00 | 11.13 | -2.00 | -16.14 | 66.47 | -49.22 | 116.02 | 0.8116 | 783.8 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.62 | -16.37 | 65.16 | -50.52 | 115.71 | 0.8242 | 460.0 | 378.8 | |
| 0.00 | 0.89 | 0.00 | 0.78 | -16.04 | 64.88 | -50.80 | 115.22 | 0.8255 | 570.0 | 445.9 | |
| 0.45 | 1.34 | 0.40 | 1.19 | -16.70 | 64.43 | -51.25 | 115.79 | 0.8317 | 329.2 | 247.3 | |
| 0.00 | 0.62 | 0.00 | 0.55 | -16.04 | 64.28 | -51.41 | 114.97 | 0.8308 | 372.0 | 309.9 | |
| 0.00 | 1.60 | 0.00 | 1.43 | -15.85 | 63.84 | -51.85 | 114.59 | 0.8340 | -175.0 | -158.7 | |
| 0.00 | 2.85 | 0.00 | 2.60 | -16.89 | 63.29 | -52.40 | 115.52 | 0.8422 | -319.0 | -182.6 | |
| 0.98 | 2.59 | 0.89 | 2.35 | -15.95 | 63.18 | -52.50 | 114.44 | 0.8400 | -619.9 | -495.3 | |
| 0.00 | 0.71 | 0.00 | 0.66 | -16.89 | 62.60 | -53.08 | 115.26 | 0.8479 | -621.0 | -580.6 | |
| 0.00 | 1.07 | 0.00 | 1.02 | -16.49 | 61.48 | -54.20 | 114.38 | 0.8559 | -660.0 | -548.1 | |
| 0.00 | 1.43 | 0.00 | 1.37 | -16.70 | 61.07 | -54.61 | 114.45 | 0.8599 | -646.0 | -587.6 | |
| 3.57 | 45.73 | 3.46 | 44.70 | -16.41 | 60.70 | -54.99 | 114.00 | 0.8620 | -804.5 | -314.0 | |
| 2.50 | -14.00 | 2.44 | -14.00 | -16.75 | 60.55 | -55.14 | 114.32 | 0.8642 | -679.2 | 999999 | |
| 0.00 | 1.60 | 0.00 | 1.60 | -17.46 | 60.00 | -55.68 | 114.90 | 0.8706 | -443.0 | -282.4 | |
| 4.28 | -14.00 | 4.22 | -14.00 | -16.66 | 60.20 | -55.48 | 114.09 | 0.8667 | -430.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
