SDO HMI 2014-09-09 00:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.58 | 186.48 | 31.13 | 162.64 | -16.37 | 64.55 | -50.58 | 115.74 | 0.8239 | 272.1 | 68.6 | |
|
previous
or next observation for the same group /

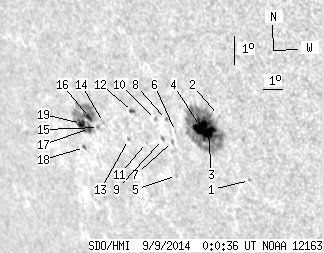

back to the solar disc SDO HMI 2014-09-09 00:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.65 | -17.71 | 68.27 | -46.86 | 118.92 | 0.7964 | 496.0 | 364.2 | |
| 0.00 | 0.62 | 0.00 | 0.51 | -15.66 | 67.50 | -47.63 | 116.18 | 0.7950 | 321.0 | 330.7 | |
| 11.68 | 119.28 | 9.68 | 99.15 | -16.28 | 66.83 | -48.30 | 116.59 | 0.8037 | 956.3 | 262.2 | |
| 11.68 | -3.00 | 9.73 | -3.00 | -16.11 | 66.50 | -48.63 | 116.25 | 0.8061 | 832.9 | 999999 | |
| 0.00 | 1.69 | 0.00 | 1.49 | -17.90 | 64.68 | -50.45 | 117.47 | 0.8292 | 356.0 | 331.2 | |
| 0.00 | 0.98 | 0.00 | 0.84 | -16.41 | 65.19 | -49.94 | 116.01 | 0.8191 | 345.0 | 358.3 | |
| 0.00 | 1.25 | 0.00 | 1.08 | -16.76 | 64.91 | -50.22 | 116.29 | 0.8229 | 351.0 | 266.8 | |
| 0.00 | 1.43 | 0.00 | 1.23 | -16.05 | 64.87 | -50.26 | 115.46 | 0.8207 | 578.0 | 416.9 | |
| 0.00 | 1.69 | 0.00 | 1.48 | -16.74 | 64.42 | -50.71 | 116.06 | 0.8272 | 437.0 | 287.2 | |
| 0.00 | 1.25 | 0.00 | 1.09 | -16.10 | 64.30 | -50.83 | 115.29 | 0.8259 | 419.0 | 329.1 | |
| 0.00 | 0.71 | 0.00 | 0.64 | -16.93 | 63.54 | -51.59 | 115.90 | 0.8355 | 69.0 | 112.2 | |
| 1.07 | 2.23 | 0.96 | 2.00 | -15.96 | 63.19 | -51.94 | 114.67 | 0.8352 | -539.8 | -507.3 | |
| 0.00 | 1.07 | 0.00 | 0.98 | -16.93 | 62.61 | -52.52 | 115.52 | 0.8434 | -641.0 | -591.8 | |
| 0.00 | 0.80 | 0.00 | 0.75 | -16.50 | 61.47 | -53.67 | 114.59 | 0.8515 | -699.0 | -644.2 | |
| 0.00 | 1.78 | 0.00 | 1.69 | -16.70 | 61.11 | -54.02 | 114.68 | 0.8550 | -650.0 | -602.8 | |
| 3.30 | 49.30 | 3.15 | 47.48 | -16.41 | 60.75 | -54.39 | 114.22 | 0.8572 | -836.7 | -320.4 | |
| 2.59 | -16.00 | 2.49 | -16.00 | -16.78 | 60.59 | -54.54 | 114.58 | 0.8596 | -666.3 | 999999 | |
| 0.62 | 1.60 | 0.61 | 1.58 | -17.47 | 60.01 | -55.12 | 115.11 | 0.8662 | -219.1 | -180.3 | |
| 4.64 | -16.00 | 4.51 | -16.00 | -16.66 | 60.20 | -54.93 | 114.30 | 0.8623 | -457.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
