SDO HMI 2014-09-09 01:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 262.94 | 1489.31 | 147.65 | 837.28 | 15.45 | 87.19 | -27.39 | 70.56 | 0.4726 | 319.0 | 27.7 | |
|
previous
or next observation for the same group /

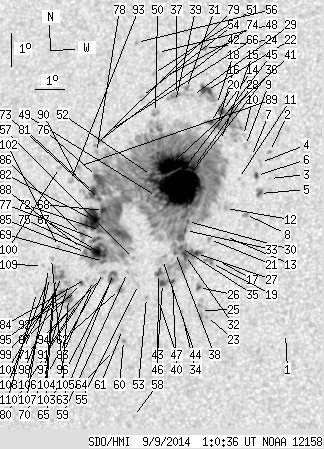

back to the solar disc SDO HMI 2014-09-09 01:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.53 | 11.54 | 92.03 | -22.56 | 77.40 | 0.3868 | -523.0 | -484.4 | |
| 0.00 | 1.34 | 0.00 | 0.73 | 17.04 | 90.89 | -23.69 | 64.90 | 0.4260 | -865.0 | -740.9 | |
| 0.00 | 0.80 | 0.00 | 0.44 | 16.21 | 91.00 | -23.59 | 66.66 | 0.4202 | -690.0 | -576.6 | |
| 0.00 | 2.85 | 0.00 | 1.56 | 16.69 | 90.63 | -23.96 | 65.87 | 0.4280 | -509.0 | -362.8 | |
| 1.25 | 4.55 | 0.68 | 2.48 | 15.74 | 90.71 | -23.87 | 67.94 | 0.4220 | -972.8 | -798.2 | |
| 1.43 | 2.94 | 0.78 | 1.61 | 16.28 | 90.54 | -24.04 | 66.83 | 0.4271 | 692.6 | 432.5 | |
| 0.00 | 1.60 | 0.00 | 0.88 | 16.86 | 90.29 | -24.29 | 65.75 | 0.4336 | 660.0 | 505.7 | |
| 0.00 | 2.85 | 0.00 | 1.56 | 15.08 | 90.31 | -24.27 | 69.70 | 0.4249 | -1024.0 | -601.1 | |
| 0.00 | 2.32 | 0.00 | 1.28 | 17.18 | 90.04 | -24.54 | 65.22 | 0.4389 | 745.0 | 631.7 | |
| 0.00 | 1.87 | 0.00 | 1.03 | 17.48 | 89.93 | -24.66 | 64.66 | 0.4421 | -632.0 | -499.8 | |
| 0.00 | 1.07 | 0.00 | 0.59 | 16.16 | 89.93 | -24.65 | 67.52 | 0.4353 | -667.0 | -444.2 | |
| 0.00 | 2.14 | 0.00 | 1.18 | 15.23 | 89.61 | -24.98 | 69.79 | 0.4360 | -348.0 | -280.8 | |
| 0.00 | 1.87 | 0.00 | 1.03 | 14.38 | 89.71 | -24.87 | 71.64 | 0.4311 | -555.0 | -348.7 | |
| 4.01 | 55.10 | 2.23 | 30.60 | 18.18 | 89.05 | -25.53 | 63.84 | 0.4581 | 1020.5 | 361.1 | |
| 0.00 | 1.25 | 0.00 | 0.69 | 17.29 | 89.15 | -25.43 | 65.62 | 0.4520 | 416.0 | 380.7 | |
| 2.50 | -14.00 | 1.39 | -14.00 | 17.74 | 88.98 | -25.60 | 64.79 | 0.4568 | 1124.0 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.49 | 13.64 | 89.52 | -25.06 | 73.42 | 0.4313 | -787.0 | -620.3 | |
| 0.00 | 1.43 | 0.00 | 0.80 | 18.38 | 88.84 | -25.74 | 63.58 | 0.4621 | -42.0 | 37.6 | |
| 0.45 | 5.35 | 0.24 | 2.94 | 13.53 | 89.32 | -25.26 | 73.74 | 0.4339 | -977.2 | -786.6 | |
| 2.14 | -14.00 | 1.19 | -14.00 | 17.82 | 88.72 | -25.86 | 64.81 | 0.4608 | 952.0 | 999999 | |
| 0.00 | 1.78 | 0.00 | 0.98 | 14.26 | 89.17 | -25.41 | 72.18 | 0.4386 | -794.0 | -613.5 | |
| 6.51 | 18.81 | 3.65 | 10.54 | 18.80 | 88.42 | -26.16 | 63.05 | 0.4702 | 973.0 | 501.0 | |
| 0.00 | 1.07 | 0.00 | 0.59 | 11.92 | 89.32 | -25.26 | 77.43 | 0.4295 | -977.0 | -812.1 | |
| 0.45 | 1.78 | 0.25 | 1.01 | 20.08 | 88.13 | -26.46 | 60.75 | 0.4815 | 936.8 | 806.5 | |
| 0.00 | 9.36 | 0.00 | 5.14 | 12.09 | 89.10 | -25.48 | 77.11 | 0.4333 | -732.0 | -775.4 | |
| 0.98 | 2.76 | 0.54 | 1.52 | 12.78 | 88.96 | -25.62 | 75.59 | 0.4372 | -1067.5 | -898.0 | |
| 1.96 | 1222.39 | 1.08 | 687.29 | 13.81 | 88.78 | -25.81 | 73.37 | 0.4430 | -814.9 | 70.2 | |
| 3.57 | -27.00 | 1.99 | -27.00 | 16.42 | 88.33 | -26.25 | 67.98 | 0.4596 | 1454.9 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.55 | 18.62 | 87.95 | -26.63 | 63.74 | 0.4756 | 797.0 | 692.7 | |
| 0.80 | -27.00 | 0.45 | -27.00 | 14.76 | 88.35 | -26.24 | 71.49 | 0.4527 | 797.1 | 999999 | |
| 0.71 | 3.48 | 0.40 | 1.96 | 18.82 | 87.70 | -26.88 | 63.51 | 0.4801 | 842.0 | 682.3 | |
| 3.74 | -27.00 | 2.07 | -27.00 | 13.73 | 88.40 | -26.18 | 73.71 | 0.4483 | 973.5 | 999999 | |
| 0.80 | -27.00 | 0.45 | -27.00 | 14.49 | 88.31 | -26.27 | 72.10 | 0.4522 | 735.0 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.84 | 12.03 | 88.46 | -26.13 | 77.47 | 0.4430 | -714.0 | -549.2 | |
| 1.43 | -27.00 | 0.79 | -27.00 | 13.96 | 88.20 | -26.38 | 73.29 | 0.4521 | 274.3 | 999999 | |
| 109.93 | -27.00 | 61.37 | -27.00 | 15.78 | 87.93 | -26.65 | 69.54 | 0.4626 | 1519.6 | 999999 | |
| 0.00 | 11.15 | 0.00 | 6.30 | 18.59 | 87.38 | -27.20 | 64.18 | 0.4832 | 850.0 | 671.2 | |
| 0.71 | -27.00 | 0.40 | -27.00 | 13.80 | 88.05 | -26.53 | 73.70 | 0.4538 | 397.6 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.35 | 18.40 | 87.38 | -27.20 | 64.55 | 0.4823 | 653.0 | 481.0 | |
| 1.43 | -27.00 | 0.79 | -27.00 | 12.92 | 88.05 | -26.53 | 75.63 | 0.4513 | -929.4 | 999999 | |
| 41.64 | -27.00 | 23.36 | -27.00 | 16.50 | 87.54 | -27.04 | 68.27 | 0.4712 | 1226.5 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.71 | 19.11 | 86.82 | -27.76 | 63.53 | 0.4936 | 703.0 | 532.5 | |
| 2.76 | -27.00 | 1.54 | -27.00 | 12.84 | 87.71 | -26.87 | 75.93 | 0.4562 | -1077.4 | 999999 | |
| 0.00 | 6.24 | 0.00 | 3.48 | 13.57 | 87.62 | -26.96 | 74.39 | 0.4595 | -63.0 | 75.0 | |
| 2.50 | -27.00 | 1.40 | -27.00 | 15.44 | 87.34 | -27.24 | 70.55 | 0.4698 | 769.1 | 999999 | |
| 2.59 | -27.00 | 1.44 | -27.00 | 13.13 | 87.54 | -27.05 | 75.35 | 0.4596 | -760.5 | 999999 | |
| 0.00 | 1.69 | 0.00 | 0.94 | 12.35 | 87.63 | -26.96 | 77.02 | 0.4563 | -803.0 | -681.1 | |
| 0.00 | 1.16 | 0.00 | 0.66 | 19.87 | 86.46 | -28.12 | 62.34 | 0.5024 | 673.0 | 572.8 | |
| 0.27 | -27.00 | 0.15 | -27.00 | 15.46 | 87.16 | -27.42 | 70.59 | 0.4725 | 627.0 | 999999 | |
| 0.00 | 5.17 | 0.00 | 2.93 | 18.02 | 86.73 | -27.86 | 65.70 | 0.4895 | 594.0 | 430.7 | |
| 0.00 | 1.69 | 0.00 | 0.97 | 19.21 | 86.44 | -28.14 | 63.59 | 0.4993 | 598.0 | 537.6 | |
| 2.41 | -27.00 | 1.36 | -27.00 | 16.09 | 86.89 | -27.69 | 69.44 | 0.4788 | 799.7 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.75 | 12.39 | 87.20 | -27.38 | 77.07 | 0.4627 | -905.0 | -718.1 | |
| 0.00 | 1.69 | 0.00 | 0.97 | 18.48 | 86.14 | -28.44 | 65.16 | 0.4997 | 423.0 | 328.9 | |
| 0.00 | 1.78 | 0.00 | 1.00 | 12.76 | 86.88 | -27.70 | 76.36 | 0.4684 | 425.0 | 298.2 | |
| 0.00 | 1.69 | 0.00 | 0.98 | 20.13 | 85.64 | -28.94 | 62.39 | 0.5147 | 666.0 | 544.6 | |
| 0.00 | 1.16 | 0.00 | 0.65 | 13.54 | 86.61 | -27.97 | 74.82 | 0.4744 | 382.0 | 328.7 | |
| 0.00 | 1.25 | 0.00 | 0.70 | 8.77 | 87.10 | -27.48 | 84.94 | 0.4597 | -723.0 | -601.6 | |
| 0.00 | 1.25 | 0.00 | 0.70 | 13.10 | 86.45 | -28.13 | 75.78 | 0.4756 | -699.0 | -632.0 | |
| 0.00 | 1.25 | 0.00 | 0.70 | 11.04 | 86.55 | -28.03 | 80.10 | 0.4702 | -912.0 | -842.7 | |
| 0.00 | 1.34 | 0.00 | 0.75 | 11.37 | 86.48 | -28.10 | 79.42 | 0.4717 | -729.0 | -570.1 | |
| 0.98 | 4.64 | 0.55 | 2.61 | 12.57 | 86.24 | -28.34 | 76.96 | 0.4776 | -964.3 | -783.9 | |
| 2.14 | 11.15 | 1.21 | 6.30 | 13.05 | 85.97 | -28.61 | 76.06 | 0.4827 | -1080.2 | -759.1 | |
| 0.00 | 1.87 | 0.00 | 1.05 | 10.72 | 86.23 | -28.35 | 80.84 | 0.4745 | -751.0 | -589.7 | |
| 2.23 | -63.00 | 1.26 | -63.00 | 12.86 | 85.92 | -28.66 | 76.46 | 0.4829 | -937.2 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.41 | 17.38 | 85.18 | -29.41 | 67.80 | 0.5081 | 659.0 | 555.1 | |
| 1.87 | -27.00 | 1.06 | -27.00 | 13.57 | 85.58 | -29.00 | 75.11 | 0.4896 | -1185.9 | 999999 | |
| 3.03 | -27.00 | 1.73 | -27.00 | 14.93 | 85.35 | -29.23 | 72.47 | 0.4968 | -1404.9 | 999999 | |
| 1.16 | -27.00 | 0.66 | -27.00 | 13.39 | 85.57 | -29.01 | 75.49 | 0.4893 | -873.4 | 999999 | |
| 0.00 | 2.41 | 0.00 | 1.36 | 13.06 | 85.61 | -28.97 | 76.15 | 0.4879 | -888.0 | -747.0 | |
| 0.00 | 1.34 | 0.00 | 0.76 | 12.87 | 85.57 | -29.02 | 76.54 | 0.4882 | -765.0 | -647.7 | |
| 1.52 | -27.00 | 0.86 | -27.00 | 14.32 | 85.34 | -29.25 | 73.69 | 0.4952 | -1012.9 | 999999 | |
| 1.43 | -27.00 | 0.82 | -27.00 | 15.26 | 85.16 | -29.42 | 71.91 | 0.5006 | -1042.3 | 999999 | |
| 0.00 | 5.08 | 0.00 | 2.92 | 17.05 | 84.87 | -29.71 | 68.58 | 0.5111 | -409.0 | -4.0 | |
| 8.38 | -27.00 | 4.77 | -27.00 | 13.65 | 85.29 | -29.30 | 75.06 | 0.4941 | -1156.4 | 999999 | |
| 1.96 | -27.00 | 1.13 | -27.00 | 15.95 | 84.94 | -29.64 | 70.65 | 0.5059 | -900.3 | 999999 | |
| 2.67 | -27.00 | 1.52 | -27.00 | 14.04 | 85.23 | -29.35 | 74.29 | 0.4959 | -998.9 | 999999 | |
| 0.00 | 2.32 | 0.00 | 1.33 | 16.68 | 84.82 | -29.76 | 69.31 | 0.5103 | -458.0 | -449.7 | |
| 0.00 | 1.07 | 0.00 | 0.62 | 16.89 | 84.71 | -29.87 | 68.96 | 0.5126 | -910.0 | -779.7 | |
| 0.00 | 1.96 | 0.00 | 1.11 | 12.79 | 85.33 | -29.26 | 76.76 | 0.4916 | -686.0 | -589.1 | |
| 5.97 | -27.00 | 3.42 | -27.00 | 15.46 | 84.91 | -29.67 | 71.62 | 0.5047 | -1143.1 | 999999 | |
| 26.30 | -27.00 | 15.04 | -27.00 | 14.64 | 85.00 | -29.58 | 73.19 | 0.5009 | -1102.7 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.81 | 12.64 | 85.27 | -29.31 | 77.09 | 0.4920 | -679.0 | -546.8 | |
| 0.00 | 1.43 | 0.00 | 0.81 | 12.84 | 85.04 | -29.55 | 76.75 | 0.4959 | -826.0 | -671.2 | |
| 1.43 | -27.00 | 0.81 | -27.00 | 13.62 | 84.90 | -29.69 | 75.23 | 0.4998 | -547.1 | 999999 | |
| 1.07 | -27.00 | 0.61 | -27.00 | 14.16 | 84.68 | -29.90 | 74.24 | 0.5043 | -725.0 | 999999 | |
| 0.80 | 2.94 | 0.46 | 1.68 | 12.68 | 84.88 | -29.70 | 77.12 | 0.4979 | -864.0 | -682.4 | |
| 0.00 | 0.98 | 0.00 | 0.56 | 13.73 | 84.74 | -29.84 | 75.06 | 0.5023 | -177.0 | -231.7 | |
| 0.00 | 1.16 | 0.00 | 0.67 | 16.22 | 84.25 | -30.34 | 70.45 | 0.5167 | -932.0 | -776.4 | |
| 0.00 | 0.98 | 0.00 | 0.57 | 15.79 | 84.32 | -30.26 | 71.23 | 0.5143 | -798.0 | -702.0 | |
| 0.00 | 1.16 | 0.00 | 0.66 | 12.06 | 84.81 | -29.77 | 78.36 | 0.4977 | -850.0 | -721.9 | |
| 0.00 | 0.71 | 0.00 | 0.41 | 12.39 | 84.74 | -29.85 | 77.72 | 0.4995 | -649.0 | -571.1 | |
| 0.00 | 3.03 | 0.00 | 1.75 | 15.77 | 84.03 | -30.55 | 71.38 | 0.5183 | -788.0 | -640.5 | |
| 0.00 | 5.08 | 0.00 | 2.91 | 11.87 | 84.59 | -30.00 | 78.80 | 0.5008 | -569.0 | -567.9 | |
| 0.00 | 1.25 | 0.00 | 0.71 | 12.47 | 84.51 | -30.07 | 77.62 | 0.5029 | -887.0 | -732.4 | |
| 0.00 | 6.78 | 0.00 | 3.88 | 12.20 | 84.47 | -30.11 | 78.17 | 0.5029 | -885.0 | -803.5 | |
| 0.00 | 3.83 | 0.00 | 2.20 | 12.65 | 84.42 | -30.17 | 77.29 | 0.5046 | -815.0 | -782.1 | |
| 1.25 | 12.30 | 0.72 | 7.08 | 12.84 | 84.14 | -30.44 | 76.98 | 0.5091 | -905.2 | -619.3 | |
| 1.25 | 4.01 | 0.72 | 2.30 | 12.39 | 84.16 | -30.42 | 77.86 | 0.5079 | -827.6 | -628.1 | |
| 0.00 | 1.78 | 0.00 | 1.04 | 16.14 | 83.56 | -31.02 | 70.87 | 0.5260 | -572.0 | -490.4 | |
| 0.00 | 1.25 | 0.00 | 0.72 | 12.60 | 84.06 | -30.52 | 77.48 | 0.5097 | -760.0 | -636.1 | |
| 0.00 | 1.34 | 0.00 | 0.77 | 13.74 | 83.91 | -30.68 | 75.29 | 0.5144 | -656.0 | -550.1 | |
| 0.53 | -98.00 | 0.31 | -98.00 | 12.80 | 83.93 | -30.65 | 77.11 | 0.5120 | -733.7 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.67 | 12.43 | 83.91 | -30.68 | 77.83 | 0.5117 | -551.0 | -513.1 | |
| 0.00 | 1.52 | 0.00 | 0.88 | 13.37 | 83.71 | -30.87 | 76.08 | 0.5164 | -526.0 | -409.5 | |
| 0.00 | 1.07 | 0.00 | 0.62 | 12.79 | 83.71 | -30.87 | 77.19 | 0.5151 | -436.0 | -370.6 | |
| 0.00 | 0.62 | 0.00 | 0.36 | 13.06 | 83.64 | -30.94 | 76.69 | 0.5167 | -418.0 | -346.6 | |
| 0.00 | 1.69 | 0.00 | 0.98 | 12.63 | 83.63 | -30.95 | 77.52 | 0.5161 | -374.0 | -372.2 | |
| 0.00 | 1.25 | 0.00 | 0.72 | 13.13 | 83.41 | -31.17 | 76.60 | 0.5202 | -377.0 | -295.3 | |
| 0.00 | 1.16 | 0.00 | 0.67 | 12.31 | 83.31 | -31.27 | 78.21 | 0.5202 | -515.0 | -356.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
