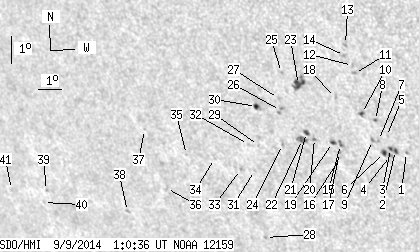

SDO HMI 2014-09-09 01:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.33 | 77.82 | 10.36 | 53.92 | -20.59 | 79.60 | -34.98 | 129.86 | 0.6989 | 223.9 | 215.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-09 01:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.25 | 0.00 | 0.82 | -20.99 | 83.97 | -30.61 | 133.86 | 0.6617 | 780.0 | 655.0 | |
| 1.07 | 4.46 | 0.71 | 2.95 | -20.95 | 83.56 | -31.02 | 133.45 | 0.6652 | 826.5 | 742.3 | |
| 0.71 | -2.00 | 0.47 | -2.00 | -20.89 | 83.39 | -31.19 | 133.22 | 0.6664 | 889.0 | 999999 | |
| 0.00 | 1.78 | 0.00 | 1.19 | -21.14 | 83.33 | -31.25 | 133.46 | 0.6689 | 645.0 | 583.0 | |
| 0.00 | 0.53 | 0.00 | 0.35 | -20.49 | 83.33 | -31.25 | 132.70 | 0.6636 | 305.0 | 211.3 | |
| 1.69 | 3.12 | 1.13 | 2.08 | -21.05 | 83.12 | -31.46 | 133.17 | 0.6701 | 742.4 | 579.2 | |
| 0.00 | 0.80 | 0.00 | 0.53 | -20.65 | 82.99 | -31.59 | 132.59 | 0.6681 | 690.0 | 708.7 | |
| 0.45 | 1.34 | 0.29 | 0.88 | -19.97 | 83.03 | -31.55 | 131.82 | 0.6622 | -544.0 | -398.0 | |
| 0.00 | 2.05 | 0.00 | 1.37 | -20.66 | 82.76 | -31.82 | 132.40 | 0.6704 | 673.0 | 530.3 | |
| 0.89 | 2.14 | 0.59 | 1.42 | -19.76 | 82.55 | -32.03 | 131.16 | 0.6653 | 722.3 | 527.2 | |
| 0.00 | 1.87 | 0.00 | 1.22 | -18.42 | 82.58 | -32.00 | 129.55 | 0.6543 | 754.0 | 556.3 | |
| 0.00 | 1.60 | 0.00 | 1.05 | -18.16 | 82.56 | -32.02 | 129.20 | 0.6525 | 706.0 | 537.1 | |
| 0.00 | 1.52 | 0.00 | 0.98 | -17.47 | 82.44 | -32.14 | 128.24 | 0.6484 | 771.0 | 689.4 | |
| 0.00 | 1.34 | 0.00 | 0.87 | -17.84 | 82.33 | -32.26 | 128.61 | 0.6524 | 732.0 | 647.3 | |
| 0.36 | 2.23 | 0.24 | 1.51 | -20.89 | 81.48 | -33.11 | 131.58 | 0.6844 | 855.5 | 718.7 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -21.34 | 81.36 | -33.22 | 132.00 | 0.6890 | 579.0 | 567.0 | |
| 0.00 | 1.34 | 0.00 | 0.91 | -21.17 | 81.37 | -33.22 | 131.81 | 0.6877 | 739.0 | 594.7 | |
| 0.00 | 1.16 | 0.00 | 0.77 | -19.29 | 81.67 | -32.91 | 129.84 | 0.6702 | -736.0 | -556.4 | |
| 0.98 | 2.23 | 0.67 | 1.51 | -20.85 | 81.18 | -33.40 | 131.28 | 0.6869 | 586.1 | 587.4 | |
| 0.00 | 1.60 | 0.00 | 1.10 | -20.76 | 80.50 | -34.08 | 130.62 | 0.6927 | 550.0 | 555.9 | |
| 1.34 | 2.94 | 0.92 | 2.02 | -20.58 | 80.23 | -34.35 | 130.20 | 0.6939 | 719.4 | 495.1 | |
| 0.00 | 6.06 | 0.00 | 4.18 | -20.83 | 80.01 | -34.57 | 130.32 | 0.6979 | 684.0 | 536.8 | |
| 5.97 | 10.52 | 4.03 | 7.09 | -18.95 | 80.32 | -34.26 | 128.34 | 0.6810 | -812.7 | -702.8 | |
| 0.00 | 1.34 | 0.00 | 0.93 | -21.07 | 79.15 | -35.43 | 129.92 | 0.7077 | 579.0 | 487.9 | |
| 0.00 | 1.07 | 0.00 | 0.72 | -18.59 | 79.75 | -34.83 | 127.45 | 0.6842 | -655.0 | -474.2 | |
| 0.00 | 3.03 | 0.00 | 2.09 | -19.90 | 79.39 | -35.19 | 128.74 | 0.6971 | -862.0 | -737.5 | |
| 0.00 | 1.07 | 0.00 | 0.73 | -19.49 | 79.41 | -35.17 | 128.27 | 0.6939 | -596.0 | -458.0 | |
| 0.00 | 1.16 | 0.00 | 0.86 | -24.42 | 77.42 | -37.16 | 132.37 | 0.7469 | 600.0 | 540.5 | |
| 0.00 | 0.80 | 0.00 | 0.57 | -21.18 | 78.16 | -36.42 | 129.31 | 0.7178 | 589.0 | 449.0 | |
| 1.87 | 4.28 | 1.31 | 2.98 | -19.83 | 78.45 | -36.13 | 127.96 | 0.7057 | -758.8 | -628.4 | |
| 0.00 | 0.80 | 0.00 | 0.58 | -22.07 | 77.73 | -36.85 | 130.00 | 0.7279 | 548.0 | 476.9 | |
| 0.00 | 1.60 | 0.00 | 1.14 | -21.18 | 77.76 | -36.83 | 129.01 | 0.7216 | 435.0 | 399.7 | |
| 0.00 | 1.43 | 0.00 | 1.04 | -22.08 | 77.16 | -37.43 | 129.60 | 0.7332 | 752.0 | 601.6 | |
| 0.00 | 1.07 | 0.00 | 0.79 | -21.78 | 76.17 | -38.41 | 128.57 | 0.7402 | 492.0 | 385.8 | |
| 0.00 | 0.80 | 0.00 | 0.60 | -21.74 | 75.01 | -39.57 | 127.74 | 0.7505 | 272.0 | 358.3 | |
| 0.00 | 2.23 | 0.00 | 1.72 | -23.03 | 73.70 | -40.88 | 128.32 | 0.7700 | 625.0 | 504.9 | |
| 0.00 | 0.80 | 0.00 | 0.61 | -21.03 | 73.46 | -41.12 | 125.93 | 0.7604 | 521.0 | 372.2 | |
| 0.00 | 1.52 | 0.00 | 1.23 | -24.01 | 71.58 | -43.01 | 128.08 | 0.7937 | -507.0 | -434.3 | |
| 0.00 | 0.89 | 0.00 | 0.77 | -23.63 | 67.96 | -46.62 | 125.62 | 0.8213 | -587.0 | -536.7 | |
| 0.00 | 0.71 | 0.00 | 0.62 | -24.08 | 67.60 | -46.98 | 125.91 | 0.8263 | -370.0 | -348.8 | |
| 0.00 | 1.07 | 0.00 | 0.96 | -23.77 | 66.18 | -48.40 | 124.85 | 0.8361 | -79.0 | -154.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
