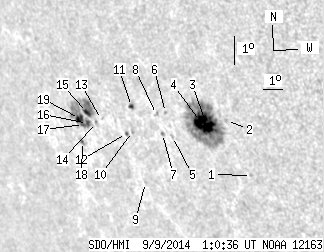

SDO HMI 2014-09-09 01:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.92 | 193.14 | 31.31 | 165.93 | -16.38 | 64.66 | -49.92 | 116.04 | 0.8181 | 191.5 | 86.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-09 01:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.86 | -17.71 | 68.36 | -46.22 | 119.25 | 0.7905 | 272.0 | 290.8 | |
| 0.00 | 1.52 | 0.00 | 1.22 | -15.97 | 67.77 | -46.81 | 116.93 | 0.7885 | 138.0 | 187.5 | |
| 10.34 | 127.05 | 8.47 | 104.41 | -16.29 | 66.78 | -47.80 | 116.84 | 0.7991 | 969.7 | 260.1 | |
| 10.97 | -3.00 | 9.03 | -3.00 | -16.12 | 66.51 | -48.07 | 116.52 | 0.8010 | 854.6 | 999999 | |
| 0.00 | 1.43 | 0.00 | 1.22 | -16.77 | 64.94 | -49.64 | 116.55 | 0.8178 | 457.0 | 362.2 | |
| 0.00 | 0.98 | 0.00 | 0.84 | -15.99 | 64.87 | -49.71 | 115.64 | 0.8155 | 560.0 | 529.8 | |
| 0.00 | 1.52 | 0.00 | 1.31 | -16.72 | 64.47 | -50.11 | 116.29 | 0.8218 | 461.0 | 278.9 | |
| 0.00 | 2.23 | 0.00 | 1.92 | -16.11 | 64.39 | -50.19 | 115.56 | 0.8203 | 501.0 | 360.4 | |
| 0.00 | 0.89 | 0.00 | 0.81 | -18.49 | 62.91 | -51.67 | 117.60 | 0.8416 | 404.0 | 309.6 | |
| 0.00 | 1.52 | 0.00 | 1.36 | -16.81 | 62.93 | -51.66 | 115.74 | 0.8356 | -571.0 | -540.5 | |
| 1.60 | 2.76 | 1.42 | 2.44 | -15.97 | 63.19 | -51.39 | 114.90 | 0.8304 | -664.9 | -532.9 | |
| 0.53 | 1.69 | 0.48 | 1.53 | -16.91 | 62.58 | -52.00 | 115.71 | 0.8389 | -594.8 | -551.2 | |
| 0.00 | 0.45 | 0.00 | 0.41 | -16.58 | 61.41 | -53.18 | 114.87 | 0.8477 | -662.0 | -639.4 | |
| 0.00 | 1.34 | 0.00 | 1.25 | -16.71 | 61.09 | -53.50 | 114.89 | 0.8508 | -690.0 | -616.3 | |
| 3.21 | 46.19 | 3.03 | 43.93 | -16.42 | 60.72 | -53.86 | 114.43 | 0.8529 | -826.6 | -318.5 | |
| 2.05 | -15.00 | 1.95 | -15.00 | -16.80 | 60.57 | -54.02 | 114.79 | 0.8553 | -711.4 | 999999 | |
| 1.96 | -15.00 | 1.88 | -15.00 | -16.85 | 60.32 | -54.26 | 114.76 | 0.8575 | -390.4 | 999999 | |
| 0.62 | 2.50 | 0.61 | 2.42 | -17.44 | 60.01 | -54.57 | 115.29 | 0.8618 | -237.9 | -177.8 | |
| 4.64 | -15.00 | 4.44 | -15.00 | -16.67 | 60.18 | -54.40 | 114.51 | 0.8581 | -473.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
