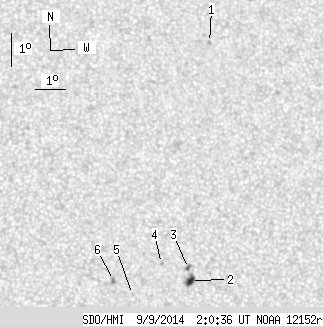

SDO HMI 2014-09-09 02:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.44 | 17.21 | 2.86 | 9.03 | 12.87 | 132.62 | 18.59 | 288.30 | 0.3301 | -288.0 | -121.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-09 02:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 0.72 | 19.42 | 134.45 | 20.41 | 303.54 | 0.3964 | -730.0 | -620.7 | |
| 4.64 | 8.11 | 2.44 | 4.26 | 12.19 | 133.06 | 19.03 | 286.21 | 0.3334 | -1013.3 | -681.0 | |
| 0.80 | 2.85 | 0.42 | 1.50 | 12.56 | 133.03 | 18.99 | 287.31 | 0.3342 | -899.3 | -692.0 | |
| 0.00 | 1.34 | 0.00 | 0.70 | 12.74 | 132.16 | 18.13 | 288.52 | 0.3214 | 665.0 | 486.0 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 11.84 | 131.15 | 17.12 | 286.49 | 0.3018 | 539.0 | 450.5 | |
| 0.00 | 2.59 | 0.00 | 1.34 | 12.29 | 130.57 | 16.54 | 288.43 | 0.2945 | 1012.0 | 835.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
