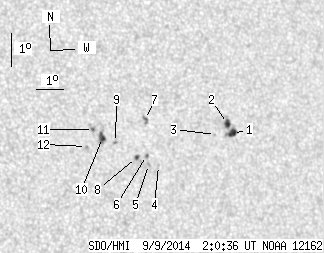

SDO HMI 2014-09-09 02:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.94 | 32.64 | 7.74 | 19.42 | 9.41 | 147.95 | 33.92 | 276.09 | 0.5554 | -179.8 | -241.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-09 02:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.37 | 13.55 | 2.67 | 8.28 | 9.33 | 150.25 | 36.22 | 275.90 | 0.5884 | -706.9 | -566.7 | |
| 3.21 | -1.00 | 1.96 | -1.00 | 9.65 | 150.10 | 36.07 | 276.44 | 0.5863 | -776.4 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.22 | 9.35 | 149.61 | 35.58 | 275.94 | 0.5794 | -668.0 | -531.8 | |
| 0.00 | 0.80 | 0.00 | 0.47 | 8.57 | 147.41 | 33.37 | 274.56 | 0.5478 | -423.0 | -356.8 | |
| 0.00 | 1.43 | 0.00 | 0.84 | 8.62 | 147.05 | 33.01 | 274.66 | 0.5426 | -473.0 | -414.8 | |
| 0.36 | 1.34 | 0.21 | 0.79 | 8.90 | 147.00 | 32.97 | 275.17 | 0.5419 | -651.2 | -542.8 | |
| 0.00 | 3.21 | 0.00 | 1.89 | 9.99 | 147.08 | 33.05 | 277.18 | 0.5435 | -802.0 | -669.5 | |
| 1.07 | 2.68 | 0.63 | 1.57 | 8.86 | 146.63 | 32.60 | 275.11 | 0.5366 | -770.5 | -596.2 | |
| 0.00 | 1.07 | 0.00 | 0.62 | 9.37 | 145.92 | 31.89 | 276.08 | 0.5263 | 560.0 | 485.2 | |
| 3.48 | 6.24 | 2.01 | 3.61 | 9.55 | 145.47 | 31.44 | 276.45 | 0.5197 | 872.6 | 670.7 | |
| 0.45 | 1.25 | 0.26 | 0.72 | 9.81 | 145.18 | 31.15 | 276.98 | 0.5155 | 915.8 | 801.6 | |
| 0.00 | 0.71 | 0.00 | 0.41 | 9.31 | 144.88 | 30.85 | 276.03 | 0.5108 | 750.0 | 666.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
