SDO HMI 2014-09-09 03:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 243.01 | 1035.30 | 135.61 | 579.14 | -13.85 | 95.91 | -17.57 | 140.99 | 0.4632 | -76.6 | -139.5 | |
|
previous
or next observation for the same group /

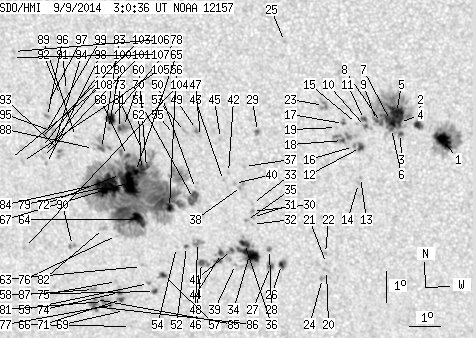

back to the solar disc SDO HMI 2014-09-09 03:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.44 | 66.17 | 10.37 | 35.27 | -12.27 | 103.92 | -9.57 | 153.97 | 0.3717 | 1257.7 | 474.3 | |
| 4.19 | 6.78 | 2.23 | 3.61 | -11.80 | 103.15 | -10.33 | 151.59 | 0.3707 | 1105.2 | 754.4 | |
| 1.25 | 118.88 | 0.67 | 63.40 | -12.07 | 102.57 | -10.91 | 150.63 | 0.3790 | 778.3 | 566.6 | |
| 3.03 | -3.00 | 1.62 | -3.00 | -11.72 | 102.56 | -10.93 | 150.12 | 0.3742 | 1030.7 | 999999 | |
| 14.89 | -3.00 | 7.94 | -3.00 | -11.41 | 102.48 | -11.01 | 149.50 | 0.3704 | 1298.9 | 999999 | |
| 1.61 | -3.00 | 0.86 | -3.00 | -11.92 | 102.30 | -11.19 | 149.81 | 0.3790 | 816.9 | 999999 | |
| 9.81 | -3.00 | 5.24 | -3.00 | -11.67 | 102.28 | -11.21 | 149.41 | 0.3756 | 1073.7 | 999999 | |
| 1.52 | -3.00 | 0.81 | -3.00 | -11.74 | 101.99 | -11.49 | 148.87 | 0.3790 | 843.9 | 999999 | |
| 1.43 | -3.00 | 0.76 | -3.00 | -11.68 | 101.84 | -11.65 | 148.45 | 0.3795 | 875.1 | 999999 | |
| 0.80 | 8.20 | 0.43 | 4.40 | -11.88 | 101.48 | -12.00 | 147.96 | 0.3852 | 875.9 | 700.4 | |
| 1.69 | -10.00 | 0.91 | -10.00 | -11.65 | 101.46 | -12.03 | 147.59 | 0.3824 | 890.4 | 999999 | |
| 2.59 | 4.28 | 1.39 | 2.31 | -12.56 | 101.29 | -12.19 | 148.48 | 0.3961 | 944.1 | 865.5 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -13.52 | 101.24 | -12.24 | 149.64 | 0.4097 | 831.0 | 697.4 | |
| 0.00 | 1.87 | 0.00 | 1.02 | -13.72 | 101.16 | -12.32 | 149.74 | 0.4130 | 743.0 | 525.1 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -11.79 | 101.20 | -12.28 | 147.23 | 0.3864 | 654.0 | 435.7 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -12.53 | 101.07 | -12.41 | 147.99 | 0.3976 | 681.0 | 623.6 | |
| 0.62 | 3.21 | 0.34 | 1.73 | -11.80 | 100.79 | -12.70 | 146.38 | 0.3902 | 845.7 | 660.2 | |
| 1.34 | 14.54 | 0.72 | 7.84 | -12.35 | 100.73 | -12.75 | 147.03 | 0.3980 | 912.7 | 753.1 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -11.93 | 100.56 | -12.92 | 146.10 | 0.3940 | 526.0 | 442.6 | |
| 0.00 | 2.85 | 0.00 | 1.59 | -16.60 | 99.95 | -13.53 | 150.79 | 0.4614 | -847.0 | -709.7 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -16.36 | 99.97 | -13.51 | 150.57 | 0.4582 | -757.0 | -647.9 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -16.04 | 99.96 | -13.52 | 150.18 | 0.4538 | -855.0 | -685.2 | |
| 0.00 | 6.15 | 0.00 | 3.31 | -11.24 | 100.18 | -13.30 | 144.30 | 0.3884 | 591.0 | 820.5 | |
| 0.00 | 2.76 | 0.00 | 1.55 | -16.86 | 99.80 | -13.68 | 150.82 | 0.4661 | -908.0 | -703.4 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -9.25 | 99.04 | -14.44 | 138.71 | 0.3746 | 711.0 | 519.5 | |
| 2.59 | 6.33 | 1.45 | 3.55 | -16.44 | 98.50 | -14.98 | 148.07 | 0.4707 | 851.2 | 679.3 | |
| 1.87 | 4.64 | 1.05 | 2.61 | -16.52 | 98.14 | -15.35 | 147.54 | 0.4747 | 759.6 | 673.4 | |
| 0.80 | 2.76 | 0.45 | 1.55 | -15.96 | 98.15 | -15.33 | 146.90 | 0.4674 | 926.3 | 786.8 | |
| 0.89 | 3.12 | 0.49 | 1.70 | -12.14 | 98.03 | -15.45 | 141.52 | 0.4204 | 926.0 | 685.3 | |
| 0.00 | 1.52 | 0.00 | 0.84 | -14.74 | 97.69 | -15.79 | 144.57 | 0.4559 | 864.0 | 696.4 | |
| 0.00 | 1.61 | 0.00 | 0.89 | -14.93 | 97.68 | -15.81 | 144.80 | 0.4585 | 713.0 | 627.8 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -15.16 | 97.66 | -15.82 | 145.07 | 0.4615 | 652.0 | 531.5 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -14.47 | 97.71 | -15.77 | 144.26 | 0.4524 | 630.0 | 602.6 | |
| 17.39 | 38.97 | 9.78 | 21.93 | -16.15 | 97.48 | -16.00 | 146.00 | 0.4755 | 1079.1 | 377.8 | |
| 0.00 | 1.69 | 0.00 | 0.95 | -15.04 | 97.47 | -16.01 | 144.59 | 0.4616 | 972.0 | 791.6 | |
| 5.17 | -34.00 | 2.90 | -34.00 | -15.79 | 97.35 | -16.14 | 145.34 | 0.4722 | 1095.3 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -13.28 | 97.54 | -15.94 | 142.32 | 0.4392 | 915.0 | 731.0 | |
| 0.00 | 3.30 | 0.00 | 1.83 | -13.93 | 97.40 | -16.09 | 142.99 | 0.4486 | 885.0 | 833.1 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -16.50 | 96.99 | -16.49 | 145.62 | 0.4840 | 683.0 | 507.5 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -13.84 | 97.18 | -16.31 | 142.49 | 0.4496 | 872.0 | 690.1 | |
| 1.16 | 4.55 | 0.65 | 2.57 | -16.04 | 96.90 | -16.58 | 144.92 | 0.4791 | 852.6 | 708.4 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -13.50 | 97.01 | -16.48 | 141.71 | 0.4469 | 798.0 | 660.5 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -13.76 | 96.82 | -16.66 | 141.78 | 0.4519 | 795.0 | 580.6 | |
| 2.41 | 14.00 | 1.36 | 7.93 | -16.15 | 96.56 | -16.92 | 144.51 | 0.4835 | 903.6 | 603.6 | |
| 0.00 | 1.69 | 0.00 | 0.93 | -12.41 | 96.82 | -16.66 | 139.81 | 0.4357 | -690.0 | -650.4 | |
| 2.41 | 6.69 | 1.37 | 3.80 | -16.47 | 95.87 | -17.61 | 143.83 | 0.4935 | 703.3 | 439.4 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -12.37 | 96.18 | -17.30 | 138.67 | 0.4418 | -683.0 | -619.2 | |
| 0.00 | 7.94 | 0.00 | 4.49 | -15.82 | 95.80 | -17.68 | 142.89 | 0.4863 | 736.0 | 481.4 | |
| 0.00 | 3.03 | 0.00 | 1.67 | -12.15 | 96.07 | -17.42 | 138.14 | 0.4404 | -1010.0 | -857.2 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -14.06 | 95.89 | -17.59 | 140.66 | 0.4645 | 378.0 | 365.1 | |
| 7.76 | 543.65 | 4.35 | 308.07 | -14.38 | 95.80 | -17.69 | 140.97 | 0.4692 | 837.9 | -384.9 | |
| 0.80 | 1.96 | 0.46 | 1.11 | -15.96 | 95.43 | -18.06 | 142.50 | 0.4915 | 668.2 | 508.8 | |
| 0.00 | 3.03 | 0.00 | 1.68 | -12.23 | 95.70 | -17.78 | 137.68 | 0.4451 | -820.0 | -776.1 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -16.01 | 95.09 | -18.39 | 142.05 | 0.4952 | 452.0 | 300.8 | |
| 0.00 | 2.32 | 0.00 | 1.28 | -12.34 | 95.34 | -18.15 | 137.26 | 0.4502 | -934.0 | -769.3 | |
| 4.28 | -51.00 | 2.42 | -51.00 | -14.71 | 94.98 | -18.50 | 140.15 | 0.4810 | 872.2 | 999999 | |
| 2.32 | 4.64 | 1.33 | 2.67 | -16.96 | 94.56 | -18.92 | 142.46 | 0.5111 | -920.3 | -717.7 | |
| 1.78 | 3.21 | 1.03 | 1.86 | -17.50 | 94.20 | -19.28 | 142.61 | 0.5207 | -904.6 | -700.8 | |
| 0.00 | 1.61 | 0.00 | 0.93 | -17.24 | 94.03 | -19.46 | 142.05 | 0.5193 | -939.0 | -737.3 | |
| 1.16 | -51.00 | 0.65 | -51.00 | -13.44 | 94.33 | -19.15 | 137.38 | 0.4731 | -1234.4 | 999999 | |
| 0.00 | 2.14 | 0.00 | 1.20 | -12.90 | 94.25 | -19.23 | 136.44 | 0.4679 | -908.0 | -735.7 | |
| 5.89 | -51.00 | 3.31 | -51.00 | -13.51 | 94.16 | -19.32 | 137.23 | 0.4756 | -1199.3 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.36 | -16.69 | 93.85 | -19.63 | 141.11 | 0.5145 | -756.0 | -713.7 | |
| 13.73 | -51.00 | 7.83 | -51.00 | -15.15 | 93.88 | -19.60 | 139.12 | 0.4968 | 794.8 | 999999 | |
| 6.96 | -51.00 | 3.92 | -51.00 | -13.58 | 93.96 | -19.52 | 137.04 | 0.4786 | -1326.1 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -18.71 | 93.24 | -20.24 | 142.73 | 0.5432 | -762.0 | -658.5 | |
| 34.51 | -51.00 | 19.53 | -51.00 | -13.95 | 93.73 | -19.75 | 137.23 | 0.4850 | -1290.6 | 999999 | |
| 1.87 | -51.00 | 1.05 | -51.00 | -13.08 | 93.74 | -19.74 | 135.97 | 0.4753 | -952.9 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.84 | -18.18 | 93.11 | -20.38 | 141.92 | 0.5384 | -713.0 | -534.1 | |
| 1.34 | 16.77 | 0.75 | 9.37 | -12.15 | 93.68 | -19.80 | 134.47 | 0.4659 | -1207.7 | -642.2 | |
| 1.69 | 7.22 | 0.99 | 4.22 | -17.82 | 93.05 | -20.43 | 141.40 | 0.5348 | -949.5 | -778.6 | |
| 4.01 | -51.00 | 2.27 | -51.00 | -13.70 | 93.45 | -20.03 | 136.48 | 0.4852 | -995.5 | 999999 | |
| 1.52 | -70.00 | 0.85 | -70.00 | -12.22 | 93.55 | -19.94 | 134.38 | 0.4682 | -1112.4 | 999999 | |
| 1.43 | -71.00 | 0.83 | -71.00 | -17.59 | 93.01 | -20.47 | 141.06 | 0.5326 | -1029.1 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.68 | -17.23 | 92.95 | -20.53 | 140.53 | 0.5291 | -592.0 | -521.0 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -15.70 | 93.12 | -20.36 | 138.80 | 0.5105 | 138.0 | 212.9 | |
| 0.00 | 2.05 | 0.00 | 1.20 | -18.00 | 92.83 | -20.66 | 141.31 | 0.5388 | -623.0 | -488.2 | |
| 7.22 | 9.72 | 4.04 | 5.44 | -11.91 | 93.28 | -20.21 | 133.51 | 0.4679 | -1043.4 | -696.4 | |
| 33.09 | -51.00 | 18.83 | -51.00 | -14.11 | 93.02 | -20.47 | 136.45 | 0.4941 | -1092.5 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -12.24 | 93.18 | -20.30 | 133.88 | 0.4723 | -909.0 | -765.1 | |
| 1.25 | 9.90 | 0.73 | 5.82 | -17.92 | 92.43 | -21.06 | 140.68 | 0.5416 | -995.3 | -755.6 | |
| 0.00 | 3.30 | 0.00 | 1.90 | -15.49 | 92.71 | -20.77 | 137.94 | 0.5123 | -406.0 | -447.9 | |
| 1.69 | 11.50 | 0.96 | 6.49 | -12.89 | 92.90 | -20.59 | 134.48 | 0.4824 | -820.2 | -646.8 | |
| 4.90 | -51.00 | 2.80 | -51.00 | -14.06 | 92.66 | -20.83 | 135.88 | 0.4974 | -1046.8 | 999999 | |
| 0.45 | 8.29 | 0.26 | 4.90 | -17.86 | 92.16 | -21.32 | 140.26 | 0.5435 | -873.8 | -653.6 | |
| 3.92 | -85.00 | 2.32 | -85.00 | -18.10 | 92.06 | -21.42 | 140.43 | 0.5470 | -779.6 | 999999 | |
| 0.00 | 2.14 | 0.00 | 1.26 | -17.53 | 92.14 | -21.35 | 139.82 | 0.5401 | -928.0 | -796.6 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -12.90 | 92.63 | -20.85 | 134.13 | 0.4854 | -438.0 | -361.5 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -12.54 | 92.06 | -21.42 | 132.82 | 0.4879 | -57.0 | -90.9 | |
| 0.00 | 3.83 | 0.00 | 2.24 | -16.10 | 91.60 | -21.89 | 137.28 | 0.5300 | -789.0 | -694.7 | |
| 0.00 | 2.23 | 0.00 | 1.25 | -11.08 | 91.89 | -21.59 | 130.28 | 0.4753 | -733.0 | -632.1 | |
| 0.00 | 1.52 | 0.00 | 0.85 | -11.25 | 91.68 | -21.81 | 130.27 | 0.4795 | -784.0 | -560.1 | |
| 0.54 | 4.55 | 0.31 | 2.60 | -13.02 | 91.49 | -22.00 | 132.78 | 0.4992 | -1055.0 | -753.8 | |
| 0.00 | 1.43 | 0.00 | 0.82 | -12.93 | 91.29 | -22.19 | 132.40 | 0.5004 | -869.0 | -651.7 | |
| 0.00 | 2.68 | 0.00 | 1.52 | -12.42 | 91.31 | -22.17 | 131.64 | 0.4952 | -813.0 | -713.5 | |
| 0.00 | 2.23 | 0.00 | 1.27 | -11.95 | 91.18 | -22.30 | 130.74 | 0.4919 | -881.0 | -755.0 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -11.53 | 91.22 | -22.26 | 130.13 | 0.4874 | -712.0 | -599.3 | |
| 0.00 | 1.34 | 0.00 | 0.77 | -13.46 | 91.01 | -22.48 | 132.82 | 0.5089 | -762.0 | -604.3 | |
| 0.00 | 5.08 | 0.00 | 2.90 | -12.46 | 91.07 | -22.41 | 131.40 | 0.4983 | -720.0 | -642.4 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -13.11 | 90.98 | -22.51 | 132.26 | 0.5057 | -638.0 | -535.0 | |
| 0.00 | 2.14 | 0.00 | 1.23 | -13.28 | 90.89 | -22.59 | 132.40 | 0.5083 | -514.0 | -502.7 | |
| 0.00 | 1.43 | 0.00 | 0.82 | -12.95 | 90.89 | -22.59 | 131.91 | 0.5051 | -514.0 | -404.6 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -12.63 | 90.89 | -22.60 | 131.42 | 0.5020 | -565.0 | -502.2 | |
| 0.00 | 1.61 | 0.00 | 0.95 | -16.25 | 89.94 | -23.54 | 135.40 | 0.5483 | -622.0 | -432.2 | |
| 0.00 | 1.96 | 0.00 | 1.13 | -13.44 | 90.20 | -23.28 | 131.78 | 0.5176 | -626.0 | -461.6 | |
| 0.00 | 1.43 | 0.00 | 0.81 | -9.93 | 90.22 | -23.27 | 126.27 | 0.4845 | -739.0 | -559.2 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -10.12 | 90.17 | -23.31 | 126.53 | 0.4868 | -617.0 | -549.3 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -13.36 | 89.80 | -23.68 | 131.18 | 0.5213 | -670.0 | -645.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
