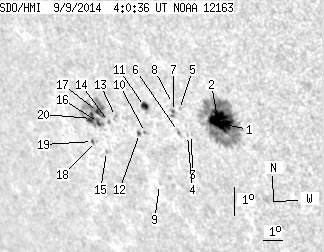

SDO HMI 2014-09-09 04:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.77 | 202.08 | 37.06 | 167.66 | -16.32 | 64.65 | -48.29 | 116.70 | 0.8030 | 289.8 | 28.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-09 04:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.65 | 131.82 | 10.81 | 104.69 | -16.23 | 66.85 | -46.08 | 117.59 | 0.7826 | 957.0 | 230.1 | |
| 16.14 | -1.00 | 12.84 | -1.00 | -16.03 | 66.60 | -46.34 | 117.23 | 0.7842 | 890.4 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.66 | -16.72 | 65.17 | -47.77 | 117.35 | 0.8005 | 481.0 | 411.3 | |
| 0.00 | 0.80 | 0.00 | 0.66 | -16.77 | 64.96 | -47.97 | 117.31 | 0.8027 | 528.0 | 430.1 | |
| 0.00 | 0.80 | 0.00 | 0.66 | -15.94 | 64.86 | -48.07 | 116.30 | 0.8002 | 684.0 | 574.6 | |
| 0.00 | 1.78 | 0.00 | 1.49 | -16.68 | 64.57 | -48.37 | 117.02 | 0.8059 | 164.0 | 176.6 | |
| 0.45 | 2.23 | 0.37 | 1.85 | -16.03 | 64.55 | -48.39 | 116.27 | 0.8035 | 552.6 | 431.0 | |
| 0.00 | 0.80 | 0.00 | 0.66 | -15.77 | 64.58 | -48.35 | 115.98 | 0.8021 | 525.0 | 446.9 | |
| 0.00 | 0.71 | 0.00 | 0.63 | -18.59 | 62.93 | -50.01 | 118.43 | 0.8279 | 424.0 | 396.1 | |
| 0.00 | 1.34 | 0.00 | 1.16 | -16.88 | 62.89 | -50.04 | 116.50 | 0.8218 | -678.0 | -561.9 | |
| 3.66 | 6.33 | 3.12 | 5.40 | -16.01 | 63.16 | -49.78 | 115.62 | 0.8162 | -707.3 | -502.5 | |
| 0.89 | 1.78 | 0.78 | 1.56 | -16.95 | 62.57 | -50.36 | 116.44 | 0.8248 | -558.3 | -559.2 | |
| 0.00 | 2.59 | 0.00 | 2.30 | -16.50 | 61.53 | -51.40 | 115.49 | 0.8323 | -682.0 | -509.2 | |
| 0.36 | 1.69 | 0.32 | 1.52 | -16.71 | 61.10 | -51.84 | 115.54 | 0.8368 | -667.8 | -537.3 | |
| 0.00 | 1.07 | 0.00 | 0.98 | -17.74 | 60.57 | -52.36 | 116.49 | 0.8447 | -602.0 | -550.7 | |
| 2.05 | 44.77 | 1.87 | 40.87 | -16.80 | 60.55 | -52.39 | 115.42 | 0.8418 | -688.3 | -366.8 | |
| 1.96 | -16.00 | 1.78 | -16.00 | -16.43 | 60.64 | -52.30 | 115.05 | 0.8398 | -778.6 | 999999 | |
| 0.00 | 1.16 | 0.00 | 1.07 | -17.46 | 60.17 | -52.76 | 116.00 | 0.8471 | -508.0 | -427.2 | |
| 0.62 | 1.61 | 0.58 | 1.50 | -17.48 | 59.95 | -52.98 | 115.94 | 0.8490 | -262.7 | -262.2 | |
| 4.99 | -16.00 | 4.59 | -16.00 | -16.70 | 60.22 | -52.72 | 115.18 | 0.8442 | -502.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
