SDO HMI 2014-09-09 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 268.30 | 1527.40 | 147.33 | 839.28 | 15.48 | 87.26 | -24.58 | 68.91 | 0.4320 | 315.3 | 23.6 | |
|
previous
or next observation for the same group /

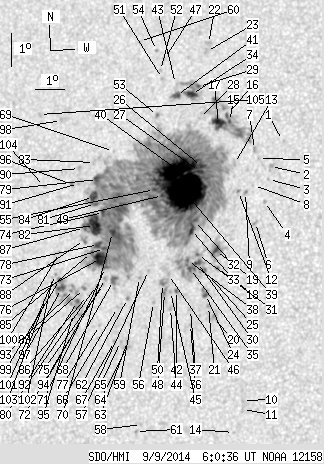

back to the solar disc SDO HMI 2014-09-09 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.29 | 17.53 | 91.12 | -20.72 | 61.10 | 0.3870 | -532.0 | -635.2 | |
| 0.00 | 2.50 | 0.00 | 1.34 | 16.72 | 90.81 | -21.03 | 63.34 | 0.3862 | -709.0 | -588.0 | |
| 0.00 | 0.89 | 0.00 | 0.48 | 16.32 | 90.78 | -21.05 | 64.33 | 0.3842 | 644.0 | 504.2 | |
| 0.00 | 1.61 | 0.00 | 0.86 | 15.65 | 90.72 | -21.11 | 66.04 | 0.3812 | -878.0 | -705.0 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 16.95 | 90.37 | -21.46 | 63.20 | 0.3938 | 750.0 | 613.2 | |
| 0.00 | 2.14 | 0.00 | 1.15 | 14.99 | 90.49 | -21.35 | 67.86 | 0.3813 | -905.0 | -679.3 | |
| 0.00 | 1.78 | 0.00 | 0.96 | 17.22 | 90.21 | -21.63 | 62.73 | 0.3979 | 959.0 | 808.5 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 16.12 | 90.30 | -21.54 | 65.25 | 0.3900 | -614.0 | -431.1 | |
| 0.00 | 1.61 | 0.00 | 0.86 | 15.89 | 90.06 | -21.78 | 66.00 | 0.3923 | 919.0 | 711.9 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 9.59 | 90.51 | -21.33 | 82.18 | 0.3635 | -815.0 | -649.4 | |
| 0.00 | 2.14 | 0.00 | 1.14 | 9.32 | 90.53 | -21.31 | 82.93 | 0.3629 | -758.0 | -604.5 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 15.91 | 89.82 | -22.02 | 66.15 | 0.3959 | 681.0 | 512.8 | |
| 0.00 | 2.14 | 0.00 | 1.16 | 16.76 | 89.58 | -22.26 | 64.35 | 0.4041 | 309.0 | 277.1 | |
| 0.00 | 0.71 | 0.00 | 0.38 | 8.61 | 90.28 | -21.56 | 84.91 | 0.3664 | -591.0 | -505.9 | |
| 0.98 | 75.73 | 0.53 | 41.25 | 18.04 | 89.25 | -22.59 | 61.74 | 0.4165 | 1262.7 | 366.3 | |
| 1.07 | -15.00 | 0.58 | -15.00 | 18.22 | 89.12 | -22.72 | 61.46 | 0.4194 | 1098.7 | 999999 | |
| 9.46 | -15.00 | 5.16 | -15.00 | 17.96 | 88.88 | -22.96 | 62.25 | 0.4211 | 1152.3 | 999999 | |
| 0.62 | 25.06 | 0.34 | 13.51 | 13.54 | 89.36 | -22.48 | 72.27 | 0.3919 | -982.6 | -549.8 | |
| 3.66 | -18.00 | 1.97 | -18.00 | 14.08 | 89.24 | -22.60 | 71.00 | 0.3959 | -972.2 | 999999 | |
| 0.00 | 4.28 | 0.00 | 2.30 | 12.05 | 89.36 | -22.47 | 76.03 | 0.3869 | -991.0 | -865.5 | |
| 0.00 | 1.61 | 0.00 | 0.86 | 12.38 | 89.17 | -22.67 | 75.29 | 0.3909 | -965.0 | -735.6 | |
| 0.00 | 2.77 | 0.00 | 1.53 | 20.40 | 88.16 | -23.68 | 57.75 | 0.4469 | 739.0 | 659.0 | |
| 0.00 | 2.05 | 0.00 | 1.13 | 20.15 | 88.13 | -23.71 | 58.28 | 0.4455 | 870.0 | 754.2 | |
| 1.61 | 6.07 | 0.86 | 3.27 | 12.73 | 89.03 | -22.80 | 74.46 | 0.3941 | -1100.0 | -795.0 | |
| 0.62 | 1236.38 | 0.34 | 679.63 | 13.46 | 88.93 | -22.91 | 72.72 | 0.3982 | -930.3 | 73.4 | |
| 1.52 | -25.00 | 0.83 | -25.00 | 16.62 | 88.47 | -23.37 | 65.57 | 0.4192 | 1276.6 | 999999 | |
| 1.96 | -25.00 | 1.07 | -25.00 | 16.46 | 88.42 | -23.42 | 65.96 | 0.4191 | 1470.2 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.59 | 18.08 | 88.20 | -23.64 | 62.56 | 0.4313 | 522.0 | 489.2 | |
| 0.98 | 32.91 | 0.54 | 18.17 | 19.06 | 88.02 | -23.82 | 60.63 | 0.4398 | -108.5 | 376.2 | |
| 2.59 | -25.00 | 1.40 | -25.00 | 13.69 | 88.67 | -23.17 | 72.30 | 0.4030 | -875.4 | 999999 | |
| 0.62 | -25.00 | 0.34 | -25.00 | 13.93 | 88.64 | -23.19 | 71.72 | 0.4043 | -845.0 | 999999 | |
| 1.52 | -25.00 | 0.82 | -25.00 | 14.96 | 88.43 | -23.41 | 69.41 | 0.4117 | 604.4 | 999999 | |
| 4.91 | -25.00 | 2.66 | -25.00 | 14.68 | 88.36 | -23.48 | 70.11 | 0.4116 | 893.0 | 999999 | |
| 5.89 | -29.00 | 3.25 | -29.00 | 18.80 | 87.82 | -24.02 | 61.34 | 0.4410 | 1031.5 | 999999 | |
| 3.57 | -25.00 | 1.93 | -25.00 | 13.50 | 88.45 | -23.39 | 72.88 | 0.4056 | 903.7 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.48 | 11.80 | 88.61 | -23.22 | 76.97 | 0.3979 | -717.0 | -632.7 | |
| 0.00 | 1.87 | 0.00 | 1.01 | 12.26 | 88.57 | -23.26 | 75.86 | 0.3997 | -764.0 | -643.8 | |
| 0.80 | -25.00 | 0.44 | -25.00 | 13.74 | 88.33 | -23.51 | 72.38 | 0.4083 | 983.2 | 999999 | |
| 102.49 | -25.00 | 55.94 | -25.00 | 15.80 | 88.02 | -23.82 | 67.75 | 0.4216 | 1603.0 | 999999 | |
| 47.28 | -25.00 | 25.93 | -25.00 | 16.48 | 87.62 | -24.21 | 66.49 | 0.4307 | 1316.8 | 999999 | |
| 3.12 | -29.00 | 1.73 | -29.00 | 18.75 | 87.30 | -24.54 | 61.89 | 0.4477 | 835.2 | 999999 | |
| 0.71 | 1.96 | 0.39 | 1.06 | 12.81 | 88.05 | -23.79 | 74.74 | 0.4094 | -983.8 | -817.6 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 19.12 | 87.21 | -24.63 | 61.21 | 0.4512 | 448.0 | 395.8 | |
| 0.00 | 1.78 | 0.00 | 0.97 | 12.25 | 87.90 | -23.94 | 76.15 | 0.4101 | -804.0 | -667.9 | |
| 0.00 | 1.25 | 0.00 | 0.68 | 12.77 | 87.85 | -23.99 | 74.93 | 0.4124 | -934.0 | -810.3 | |
| 0.00 | 1.78 | 0.00 | 0.97 | 13.28 | 87.73 | -24.11 | 73.77 | 0.4158 | -224.0 | -184.8 | |
| 0.00 | 1.69 | 0.00 | 0.95 | 19.87 | 86.70 | -25.14 | 60.12 | 0.4627 | 441.0 | 347.3 | |
| 0.00 | 4.73 | 0.00 | 2.57 | 12.73 | 87.65 | -24.19 | 75.12 | 0.4153 | -1219.0 | -825.7 | |
| 0.89 | -25.00 | 0.49 | -25.00 | 15.67 | 87.25 | -24.59 | 68.56 | 0.4323 | 819.2 | 999999 | |
| 0.54 | 6.07 | 0.29 | 3.30 | 13.00 | 87.55 | -24.28 | 74.52 | 0.4176 | -965.7 | -641.5 | |
| 0.00 | 1.43 | 0.00 | 0.79 | 19.25 | 86.73 | -25.11 | 61.33 | 0.4585 | 677.0 | 546.6 | |
| 0.00 | 1.07 | 0.00 | 0.60 | 19.49 | 86.62 | -25.22 | 60.93 | 0.4615 | 835.0 | 637.5 | |
| 0.00 | 1.87 | 0.00 | 1.04 | 18.10 | 86.73 | -25.11 | 63.67 | 0.4518 | 726.0 | 564.7 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 20.10 | 86.37 | -25.47 | 59.93 | 0.4685 | 646.0 | 506.7 | |
| 1.69 | -25.00 | 0.93 | -25.00 | 15.84 | 86.95 | -24.89 | 68.37 | 0.4374 | 697.7 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 12.41 | 87.31 | -24.53 | 76.02 | 0.4196 | -844.0 | -669.2 | |
| 0.00 | 1.07 | 0.00 | 0.59 | 13.37 | 87.04 | -24.80 | 73.89 | 0.4266 | -937.0 | -726.9 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 8.70 | 87.21 | -24.63 | 84.91 | 0.4153 | -548.0 | -451.2 | |
| 0.00 | 1.16 | 0.00 | 0.64 | 13.14 | 86.75 | -25.09 | 74.54 | 0.4302 | 631.0 | 429.2 | |
| 0.00 | 1.07 | 0.00 | 0.60 | 20.34 | 85.72 | -26.12 | 59.97 | 0.4787 | 648.0 | 546.1 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 8.48 | 87.03 | -24.81 | 85.46 | 0.4181 | -683.0 | -540.0 | |
| 0.00 | 1.61 | 0.00 | 0.88 | 12.48 | 86.41 | -25.43 | 76.18 | 0.4335 | -1018.0 | -857.8 | |
| 0.00 | 1.07 | 0.00 | 0.59 | 11.18 | 86.54 | -25.30 | 79.14 | 0.4287 | -929.0 | -806.4 | |
| 0.00 | 3.48 | 0.00 | 1.91 | 11.00 | 86.52 | -25.32 | 79.57 | 0.4286 | -814.0 | -669.6 | |
| 0.00 | 0.80 | 0.00 | 0.44 | 11.17 | 86.30 | -25.54 | 79.23 | 0.4323 | -825.0 | -631.7 | |
| 0.00 | 1.43 | 0.00 | 0.79 | 12.19 | 86.10 | -25.74 | 76.95 | 0.4376 | -766.0 | -659.8 | |
| 0.00 | 1.43 | 0.00 | 0.78 | 11.16 | 86.10 | -25.74 | 79.31 | 0.4354 | -834.0 | -672.0 | |
| 2.85 | 8.47 | 1.58 | 4.68 | 13.00 | 85.87 | -25.96 | 75.21 | 0.4430 | -1031.5 | -768.9 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 16.92 | 85.36 | -26.48 | 67.05 | 0.4651 | 628.0 | 426.6 | |
| 2.85 | -25.00 | 1.58 | -25.00 | 14.46 | 85.67 | -26.17 | 72.10 | 0.4507 | -1206.1 | 999999 | |
| 2.05 | -25.00 | 1.14 | -25.00 | 13.38 | 85.55 | -26.28 | 74.50 | 0.4489 | -950.1 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.09 | 13.05 | 85.59 | -26.25 | 75.22 | 0.4474 | -850.0 | -729.7 | |
| 1.78 | -25.00 | 0.99 | -25.00 | 13.96 | 85.45 | -26.39 | 73.29 | 0.4522 | -1190.8 | 999999 | |
| 3.03 | -25.00 | 1.69 | -25.00 | 15.05 | 85.28 | -26.56 | 71.03 | 0.4585 | -1321.0 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.54 | 12.86 | 85.54 | -26.29 | 75.65 | 0.4476 | -759.0 | -662.9 | |
| 12.58 | -25.00 | 6.98 | -25.00 | 13.64 | 85.35 | -26.49 | 74.01 | 0.4527 | -1248.6 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.49 | 11.62 | 85.54 | -26.30 | 78.43 | 0.4449 | -649.0 | -516.7 | |
| 3.57 | -25.00 | 1.98 | -25.00 | 14.07 | 85.23 | -26.61 | 73.15 | 0.4559 | -1056.9 | 999999 | |
| 4.37 | -25.00 | 2.45 | -25.00 | 16.04 | 84.93 | -26.91 | 69.13 | 0.4674 | -704.3 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.54 | 12.82 | 85.31 | -26.53 | 75.83 | 0.4511 | -869.0 | -649.5 | |
| 1.52 | -25.00 | 0.85 | -25.00 | 15.30 | 84.96 | -26.88 | 70.64 | 0.4641 | -995.4 | 999999 | |
| 19.62 | -25.00 | 10.94 | -25.00 | 14.63 | 85.02 | -26.82 | 72.03 | 0.4609 | -1197.4 | 999999 | |
| 0.00 | 2.14 | 0.00 | 1.20 | 16.55 | 84.75 | -27.09 | 68.18 | 0.4722 | -440.0 | -596.3 | |
| 6.42 | -25.00 | 3.59 | -25.00 | 15.51 | 84.86 | -26.98 | 70.25 | 0.4663 | -1234.1 | 999999 | |
| 0.80 | -25.00 | 0.45 | -25.00 | 13.81 | 85.02 | -26.82 | 73.79 | 0.4582 | -706.8 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.30 | 12.50 | 85.03 | -26.81 | 76.62 | 0.4545 | -648.0 | -519.5 | |
| 2.14 | -25.00 | 1.20 | -25.00 | 14.55 | 84.68 | -27.16 | 72.35 | 0.4656 | -750.6 | 999999 | |
| 0.00 | 5.08 | 0.00 | 2.84 | 14.19 | 84.72 | -27.12 | 73.10 | 0.4637 | -804.0 | -677.8 | |
| 0.00 | 1.16 | 0.00 | 0.65 | 12.71 | 84.90 | -26.94 | 76.22 | 0.4569 | -1056.0 | -907.3 | |
| 0.00 | 2.05 | 0.00 | 1.16 | 16.34 | 84.25 | -27.59 | 68.88 | 0.4784 | -845.0 | -761.3 | |
| 0.00 | 1.07 | 0.00 | 0.60 | 15.88 | 84.28 | -27.56 | 69.80 | 0.4761 | -1048.0 | -857.9 | |
| 0.89 | 13.02 | 0.50 | 7.26 | 12.30 | 84.71 | -27.13 | 77.16 | 0.4589 | -1128.8 | -810.8 | |
| 0.00 | 5.53 | 0.00 | 3.09 | 12.66 | 84.56 | -27.28 | 76.44 | 0.4619 | -874.0 | -781.1 | |
| 0.00 | 1.61 | 0.00 | 0.89 | 11.36 | 84.67 | -27.17 | 79.22 | 0.4576 | -843.0 | -667.6 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 11.93 | 84.61 | -27.23 | 77.99 | 0.4596 | -642.0 | -544.0 | |
| 0.00 | 2.14 | 0.00 | 1.21 | 15.84 | 84.04 | -27.80 | 70.01 | 0.4794 | -850.0 | -711.4 | |
| 3.66 | 17.30 | 2.05 | 9.70 | 12.66 | 84.11 | -27.73 | 76.57 | 0.4687 | -783.0 | -586.4 | |
| 0.00 | 1.87 | 0.00 | 1.07 | 17.77 | 83.37 | -28.47 | 66.54 | 0.4969 | 429.0 | 470.8 | |
| 1.07 | -97.00 | 0.60 | -97.00 | 12.93 | 84.00 | -27.83 | 76.03 | 0.4709 | -766.9 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.45 | 13.75 | 83.90 | -27.94 | 74.36 | 0.4745 | -768.0 | -645.0 | |
| 0.00 | 1.07 | 0.00 | 0.60 | 13.07 | 83.85 | -27.99 | 75.79 | 0.4736 | -507.0 | -455.0 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 12.98 | 83.75 | -28.09 | 76.02 | 0.4747 | -494.0 | -404.1 | |
| 0.00 | 0.98 | 0.00 | 0.55 | 12.30 | 83.59 | -28.25 | 77.49 | 0.4757 | -535.0 | -465.8 | |
| 0.00 | 1.34 | 0.00 | 0.76 | 15.72 | 83.09 | -28.75 | 70.69 | 0.4925 | -702.0 | -522.0 | |
| 0.00 | 1.52 | 0.00 | 0.87 | 17.90 | 82.55 | -29.29 | 66.73 | 0.5088 | 753.0 | 626.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
