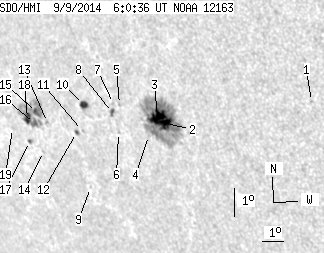

SDO HMI 2014-09-09 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.32 | 196.85 | 37.01 | 159.63 | -16.31 | 64.63 | -47.21 | 117.19 | 0.7928 | 216.3 | 68.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-09 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.68 | -14.95 | 73.37 | -38.47 | 120.31 | 0.6986 | 556.0 | 399.2 | |
| 10.17 | 127.11 | 7.89 | 98.82 | -16.23 | 66.88 | -44.96 | 118.15 | 0.7717 | 1005.4 | 271.3 | |
| 15.97 | -2.00 | 12.43 | -2.00 | -16.03 | 66.58 | -45.25 | 117.76 | 0.7737 | 928.5 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.57 | -16.71 | 65.97 | -45.87 | 118.25 | 0.7826 | -173.0 | -161.4 | |
| 0.00 | 0.98 | 0.00 | 0.79 | -15.80 | 64.93 | -46.91 | 116.67 | 0.7887 | 415.0 | 404.1 | |
| 0.00 | 1.07 | 0.00 | 0.87 | -16.74 | 64.58 | -47.26 | 117.61 | 0.7959 | 475.0 | 303.8 | |
| 0.00 | 0.98 | 0.00 | 0.79 | -15.79 | 64.65 | -47.19 | 116.53 | 0.7913 | 239.0 | 286.9 | |
| 1.52 | 3.21 | 1.23 | 2.60 | -16.10 | 64.51 | -47.33 | 116.82 | 0.7939 | 554.9 | 394.1 | |
| 0.00 | 0.71 | 0.00 | 0.62 | -18.76 | 62.50 | -49.34 | 118.92 | 0.8228 | 330.0 | 252.9 | |
| 4.37 | 6.33 | 3.64 | 5.27 | -15.96 | 63.18 | -48.66 | 116.06 | 0.8057 | -734.5 | -508.7 | |
| 0.00 | 0.89 | 0.00 | 0.75 | -16.85 | 62.83 | -49.01 | 116.92 | 0.8123 | -606.0 | -514.4 | |
| 1.07 | 2.41 | 0.91 | 2.05 | -16.95 | 62.51 | -49.33 | 116.88 | 0.8157 | -631.0 | -475.1 | |
| 0.00 | 1.52 | 0.00 | 1.33 | -16.76 | 61.14 | -50.69 | 116.07 | 0.8270 | -762.0 | -669.9 | |
| 0.00 | 0.89 | 0.00 | 0.80 | -17.77 | 60.55 | -51.29 | 116.95 | 0.8358 | -504.0 | -521.5 | |
| 3.03 | 45.67 | 2.68 | 40.60 | -16.47 | 60.70 | -51.14 | 115.57 | 0.8300 | -807.0 | -356.4 | |
| 2.77 | -15.00 | 2.46 | -15.00 | -16.86 | 60.45 | -51.39 | 115.90 | 0.8334 | -603.5 | 999999 | |
| 0.80 | 1.96 | 0.73 | 1.78 | -17.50 | 59.94 | -51.90 | 116.40 | 0.8400 | -414.8 | -317.6 | |
| 5.62 | -15.00 | 5.04 | -15.00 | -16.73 | 60.14 | -51.70 | 115.62 | 0.8356 | -487.5 | 999999 | |
| 0.00 | 1.43 | 0.00 | 1.31 | -17.15 | 59.20 | -52.64 | 115.71 | 0.8451 | -302.0 | -279.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
