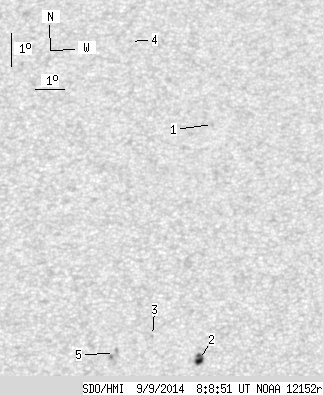

SDO HMI 2014-09-09 08:08:51 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.98 | 16.42 | 3.21 | 8.80 | 13.46 | 132.37 | 21.70 | 287.75 | 0.3817 | -447.8 | 106.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-09 08:08:51 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.43 | 0.00 | 0.79 | 19.33 | 134.55 | 23.88 | 299.89 | 0.4424 | -651.0 | -527.0 | |
| 5.98 | 8.30 | 3.21 | 4.46 | 12.19 | 133.22 | 22.56 | 284.31 | 0.3886 | -999.0 | -662.2 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 12.99 | 131.73 | 21.06 | 287.19 | 0.3681 | 629.0 | 533.5 | |
| 0.00 | 0.80 | 0.00 | 0.44 | 22.03 | 132.11 | 21.44 | 307.86 | 0.4309 | -554.0 | -470.3 | |
| 0.00 | 5.00 | 0.00 | 2.64 | 12.50 | 130.43 | 19.76 | 286.67 | 0.3461 | 554.0 | 679.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
