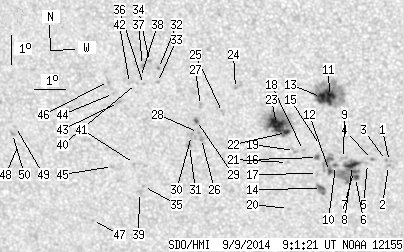

SDO HMI 2014-09-09 09:01:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.66 | 248.24 | 27.73 | 138.89 | -20.22 | 107.13 | -3.06 | 173.81 | 0.4671 | 400.6 | 355.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-09 09:01:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.32 | 0.00 | 1.31 | -21.17 | 110.40 | 0.21 | 180.41 | 0.4778 | 608.0 | 572.0 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -21.31 | 110.36 | 0.18 | 180.34 | 0.4799 | 687.0 | 614.5 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -21.14 | 110.30 | 0.11 | 180.22 | 0.4773 | 861.0 | 680.7 | |
| 0.00 | 1.52 | 0.00 | 0.85 | -21.10 | 109.85 | -0.34 | 179.33 | 0.4768 | 852.0 | 678.2 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -21.24 | 109.68 | -0.51 | 179.01 | 0.4789 | 431.0 | 198.0 | |
| 1.96 | 55.21 | 1.11 | 31.19 | -21.72 | 109.29 | -0.90 | 178.28 | 0.4865 | -892.7 | 250.5 | |
| 1.78 | -6.00 | 1.01 | -6.00 | -21.52 | 109.23 | -0.96 | 178.14 | 0.4833 | -296.0 | 999999 | |
| 5.62 | -6.00 | 3.17 | -6.00 | -21.31 | 109.20 | -0.99 | 178.07 | 0.4802 | 851.9 | 999999 | |
| 0.00 | 2.94 | 0.00 | 1.66 | -21.07 | 108.91 | -1.28 | 177.48 | 0.4766 | 796.0 | 698.0 | |
| 0.62 | -6.00 | 0.35 | -6.00 | -21.31 | 108.65 | -1.54 | 176.99 | 0.4805 | 757.7 | 999999 | |
| 10.79 | 61.99 | 5.96 | 34.22 | -18.96 | 108.48 | -1.71 | 176.34 | 0.4443 | 1118.4 | 545.1 | |
| 1.69 | -6.00 | 0.96 | -6.00 | -21.52 | 108.45 | -1.74 | 176.64 | 0.4839 | 637.8 | 999999 | |
| 7.67 | -11.00 | 4.24 | -11.00 | -19.00 | 108.22 | -1.97 | 175.80 | 0.4451 | 1049.1 | 999999 | |
| 1.87 | 8.03 | 1.07 | 4.57 | -22.11 | 108.18 | -2.01 | 176.21 | 0.4931 | 452.7 | -65.9 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -20.63 | 108.17 | -2.02 | 175.96 | 0.4705 | 668.0 | 498.8 | |
| 1.16 | 2.68 | 0.65 | 1.51 | -21.04 | 108.07 | -2.12 | 175.82 | 0.4769 | 938.5 | 731.5 | |
| 0.00 | 1.61 | 0.00 | 0.91 | -21.59 | 108.06 | -2.13 | 175.90 | 0.4854 | 125.0 | 299.1 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -20.80 | 107.62 | -2.57 | 174.90 | 0.4738 | 754.0 | 639.0 | |
| 0.00 | 2.94 | 0.00 | 1.65 | -20.80 | 107.33 | -2.86 | 174.33 | 0.4742 | 652.0 | 658.8 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -22.81 | 107.09 | -3.10 | 174.31 | 0.5051 | 608.0 | 609.8 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -21.21 | 107.09 | -3.10 | 173.96 | 0.4809 | 658.0 | 463.0 | |
| 1.87 | 55.66 | 1.05 | 31.03 | -20.19 | 107.08 | -3.11 | 173.69 | 0.4652 | 870.5 | 696.2 | |
| 13.74 | -22.00 | 7.66 | -22.00 | -19.92 | 106.76 | -3.43 | 172.98 | 0.4616 | 1145.2 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -18.71 | 105.48 | -4.71 | 169.92 | 0.4460 | 872.0 | 697.1 | |
| 0.00 | 2.32 | 0.00 | 1.29 | -19.53 | 105.04 | -5.15 | 169.35 | 0.4597 | 784.0 | 603.3 | |
| 0.00 | 2.50 | 0.00 | 1.40 | -20.42 | 104.33 | -5.86 | 168.33 | 0.4753 | 866.0 | 685.0 | |
| 0.00 | 2.05 | 0.00 | 1.14 | -19.30 | 104.34 | -5.85 | 167.83 | 0.4583 | 854.0 | 706.8 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -20.21 | 104.24 | -5.95 | 168.07 | 0.4725 | 827.0 | 759.7 | |
| 0.89 | 2.14 | 0.50 | 1.20 | -19.81 | 104.19 | -6.00 | 167.78 | 0.4665 | 1028.1 | 911.6 | |
| 0.00 | 5.26 | 0.00 | 2.96 | -20.32 | 104.01 | -6.18 | 167.67 | 0.4749 | 903.0 | 728.4 | |
| 0.00 | 2.14 | 0.00 | 1.21 | -20.66 | 103.93 | -6.26 | 167.68 | 0.4803 | 910.0 | 730.6 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -18.07 | 103.04 | -7.15 | 164.50 | 0.4446 | -798.0 | -686.4 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -18.54 | 102.99 | -7.20 | 164.68 | 0.4519 | -658.0 | -495.8 | |
| 0.00 | 1.61 | 0.00 | 0.89 | -17.84 | 102.76 | -7.43 | 163.78 | 0.4423 | -878.0 | -658.2 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -22.10 | 102.35 | -7.84 | 165.51 | 0.5070 | -839.0 | -640.4 | |
| 0.00 | 0.62 | 0.00 | 0.35 | -18.62 | 102.53 | -7.66 | 163.82 | 0.4549 | -580.0 | -402.4 | |
| 0.00 | 1.61 | 0.00 | 0.89 | -17.98 | 102.53 | -7.66 | 163.39 | 0.4454 | -873.0 | -775.9 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -18.38 | 102.45 | -7.74 | 163.49 | 0.4518 | -776.0 | -632.2 | |
| 0.00 | 3.30 | 0.00 | 1.90 | -22.31 | 102.21 | -7.98 | 165.37 | 0.5106 | -669.0 | -472.5 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -18.59 | 102.31 | -7.88 | 163.35 | 0.4554 | -557.0 | -485.1 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -21.31 | 102.10 | -8.09 | 164.63 | 0.4965 | -440.0 | -319.2 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -18.59 | 102.08 | -8.11 | 162.91 | 0.4565 | -522.0 | -497.9 | |
| 0.00 | 2.50 | 0.00 | 1.40 | -19.24 | 101.70 | -8.49 | 162.58 | 0.4678 | -818.0 | -620.4 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -18.94 | 101.55 | -8.64 | 162.10 | 0.4641 | -793.0 | -660.6 | |
| 0.00 | 1.96 | 0.00 | 1.12 | -21.43 | 101.37 | -8.82 | 163.39 | 0.5012 | -504.0 | -478.6 | |
| 0.00 | 2.59 | 0.00 | 1.44 | -18.53 | 101.41 | -8.78 | 161.54 | 0.4589 | -778.0 | -688.4 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -23.32 | 100.58 | -9.61 | 163.18 | 0.5316 | -662.0 | -563.8 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -20.74 | 98.33 | -11.86 | 157.61 | 0.5068 | -555.0 | -429.4 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -20.13 | 98.28 | -11.91 | 157.03 | 0.4986 | -568.0 | -529.6 | |
| 0.00 | 1.61 | 0.00 | 0.92 | -20.37 | 98.16 | -12.03 | 157.03 | 0.5026 | -796.0 | -712.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
