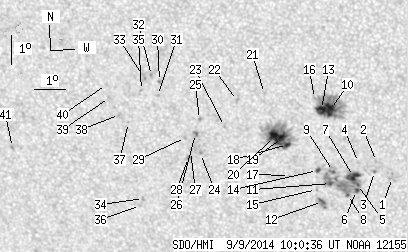

SDO HMI 2014-09-09 10:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.39 | 217.69 | 28.65 | 121.61 | -20.12 | 107.39 | -2.26 | 175.36 | 0.4641 | 479.6 | 348.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-09 10:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.28 | 0.00 | 2.41 | -21.28 | 110.48 | 0.83 | 181.62 | 0.4796 | 640.0 | 560.2 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -20.73 | 109.96 | 0.31 | 180.62 | 0.4709 | 789.0 | 646.7 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -21.07 | 109.89 | 0.24 | 180.48 | 0.4762 | 810.0 | 691.8 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -20.76 | 109.38 | -0.27 | 179.46 | 0.4714 | 849.0 | 693.0 | |
| 0.80 | 56.63 | 0.45 | 31.98 | -21.52 | 109.34 | -0.31 | 179.41 | 0.4831 | -656.1 | 233.5 | |
| 1.43 | -5.00 | 0.81 | -5.00 | -21.72 | 109.31 | -0.34 | 179.35 | 0.4863 | -935.2 | 999999 | |
| 7.05 | -5.00 | 3.97 | -5.00 | -21.24 | 109.21 | -0.44 | 179.15 | 0.4789 | 845.1 | 999999 | |
| 0.62 | -5.00 | 0.35 | -5.00 | -21.86 | 109.01 | -0.63 | 178.79 | 0.4885 | -657.6 | 999999 | |
| 0.54 | -5.00 | 0.30 | -5.00 | -21.07 | 108.57 | -1.08 | 177.87 | 0.4765 | 978.0 | 999999 | |
| 9.99 | 53.51 | 5.52 | 29.53 | -18.96 | 108.49 | -1.16 | 177.51 | 0.4438 | 1098.6 | 575.8 | |
| 1.52 | -5.00 | 0.86 | -5.00 | -21.48 | 108.46 | -1.18 | 177.71 | 0.4829 | 680.1 | 999999 | |
| 1.43 | 5.71 | 0.81 | 3.25 | -22.11 | 108.20 | -1.45 | 177.26 | 0.4926 | 570.2 | 15.5 | |
| 7.40 | -10.00 | 4.09 | -10.00 | -18.96 | 108.20 | -1.45 | 176.90 | 0.4440 | 1029.3 | 999999 | |
| 1.25 | 2.14 | 0.70 | 1.20 | -21.04 | 108.05 | -1.60 | 176.85 | 0.4764 | 913.0 | 764.1 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -21.69 | 108.01 | -1.64 | 176.85 | 0.4864 | 625.0 | 491.7 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -18.59 | 107.98 | -1.67 | 176.38 | 0.4384 | 484.0 | 388.0 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -21.21 | 107.14 | -2.51 | 175.10 | 0.4800 | 604.0 | 500.1 | |
| 2.59 | 56.72 | 1.44 | 31.60 | -20.15 | 107.09 | -2.56 | 174.80 | 0.4638 | 794.7 | 603.3 | |
| 6.51 | -18.00 | 3.63 | -18.00 | -19.91 | 106.94 | -2.71 | 174.43 | 0.4603 | 1136.7 | 999999 | |
| 10.26 | -18.00 | 5.72 | -18.00 | -19.88 | 106.68 | -2.97 | 173.90 | 0.4602 | 1077.3 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.83 | -18.43 | 106.39 | -3.26 | 172.90 | 0.4382 | 738.0 | 471.2 | |
| 0.00 | 1.69 | 0.00 | 0.94 | -18.67 | 105.52 | -4.13 | 171.13 | 0.4438 | 847.0 | 651.4 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -19.55 | 105.08 | -4.57 | 170.54 | 0.4585 | 699.0 | 596.5 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -20.48 | 104.27 | -5.37 | 169.31 | 0.4748 | 754.0 | 708.3 | |
| 0.00 | 1.52 | 0.00 | 0.84 | -19.33 | 104.28 | -5.36 | 168.83 | 0.4572 | 877.0 | 741.3 | |
| 0.00 | 2.41 | 0.00 | 1.35 | -19.80 | 104.14 | -5.51 | 168.75 | 0.4649 | 1080.0 | 904.0 | |
| 0.00 | 0.62 | 0.00 | 0.35 | -20.42 | 103.95 | -5.69 | 168.66 | 0.4748 | 889.0 | 759.4 | |
| 0.00 | 2.41 | 0.00 | 1.36 | -20.62 | 103.88 | -5.77 | 168.61 | 0.4781 | 840.0 | 705.1 | |
| 0.00 | 1.61 | 0.00 | 0.90 | -19.94 | 103.81 | -5.84 | 168.16 | 0.4680 | 681.0 | 626.1 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -18.06 | 103.05 | -6.60 | 165.63 | 0.4423 | -758.0 | -655.1 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -18.53 | 102.96 | -6.68 | 165.74 | 0.4497 | -521.0 | -472.8 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -17.87 | 102.80 | -6.85 | 165.00 | 0.4403 | -907.0 | -727.1 | |
| 0.00 | 3.03 | 0.00 | 1.67 | -17.94 | 102.57 | -7.08 | 164.57 | 0.4422 | -817.0 | -736.6 | |
| 0.00 | 1.69 | 0.00 | 0.97 | -22.06 | 102.34 | -7.30 | 166.44 | 0.5044 | -745.0 | -618.1 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -18.37 | 102.46 | -7.19 | 164.61 | 0.4493 | -802.0 | -666.2 | |
| 0.00 | 1.25 | 0.00 | 0.72 | -22.30 | 102.23 | -7.41 | 166.36 | 0.5084 | -628.0 | -484.4 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -19.46 | 101.99 | -7.66 | 164.34 | 0.4675 | -701.0 | -511.2 | |
| 0.00 | 2.05 | 0.00 | 1.15 | -19.19 | 101.71 | -7.94 | 163.63 | 0.4647 | -816.0 | -624.3 | |
| 0.00 | 1.78 | 0.00 | 0.99 | -18.63 | 101.42 | -8.23 | 162.68 | 0.4576 | -835.0 | -696.2 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -18.19 | 101.34 | -8.31 | 162.23 | 0.4515 | -719.0 | -627.3 | |
| 0.00 | 1.78 | 0.00 | 1.02 | -20.39 | 98.15 | -11.50 | 157.96 | 0.4998 | -774.0 | -636.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
