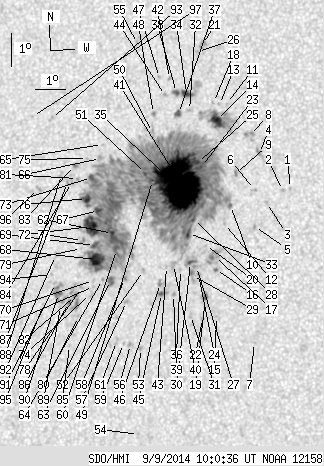

SDO HMI 2014-09-09 10:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 245.62 | 1453.33 | 132.73 | 786.42 | 15.61 | 87.23 | -22.42 | 67.08 | 0.4010 | 260.7 | 18.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-09 10:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.25 | 0.00 | 0.66 | 16.08 | 91.60 | -18.05 | 61.79 | 0.3393 | -769.0 | -659.2 | |
| 0.00 | 1.52 | 0.00 | 0.80 | 16.01 | 91.34 | -18.31 | 62.28 | 0.3426 | -903.0 | -649.4 | |
| 0.00 | 1.43 | 0.00 | 0.75 | 15.63 | 90.84 | -18.80 | 63.86 | 0.3473 | -780.0 | -483.5 | |
| 0.00 | 4.37 | 0.00 | 2.32 | 17.11 | 90.46 | -19.18 | 60.43 | 0.3626 | 1007.0 | 760.6 | |
| 0.00 | 1.61 | 0.00 | 0.85 | 14.88 | 90.52 | -19.13 | 66.20 | 0.3477 | -847.0 | -623.1 | |
| 0.00 | 2.14 | 0.00 | 1.13 | 16.01 | 90.41 | -19.24 | 63.31 | 0.3560 | 857.0 | 618.9 | |
| 0.00 | 0.36 | 0.00 | 0.19 | 11.37 | 90.79 | -18.85 | 76.07 | 0.3278 | -837.0 | -848.5 | |
| 0.00 | 7.49 | 0.00 | 3.99 | 17.65 | 90.07 | -19.58 | 59.56 | 0.3720 | -205.0 | -281.8 | |
| 0.00 | 2.41 | 0.00 | 1.28 | 16.47 | 89.73 | -19.92 | 62.84 | 0.3688 | 841.0 | 709.1 | |
| 0.62 | 1175.57 | 0.33 | 636.32 | 15.49 | 89.66 | -19.99 | 65.40 | 0.3638 | -665.7 | 68.7 | |
| 0.00 | 0.45 | 0.00 | 0.24 | 18.60 | 89.18 | -20.47 | 58.32 | 0.3911 | 815.0 | 681.4 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 14.93 | 89.52 | -20.13 | 66.98 | 0.3629 | -784.0 | -554.7 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 18.56 | 88.94 | -20.70 | 58.67 | 0.3940 | 755.0 | 629.9 | |
| 9.99 | 48.78 | 5.37 | 26.23 | 18.07 | 88.90 | -20.74 | 59.85 | 0.3911 | 1104.3 | 537.9 | |
| 0.00 | 0.62 | 0.00 | 0.33 | 12.10 | 89.50 | -20.15 | 74.68 | 0.3508 | -850.0 | -759.7 | |
| 0.54 | 1.69 | 0.28 | 0.90 | 13.52 | 89.35 | -20.30 | 70.86 | 0.3586 | -1053.5 | -855.2 | |
| 0.00 | 13.56 | 0.00 | 7.20 | 13.92 | 89.28 | -20.37 | 69.86 | 0.3614 | -934.0 | -784.1 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 18.62 | 88.73 | -20.91 | 58.77 | 0.3973 | -470.0 | -360.5 | |
| 1.52 | 5.17 | 0.80 | 2.74 | 12.66 | 89.09 | -20.56 | 73.37 | 0.3591 | -1097.4 | -823.6 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 14.24 | 88.95 | -20.70 | 69.26 | 0.3679 | 635.0 | 438.8 | |
| 0.00 | 4.64 | 0.00 | 2.53 | 20.39 | 88.11 | -21.53 | 55.59 | 0.4188 | 580.0 | 695.2 | |
| 0.00 | 1.34 | 0.00 | 0.71 | 12.02 | 89.04 | -20.61 | 75.15 | 0.3576 | -987.0 | -800.9 | |
| 0.80 | -10.00 | 0.43 | -10.00 | 16.64 | 88.56 | -21.08 | 63.56 | 0.3866 | 1159.0 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 13.35 | 88.80 | -20.85 | 71.71 | 0.3663 | -920.0 | -795.6 | |
| 1.25 | -10.00 | 0.67 | -10.00 | 16.75 | 88.42 | -21.23 | 63.42 | 0.3894 | 1066.1 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.73 | 20.16 | 87.97 | -21.68 | 56.21 | 0.4189 | 763.0 | 574.1 | |
| 0.00 | 2.23 | 0.00 | 1.19 | 13.59 | 88.71 | -20.94 | 71.14 | 0.3686 | -1009.0 | -869.9 | |
| 1.07 | -10.00 | 0.57 | -10.00 | 15.01 | 88.47 | -21.18 | 67.65 | 0.3789 | 706.5 | 999999 | |
| 0.00 | 5.26 | 0.00 | 2.80 | 13.31 | 88.60 | -21.05 | 71.94 | 0.3691 | 444.0 | 255.2 | |
| 1.78 | 8.83 | 0.95 | 4.71 | 13.70 | 88.50 | -21.15 | 70.99 | 0.3723 | -708.5 | -329.0 | |
| 0.00 | 2.32 | 0.00 | 1.23 | 12.10 | 88.64 | -21.01 | 75.17 | 0.3642 | -669.0 | -661.1 | |
| 0.00 | 1.61 | 0.00 | 0.87 | 18.33 | 87.95 | -21.70 | 60.21 | 0.4061 | 585.0 | 480.8 | |
| 3.48 | -10.00 | 1.86 | -10.00 | 14.58 | 88.35 | -21.30 | 68.84 | 0.3786 | 887.4 | 999999 | |
| 4.82 | 18.55 | 2.62 | 10.08 | 18.85 | 87.78 | -21.87 | 59.23 | 0.4120 | 1005.9 | 362.0 | |
| 97.74 | -10.00 | 52.54 | -10.00 | 15.85 | 88.01 | -21.64 | 65.96 | 0.3900 | 1271.0 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.76 | 13.47 | 88.19 | -21.46 | 71.78 | 0.3762 | -197.0 | -201.4 | |
| 2.32 | 3.92 | 1.26 | 2.13 | 18.23 | 87.59 | -22.06 | 60.81 | 0.4104 | 862.0 | 629.5 | |
| 1.87 | -34.00 | 1.02 | -34.00 | 18.87 | 87.43 | -22.22 | 59.54 | 0.4168 | 878.4 | 999999 | |
| 0.00 | 1.61 | 0.00 | 0.86 | 12.71 | 88.02 | -21.62 | 73.88 | 0.3758 | -1062.0 | -892.4 | |
| 0.00 | 4.55 | 0.00 | 2.43 | 13.62 | 87.94 | -21.71 | 71.58 | 0.3805 | 57.0 | -52.5 | |
| 54.76 | -10.00 | 29.57 | -10.00 | 16.50 | 87.60 | -22.05 | 64.74 | 0.3997 | 1150.5 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.12 | 19.29 | 87.13 | -22.52 | 58.93 | 0.4238 | 795.0 | 617.2 | |
| 0.00 | 0.89 | 0.00 | 0.48 | 13.55 | 87.71 | -21.94 | 71.90 | 0.3837 | -810.0 | -582.8 | |
| 0.00 | 1.34 | 0.00 | 0.73 | 18.76 | 87.07 | -22.58 | 60.13 | 0.4211 | 790.0 | 687.4 | |
| 1.25 | 6.06 | 0.67 | 3.25 | 12.72 | 87.62 | -22.03 | 74.06 | 0.3821 | -1095.0 | -807.5 | |
| 0.00 | 3.75 | 0.00 | 2.01 | 13.02 | 87.56 | -22.09 | 73.33 | 0.3841 | -933.0 | -613.0 | |
| 0.00 | 1.43 | 0.00 | 0.78 | 19.30 | 86.78 | -22.87 | 59.24 | 0.4286 | 688.0 | 542.1 | |
| 0.00 | 1.96 | 0.00 | 1.07 | 18.19 | 86.73 | -22.92 | 61.68 | 0.4220 | 761.0 | 677.1 | |
| 0.27 | -10.00 | 0.14 | -10.00 | 16.14 | 86.96 | -22.69 | 66.12 | 0.4069 | 769.7 | 999999 | |
| 0.00 | 4.82 | 0.00 | 2.62 | 17.60 | 86.77 | -22.87 | 62.93 | 0.4178 | 615.0 | 487.4 | |
| 1.34 | -10.00 | 0.73 | -10.00 | 16.34 | 86.70 | -22.95 | 65.86 | 0.4118 | 645.8 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.82 | 13.39 | 86.96 | -22.69 | 72.74 | 0.3947 | -721.0 | -584.1 | |
| 0.00 | 1.61 | 0.00 | 0.86 | 11.02 | 87.07 | -22.58 | 78.68 | 0.3861 | -859.0 | -699.7 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 8.43 | 87.18 | -22.47 | 85.44 | 0.3809 | -355.0 | -426.1 | |
| 0.00 | 2.41 | 0.00 | 1.33 | 20.32 | 85.85 | -23.79 | 58.02 | 0.4479 | 771.0 | 585.5 | |
| 0.00 | 2.41 | 0.00 | 1.30 | 11.13 | 86.72 | -22.92 | 78.52 | 0.3917 | -910.0 | -714.0 | |
| 0.00 | 2.32 | 0.00 | 1.25 | 12.42 | 86.48 | -23.17 | 75.38 | 0.3988 | -916.0 | -654.2 | |
| 0.00 | 2.05 | 0.00 | 1.11 | 13.12 | 86.34 | -23.31 | 73.74 | 0.4031 | -1034.0 | -888.0 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 11.15 | 86.49 | -23.16 | 78.55 | 0.3954 | -717.0 | -552.6 | |
| 4.28 | -10.00 | 2.32 | -10.00 | 13.98 | 85.98 | -23.67 | 71.85 | 0.4117 | -767.0 | 999999 | |
| 0.00 | 2.94 | 0.00 | 1.59 | 11.20 | 86.25 | -23.40 | 78.51 | 0.3992 | -681.0 | -592.2 | |
| 2.05 | -10.00 | 1.12 | -10.00 | 14.46 | 85.79 | -23.86 | 70.83 | 0.4164 | -1123.9 | 999999 | |
| 2.76 | 6.51 | 1.50 | 3.53 | 13.03 | 85.88 | -23.77 | 74.17 | 0.4099 | -967.3 | -823.3 | |
| 0.00 | 1.16 | 0.00 | 0.63 | 13.05 | 85.60 | -24.05 | 74.26 | 0.4141 | -867.0 | -709.8 | |
| 0.00 | 0.89 | 0.00 | 0.49 | 17.15 | 85.11 | -24.54 | 65.24 | 0.4389 | 582.0 | 371.4 | |
| 0.00 | 3.48 | 0.00 | 1.91 | 16.72 | 85.10 | -24.55 | 66.18 | 0.4368 | -116.0 | -97.3 | |
| 4.10 | -10.00 | 2.25 | -10.00 | 15.14 | 85.23 | -24.42 | 69.62 | 0.4274 | -1175.9 | 999999 | |
| 14.27 | -10.00 | 7.78 | -10.00 | 13.65 | 85.34 | -24.31 | 72.99 | 0.4202 | -1171.8 | 999999 | |
| 2.68 | -10.00 | 1.46 | -10.00 | 14.07 | 85.22 | -24.43 | 72.07 | 0.4234 | -1062.2 | 999999 | |
| 0.00 | 1.61 | 0.00 | 0.87 | 13.01 | 85.30 | -24.35 | 74.50 | 0.4186 | -568.0 | -413.1 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 12.82 | 85.32 | -24.33 | 74.92 | 0.4178 | -804.0 | -661.8 | |
| 19.00 | -10.00 | 10.40 | -10.00 | 14.64 | 85.05 | -24.60 | 70.85 | 0.4281 | -1161.2 | 999999 | |
| 2.32 | -10.00 | 1.28 | -10.00 | 16.13 | 84.86 | -24.78 | 67.64 | 0.4372 | -900.9 | 999999 | |
| 0.00 | 3.57 | 0.00 | 1.94 | 12.61 | 85.24 | -24.41 | 75.47 | 0.4183 | -509.0 | -618.6 | |
| 0.00 | 1.16 | 0.00 | 0.64 | 16.70 | 84.65 | -25.00 | 66.54 | 0.4431 | -698.0 | -629.5 | |
| 5.62 | -10.00 | 3.09 | -10.00 | 15.48 | 84.78 | -24.87 | 69.12 | 0.4356 | -1173.2 | 999999 | |
| 0.00 | 2.94 | 0.00 | 1.61 | 14.20 | 84.79 | -24.85 | 71.99 | 0.4302 | -715.0 | -666.9 | |
| 0.00 | 1.69 | 0.00 | 0.93 | 12.77 | 84.92 | -24.73 | 75.22 | 0.4238 | -1020.0 | -746.7 | |
| 0.00 | 0.89 | 0.00 | 0.49 | 13.95 | 84.79 | -24.86 | 72.55 | 0.4295 | -185.0 | -220.5 | |
| 0.00 | 1.16 | 0.00 | 0.63 | 11.89 | 84.90 | -24.75 | 77.29 | 0.4217 | -753.0 | -757.2 | |
| 0.00 | 1.25 | 0.00 | 0.69 | 16.07 | 84.39 | -25.26 | 68.06 | 0.4439 | -877.0 | -710.3 | |
| 0.62 | 17.84 | 0.34 | 9.76 | 12.52 | 84.74 | -24.91 | 75.88 | 0.4258 | -1004.0 | -789.7 | |
| 0.00 | 1.52 | 0.00 | 0.84 | 16.46 | 84.23 | -25.42 | 67.32 | 0.4480 | -947.0 | -833.2 | |
| 0.00 | 2.50 | 0.00 | 1.38 | 15.94 | 84.19 | -25.45 | 68.47 | 0.4461 | -967.0 | -787.3 | |
| 0.00 | 1.16 | 0.00 | 0.63 | 11.00 | 84.68 | -24.97 | 79.46 | 0.4233 | -661.0 | -503.9 | |
| 0.36 | -82.00 | 0.20 | -82.00 | 12.30 | 84.52 | -25.13 | 76.48 | 0.4285 | -869.0 | 999999 | |
| 0.00 | 1.69 | 0.00 | 0.94 | 15.93 | 84.06 | -25.59 | 68.57 | 0.4481 | -806.0 | -714.5 | |
| 0.00 | 2.68 | 0.00 | 1.48 | 16.17 | 83.82 | -25.83 | 68.22 | 0.4526 | -263.0 | -407.3 | |
| 0.00 | 0.80 | 0.00 | 0.44 | 12.16 | 84.26 | -25.39 | 76.88 | 0.4321 | -564.0 | -492.6 | |
| 2.14 | 15.34 | 1.18 | 8.43 | 12.55 | 84.15 | -25.50 | 76.03 | 0.4348 | -759.0 | -628.9 | |
| 0.00 | 1.78 | 0.00 | 0.98 | 12.85 | 84.02 | -25.63 | 75.41 | 0.4376 | -625.0 | -513.4 | |
| 0.00 | 2.14 | 0.00 | 1.18 | 13.70 | 83.92 | -25.73 | 73.54 | 0.4416 | -661.0 | -501.0 | |
| 0.00 | 2.50 | 0.00 | 1.40 | 17.86 | 83.21 | -26.44 | 65.09 | 0.4691 | 686.0 | 602.4 | |
| 0.00 | 0.89 | 0.00 | 0.49 | 13.11 | 83.85 | -25.80 | 74.88 | 0.4409 | -628.0 | -506.8 | |
| 0.00 | 0.98 | 0.00 | 0.54 | 12.19 | 83.67 | -25.97 | 77.01 | 0.4411 | -404.0 | -369.3 | |
| 0.00 | 2.41 | 0.00 | 1.34 | 15.70 | 83.07 | -26.57 | 69.63 | 0.4613 | -693.0 | -559.9 | |
| 0.00 | 0.80 | 0.00 | 0.45 | 17.88 | 82.53 | -27.12 | 65.48 | 0.4787 | 710.0 | 557.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
