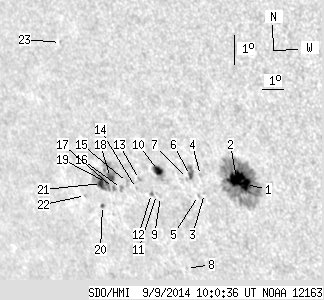

SDO HMI 2014-09-09 10:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.27 | 224.56 | 36.88 | 174.63 | -16.26 | 64.62 | -45.02 | 118.21 | 0.7718 | 123.5 | 34.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-09 10:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.72 | 138.50 | 7.24 | 103.50 | -16.17 | 66.95 | -42.69 | 119.28 | 0.7490 | 981.6 | 243.1 | |
| 17.84 | -1.00 | 13.35 | -1.00 | -16.00 | 66.61 | -43.04 | 118.90 | 0.7516 | 840.5 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.76 | -16.64 | 65.03 | -44.62 | 118.80 | 0.7703 | 623.0 | 476.3 | |
| 0.00 | 1.52 | 0.00 | 1.17 | -16.05 | 65.02 | -44.62 | 118.10 | 0.7676 | 573.0 | 410.8 | |
| 0.00 | 0.71 | 0.00 | 0.56 | -16.73 | 64.73 | -44.91 | 118.76 | 0.7735 | 266.0 | 281.2 | |
| 1.78 | 7.05 | 1.38 | 5.46 | -16.09 | 64.57 | -45.08 | 117.92 | 0.7722 | 600.1 | 462.3 | |
| 0.00 | 1.16 | 0.00 | 0.90 | -16.21 | 64.40 | -45.25 | 117.97 | 0.7744 | 353.0 | 325.8 | |
| 0.00 | 0.98 | 0.00 | 0.80 | -19.27 | 63.33 | -46.32 | 120.97 | 0.7983 | 197.0 | 184.4 | |
| 0.00 | 1.25 | 0.00 | 1.01 | -16.93 | 62.94 | -46.71 | 118.09 | 0.7915 | -444.0 | -421.1 | |
| 5.53 | 12.93 | 4.41 | 10.32 | -16.07 | 63.13 | -46.52 | 117.17 | 0.7860 | -791.2 | -508.0 | |
| 0.00 | 1.43 | 0.00 | 1.15 | -16.88 | 62.77 | -46.87 | 117.95 | 0.7928 | -595.0 | -428.8 | |
| 0.36 | 1.78 | 0.29 | 1.45 | -16.87 | 62.54 | -47.10 | 117.83 | 0.7949 | -606.5 | -535.3 | |
| 0.00 | 1.52 | 0.00 | 1.24 | -16.46 | 62.12 | -47.53 | 117.14 | 0.7971 | -740.0 | -654.9 | |
| 0.00 | 0.71 | 0.00 | 0.59 | -16.77 | 61.87 | -47.77 | 117.39 | 0.8007 | -627.0 | -551.8 | |
| 0.00 | 3.12 | 0.00 | 2.59 | -16.61 | 61.50 | -48.15 | 117.03 | 0.8035 | -613.0 | -478.3 | |
| 0.00 | 2.68 | 0.00 | 2.24 | -16.85 | 61.14 | -48.51 | 117.13 | 0.8078 | -731.0 | -596.9 | |
| 0.62 | 2.41 | 0.53 | 2.03 | -16.88 | 60.74 | -48.91 | 117.00 | 0.8116 | -730.1 | -626.0 | |
| 3.66 | 42.09 | 3.07 | 35.64 | -16.53 | 60.72 | -48.93 | 116.58 | 0.8103 | -760.5 | -323.1 | |
| 1.16 | -18.00 | 0.98 | -18.00 | -16.72 | 60.46 | -49.19 | 116.68 | 0.8134 | -647.9 | 999999 | |
| 0.80 | 1.69 | 0.69 | 1.46 | -17.52 | 59.97 | -49.68 | 117.37 | 0.8209 | -438.4 | -380.6 | |
| 5.80 | -18.00 | 4.94 | -18.00 | -16.77 | 60.20 | -49.45 | 116.63 | 0.8160 | -481.2 | 999999 | |
| 0.00 | 1.16 | 0.00 | 1.02 | -17.26 | 59.23 | -50.42 | 116.76 | 0.8265 | -278.0 | -349.4 | |
| 0.00 | 0.89 | 0.00 | 0.74 | -12.29 | 59.60 | -50.05 | 111.18 | 0.8055 | -547.0 | -474.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
