SDO HMI 2014-09-09 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.35 | 87.90 | 3.37 | 56.95 | -20.84 | 79.70 | -28.85 | 135.61 | 0.6429 | 142.1 | 229.1 | |
|
previous
or next observation for the same group /

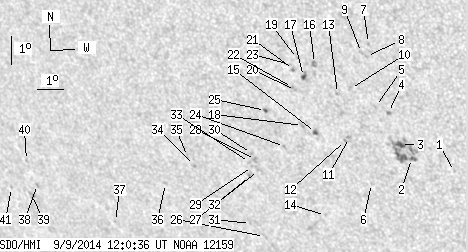

back to the solar disc SDO HMI 2014-09-09 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.44 | -21.61 | 85.04 | -23.51 | 141.88 | 0.6031 | 657.0 | 536.6 | |
| 0.45 | 29.51 | 0.28 | 18.44 | -21.24 | 83.57 | -24.98 | 139.80 | 0.6121 | 812.8 | 655.7 | |
| 2.32 | -2.00 | 1.45 | -2.00 | -20.78 | 83.26 | -25.29 | 138.94 | 0.6103 | 830.9 | 999999 | |
| 0.00 | 1.87 | 0.00 | 1.16 | -19.71 | 83.02 | -25.53 | 137.42 | 0.6018 | -733.0 | -608.1 | |
| 0.00 | 1.07 | 0.00 | 0.66 | -19.53 | 82.59 | -25.96 | 136.74 | 0.6042 | 317.0 | 373.4 | |
| 0.00 | 1.07 | 0.00 | 0.69 | -22.19 | 81.94 | -26.61 | 139.11 | 0.6359 | 464.0 | 411.4 | |
| 0.00 | 0.89 | 0.00 | 0.54 | -17.42 | 82.69 | -25.86 | 134.23 | 0.5830 | 603.0 | 564.5 | |
| 0.00 | 1.07 | 0.00 | 0.65 | -17.86 | 82.55 | -26.00 | 134.64 | 0.5886 | 714.0 | 627.4 | |
| 0.00 | 1.87 | 0.00 | 1.15 | -17.73 | 82.39 | -26.16 | 134.31 | 0.5890 | 610.0 | 542.0 | |
| 0.00 | 1.60 | 0.00 | 1.00 | -18.97 | 81.79 | -26.76 | 135.21 | 0.6065 | -74.0 | -194.1 | |
| 0.00 | 1.87 | 0.00 | 1.19 | -20.65 | 81.45 | -27.10 | 136.85 | 0.6256 | 625.0 | 503.0 | |
| 0.00 | 1.34 | 0.00 | 0.85 | -20.76 | 81.28 | -27.27 | 136.80 | 0.6282 | 602.0 | 584.5 | |
| 0.00 | 1.16 | 0.00 | 0.73 | -19.17 | 81.29 | -27.26 | 134.93 | 0.6133 | -528.0 | -489.5 | |
| 0.00 | 0.80 | 0.00 | 0.53 | -23.43 | 79.96 | -28.59 | 138.48 | 0.6647 | 507.0 | 408.3 | |
| 0.80 | 2.23 | 0.51 | 1.43 | -20.55 | 80.23 | -28.32 | 135.50 | 0.6361 | 758.6 | 629.7 | |
| 0.00 | 3.21 | 0.00 | 2.00 | -18.20 | 80.64 | -27.91 | 133.07 | 0.6110 | -764.0 | -663.7 | |
| 1.16 | 3.92 | 0.73 | 2.47 | -18.67 | 80.15 | -28.40 | 133.16 | 0.6199 | -754.8 | -548.1 | |
| 0.00 | 2.76 | 0.00 | 1.77 | -20.34 | 79.79 | -28.76 | 134.83 | 0.6383 | 401.0 | 316.1 | |
| 0.00 | 1.34 | 0.00 | 0.84 | -18.07 | 80.05 | -28.50 | 132.31 | 0.6158 | -798.0 | -598.9 | |
| 0.00 | 0.98 | 0.00 | 0.62 | -19.16 | 79.77 | -28.78 | 133.39 | 0.6281 | -749.0 | -608.1 | |
| 0.00 | 1.60 | 0.00 | 1.01 | -18.45 | 79.83 | -28.72 | 132.58 | 0.6213 | -732.0 | -661.3 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -19.07 | 79.68 | -28.87 | 133.19 | 0.6281 | -818.0 | -683.4 | |
| 0.00 | 0.89 | 0.00 | 0.56 | -18.29 | 79.71 | -28.83 | 132.27 | 0.6210 | -582.0 | -534.1 | |
| 0.00 | 1.34 | 0.00 | 0.87 | -21.11 | 78.96 | -29.59 | 134.93 | 0.6529 | 564.0 | 434.7 | |
| 0.62 | 1.87 | 0.40 | 1.21 | -19.92 | 78.51 | -30.04 | 133.10 | 0.6469 | -676.0 | -624.5 | |
| 0.00 | 1.43 | 0.00 | 0.98 | -24.33 | 77.40 | -31.15 | 137.09 | 0.6946 | 496.0 | 423.0 | |
| 0.00 | 0.80 | 0.00 | 0.54 | -22.01 | 77.77 | -30.78 | 134.86 | 0.6716 | 703.0 | 612.6 | |
| 0.00 | 2.41 | 0.00 | 1.60 | -21.64 | 77.75 | -30.80 | 134.41 | 0.6687 | 791.0 | 679.0 | |
| 0.00 | 1.43 | 0.00 | 0.95 | -21.89 | 77.57 | -30.98 | 134.54 | 0.6724 | 665.0 | 535.6 | |
| 0.00 | 1.52 | 0.00 | 1.01 | -21.44 | 77.64 | -30.91 | 134.09 | 0.6680 | 687.0 | 450.2 | |
| 0.00 | 0.89 | 0.00 | 0.61 | -23.91 | 76.97 | -31.58 | 136.25 | 0.6946 | 306.0 | 260.6 | |
| 0.00 | 1.16 | 0.00 | 0.78 | -22.25 | 77.37 | -31.18 | 134.77 | 0.6772 | 645.0 | 591.5 | |
| 0.00 | 1.25 | 0.00 | 0.83 | -21.76 | 77.49 | -31.06 | 134.32 | 0.6720 | 599.0 | 538.6 | |
| 0.00 | 1.34 | 0.00 | 0.92 | -22.01 | 75.31 | -33.24 | 132.73 | 0.6942 | 650.0 | 599.0 | |
| 0.00 | 1.16 | 0.00 | 0.79 | -21.72 | 75.11 | -33.44 | 132.24 | 0.6937 | 644.0 | 605.7 | |
| 0.00 | 1.25 | 0.00 | 0.88 | -22.73 | 73.96 | -34.59 | 132.46 | 0.7120 | 680.0 | 513.9 | |
| 0.00 | 0.80 | 0.00 | 0.59 | -24.26 | 71.44 | -37.11 | 132.22 | 0.7451 | -333.0 | -327.0 | |
| 0.00 | 1.52 | 0.00 | 1.16 | -23.21 | 68.51 | -40.04 | 129.05 | 0.7636 | -489.0 | -489.0 | |
| 0.00 | 3.21 | 0.00 | 2.48 | -23.59 | 68.11 | -40.44 | 129.20 | 0.7694 | -659.0 | -544.4 | |
| 0.00 | 1.07 | 0.00 | 0.81 | -22.40 | 68.33 | -40.22 | 128.03 | 0.7602 | -511.0 | -454.5 | |
| 0.00 | 0.89 | 0.00 | 0.70 | -23.42 | 67.30 | -41.25 | 128.50 | 0.7753 | -414.0 | -341.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
