SDO HMI 2014-09-09 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 234.41 | 1008.43 | 127.41 | 549.43 | -13.95 | 96.21 | -11.79 | 151.80 | 0.4146 | -50.8 | -144.3 | |
|
previous
or next observation for the same group /

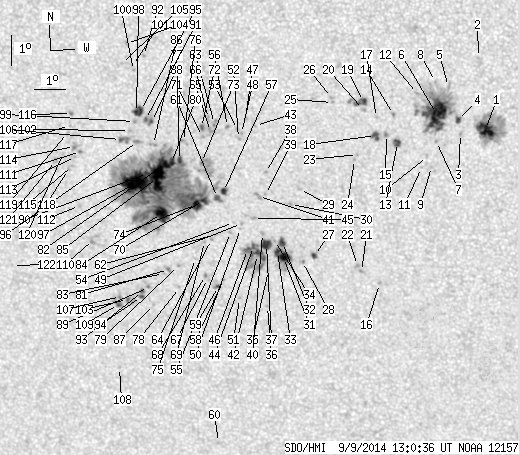

back to the solar disc SDO HMI 2014-09-09 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.96 | 68.28 | 8.40 | 35.94 | -12.21 | 104.22 | -3.78 | 169.04 | 0.3403 | 1184.0 | 481.3 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -9.92 | 104.04 | -3.96 | 166.99 | 0.3037 | 660.0 | 457.3 | |
| 0.00 | 1.16 | 0.00 | 0.61 | -12.34 | 103.44 | -4.56 | 166.94 | 0.3451 | 595.0 | 472.4 | |
| 1.78 | 110.35 | 0.94 | 58.01 | -11.93 | 103.36 | -4.64 | 166.42 | 0.3387 | 948.2 | 604.1 | |
| 0.00 | 2.94 | 0.00 | 1.54 | -10.84 | 103.10 | -4.90 | 164.85 | 0.3225 | 218.0 | 176.0 | |
| 38.24 | -4.00 | 20.12 | -4.00 | -11.71 | 102.71 | -5.29 | 164.44 | 0.3379 | 1076.7 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -12.60 | 102.69 | -5.31 | 165.09 | 0.3522 | 700.0 | 567.4 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -10.69 | 102.70 | -5.30 | 163.55 | 0.3218 | 236.0 | 235.2 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -13.41 | 102.52 | -5.48 | 165.22 | 0.3657 | 611.0 | 553.9 | |
| 0.00 | 1.69 | 0.00 | 0.90 | -13.09 | 102.40 | -5.60 | 164.68 | 0.3611 | 620.0 | 465.1 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -13.45 | 102.21 | -5.79 | 164.44 | 0.3676 | 679.0 | 465.2 | |
| 0.00 | 1.25 | 0.00 | 0.65 | -11.08 | 102.14 | -5.86 | 162.27 | 0.3307 | 116.0 | 117.9 | |
| 3.03 | 4.99 | 1.61 | 2.65 | -12.65 | 101.48 | -6.52 | 161.92 | 0.3586 | 949.7 | 755.5 | |
| 0.00 | 1.69 | 0.00 | 0.89 | -11.76 | 101.38 | -6.62 | 160.82 | 0.3452 | 944.0 | 753.1 | |
| 0.00 | 2.23 | 0.00 | 1.18 | -12.40 | 101.14 | -6.86 | 160.82 | 0.3564 | 1016.0 | 823.4 | |
| 0.00 | 1.34 | 0.00 | 0.73 | -17.26 | 100.76 | -7.24 | 163.77 | 0.4327 | -718.0 | -626.2 | |
| 0.00 | 0.89 | 0.00 | 0.47 | -11.86 | 100.85 | -7.15 | 159.52 | 0.3497 | 763.0 | 542.4 | |
| 3.30 | 5.62 | 1.75 | 2.98 | -12.44 | 100.80 | -7.20 | 159.97 | 0.3589 | 905.1 | 712.6 | |
| 2.58 | 11.41 | 1.36 | 6.02 | -11.36 | 100.46 | -7.54 | 157.95 | 0.3443 | 1027.8 | 720.3 | |
| 0.00 | 2.32 | 0.00 | 1.22 | -11.61 | 100.45 | -7.55 | 158.21 | 0.3483 | 472.0 | 299.7 | |
| 0.00 | 1.96 | 0.00 | 1.07 | -16.88 | 100.20 | -7.80 | 162.32 | 0.4294 | -901.0 | -703.5 | |
| 0.00 | 2.14 | 0.00 | 1.17 | -16.68 | 100.08 | -7.92 | 161.92 | 0.4270 | -894.0 | -716.6 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -13.06 | 100.22 | -7.78 | 159.12 | 0.3716 | 564.0 | 469.5 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -13.22 | 100.12 | -7.88 | 159.03 | 0.3747 | 849.0 | 692.5 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -11.40 | 99.49 | -8.51 | 155.50 | 0.3513 | 685.0 | 416.1 | |
| 0.00 | 1.60 | 0.00 | 0.85 | -11.25 | 99.46 | -8.53 | 155.24 | 0.3491 | 667.0 | 543.4 | |
| 1.60 | 3.92 | 0.88 | 2.15 | -16.37 | 98.72 | -9.28 | 158.81 | 0.4297 | 766.3 | 619.7 | |
| 0.00 | 1.87 | 0.00 | 1.03 | -16.58 | 98.33 | -9.67 | 158.18 | 0.4349 | 742.0 | 622.1 | |
| 0.00 | 1.43 | 0.00 | 0.77 | -14.22 | 98.35 | -9.65 | 155.95 | 0.4004 | 697.0 | 531.1 | |
| 0.00 | 1.52 | 0.00 | 0.82 | -14.72 | 98.04 | -9.96 | 155.79 | 0.4096 | 690.0 | 634.6 | |
| 9.45 | 35.39 | 5.20 | 19.46 | -16.46 | 97.73 | -10.27 | 156.85 | 0.4368 | 984.2 | 469.8 | |
| 3.48 | -31.00 | 1.91 | -31.00 | -15.97 | 97.72 | -10.28 | 156.38 | 0.4297 | 1055.5 | 999999 | |
| 3.12 | -31.00 | 1.71 | -31.00 | -16.27 | 97.55 | -10.45 | 156.31 | 0.4352 | 1004.2 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -15.91 | 97.47 | -10.53 | 155.80 | 0.4305 | 873.0 | 682.7 | |
| 0.00 | 1.78 | 0.00 | 0.99 | -16.90 | 97.22 | -10.78 | 156.26 | 0.4463 | 590.0 | 396.6 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -18.10 | 97.12 | -10.88 | 157.15 | 0.4640 | 541.0 | 463.4 | |
| 6.51 | 57.14 | 3.58 | 31.53 | -16.05 | 97.21 | -10.79 | 155.41 | 0.4342 | 1016.7 | 247.3 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -13.70 | 97.30 | -10.70 | 153.07 | 0.4000 | 775.0 | 575.6 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -14.41 | 97.26 | -10.74 | 153.81 | 0.4105 | 672.0 | 580.9 | |
| 0.00 | 1.52 | 0.00 | 0.83 | -15.69 | 97.10 | -10.90 | 154.83 | 0.4298 | 869.0 | 732.2 | |
| 0.00 | 3.92 | 0.00 | 2.13 | -14.48 | 97.04 | -10.96 | 153.41 | 0.4131 | 786.0 | 703.8 | |
| 7.84 | -37.00 | 4.32 | -37.00 | -16.38 | 96.90 | -11.10 | 155.13 | 0.4410 | 734.3 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -12.19 | 97.05 | -10.95 | 150.67 | 0.3806 | -335.0 | -425.1 | |
| 1.43 | -37.00 | 0.79 | -37.00 | -16.12 | 96.79 | -11.21 | 154.65 | 0.4380 | 803.4 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.12 | -15.20 | 96.84 | -11.16 | 153.79 | 0.4247 | 946.0 | 743.6 | |
| 2.32 | -37.00 | 1.28 | -37.00 | -16.23 | 96.59 | -11.41 | 154.36 | 0.4408 | 541.0 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.72 | -11.97 | 96.75 | -11.25 | 149.70 | 0.3800 | -656.0 | -599.6 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -12.46 | 96.60 | -11.40 | 150.02 | 0.3879 | -841.0 | -639.2 | |
| 0.00 | 1.34 | 0.00 | 0.73 | -15.38 | 96.45 | -11.55 | 153.19 | 0.4299 | 800.0 | 668.5 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -15.54 | 96.41 | -11.59 | 153.28 | 0.4325 | 618.0 | 541.7 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -17.86 | 96.23 | -11.77 | 155.27 | 0.4661 | -835.0 | -657.3 | |
| 0.00 | 2.23 | 0.00 | 1.20 | -12.62 | 96.50 | -11.50 | 150.01 | 0.3910 | -810.0 | -641.2 | |
| 0.00 | 1.43 | 0.00 | 0.77 | -12.33 | 96.48 | -11.52 | 149.59 | 0.3871 | -877.0 | -696.0 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -15.35 | 96.19 | -11.81 | 152.65 | 0.4313 | 588.0 | 479.2 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -15.68 | 96.08 | -11.92 | 152.79 | 0.4367 | 694.0 | 601.1 | |
| 0.00 | 1.52 | 0.00 | 0.81 | -12.24 | 96.17 | -11.83 | 148.80 | 0.3885 | -1006.0 | -866.8 | |
| 2.85 | 499.17 | 1.55 | 274.53 | -14.35 | 95.93 | -12.07 | 150.98 | 0.4193 | 838.9 | -366.6 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -17.24 | 95.75 | -12.25 | 153.79 | 0.4606 | -632.0 | -620.9 | |
| 0.80 | 3.12 | 0.45 | 1.74 | -17.48 | 95.57 | -12.43 | 153.70 | 0.4651 | -856.6 | -778.8 | |
| 0.00 | 1.25 | 0.00 | 0.73 | -22.80 | 95.13 | -12.87 | 157.57 | 0.5404 | -532.0 | -475.6 | |
| 1.78 | 4.64 | 0.97 | 2.53 | -14.55 | 95.73 | -12.27 | 150.81 | 0.4236 | 747.0 | 553.8 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -15.76 | 95.62 | -12.38 | 151.99 | 0.4411 | 688.0 | 555.5 | |
| 0.00 | 2.67 | 0.00 | 1.44 | -12.16 | 95.76 | -12.24 | 147.82 | 0.3907 | -784.0 | -850.7 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -15.93 | 95.45 | -12.55 | 151.85 | 0.4447 | 726.0 | 631.1 | |
| 0.00 | 4.37 | 0.00 | 2.35 | -12.42 | 95.62 | -12.38 | 147.88 | 0.3955 | -927.0 | -781.8 | |
| 0.00 | 2.67 | 0.00 | 1.44 | -12.00 | 95.58 | -12.42 | 147.21 | 0.3902 | -904.0 | -774.3 | |
| 0.00 | 1.87 | 0.00 | 1.05 | -17.22 | 95.23 | -12.77 | 152.82 | 0.4640 | -623.0 | -615.7 | |
| 0.00 | 1.52 | 0.00 | 0.85 | -17.12 | 95.18 | -12.82 | 152.61 | 0.4630 | -905.0 | -717.8 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -16.00 | 95.22 | -12.78 | 151.50 | 0.4474 | 685.0 | 554.2 | |
| 3.12 | -57.00 | 1.71 | -57.00 | -14.66 | 95.27 | -12.72 | 150.05 | 0.4287 | 837.9 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -12.59 | 95.36 | -12.64 | 147.57 | 0.4000 | -895.0 | -727.1 | |
| 0.98 | 2.58 | 0.53 | 1.39 | -12.30 | 95.34 | -12.66 | 147.14 | 0.3962 | -921.9 | -852.2 | |
| 0.36 | 21.84 | 0.19 | 11.87 | -13.43 | 95.28 | -12.72 | 148.53 | 0.4119 | -1011.0 | -442.0 | |
| 7.04 | -57.00 | 3.87 | -57.00 | -14.79 | 95.04 | -12.96 | 149.77 | 0.4324 | 705.9 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -16.57 | 94.89 | -13.11 | 151.51 | 0.4575 | 489.0 | 362.4 | |
| 0.00 | 3.83 | 0.00 | 2.08 | -12.76 | 94.75 | -13.25 | 146.57 | 0.4076 | -843.0 | -795.1 | |
| 2.58 | -57.00 | 1.41 | -57.00 | -13.38 | 94.58 | -13.42 | 147.09 | 0.4172 | -1062.7 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -17.55 | 94.30 | -13.70 | 151.49 | 0.4751 | -622.0 | -468.0 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -16.82 | 94.32 | -13.68 | 150.75 | 0.4651 | -683.0 | -545.4 | |
| 4.01 | -57.00 | 2.19 | -57.00 | -13.45 | 94.32 | -13.68 | 146.68 | 0.4204 | -1158.5 | 999999 | |
| 0.00 | 2.58 | 0.00 | 1.45 | -16.96 | 93.99 | -14.01 | 150.31 | 0.4696 | -958.0 | -763.1 | |
| 7.22 | -57.00 | 3.94 | -57.00 | -13.49 | 94.13 | -13.87 | 146.36 | 0.4226 | -1262.6 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -17.10 | 93.81 | -14.19 | 150.16 | 0.4727 | -779.0 | -551.2 | |
| 16.04 | -57.00 | 8.87 | -57.00 | -15.12 | 93.90 | -14.10 | 148.02 | 0.4460 | 699.4 | 999999 | |
| 31.38 | -57.00 | 17.21 | -57.00 | -13.95 | 93.84 | -14.15 | 146.44 | 0.4311 | -1175.2 | 999999 | |
| 0.00 | 2.67 | 0.00 | 1.46 | -12.89 | 93.78 | -14.22 | 144.88 | 0.4179 | -808.0 | -747.9 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -18.14 | 93.40 | -14.60 | 150.58 | 0.4896 | -738.0 | -601.3 | |
| 1.16 | 8.20 | 0.63 | 4.45 | -12.15 | 93.76 | -14.24 | 143.77 | 0.4086 | -1034.1 | -848.7 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -17.58 | 93.28 | -14.72 | 149.78 | 0.4831 | -777.0 | -708.4 | |
| 2.58 | -57.00 | 1.42 | -57.00 | -13.83 | 93.53 | -14.47 | 145.70 | 0.4323 | -1053.4 | 999999 | |
| 0.62 | -88.00 | 0.34 | -88.00 | -12.09 | 93.57 | -14.43 | 143.33 | 0.4096 | -1060.1 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -10.06 | 93.62 | -14.38 | 140.18 | 0.3836 | -840.0 | -712.7 | |
| 0.98 | 6.06 | 0.56 | 3.44 | -17.72 | 93.07 | -14.93 | 149.58 | 0.4865 | -990.1 | -777.1 | |
| 1.16 | -93.00 | 0.66 | -93.00 | -17.89 | 93.03 | -14.97 | 149.68 | 0.4891 | -867.1 | 999999 | |
| 3.65 | 9.00 | 1.98 | 4.88 | -11.81 | 93.43 | -14.57 | 142.63 | 0.4074 | -1108.7 | -707.9 | |
| 0.00 | 3.92 | 0.00 | 2.14 | -12.81 | 93.28 | -14.72 | 143.81 | 0.4215 | -1043.0 | -870.3 | |
| 39.76 | -57.00 | 21.91 | -57.00 | -14.14 | 93.16 | -14.84 | 145.42 | 0.4395 | -1038.4 | 999999 | |
| 2.58 | -95.00 | 1.40 | -95.00 | -11.88 | 93.30 | -14.70 | 142.48 | 0.4095 | -1039.9 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -12.17 | 93.22 | -14.78 | 142.77 | 0.4140 | -785.0 | -607.4 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -10.54 | 93.27 | -14.72 | 140.33 | 0.3931 | -739.0 | -614.0 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -10.39 | 93.25 | -14.75 | 140.02 | 0.3914 | -818.0 | -634.4 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -12.46 | 93.04 | -14.96 | 142.87 | 0.4194 | -769.0 | -695.6 | |
| 0.62 | 4.72 | 0.36 | 2.69 | -18.00 | 92.56 | -15.44 | 149.04 | 0.4942 | -838.9 | -638.2 | |
| 0.00 | 1.69 | 0.00 | 0.91 | -9.70 | 93.09 | -14.91 | 138.55 | 0.3847 | -910.0 | -681.9 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -10.33 | 92.90 | -15.10 | 139.28 | 0.3944 | -632.0 | -525.2 | |
| 0.98 | 7.31 | 0.54 | 4.00 | -12.76 | 92.73 | -15.27 | 142.75 | 0.4260 | -777.1 | -797.5 | |
| 0.00 | 2.32 | 0.00 | 1.32 | -17.91 | 92.33 | -15.67 | 148.57 | 0.4948 | -788.0 | -692.0 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -20.31 | 92.06 | -15.94 | 150.65 | 0.5275 | -588.0 | -478.8 | |
| 1.52 | 5.97 | 0.87 | 3.41 | -18.18 | 92.24 | -15.76 | 148.72 | 0.4989 | -720.8 | -591.2 | |
| 0.00 | 5.88 | 0.00 | 3.31 | -16.05 | 91.61 | -16.39 | 145.22 | 0.4773 | -417.0 | -607.0 | |
| 0.00 | 1.69 | 0.00 | 0.94 | -13.20 | 91.41 | -16.58 | 141.07 | 0.4441 | -964.0 | -815.8 | |
| 0.00 | 1.52 | 0.00 | 0.85 | -14.95 | 91.25 | -16.75 | 143.22 | 0.4670 | -796.0 | -652.6 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -13.36 | 91.24 | -16.76 | 141.02 | 0.4478 | -580.0 | -520.7 | |
| 0.00 | 3.83 | 0.00 | 2.12 | -13.04 | 91.23 | -16.77 | 140.53 | 0.4440 | -930.0 | -763.1 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -13.66 | 91.12 | -16.88 | 141.24 | 0.4525 | -656.0 | -552.9 | |
| 0.00 | 1.96 | 0.00 | 1.08 | -11.98 | 91.21 | -16.79 | 138.90 | 0.4317 | -933.0 | -751.0 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -12.37 | 91.12 | -16.88 | 139.34 | 0.4372 | -627.0 | -603.0 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -13.79 | 90.98 | -17.02 | 141.20 | 0.4555 | -604.0 | -467.9 | |
| 0.00 | 1.52 | 0.00 | 0.84 | -12.60 | 91.04 | -16.96 | 139.55 | 0.4407 | -694.0 | -568.5 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -13.25 | 90.86 | -17.14 | 140.22 | 0.4502 | -87.0 | -86.5 | |
| 0.00 | 2.94 | 0.00 | 1.64 | -13.52 | 90.58 | -17.42 | 140.15 | 0.4561 | -603.0 | -528.4 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -17.02 | 88.84 | -19.16 | 142.16 | 0.5137 | -391.0 | -326.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
