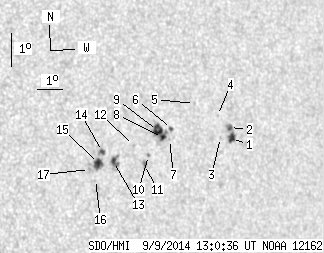

SDO HMI 2014-09-09 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.76 | 62.11 | 16.48 | 39.69 | 9.64 | 147.46 | 39.46 | 276.38 | 0.6325 | -189.1 | -18.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-09 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.83 | 11.05 | 2.56 | 7.39 | 9.59 | 150.60 | 42.60 | 276.31 | 0.6738 | -690.5 | -472.3 | |
| 1.52 | -1.00 | 1.01 | -1.00 | 9.93 | 150.57 | 42.57 | 276.82 | 0.6735 | -702.0 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.65 | 9.66 | 150.16 | 42.16 | 276.41 | 0.6681 | -601.0 | -449.7 | |
| 0.00 | 1.16 | 0.00 | 0.77 | 10.33 | 150.14 | 42.14 | 277.42 | 0.6680 | -386.0 | -349.1 | |
| 0.00 | 0.62 | 0.00 | 0.41 | 10.77 | 149.26 | 41.27 | 278.11 | 0.6568 | 310.0 | 349.0 | |
| 0.80 | 1.78 | 0.52 | 1.15 | 10.09 | 148.22 | 40.22 | 277.10 | 0.6429 | -563.8 | -399.4 | |
| 0.00 | 0.62 | 0.00 | 0.40 | 9.77 | 148.09 | 40.09 | 276.59 | 0.6412 | -618.0 | -612.1 | |
| 2.76 | 17.03 | 1.77 | 10.91 | 9.85 | 147.82 | 39.82 | 276.73 | 0.6376 | -869.4 | -610.3 | |
| 7.40 | -8.00 | 4.74 | -8.00 | 10.08 | 147.66 | 39.66 | 277.09 | 0.6355 | -939.2 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.74 | 9.36 | 147.20 | 39.20 | 275.94 | 0.6292 | 420.0 | 338.3 | |
| 0.53 | 2.85 | 0.34 | 1.81 | 9.10 | 147.00 | 39.00 | 275.53 | 0.6266 | -765.5 | -583.5 | |
| 0.00 | 0.98 | 0.00 | 0.62 | 9.70 | 146.65 | 38.65 | 276.51 | 0.6219 | -230.0 | -202.9 | |
| 2.14 | 8.82 | 1.34 | 5.51 | 9.28 | 145.81 | 37.81 | 275.83 | 0.6105 | 808.7 | 558.4 | |
| 1.34 | 3.12 | 0.83 | 1.94 | 9.61 | 145.43 | 37.43 | 276.39 | 0.6052 | 676.2 | 582.8 | |
| 5.44 | 9.98 | 3.37 | 6.18 | 9.27 | 145.23 | 37.23 | 275.81 | 0.6025 | 929.2 | 703.0 | |
| 0.00 | 0.53 | 0.00 | 0.33 | 8.79 | 145.06 | 37.06 | 275.02 | 0.6001 | 458.0 | 381.8 | |
| 0.00 | 1.43 | 0.00 | 0.88 | 9.11 | 144.87 | 36.87 | 275.55 | 0.5974 | 838.0 | 711.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
