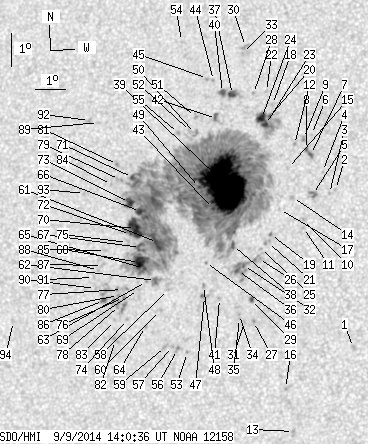

SDO HMI 2014-09-09 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 255.17 | 1440.05 | 135.91 | 767.88 | 15.63 | 87.26 | -20.19 | 65.15 | 0.3685 | 256.3 | 17.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-09 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.65 | 0.00 | 1.88 | 11.32 | 92.47 | -14.98 | 73.44 | 0.2657 | -988.0 | -648.7 | |
| 0.00 | 1.16 | 0.00 | 0.60 | 16.10 | 91.57 | -15.88 | 58.90 | 0.3084 | -839.0 | -618.4 | |
| 0.00 | 1.25 | 0.00 | 0.65 | 15.97 | 91.38 | -16.07 | 59.53 | 0.3101 | -805.0 | -636.7 | |
| 0.00 | 0.53 | 0.00 | 0.28 | 16.63 | 91.10 | -16.35 | 58.07 | 0.3193 | -646.0 | -551.8 | |
| 0.00 | 5.35 | 0.00 | 2.79 | 15.92 | 90.83 | -16.62 | 60.44 | 0.3176 | 400.0 | 511.0 | |
| 0.00 | 0.80 | 0.00 | 0.42 | 17.75 | 90.63 | -16.82 | 55.75 | 0.3348 | -768.0 | -553.2 | |
| 0.89 | 4.72 | 0.47 | 2.48 | 17.14 | 90.66 | -16.79 | 57.32 | 0.3294 | 1035.3 | 813.3 | |
| 0.71 | -7.00 | 0.37 | -7.00 | 17.29 | 90.51 | -16.94 | 57.14 | 0.3326 | 911.6 | 999999 | |
| 0.00 | 2.58 | 0.00 | 1.36 | 17.62 | 90.38 | -17.07 | 56.45 | 0.3371 | -836.0 | -627.9 | |
| 0.00 | 1.16 | 0.00 | 0.60 | 15.15 | 90.60 | -16.85 | 62.96 | 0.3155 | -907.0 | -710.0 | |
| 0.00 | 1.25 | 0.00 | 0.65 | 14.90 | 90.62 | -16.83 | 63.64 | 0.3136 | -679.0 | -437.4 | |
| 0.00 | 1.43 | 0.00 | 0.75 | 17.43 | 90.10 | -17.35 | 57.34 | 0.3394 | -689.0 | -471.1 | |
| 0.00 | 1.34 | 0.00 | 0.69 | 8.72 | 90.68 | -16.77 | 83.76 | 0.2882 | -795.0 | -627.2 | |
| 0.00 | 2.41 | 0.00 | 1.26 | 15.81 | 90.18 | -17.27 | 61.60 | 0.3261 | -13.0 | 73.8 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 16.68 | 89.94 | -17.51 | 59.51 | 0.3359 | 778.0 | 613.8 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 10.01 | 90.36 | -17.09 | 79.46 | 0.2956 | -753.0 | -674.8 | |
| 0.00 | 0.80 | 0.00 | 0.42 | 15.42 | 89.79 | -17.66 | 63.14 | 0.3292 | -541.0 | -405.8 | |
| 0.00 | 1.52 | 0.00 | 0.80 | 18.63 | 89.24 | -18.21 | 55.50 | 0.3608 | 813.0 | 605.2 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 14.65 | 89.56 | -17.89 | 65.58 | 0.3278 | -853.0 | -724.3 | |
| 0.89 | 35.65 | 0.47 | 18.90 | 18.25 | 89.18 | -18.27 | 56.48 | 0.3586 | 975.3 | 568.8 | |
| 0.00 | 2.76 | 0.00 | 1.45 | 14.41 | 89.48 | -17.97 | 66.37 | 0.3276 | -303.0 | -492.2 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 19.02 | 89.00 | -18.45 | 54.90 | 0.3673 | 749.0 | 572.7 | |
| 3.39 | -20.00 | 1.80 | -20.00 | 18.00 | 89.08 | -18.37 | 57.24 | 0.3580 | 1245.6 | 999999 | |
| 6.15 | -20.00 | 3.27 | -20.00 | 18.18 | 88.92 | -18.53 | 56.99 | 0.3615 | 973.5 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.70 | 14.22 | 89.27 | -18.18 | 67.13 | 0.3297 | 499.0 | 257.5 | |
| 0.00 | 5.17 | 0.00 | 2.71 | 13.91 | 89.23 | -18.22 | 68.05 | 0.3287 | -576.0 | -628.8 | |
| 0.00 | 1.34 | 0.00 | 0.70 | 12.00 | 89.21 | -18.24 | 73.77 | 0.3203 | -928.0 | -830.7 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 18.94 | 88.57 | -18.88 | 55.64 | 0.3724 | -376.0 | -420.3 | |
| 1.16 | 2.94 | 0.61 | 1.54 | 12.66 | 89.09 | -18.35 | 71.85 | 0.3248 | -1011.8 | -847.8 | |
| 0.00 | 3.30 | 0.00 | 1.77 | 20.38 | 88.12 | -19.33 | 52.97 | 0.3903 | 657.0 | 651.6 | |
| 0.00 | 1.43 | 0.00 | 0.75 | 11.95 | 88.92 | -18.53 | 74.09 | 0.3247 | -838.0 | -716.0 | |
| 0.71 | 18.89 | 0.37 | 9.93 | 13.68 | 88.75 | -18.70 | 69.15 | 0.3347 | -1004.9 | -683.7 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 20.16 | 88.05 | -19.40 | 53.55 | 0.3894 | 937.0 | 821.7 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 12.19 | 88.74 | -18.71 | 73.51 | 0.3285 | -890.0 | -778.7 | |
| 0.00 | 0.71 | 0.00 | 0.37 | 12.07 | 88.75 | -18.70 | 73.86 | 0.3279 | -868.0 | -756.2 | |
| 1.52 | -32.00 | 0.80 | -32.00 | 13.52 | 88.57 | -18.88 | 69.76 | 0.3368 | -1029.5 | 999999 | |
| 3.65 | 12.83 | 1.96 | 6.88 | 18.88 | 87.86 | -19.58 | 56.65 | 0.3813 | 951.7 | 661.5 | |
| 1.52 | 1213.85 | 0.80 | 647.50 | 14.27 | 88.34 | -19.11 | 67.84 | 0.3440 | 786.8 | 64.1 | |
| 170.31 | -38.00 | 90.44 | -38.00 | 16.15 | 87.90 | -19.55 | 63.27 | 0.3614 | 1146.4 | 999999 | |
| 2.23 | -37.00 | 1.20 | -37.00 | 18.93 | 87.52 | -19.93 | 56.95 | 0.3863 | 867.4 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.80 | 12.65 | 88.05 | -19.40 | 72.65 | 0.3410 | -883.0 | -679.5 | |
| 0.00 | 5.08 | 0.00 | 2.72 | 18.12 | 87.41 | -20.04 | 58.94 | 0.3817 | 822.0 | 762.8 | |
| 0.89 | -38.00 | 0.47 | -38.00 | 15.37 | 87.61 | -19.84 | 65.56 | 0.3610 | 870.0 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 19.29 | 87.17 | -20.28 | 56.55 | 0.3938 | 751.0 | 616.1 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 19.34 | 86.96 | -20.49 | 56.67 | 0.3970 | 716.0 | 607.0 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 13.72 | 87.50 | -19.95 | 70.06 | 0.3541 | -764.0 | -605.0 | |
| 0.00 | 2.67 | 0.00 | 1.41 | 12.69 | 87.55 | -19.90 | 72.87 | 0.3489 | -1165.0 | -901.9 | |
| 0.00 | 1.52 | 0.00 | 0.80 | 13.02 | 87.49 | -19.96 | 71.99 | 0.3512 | -909.0 | -784.9 | |
| 0.27 | -38.00 | 0.14 | -38.00 | 15.99 | 87.08 | -20.37 | 64.47 | 0.3724 | 765.0 | 999999 | |
| 0.00 | 3.03 | 0.00 | 1.63 | 17.64 | 86.76 | -20.69 | 60.79 | 0.3874 | 748.0 | 569.0 | |
| 0.00 | 1.96 | 0.00 | 1.05 | 18.13 | 86.70 | -20.75 | 59.71 | 0.3916 | 768.0 | 555.5 | |
| 0.00 | 1.60 | 0.00 | 0.86 | 17.69 | 86.58 | -20.86 | 60.84 | 0.3902 | 174.0 | 194.6 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 10.97 | 87.12 | -20.33 | 77.94 | 0.3502 | -715.0 | -553.9 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 20.45 | 85.91 | -21.54 | 55.47 | 0.4194 | 697.0 | 464.2 | |
| 0.00 | 1.69 | 0.00 | 0.91 | 17.61 | 86.19 | -21.26 | 61.43 | 0.3953 | -311.0 | -150.3 | |
| 0.00 | 2.05 | 0.00 | 1.09 | 11.05 | 86.79 | -20.66 | 77.87 | 0.3557 | -781.0 | -697.7 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 11.13 | 86.62 | -20.83 | 77.71 | 0.3586 | -738.0 | -642.9 | |
| 0.00 | 1.69 | 0.00 | 0.90 | 12.85 | 86.35 | -21.10 | 73.19 | 0.3682 | -700.0 | -427.0 | |
| 0.00 | 2.94 | 0.00 | 1.56 | 11.12 | 86.39 | -21.06 | 77.83 | 0.3623 | -833.0 | -662.4 | |
| 0.00 | 1.34 | 0.00 | 0.71 | 12.20 | 86.14 | -21.31 | 75.03 | 0.3693 | -856.0 | -716.0 | |
| 13.55 | -38.00 | 7.26 | -38.00 | 14.26 | 85.85 | -21.60 | 69.86 | 0.3816 | -728.1 | 999999 | |
| 1.52 | 7.04 | 0.81 | 3.76 | 13.10 | 85.89 | -21.56 | 72.79 | 0.3762 | -997.1 | -790.7 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 13.06 | 85.60 | -21.85 | 73.08 | 0.3806 | -748.0 | -688.8 | |
| 0.00 | 1.43 | 0.00 | 0.76 | 11.70 | 85.68 | -21.77 | 76.59 | 0.3749 | -850.0 | -611.9 | |
| 0.27 | -38.00 | 0.14 | -38.00 | 13.45 | 85.49 | -21.96 | 72.14 | 0.3837 | -1046.7 | 999999 | |
| 4.81 | -38.00 | 2.59 | -38.00 | 15.18 | 85.18 | -22.27 | 68.08 | 0.3959 | -1205.2 | 999999 | |
| 3.83 | -38.00 | 2.06 | -38.00 | 14.08 | 85.30 | -22.15 | 70.68 | 0.3892 | -1083.8 | 999999 | |
| 10.34 | -38.00 | 5.55 | -38.00 | 13.63 | 85.31 | -22.14 | 71.82 | 0.3872 | -1134.4 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 12.81 | 85.35 | -22.10 | 73.87 | 0.3835 | -718.0 | -492.6 | |
| 16.22 | -38.00 | 8.74 | -38.00 | 14.65 | 85.07 | -22.38 | 69.43 | 0.3951 | -1148.0 | 999999 | |
| 2.05 | -38.00 | 1.11 | -38.00 | 16.20 | 84.79 | -22.66 | 65.95 | 0.4068 | -901.1 | 999999 | |
| 0.98 | -38.00 | 0.53 | -38.00 | 14.46 | 84.92 | -22.53 | 70.00 | 0.3965 | -886.5 | 999999 | |
| 5.79 | -38.00 | 3.13 | -38.00 | 15.43 | 84.78 | -22.67 | 67.76 | 0.4031 | -1116.9 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 11.88 | 85.07 | -22.38 | 76.38 | 0.3850 | -739.0 | -618.6 | |
| 0.00 | 3.30 | 0.00 | 1.78 | 14.21 | 84.85 | -22.60 | 70.65 | 0.3966 | -694.0 | -577.2 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 12.54 | 84.87 | -22.57 | 74.79 | 0.3900 | -923.0 | -836.2 | |
| 0.00 | 4.90 | 0.00 | 2.64 | 12.78 | 84.82 | -22.63 | 74.21 | 0.3916 | -653.0 | -604.1 | |
| 0.00 | 11.14 | 0.00 | 5.99 | 12.29 | 84.76 | -22.69 | 75.47 | 0.3909 | -465.0 | -804.8 | |
| 0.00 | 2.41 | 0.00 | 1.31 | 16.12 | 84.36 | -23.09 | 66.47 | 0.4127 | -928.0 | -784.4 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 12.60 | 84.70 | -22.75 | 74.74 | 0.3928 | -958.0 | -834.2 | |
| 0.00 | 1.78 | 0.00 | 0.97 | 16.57 | 84.23 | -23.22 | 65.53 | 0.4169 | -966.0 | -767.8 | |
| 0.00 | 3.03 | 0.00 | 1.63 | 11.23 | 84.72 | -22.73 | 78.19 | 0.3888 | -556.0 | -632.4 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 11.83 | 84.64 | -22.81 | 76.69 | 0.3916 | -769.0 | -607.9 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 15.95 | 84.11 | -23.34 | 67.04 | 0.4155 | -819.0 | -687.1 | |
| 0.00 | 1.69 | 0.00 | 0.92 | 13.94 | 84.13 | -23.32 | 71.75 | 0.4062 | -665.0 | -460.7 | |
| 1.52 | 10.34 | 0.82 | 5.58 | 12.42 | 84.21 | -23.23 | 75.41 | 0.3998 | -724.9 | -633.7 | |
| 0.00 | 2.32 | 0.00 | 1.25 | 13.48 | 84.08 | -23.37 | 72.89 | 0.4054 | -578.0 | -482.2 | |
| 0.00 | 0.62 | 0.00 | 0.34 | 13.32 | 83.96 | -23.49 | 73.33 | 0.4066 | -590.0 | -523.6 | |
| 0.00 | 1.78 | 0.00 | 0.98 | 17.82 | 83.41 | -24.04 | 63.41 | 0.4355 | 773.0 | 611.2 | |
| 0.00 | 1.16 | 0.00 | 0.63 | 12.77 | 83.91 | -23.54 | 74.69 | 0.4055 | -545.0 | -451.8 | |
| 0.00 | 0.89 | 0.00 | 0.48 | 13.10 | 83.81 | -23.64 | 73.94 | 0.4081 | -587.0 | -451.0 | |
| 0.00 | 3.74 | 0.00 | 2.06 | 17.87 | 83.09 | -24.36 | 63.56 | 0.4402 | 839.0 | 617.0 | |
| 0.00 | 1.96 | 0.00 | 1.07 | 15.63 | 83.22 | -24.23 | 68.37 | 0.4270 | -654.0 | -566.9 | |
| 0.00 | 1.87 | 0.00 | 1.03 | 11.63 | 81.23 | -26.22 | 78.34 | 0.4437 | -502.0 | -394.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
