SDO HMI 2014-09-09 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.51 | 66.48 | 15.79 | 42.78 | 9.67 | 147.43 | 39.98 | 276.44 | 0.6393 | -124.0 | -114.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-09 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

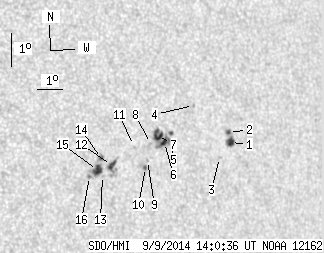

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.19 | 10.07 | 2.83 | 6.80 | 9.63 | 150.65 | 43.20 | 276.37 | 0.6814 | -705.7 | -449.6 | |
| 1.07 | -1.00 | 0.72 | -1.00 | 9.93 | 150.61 | 43.16 | 276.82 | 0.6809 | -662.4 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.60 | 9.22 | 150.12 | 42.67 | 275.76 | 0.6747 | -692.0 | -635.6 | |
| 0.00 | 1.07 | 0.00 | 0.71 | 10.87 | 149.31 | 41.86 | 278.24 | 0.6645 | 352.0 | 350.5 | |
| 0.89 | 25.13 | 0.58 | 16.26 | 10.10 | 148.24 | 40.79 | 277.10 | 0.6504 | -526.6 | -628.4 | |
| 2.67 | -5.00 | 1.73 | -5.00 | 9.85 | 147.96 | 40.51 | 276.72 | 0.6467 | -938.8 | 999999 | |
| 6.15 | -5.00 | 3.97 | -5.00 | 10.09 | 147.71 | 40.26 | 277.09 | 0.6435 | -950.3 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.74 | 9.87 | 147.40 | 39.95 | 276.75 | 0.6393 | -342.0 | -300.4 | |
| 0.00 | 0.89 | 0.00 | 0.57 | 9.37 | 147.20 | 39.75 | 275.96 | 0.6367 | 378.0 | 352.3 | |
| 0.00 | 1.87 | 0.00 | 1.20 | 9.16 | 147.10 | 39.65 | 275.64 | 0.6352 | -828.0 | -724.0 | |
| 0.00 | 0.53 | 0.00 | 0.34 | 9.86 | 146.72 | 39.27 | 276.75 | 0.6302 | -123.0 | -145.0 | |
| 3.03 | 10.25 | 1.90 | 6.45 | 9.33 | 145.78 | 38.33 | 275.91 | 0.6175 | 779.6 | 502.9 | |
| 0.00 | 1.43 | 0.00 | 0.89 | 9.06 | 145.39 | 37.94 | 275.46 | 0.6122 | 397.0 | 464.2 | |
| 1.07 | 3.48 | 0.67 | 2.17 | 9.57 | 145.42 | 37.97 | 276.30 | 0.6126 | 755.5 | 657.0 | |
| 5.44 | 7.84 | 3.39 | 4.89 | 9.22 | 145.22 | 37.77 | 275.73 | 0.6098 | 942.5 | 760.8 | |
| 0.00 | 1.87 | 0.00 | 1.16 | 9.06 | 144.89 | 37.44 | 275.47 | 0.6053 | 901.0 | 760.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
