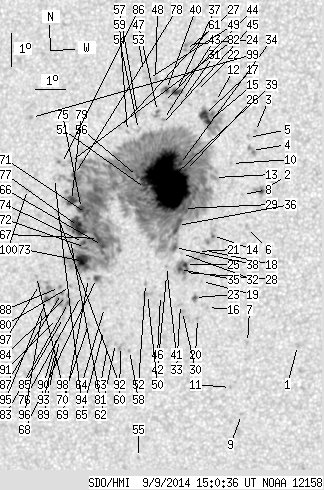

SDO HMI 2014-09-09 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 257.59 | 1445.11 | 136.72 | 767.91 | 15.56 | 87.29 | -19.61 | 64.77 | 0.3597 | 252.8 | 33.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-09 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.41 | 0.00 | 1.23 | 11.30 | 92.49 | -14.41 | 72.96 | 0.2564 | -940.0 | -711.1 | |
| 1.16 | 5.70 | 0.60 | 2.97 | 15.94 | 91.03 | -15.87 | 59.33 | 0.3070 | 854.2 | 651.8 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 17.77 | 90.68 | -16.22 | 54.82 | 0.3269 | -682.0 | -559.5 | |
| 0.00 | 4.99 | 0.00 | 2.61 | 17.18 | 90.60 | -16.30 | 56.49 | 0.3230 | 922.0 | 851.6 | |
| 0.00 | 1.69 | 0.00 | 0.89 | 17.58 | 90.46 | -16.44 | 55.64 | 0.3282 | -678.0 | -504.3 | |
| 0.00 | 2.41 | 0.00 | 1.25 | 14.83 | 90.66 | -16.24 | 63.12 | 0.3044 | -346.0 | -293.4 | |
| 0.00 | 1.16 | 0.00 | 0.60 | 11.35 | 90.89 | -16.01 | 74.22 | 0.2822 | -900.0 | -731.2 | |
| 0.00 | 0.80 | 0.00 | 0.42 | 15.83 | 90.42 | -16.48 | 60.51 | 0.3149 | 489.0 | 379.6 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 9.16 | 90.81 | -16.09 | 81.99 | 0.2775 | -736.0 | -548.5 | |
| 0.00 | 1.25 | 0.00 | 0.65 | 16.76 | 89.98 | -16.92 | 58.51 | 0.3283 | 709.0 | 562.0 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 9.97 | 90.42 | -16.48 | 79.31 | 0.2855 | -822.0 | -708.0 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 18.65 | 89.26 | -17.64 | 54.68 | 0.3534 | 843.0 | 682.2 | |
| 0.00 | 4.19 | 0.00 | 2.20 | 16.32 | 89.46 | -17.44 | 60.41 | 0.3322 | 242.0 | 237.4 | |
| 0.36 | 9.00 | 0.19 | 4.70 | 14.55 | 89.54 | -17.36 | 65.30 | 0.3192 | -979.8 | -463.0 | |
| 3.21 | 40.10 | 1.70 | 21.19 | 18.02 | 89.09 | -17.81 | 56.45 | 0.3504 | 1256.2 | 532.6 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 12.36 | 89.54 | -17.36 | 71.97 | 0.3078 | -850.0 | -682.6 | |
| 5.79 | -15.00 | 3.07 | -15.00 | 18.23 | 88.94 | -17.96 | 56.14 | 0.3543 | 1022.7 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.70 | 14.08 | 89.32 | -17.58 | 66.91 | 0.3199 | -305.0 | -103.3 | |
| 0.00 | 0.71 | 0.00 | 0.37 | 13.14 | 89.29 | -17.61 | 69.77 | 0.3153 | -711.0 | -516.5 | |
| 0.00 | 1.16 | 0.00 | 0.60 | 12.02 | 89.24 | -17.66 | 73.29 | 0.3111 | -995.0 | -851.5 | |
| 0.00 | 0.80 | 0.00 | 0.42 | 14.05 | 89.09 | -17.81 | 67.25 | 0.3231 | 244.0 | 115.8 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 18.93 | 88.59 | -18.31 | 54.92 | 0.3646 | -574.0 | -426.8 | |
| 1.07 | 3.74 | 0.56 | 1.95 | 12.65 | 89.10 | -17.80 | 71.44 | 0.3160 | -1049.7 | -786.1 | |
| 0.00 | 3.48 | 0.00 | 1.86 | 20.37 | 88.12 | -18.78 | 52.28 | 0.3832 | 757.0 | 651.4 | |
| 1.78 | 24.24 | 0.93 | 12.69 | 13.64 | 88.73 | -18.17 | 68.80 | 0.3264 | -983.8 | -650.2 | |
| 0.27 | 1205.10 | 0.14 | 640.76 | 16.50 | 88.48 | -18.42 | 61.12 | 0.3475 | 1375.0 | 79.3 | |
| 0.00 | 1.43 | 0.00 | 0.76 | 20.18 | 88.07 | -18.83 | 52.75 | 0.3821 | 915.0 | 768.1 | |
| 0.27 | -25.00 | 0.14 | -25.00 | 13.39 | 88.72 | -18.18 | 69.53 | 0.3254 | -1202.0 | 999999 | |
| 2.76 | -26.00 | 1.45 | -26.00 | 15.34 | 88.52 | -18.37 | 64.19 | 0.3392 | 1093.9 | 999999 | |
| 0.00 | 2.50 | 0.00 | 1.30 | 12.21 | 88.74 | -18.16 | 73.06 | 0.3198 | -816.0 | -702.9 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 18.60 | 88.12 | -18.77 | 56.30 | 0.3682 | 630.0 | 494.2 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 13.97 | 88.57 | -18.32 | 67.99 | 0.3305 | 715.0 | 607.3 | |
| 0.00 | 2.14 | 0.00 | 1.12 | 12.42 | 88.66 | -18.24 | 72.48 | 0.3219 | -884.0 | -644.6 | |
| 1.78 | -26.00 | 0.94 | -26.00 | 16.67 | 88.26 | -18.63 | 60.92 | 0.3518 | 1143.8 | 999999 | |
| 1.16 | -25.00 | 0.61 | -25.00 | 13.48 | 88.55 | -18.35 | 69.43 | 0.3284 | -990.8 | 999999 | |
| 6.77 | -26.00 | 3.56 | -26.00 | 14.81 | 88.37 | -18.53 | 65.79 | 0.3383 | 476.2 | 999999 | |
| 3.74 | 5.70 | 2.00 | 3.04 | 18.91 | 87.92 | -18.98 | 55.85 | 0.3733 | 941.8 | 725.9 | |
| 1.60 | -26.00 | 0.84 | -26.00 | 14.14 | 88.33 | -18.57 | 67.72 | 0.3351 | 642.8 | 999999 | |
| 156.65 | -26.00 | 82.90 | -26.00 | 16.14 | 87.92 | -18.98 | 62.70 | 0.3531 | 1234.1 | 999999 | |
| 1.78 | 5.61 | 0.95 | 3.00 | 18.95 | 87.58 | -19.32 | 56.16 | 0.3783 | 875.5 | 680.9 | |
| 0.00 | 0.80 | 0.00 | 0.42 | 13.55 | 88.12 | -18.78 | 69.59 | 0.3354 | -741.0 | -535.1 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 13.28 | 88.14 | -18.76 | 70.35 | 0.3338 | -700.0 | -572.0 | |
| 0.00 | 1.60 | 0.00 | 0.86 | 18.03 | 87.58 | -19.31 | 58.34 | 0.3711 | 977.0 | 775.7 | |
| 0.00 | 0.71 | 0.00 | 0.38 | 18.55 | 87.52 | -19.37 | 57.17 | 0.3759 | 815.0 | 622.1 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 17.87 | 87.53 | -19.36 | 58.77 | 0.3706 | 396.0 | 250.8 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 12.67 | 87.99 | -18.91 | 72.25 | 0.3334 | -980.0 | -774.2 | |
| 0.53 | 4.54 | 0.29 | 2.43 | 18.27 | 87.35 | -19.54 | 58.04 | 0.3760 | 810.7 | 738.2 | |
| 0.00 | 1.43 | 0.00 | 0.77 | 19.28 | 87.16 | -19.73 | 55.93 | 0.3864 | 794.0 | 666.9 | |
| 0.00 | 1.51 | 0.00 | 0.81 | 19.27 | 86.93 | -19.97 | 56.23 | 0.3895 | 767.0 | 647.0 | |
| 0.00 | 4.54 | 0.00 | 2.39 | 12.68 | 87.56 | -19.34 | 72.52 | 0.3402 | -978.0 | -823.8 | |
| 1.51 | -26.00 | 0.80 | -26.00 | 15.90 | 87.21 | -19.69 | 64.06 | 0.3619 | 674.1 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.70 | 13.01 | 87.47 | -19.43 | 71.64 | 0.3429 | -954.0 | -781.7 | |
| 0.00 | 0.89 | 0.00 | 0.48 | 19.48 | 86.73 | -20.17 | 56.00 | 0.3937 | 594.0 | 500.1 | |
| 0.00 | 2.41 | 0.00 | 1.29 | 17.69 | 86.78 | -20.12 | 60.06 | 0.3798 | 689.0 | 544.2 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 7.75 | 87.57 | -19.32 | 87.22 | 0.3297 | -755.0 | -536.9 | |
| 0.89 | -26.00 | 0.47 | -26.00 | 16.25 | 86.90 | -19.99 | 63.46 | 0.3685 | 718.8 | 999999 | |
| 0.00 | 2.58 | 0.00 | 1.39 | 18.15 | 86.69 | -20.21 | 59.08 | 0.3842 | 715.0 | 535.1 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 10.96 | 87.10 | -19.80 | 77.74 | 0.3418 | -778.0 | -610.7 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 17.61 | 86.42 | -20.48 | 60.63 | 0.3843 | 387.0 | 302.0 | |
| 0.00 | 3.48 | 0.00 | 1.83 | 11.07 | 86.80 | -20.10 | 77.56 | 0.3469 | -869.0 | -672.4 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 17.72 | 86.13 | -20.76 | 60.67 | 0.3890 | -163.0 | -112.4 | |
| 0.00 | 1.34 | 0.00 | 0.71 | 11.16 | 86.63 | -20.27 | 77.40 | 0.3498 | -834.0 | -616.4 | |
| 0.00 | 0.71 | 0.00 | 0.38 | 11.05 | 86.37 | -20.53 | 77.80 | 0.3536 | -830.0 | -672.2 | |
| 0.00 | 1.87 | 0.00 | 0.99 | 12.23 | 86.18 | -20.72 | 74.64 | 0.3601 | -885.0 | -705.1 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 11.53 | 86.20 | -20.69 | 76.55 | 0.3576 | -752.0 | -590.6 | |
| 3.30 | -26.00 | 1.76 | -26.00 | 14.10 | 85.95 | -20.95 | 69.79 | 0.3711 | -689.6 | 999999 | |
| 5.61 | -26.00 | 3.00 | -26.00 | 14.31 | 85.80 | -21.10 | 69.37 | 0.3743 | -818.4 | 999999 | |
| 2.14 | 6.33 | 1.14 | 3.37 | 13.10 | 85.84 | -21.05 | 72.51 | 0.3684 | -1016.4 | -782.9 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 13.08 | 85.58 | -21.32 | 72.71 | 0.3725 | -826.0 | -650.7 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 11.69 | 85.70 | -21.20 | 76.35 | 0.3660 | -787.0 | -674.8 | |
| 2.94 | -26.00 | 1.58 | -26.00 | 15.05 | 85.32 | -21.58 | 67.86 | 0.3850 | -1193.2 | 999999 | |
| 0.62 | -26.00 | 0.33 | -26.00 | 14.02 | 85.39 | -21.51 | 70.41 | 0.3792 | -1080.7 | 999999 | |
| 14.88 | -26.00 | 7.96 | -26.00 | 13.59 | 85.37 | -21.53 | 71.53 | 0.3777 | -1107.4 | 999999 | |
| 2.05 | -26.00 | 1.10 | -26.00 | 14.17 | 85.31 | -21.59 | 70.09 | 0.3810 | -1157.2 | 999999 | |
| 4.28 | -26.00 | 2.30 | -26.00 | 15.20 | 85.14 | -21.76 | 67.65 | 0.3885 | -1214.5 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 12.56 | 85.39 | -21.51 | 74.20 | 0.3735 | -799.0 | -687.7 | |
| 18.89 | -26.00 | 10.14 | -26.00 | 14.65 | 85.09 | -21.80 | 69.04 | 0.3865 | -1155.8 | 999999 | |
| 1.78 | -26.00 | 0.96 | -26.00 | 16.22 | 84.78 | -22.11 | 65.46 | 0.3990 | -912.5 | 999999 | |
| 6.06 | -26.00 | 3.26 | -26.00 | 15.43 | 84.77 | -22.12 | 67.37 | 0.3950 | -1125.4 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 12.81 | 85.00 | -21.89 | 73.74 | 0.3804 | -799.0 | -631.9 | |
| 0.00 | 1.78 | 0.00 | 0.96 | 14.24 | 84.87 | -22.03 | 70.21 | 0.3881 | -742.0 | -643.6 | |
| 0.00 | 1.87 | 0.00 | 1.01 | 16.61 | 84.60 | -22.30 | 64.69 | 0.4038 | -785.0 | -685.1 | |
| 0.62 | 13.28 | 0.33 | 7.12 | 12.33 | 84.98 | -21.92 | 75.02 | 0.3791 | -1037.3 | -750.8 | |
| 0.00 | 1.43 | 0.00 | 0.76 | 12.54 | 84.93 | -21.97 | 74.50 | 0.3806 | -995.0 | -836.7 | |
| 0.00 | 1.43 | 0.00 | 0.76 | 11.87 | 84.85 | -22.05 | 76.28 | 0.3797 | -765.0 | -507.2 | |
| 0.00 | 2.85 | 0.00 | 1.55 | 16.54 | 84.30 | -22.59 | 65.11 | 0.4077 | -708.0 | -726.5 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 12.59 | 84.72 | -22.18 | 74.47 | 0.3840 | -953.0 | -823.1 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 12.77 | 84.64 | -22.26 | 74.06 | 0.3858 | -868.0 | -727.2 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 11.20 | 84.77 | -22.12 | 78.06 | 0.3792 | -766.0 | -674.7 | |
| 0.00 | 0.71 | 0.00 | 0.38 | 11.31 | 84.70 | -22.20 | 77.78 | 0.3807 | -802.0 | -738.6 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 11.83 | 84.66 | -22.24 | 76.47 | 0.3827 | -656.0 | -579.4 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 15.04 | 84.31 | -22.59 | 68.65 | 0.4000 | -663.0 | -522.2 | |
| 0.00 | 2.05 | 0.00 | 1.10 | 10.83 | 84.67 | -22.23 | 79.06 | 0.3801 | -658.0 | -546.8 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 16.07 | 84.12 | -22.78 | 66.34 | 0.4078 | -687.0 | -589.8 | |
| 1.34 | 11.05 | 0.72 | 5.94 | 12.39 | 84.24 | -22.66 | 75.23 | 0.3908 | -731.1 | -595.9 | |
| 0.00 | 1.43 | 0.00 | 0.77 | 12.02 | 84.14 | -22.76 | 76.21 | 0.3913 | -623.0 | -522.1 | |
| 0.00 | 3.92 | 0.00 | 2.11 | 12.83 | 83.96 | -22.93 | 74.26 | 0.3964 | -381.0 | -399.2 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 13.07 | 83.84 | -23.06 | 73.73 | 0.3991 | -642.0 | -458.0 | |
| 0.00 | 1.69 | 0.00 | 0.93 | 17.89 | 83.09 | -23.80 | 63.07 | 0.4326 | 887.0 | 724.7 | |
| 0.00 | 3.92 | 0.00 | 2.14 | 15.69 | 83.25 | -23.65 | 67.86 | 0.4187 | -662.0 | -553.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
