SDO HMI 2014-09-09 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.98 | 24.41 | 7.47 | 18.12 | -13.47 | 150.57 | 43.67 | 244.52 | 0.7466 | 284.3 | -10.7 | |
|
previous
or next observation for the same group /

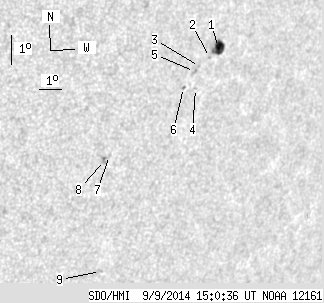

back to the solar disc SDO HMI 2014-09-09 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.98 | 13.10 | 7.47 | 9.81 | -12.32 | 151.60 | 44.70 | 246.47 | 0.7518 | 723.8 | 477.6 | |
| 0.00 | 0.98 | 0.00 | 0.73 | -12.61 | 151.27 | 44.37 | 245.96 | 0.7496 | 658.0 | 553.5 | |
| 0.00 | 0.71 | 0.00 | 0.53 | -12.86 | 150.89 | 44.00 | 245.46 | 0.7467 | 453.0 | 371.2 | |
| 0.00 | 1.07 | 0.00 | 0.80 | -13.56 | 150.88 | 43.98 | 244.58 | 0.7497 | -497.0 | -360.8 | |
| 0.00 | 2.05 | 0.00 | 1.52 | -13.00 | 150.71 | 43.81 | 245.19 | 0.7454 | 301.0 | 435.3 | |
| 0.00 | 0.98 | 0.00 | 0.72 | -13.48 | 150.34 | 43.45 | 244.41 | 0.7438 | -342.0 | -465.1 | |
| 0.00 | 1.25 | 0.00 | 0.90 | -15.44 | 147.68 | 40.78 | 240.51 | 0.7256 | -400.0 | -292.0 | |
| 0.00 | 2.67 | 0.00 | 1.91 | -15.58 | 147.51 | 40.61 | 240.23 | 0.7246 | -702.0 | -637.5 | |
| 0.00 | 1.60 | 0.00 | 1.20 | -19.32 | 148.36 | 41.46 | 236.27 | 0.7537 | -480.0 | -319.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
