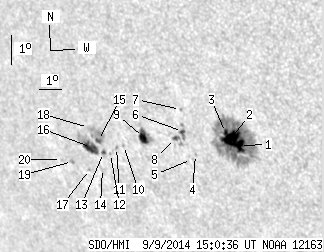

SDO HMI 2014-09-09 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.83 | 232.47 | 39.99 | 171.30 | -16.19 | 64.92 | -41.97 | 119.79 | 0.7412 | 144.5 | 95.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-09 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.87 | 154.78 | 7.74 | 110.41 | -16.15 | 66.95 | -39.94 | 120.88 | 0.7208 | 933.9 | 248.8 | |
| 17.47 | -1.00 | 12.47 | -1.00 | -15.91 | 66.68 | -40.21 | 120.42 | 0.7223 | 935.3 | 999999 | |
| 2.05 | -1.00 | 1.47 | -1.00 | -15.77 | 66.47 | -40.43 | 120.11 | 0.7237 | 732.0 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.53 | -16.61 | 65.00 | -41.90 | 120.27 | 0.7433 | 542.0 | 401.1 | |
| 0.00 | 0.53 | 0.00 | 0.40 | -16.80 | 64.78 | -42.12 | 120.36 | 0.7464 | 415.0 | 358.8 | |
| 1.16 | 6.06 | 0.85 | 4.47 | -15.89 | 64.64 | -42.26 | 119.19 | 0.7432 | 604.0 | 530.3 | |
| 0.00 | 1.16 | 0.00 | 0.85 | -15.17 | 64.74 | -42.16 | 118.36 | 0.7385 | 562.0 | 497.4 | |
| 1.34 | 4.81 | 0.99 | 3.58 | -16.15 | 64.27 | -42.63 | 119.30 | 0.7482 | 502.8 | 453.4 | |
| 8.47 | 14.70 | 6.46 | 11.20 | -16.25 | 62.85 | -44.04 | 118.64 | 0.7628 | -758.0 | -420.7 | |
| 0.00 | 1.07 | 0.00 | 0.83 | -16.60 | 61.86 | -45.04 | 118.54 | 0.7741 | -648.0 | -571.6 | |
| 0.00 | 1.25 | 0.00 | 0.98 | -16.70 | 61.52 | -45.38 | 118.48 | 0.7779 | -703.0 | -575.9 | |
| 0.00 | 0.62 | 0.00 | 0.49 | -16.93 | 61.18 | -45.72 | 118.57 | 0.7822 | -643.0 | -642.7 | |
| 1.07 | 2.50 | 0.85 | 1.99 | -16.92 | 60.86 | -46.04 | 118.41 | 0.7852 | -691.1 | -612.2 | |
| 0.00 | 2.67 | 0.00 | 2.15 | -17.47 | 60.63 | -46.26 | 118.93 | 0.7897 | -434.0 | -330.8 | |
| 1.78 | 14.61 | 1.42 | 11.61 | -16.54 | 60.75 | -46.15 | 117.91 | 0.7845 | -809.5 | -510.2 | |
| 9.62 | 22.10 | 7.74 | 17.80 | -16.81 | 60.34 | -46.55 | 118.02 | 0.7895 | -605.7 | -215.2 | |
| 0.00 | 0.98 | 0.00 | 0.80 | -17.56 | 60.00 | -46.90 | 118.72 | 0.7960 | -452.0 | -437.5 | |
| 0.00 | 1.07 | 0.00 | 0.85 | -16.15 | 60.41 | -46.48 | 117.28 | 0.7860 | -156.0 | -191.9 | |
| 0.00 | 1.96 | 0.00 | 1.62 | -17.37 | 59.27 | -47.63 | 118.15 | 0.8019 | -471.0 | -342.5 | |
| 0.00 | 0.89 | 0.00 | 0.74 | -17.36 | 58.75 | -48.14 | 117.89 | 0.8065 | -301.0 | -259.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
