SDO HMI 2014-09-09 16:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.43 | 244.76 | 37.71 | 136.61 | -20.10 | 107.42 | 1.08 | 182.12 | 0.4628 | 550.6 | 320.7 | |
|
previous
or next observation for the same group /

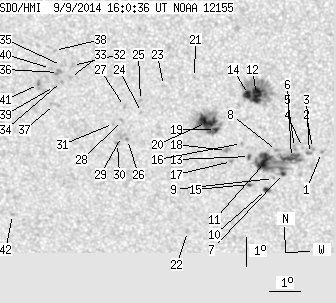

back to the solar disc SDO HMI 2014-09-09 16:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.65 | -20.94 | 110.54 | 4.19 | 188.23 | 0.4788 | 852.0 | 782.2 | |
| 0.00 | 1.96 | 0.00 | 1.10 | -20.80 | 110.24 | 3.90 | 187.70 | 0.4761 | 746.0 | 610.3 | |
| 0.00 | 2.41 | 0.00 | 1.36 | -20.97 | 110.15 | 3.80 | 187.47 | 0.4785 | 750.0 | 585.5 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -20.77 | 109.92 | 3.57 | 187.07 | 0.4749 | 736.0 | 585.1 | |
| 0.00 | 2.23 | 0.00 | 1.25 | -20.76 | 109.66 | 3.31 | 186.57 | 0.4744 | 891.0 | 751.3 | |
| 8.73 | 67.89 | 4.92 | 38.32 | -21.10 | 109.57 | 3.22 | 186.30 | 0.4794 | 713.1 | 166.2 | |
| 1.60 | -6.00 | 0.91 | -6.00 | -21.65 | 109.32 | 2.97 | 185.70 | 0.4874 | -849.7 | 999999 | |
| 0.00 | 1.60 | 0.00 | 0.90 | -20.86 | 109.08 | 2.73 | 185.40 | 0.4749 | 1002.0 | 801.5 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -21.82 | 109.00 | 2.65 | 185.05 | 0.4895 | -780.0 | -562.1 | |
| 2.05 | 3.74 | 1.17 | 2.13 | -22.20 | 108.77 | 2.43 | 184.56 | 0.4950 | -692.5 | -480.4 | |
| 17.64 | -6.00 | 9.95 | -6.00 | -21.27 | 108.69 | 2.35 | 184.58 | 0.4807 | 736.8 | 999999 | |
| 13.45 | 61.74 | 7.43 | 34.08 | -18.95 | 108.41 | 2.06 | 184.41 | 0.4445 | 1108.8 | 490.2 | |
| 0.89 | 2.49 | 0.50 | 1.40 | -21.06 | 108.21 | 1.86 | 183.66 | 0.4769 | 924.5 | 744.7 | |
| 5.70 | -12.00 | 3.15 | -12.00 | -18.95 | 108.15 | 1.81 | 183.86 | 0.4442 | 1022.5 | 999999 | |
| 0.71 | 2.49 | 0.41 | 1.42 | -22.03 | 108.19 | 1.84 | 183.48 | 0.4917 | 534.0 | 458.1 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -20.61 | 107.94 | 1.60 | 183.20 | 0.4698 | 871.0 | 724.7 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -21.23 | 107.63 | 1.28 | 182.50 | 0.4791 | 870.0 | 681.9 | |
| 0.00 | 3.03 | 0.00 | 1.70 | -20.85 | 107.46 | 1.12 | 182.21 | 0.4731 | 992.0 | 790.7 | |
| 1.87 | 48.29 | 1.04 | 26.88 | -20.13 | 107.10 | 0.76 | 181.55 | 0.4618 | 850.5 | 672.0 | |
| 14.79 | -19.00 | 8.23 | -19.00 | -19.89 | 106.81 | 0.47 | 180.96 | 0.4580 | 1128.2 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -18.38 | 106.43 | 0.08 | 180.18 | 0.4341 | 813.0 | 626.9 | |
| 0.00 | 1.78 | 0.00 | 1.03 | -23.66 | 106.19 | -0.15 | 179.73 | 0.5156 | 452.0 | 364.0 | |
| 0.00 | 1.60 | 0.00 | 0.88 | -18.64 | 105.44 | -0.91 | 178.04 | 0.4386 | 732.0 | 471.4 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -19.56 | 104.73 | -1.62 | 176.63 | 0.4534 | 770.0 | 639.7 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -19.15 | 104.70 | -1.64 | 176.51 | 0.4471 | 888.0 | 737.8 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -20.47 | 104.27 | -2.08 | 175.82 | 0.4681 | 787.0 | 713.5 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -19.35 | 104.19 | -2.16 | 175.46 | 0.4509 | 852.0 | 693.8 | |
| 0.00 | 2.05 | 0.00 | 1.14 | -19.83 | 104.12 | -2.23 | 175.40 | 0.4583 | 998.0 | 745.7 | |
| 0.00 | 4.37 | 0.00 | 2.44 | -20.37 | 104.08 | -2.27 | 175.42 | 0.4668 | 895.0 | 707.0 | |
| 0.00 | 1.78 | 0.00 | 1.00 | -20.61 | 103.94 | -2.40 | 175.20 | 0.4707 | 810.0 | 677.7 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -19.93 | 103.83 | -2.52 | 174.83 | 0.4603 | 696.0 | 616.0 | |
| 0.00 | 2.41 | 0.00 | 1.32 | -17.99 | 102.55 | -3.79 | 171.60 | 0.4324 | -768.0 | -644.6 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -18.39 | 102.48 | -3.86 | 171.58 | 0.4388 | -898.0 | -675.9 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -18.52 | 102.19 | -4.16 | 171.01 | 0.4416 | -840.0 | -730.5 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -17.99 | 102.20 | -4.14 | 170.84 | 0.4332 | -834.0 | -718.5 | |
| 0.00 | 3.65 | 0.00 | 2.01 | -18.22 | 102.10 | -4.24 | 170.71 | 0.4371 | -819.0 | -785.8 | |
| 0.00 | 3.74 | 0.00 | 2.08 | -19.30 | 101.95 | -4.40 | 170.79 | 0.4542 | -717.0 | -614.0 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -17.49 | 101.99 | -4.35 | 170.18 | 0.4260 | -795.0 | -609.8 | |
| 0.00 | 2.14 | 0.00 | 1.18 | -18.69 | 101.96 | -4.38 | 170.59 | 0.4448 | -606.0 | -539.0 | |
| 0.00 | 1.34 | 0.00 | 0.73 | -18.09 | 101.85 | -4.49 | 170.12 | 0.4358 | -816.0 | -700.5 | |
| 0.00 | 3.56 | 0.00 | 1.97 | -18.63 | 101.45 | -4.89 | 169.50 | 0.4452 | -872.0 | -728.8 | |
| 0.00 | 1.34 | 0.00 | 0.77 | -23.10 | 100.44 | -5.90 | 169.38 | 0.5153 | -823.0 | -658.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
