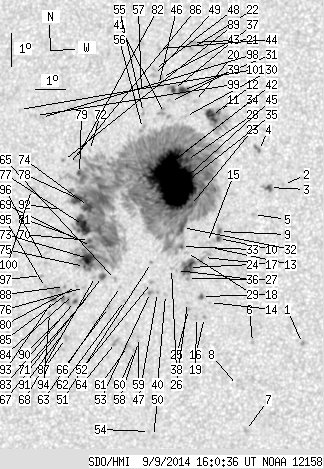

SDO HMI 2014-09-09 16:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 256.15 | 1489.20 | 135.45 | 788.93 | 15.66 | 87.28 | -19.07 | 63.99 | 0.3523 | 270.3 | 39.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-09 16:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.05 | 0.00 | 1.05 | 11.32 | 92.45 | -13.90 | 72.39 | 0.2482 | -983.0 | -844.0 | |
| 0.00 | 1.16 | 0.00 | 0.60 | 16.13 | 91.54 | -14.80 | 57.14 | 0.2935 | -911.0 | -706.4 | |
| 2.05 | 5.97 | 1.06 | 3.10 | 16.02 | 91.09 | -15.25 | 58.17 | 0.2989 | 963.7 | 636.2 | |
| 0.53 | 3.83 | 0.28 | 2.00 | 17.14 | 90.64 | -15.70 | 55.69 | 0.3145 | 1013.7 | 830.6 | |
| 0.00 | 1.51 | 0.00 | 0.79 | 15.18 | 90.64 | -15.71 | 61.35 | 0.2991 | -893.0 | -621.8 | |
| 0.00 | 1.43 | 0.00 | 0.73 | 11.30 | 90.86 | -15.49 | 73.95 | 0.2737 | -880.0 | -678.4 | |
| 0.00 | 1.69 | 0.00 | 0.87 | 8.64 | 90.76 | -15.59 | 83.77 | 0.2684 | -858.0 | -654.2 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 9.99 | 90.44 | -15.90 | 78.95 | 0.2761 | -887.0 | -713.7 | |
| 0.98 | 8.73 | 0.51 | 4.55 | 14.63 | 89.57 | -16.77 | 64.39 | 0.3110 | -900.3 | -531.4 | |
| 1.43 | -9.00 | 0.74 | -9.00 | 14.42 | 89.56 | -16.79 | 65.05 | 0.3099 | -1009.8 | 999999 | |
| 0.89 | 37.15 | 0.47 | 19.57 | 18.26 | 89.22 | -17.13 | 54.91 | 0.3433 | 997.1 | 580.0 | |
| 8.64 | -11.00 | 4.56 | -11.00 | 18.16 | 88.99 | -17.35 | 55.47 | 0.3454 | 1147.5 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 14.14 | 89.32 | -17.03 | 66.17 | 0.3118 | 299.0 | 113.0 | |
| 0.00 | 0.80 | 0.00 | 0.42 | 12.47 | 89.40 | -16.94 | 71.28 | 0.3017 | -834.0 | -492.0 | |
| 0.00 | 1.25 | 0.00 | 0.65 | 14.28 | 89.21 | -17.14 | 65.85 | 0.3143 | 514.0 | 422.6 | |
| 0.00 | 1.51 | 0.00 | 0.79 | 12.01 | 89.27 | -17.07 | 72.87 | 0.3018 | -1038.0 | -842.2 | |
| 0.00 | 5.97 | 0.00 | 3.11 | 13.82 | 89.11 | -17.23 | 67.33 | 0.3131 | -673.0 | -544.9 | |
| 0.80 | 2.05 | 0.42 | 1.07 | 12.64 | 89.13 | -17.21 | 70.97 | 0.3068 | -1122.7 | -878.4 | |
| 0.00 | 1.87 | 0.00 | 0.97 | 12.00 | 89.01 | -17.33 | 73.10 | 0.3059 | -921.0 | -769.4 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 18.57 | 88.38 | -17.96 | 55.31 | 0.3570 | 577.0 | 307.4 | |
| 0.00 | 2.85 | 0.00 | 1.52 | 20.39 | 88.11 | -18.24 | 51.49 | 0.3765 | 763.0 | 677.2 | |
| 0.00 | 1.60 | 0.00 | 0.86 | 20.20 | 88.10 | -18.25 | 51.92 | 0.3749 | 999.0 | 823.9 | |
| 1.87 | 1255.90 | 0.98 | 665.59 | 15.39 | 88.56 | -17.78 | 63.39 | 0.3308 | 1035.0 | 73.4 | |
| 8.73 | 14.97 | 4.56 | 7.82 | 13.50 | 88.65 | -17.70 | 68.76 | 0.3185 | -1061.5 | -448.7 | |
| 0.00 | 1.43 | 0.00 | 0.74 | 12.23 | 88.74 | -17.61 | 72.58 | 0.3112 | -859.0 | -763.9 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 12.44 | 88.69 | -17.65 | 71.96 | 0.3128 | -957.0 | -743.4 | |
| 0.00 | 1.60 | 0.00 | 0.84 | 13.17 | 88.64 | -17.70 | 69.78 | 0.3169 | -1085.0 | -898.7 | |
| 2.41 | -23.00 | 1.27 | -23.00 | 16.76 | 88.30 | -18.04 | 60.00 | 0.3439 | 1146.5 | 999999 | |
| 0.00 | 1.51 | 0.00 | 0.79 | 13.96 | 88.55 | -17.80 | 67.51 | 0.3224 | 711.0 | 590.6 | |
| 0.00 | 0.80 | 0.00 | 0.42 | 18.10 | 88.13 | -18.21 | 56.80 | 0.3566 | 754.0 | 621.9 | |
| 4.54 | 16.66 | 2.42 | 8.87 | 18.90 | 87.95 | -18.40 | 55.13 | 0.3656 | 982.7 | 573.6 | |
| 2.41 | -23.00 | 1.26 | -23.00 | 14.71 | 88.36 | -17.99 | 65.53 | 0.3296 | 609.5 | 999999 | |
| 0.80 | -23.00 | 0.42 | -23.00 | 14.13 | 88.37 | -17.97 | 67.18 | 0.3261 | 804.1 | 999999 | |
| 9.18 | -23.00 | 4.85 | -23.00 | 16.87 | 88.03 | -18.32 | 60.04 | 0.3487 | 1218.7 | 999999 | |
| 94.44 | -23.00 | 49.74 | -23.00 | 15.89 | 88.09 | -18.26 | 62.55 | 0.3410 | 1388.3 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 13.40 | 88.27 | -18.08 | 69.43 | 0.3239 | -822.0 | -671.2 | |
| 2.41 | -31.00 | 1.28 | -31.00 | 18.92 | 87.64 | -18.71 | 55.48 | 0.3698 | 879.0 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.65 | 13.45 | 88.10 | -18.25 | 69.42 | 0.3267 | -849.0 | -564.9 | |
| 0.00 | 3.12 | 0.00 | 1.66 | 18.54 | 87.58 | -18.76 | 56.44 | 0.3676 | 579.0 | 653.8 | |
| 0.00 | 1.78 | 0.00 | 0.93 | 12.66 | 87.96 | -18.38 | 71.88 | 0.3252 | -982.0 | -712.0 | |
| 0.00 | 6.50 | 0.00 | 3.46 | 18.17 | 87.42 | -18.92 | 57.54 | 0.3668 | 787.0 | 729.2 | |
| 55.33 | -23.00 | 29.27 | -23.00 | 16.48 | 87.57 | -18.78 | 61.58 | 0.3525 | 1213.6 | 999999 | |
| 0.00 | 1.78 | 0.00 | 0.95 | 19.27 | 87.19 | -19.15 | 55.23 | 0.3786 | 818.0 | 626.7 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 20.16 | 87.01 | -19.33 | 53.46 | 0.3884 | 773.0 | 577.3 | |
| 3.30 | -23.00 | 1.74 | -23.00 | 15.44 | 87.50 | -18.84 | 64.40 | 0.3467 | 950.6 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 19.02 | 87.12 | -19.22 | 55.90 | 0.3776 | 951.0 | 737.8 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 12.71 | 87.70 | -18.65 | 71.94 | 0.3295 | -973.0 | -763.9 | |
| 0.00 | 1.87 | 0.00 | 1.00 | 19.51 | 86.93 | -19.42 | 55.03 | 0.3841 | 684.0 | 568.0 | |
| 0.00 | 2.49 | 0.00 | 1.34 | 19.32 | 86.92 | -19.43 | 55.46 | 0.3827 | 796.0 | 631.0 | |
| 0.00 | 1.51 | 0.00 | 0.79 | 8.35 | 87.83 | -18.51 | 85.29 | 0.3166 | -862.0 | -728.8 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 13.61 | 87.43 | -18.92 | 69.54 | 0.3377 | -887.0 | -717.8 | |
| 0.00 | 1.51 | 0.00 | 0.80 | 13.00 | 87.48 | -18.87 | 71.24 | 0.3342 | -990.0 | -772.6 | |
| 0.00 | 2.14 | 0.00 | 1.12 | 12.70 | 87.47 | -18.88 | 72.13 | 0.3331 | -1145.0 | -900.2 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 8.50 | 87.70 | -18.65 | 84.85 | 0.3189 | -692.0 | -613.8 | |
| 0.00 | 2.14 | 0.00 | 1.14 | 18.17 | 86.71 | -19.63 | 58.37 | 0.3765 | 734.0 | 571.3 | |
| 0.00 | 3.03 | 0.00 | 1.62 | 17.68 | 86.74 | -19.61 | 59.53 | 0.3726 | 654.0 | 504.1 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 18.78 | 86.57 | -19.77 | 57.11 | 0.3830 | 385.0 | 341.9 | |
| 0.00 | 0.71 | 0.00 | 0.37 | 11.20 | 87.19 | -19.16 | 76.73 | 0.3322 | -676.0 | -552.4 | |
| 0.00 | 1.43 | 0.00 | 0.75 | 11.32 | 87.18 | -19.17 | 76.37 | 0.3327 | -744.0 | -651.6 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 10.92 | 87.07 | -19.27 | 77.61 | 0.3333 | -708.0 | -561.6 | |
| 0.00 | 2.85 | 0.00 | 1.50 | 11.04 | 86.84 | -19.51 | 77.39 | 0.3373 | -807.0 | -764.5 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 12.42 | 86.64 | -19.71 | 73.50 | 0.3450 | -825.0 | -569.7 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 12.84 | 86.47 | -19.87 | 72.43 | 0.3491 | -663.0 | -557.3 | |
| 0.00 | 4.01 | 0.00 | 2.11 | 11.14 | 86.44 | -19.91 | 77.28 | 0.3440 | -851.0 | -737.4 | |
| 0.00 | 1.60 | 0.00 | 0.85 | 13.05 | 86.29 | -20.05 | 71.99 | 0.3528 | -920.0 | -746.2 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 12.19 | 86.13 | -20.21 | 74.47 | 0.3521 | -880.0 | -790.1 | |
| 2.05 | -23.00 | 1.09 | -23.00 | 13.12 | 85.86 | -20.49 | 72.09 | 0.3598 | -1058.0 | 999999 | |
| 0.00 | 2.58 | 0.00 | 1.37 | 13.11 | 85.63 | -20.72 | 72.26 | 0.3633 | -606.0 | -647.3 | |
| 1.78 | -23.00 | 0.95 | -23.00 | 14.01 | 85.41 | -20.94 | 70.02 | 0.3705 | -1131.2 | 999999 | |
| 1.16 | -23.00 | 0.62 | -23.00 | 14.19 | 85.33 | -21.02 | 69.62 | 0.3725 | -1222.3 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 12.56 | 85.47 | -20.87 | 73.85 | 0.3636 | -667.0 | -604.7 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 16.93 | 85.03 | -21.31 | 63.07 | 0.3916 | 455.0 | 287.7 | |
| 9.18 | -23.00 | 4.89 | -23.00 | 13.65 | 85.34 | -21.00 | 71.03 | 0.3698 | -1219.2 | 999999 | |
| 9.62 | -23.00 | 5.15 | -23.00 | 15.22 | 85.19 | -21.16 | 67.10 | 0.3797 | -1123.5 | 999999 | |
| 0.71 | -23.00 | 0.38 | -23.00 | 13.40 | 85.23 | -21.11 | 71.76 | 0.3705 | -827.1 | 999999 | |
| 0.00 | 1.69 | 0.00 | 0.90 | 12.76 | 85.29 | -21.06 | 73.41 | 0.3672 | -883.0 | -720.1 | |
| 18.09 | -23.00 | 9.67 | -23.00 | 14.64 | 85.08 | -21.26 | 68.66 | 0.3783 | -1185.3 | 999999 | |
| 9.44 | -23.00 | 5.07 | -23.00 | 15.42 | 84.87 | -21.48 | 66.87 | 0.3855 | -1160.6 | 999999 | |
| 1.51 | -23.00 | 0.81 | -23.00 | 16.22 | 84.78 | -21.57 | 65.01 | 0.3911 | -962.1 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 12.78 | 85.02 | -21.32 | 73.51 | 0.3714 | -834.0 | -683.2 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 14.26 | 84.85 | -21.49 | 69.78 | 0.3800 | -793.0 | -646.0 | |
| 0.00 | 2.58 | 0.00 | 1.39 | 16.64 | 84.59 | -21.75 | 64.17 | 0.3962 | -847.0 | -671.3 | |
| 0.89 | 21.83 | 0.47 | 11.67 | 12.32 | 85.00 | -21.35 | 74.74 | 0.3703 | -1039.5 | -732.8 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 12.53 | 84.94 | -21.40 | 74.21 | 0.3718 | -1043.0 | -916.1 | |
| 0.00 | 1.51 | 0.00 | 0.81 | 12.59 | 84.77 | -21.57 | 74.16 | 0.3746 | -963.0 | -819.9 | |
| 0.00 | 0.71 | 0.00 | 0.38 | 16.47 | 84.38 | -21.97 | 64.75 | 0.3984 | -875.0 | -690.6 | |
| 0.00 | 2.76 | 0.00 | 1.47 | 11.19 | 84.79 | -21.56 | 77.86 | 0.3703 | -694.0 | -653.5 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 12.76 | 84.63 | -21.72 | 73.79 | 0.3775 | -920.0 | -757.3 | |
| 0.00 | 1.16 | 0.00 | 0.63 | 16.59 | 84.19 | -22.15 | 64.63 | 0.4017 | -935.0 | -794.3 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 11.85 | 84.64 | -21.71 | 76.16 | 0.3744 | -624.0 | -570.6 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 11.34 | 84.68 | -21.67 | 77.51 | 0.3724 | -775.0 | -660.9 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 15.09 | 84.30 | -22.05 | 68.13 | 0.3923 | -666.0 | -489.2 | |
| 0.98 | -83.00 | 0.52 | -83.00 | 12.35 | 84.29 | -22.05 | 75.02 | 0.3813 | -781.0 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 11.92 | 84.20 | -22.15 | 76.18 | 0.3815 | -681.0 | -569.1 | |
| 0.00 | 1.96 | 0.00 | 1.05 | 12.70 | 84.00 | -22.35 | 74.27 | 0.3870 | -458.0 | -492.3 | |
| 0.00 | 1.60 | 0.00 | 0.86 | 13.46 | 83.92 | -22.42 | 72.41 | 0.3908 | -561.0 | -448.9 | |
| 0.00 | 1.51 | 0.00 | 0.81 | 13.06 | 83.83 | -22.52 | 73.46 | 0.3908 | -596.0 | -487.4 | |
| 0.00 | 1.78 | 0.00 | 0.97 | 17.87 | 83.27 | -23.07 | 62.52 | 0.4222 | 745.0 | 700.2 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 17.92 | 83.06 | -23.29 | 62.59 | 0.4255 | 876.0 | 716.7 | |
| 0.00 | 4.81 | 0.00 | 2.61 | 15.66 | 83.21 | -23.13 | 67.58 | 0.4109 | -820.0 | -486.9 | |
| 0.00 | 0.98 | 0.00 | 0.54 | 18.08 | 82.48 | -23.86 | 62.73 | 0.4345 | 685.0 | 468.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
