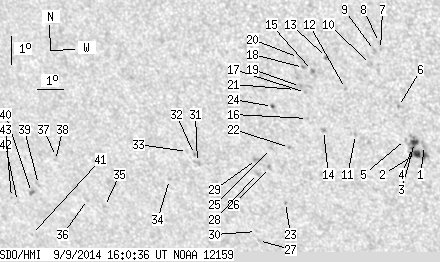

SDO HMI 2014-09-09 16:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.04 | 82.95 | 4.33 | 53.25 | -21.10 | 78.70 | -27.64 | 137.24 | 0.6341 | 129.7 | 187.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-09 16:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.74 | 0.00 | 2.29 | -20.90 | 83.77 | -22.58 | 142.22 | 0.5876 | 737.0 | 723.7 | |
| 3.21 | 22.81 | 1.97 | 13.99 | -21.19 | 83.44 | -22.91 | 142.14 | 0.5935 | 779.9 | 644.9 | |
| 2.85 | -2.00 | 1.75 | -2.00 | -20.82 | 83.43 | -22.91 | 141.72 | 0.5896 | 908.1 | 999999 | |
| 0.27 | -2.00 | 0.16 | -2.00 | -20.99 | 83.33 | -23.01 | 141.79 | 0.5923 | 853.7 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.55 | -20.73 | 83.13 | -23.22 | 141.26 | 0.5913 | 484.0 | 397.4 | |
| 0.00 | 1.16 | 0.00 | 0.70 | -19.61 | 83.06 | -23.28 | 139.89 | 0.5802 | -743.0 | -558.2 | |
| 0.00 | 0.80 | 0.00 | 0.48 | -17.72 | 82.72 | -23.63 | 137.18 | 0.5638 | 771.0 | 636.9 | |
| 0.00 | 0.98 | 0.00 | 0.59 | -17.49 | 82.72 | -23.63 | 136.88 | 0.5615 | 753.0 | 598.9 | |
| 0.00 | 1.69 | 0.00 | 1.02 | -17.77 | 82.50 | -23.84 | 136.98 | 0.5664 | 845.0 | 629.4 | |
| 0.00 | 2.41 | 0.00 | 1.45 | -18.25 | 82.30 | -24.05 | 137.33 | 0.5732 | 612.0 | 449.8 | |
| 0.00 | 1.51 | 0.00 | 0.94 | -20.66 | 81.37 | -24.97 | 139.15 | 0.6062 | 759.0 | 614.4 | |
| 0.00 | 1.16 | 0.00 | 0.71 | -19.10 | 81.28 | -25.06 | 137.22 | 0.5915 | -515.0 | -410.8 | |
| 0.00 | 1.60 | 0.00 | 0.98 | -18.10 | 80.78 | -25.57 | 135.41 | 0.5866 | -752.0 | -634.1 | |
| 0.00 | 1.96 | 0.00 | 1.23 | -20.58 | 80.24 | -26.10 | 137.83 | 0.6158 | 878.0 | 663.5 | |
| 0.00 | 2.05 | 0.00 | 1.26 | -18.56 | 80.20 | -26.14 | 135.37 | 0.5967 | -853.0 | -728.7 | |
| 0.00 | 0.89 | 0.00 | 0.56 | -20.21 | 79.74 | -26.61 | 136.85 | 0.6169 | 307.0 | 165.6 | |
| 0.00 | 0.80 | 0.00 | 0.50 | -19.32 | 79.82 | -26.52 | 135.89 | 0.6076 | -654.0 | -500.0 | |
| 0.00 | 1.51 | 0.00 | 0.93 | -18.48 | 79.90 | -26.45 | 134.94 | 0.5989 | -733.0 | -442.3 | |
| 0.00 | 1.87 | 0.00 | 1.16 | -19.13 | 79.68 | -26.67 | 135.50 | 0.6072 | -823.0 | -682.7 | |
| 0.00 | 1.34 | 0.00 | 0.82 | -18.15 | 79.78 | -26.57 | 134.40 | 0.5971 | -550.0 | -506.9 | |
| 0.00 | 0.71 | 0.00 | 0.44 | -19.24 | 79.48 | -26.87 | 135.43 | 0.6102 | -543.0 | -445.8 | |
| 0.00 | 1.07 | 0.00 | 0.68 | -21.24 | 78.88 | -27.47 | 137.17 | 0.6346 | 732.0 | 603.0 | |
| 0.00 | 0.98 | 0.00 | 0.64 | -23.18 | 78.31 | -28.04 | 138.75 | 0.6576 | 688.0 | 588.8 | |
| 0.71 | 1.87 | 0.45 | 1.18 | -19.87 | 78.53 | -27.81 | 135.21 | 0.6251 | -618.1 | -530.0 | |
| 0.00 | 1.25 | 0.00 | 0.80 | -21.32 | 78.20 | -28.14 | 136.57 | 0.6415 | 719.0 | 525.5 | |
| 0.00 | 2.23 | 0.00 | 1.45 | -21.99 | 77.98 | -28.36 | 137.12 | 0.6495 | 727.0 | 591.5 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -24.60 | 76.94 | -29.40 | 138.96 | 0.6822 | 456.0 | 422.0 | |
| 0.00 | 3.21 | 0.00 | 2.10 | -22.23 | 77.49 | -28.86 | 136.90 | 0.6562 | 666.0 | 437.7 | |
| 0.00 | 2.67 | 0.00 | 1.74 | -21.74 | 77.56 | -28.79 | 136.42 | 0.6512 | 704.0 | 637.5 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -24.28 | 76.95 | -29.40 | 138.63 | 0.6793 | 533.0 | 451.7 | |
| 0.00 | 3.03 | 0.00 | 2.03 | -21.99 | 75.28 | -31.07 | 134.59 | 0.6741 | 682.0 | 505.7 | |
| 0.00 | 0.98 | 0.00 | 0.65 | -21.72 | 75.23 | -31.11 | 134.23 | 0.6723 | 737.0 | 629.5 | |
| 0.00 | 1.34 | 0.00 | 0.89 | -21.64 | 74.99 | -31.36 | 133.92 | 0.6739 | 400.0 | 312.2 | |
| 0.00 | 1.60 | 0.00 | 1.10 | -22.67 | 74.03 | -32.32 | 134.25 | 0.6910 | 589.0 | 426.4 | |
| 0.00 | 1.25 | 0.00 | 0.89 | -23.82 | 71.12 | -35.23 | 133.16 | 0.7257 | -603.0 | -501.6 | |
| 0.00 | 1.87 | 0.00 | 1.35 | -23.63 | 70.49 | -35.85 | 132.47 | 0.7298 | -556.0 | -481.8 | |
| 0.00 | 1.07 | 0.00 | 0.77 | -22.20 | 69.67 | -36.67 | 130.27 | 0.7270 | -660.0 | -481.6 | |
| 0.00 | 0.89 | 0.00 | 0.64 | -22.35 | 69.59 | -36.76 | 130.37 | 0.7288 | -504.0 | -457.9 | |
| 0.00 | 2.14 | 0.00 | 1.58 | -23.26 | 68.59 | -37.75 | 130.67 | 0.7439 | -467.0 | -468.9 | |
| 0.00 | 3.03 | 0.00 | 2.26 | -23.57 | 68.19 | -38.15 | 130.73 | 0.7495 | -700.0 | -601.6 | |
| 0.00 | 0.80 | 0.00 | 0.61 | -25.09 | 67.64 | -38.70 | 131.99 | 0.7642 | -526.0 | -442.0 | |
| 0.00 | 0.36 | 0.00 | 0.27 | -23.94 | 67.47 | -38.88 | 130.63 | 0.7582 | -493.0 | -496.0 | |
| 0.00 | 0.71 | 0.00 | 0.54 | -23.82 | 67.26 | -39.09 | 130.36 | 0.7592 | -445.0 | -381.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
