SDO HMI 2014-09-09 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.32 | 236.10 | 33.73 | 131.84 | -20.13 | 107.36 | 1.57 | 183.12 | 0.4637 | 524.8 | 334.8 | |
|
previous
or next observation for the same group /

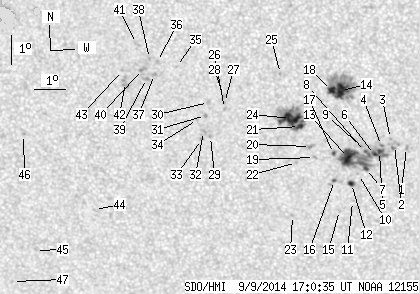

back to the solar disc SDO HMI 2014-09-09 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.96 | 0.00 | 1.11 | -20.91 | 110.56 | 4.77 | 189.36 | 0.4797 | 771.0 | 611.7 | |
| 0.00 | 6.86 | 0.00 | 3.86 | -20.84 | 110.17 | 4.38 | 188.63 | 0.4777 | 517.0 | 574.9 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -20.60 | 110.04 | 4.24 | 188.44 | 0.4737 | 664.0 | 611.0 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -20.83 | 109.75 | 3.96 | 187.81 | 0.4767 | 959.0 | 827.6 | |
| 1.60 | 63.79 | 0.90 | 36.02 | -21.04 | 109.69 | 3.90 | 187.63 | 0.4797 | 896.8 | 197.2 | |
| 1.34 | -5.00 | 0.75 | -5.00 | -21.14 | 109.53 | 3.74 | 187.30 | 0.4809 | 832.9 | 999999 | |
| 1.60 | -5.00 | 0.91 | -5.00 | -21.62 | 109.28 | 3.49 | 186.69 | 0.4878 | -879.5 | 999999 | |
| 0.71 | -5.00 | 0.40 | -5.00 | -21.03 | 109.24 | 3.45 | 186.76 | 0.4788 | 864.0 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -20.86 | 109.07 | 3.28 | 186.48 | 0.4758 | 976.0 | 830.5 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -21.82 | 109.03 | 3.24 | 186.16 | 0.4904 | -729.0 | -588.2 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -22.76 | 108.85 | 3.06 | 185.62 | 0.5043 | 592.0 | 486.0 | |
| 2.23 | 3.74 | 1.27 | 2.13 | -22.13 | 108.81 | 3.01 | 185.67 | 0.4948 | -573.0 | -544.2 | |
| 16.84 | -5.00 | 9.50 | -5.00 | -21.24 | 108.69 | 2.90 | 185.65 | 0.4810 | 767.8 | 999999 | |
| 9.89 | 58.17 | 5.47 | 32.12 | -18.95 | 108.40 | 2.60 | 185.56 | 0.4453 | 1163.0 | 583.1 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -23.07 | 108.43 | 2.64 | 184.80 | 0.5084 | 574.0 | 494.3 | |
| 0.80 | 3.39 | 0.46 | 1.93 | -22.03 | 108.25 | 2.46 | 184.65 | 0.4924 | 569.2 | 436.5 | |
| 0.80 | 1.78 | 0.45 | 1.00 | -21.09 | 108.20 | 2.41 | 184.73 | 0.4781 | 881.4 | 785.6 | |
| 4.28 | -14.00 | 2.36 | -14.00 | -18.95 | 108.11 | 2.32 | 184.95 | 0.4448 | 1057.0 | 999999 | |
| 0.00 | 1.87 | 0.00 | 1.05 | -21.23 | 107.59 | 1.80 | 183.51 | 0.4795 | 851.0 | 679.3 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -20.85 | 107.46 | 1.66 | 183.30 | 0.4736 | 959.0 | 746.8 | |
| 3.21 | 47.22 | 1.79 | 26.28 | -20.16 | 107.10 | 1.30 | 182.65 | 0.4627 | 814.4 | 657.1 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -21.40 | 107.01 | 1.21 | 182.36 | 0.4816 | 695.0 | 549.6 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -23.24 | 106.89 | 1.10 | 181.99 | 0.5096 | 603.0 | 440.8 | |
| 17.02 | -21.00 | 9.47 | -21.00 | -19.89 | 106.80 | 1.01 | 182.08 | 0.4582 | 1132.5 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -18.37 | 106.48 | 0.69 | 181.50 | 0.4343 | 898.0 | 692.2 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -19.55 | 104.69 | -1.10 | 177.69 | 0.4530 | 792.0 | 674.7 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -19.35 | 104.69 | -1.10 | 177.68 | 0.4498 | 957.0 | 798.6 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -19.14 | 104.66 | -1.13 | 177.59 | 0.4467 | 911.0 | 765.7 | |
| 0.00 | 1.69 | 0.00 | 0.95 | -20.50 | 104.23 | -1.56 | 176.86 | 0.4681 | 786.0 | 648.5 | |
| 0.00 | 2.05 | 0.00 | 1.14 | -19.35 | 104.18 | -1.62 | 176.60 | 0.4502 | 830.0 | 658.2 | |
| 0.00 | 1.51 | 0.00 | 0.84 | -19.79 | 104.08 | -1.72 | 176.45 | 0.4572 | 900.0 | 727.9 | |
| 0.00 | 2.23 | 0.00 | 1.25 | -20.33 | 104.01 | -1.79 | 176.38 | 0.4657 | 922.0 | 753.3 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -20.61 | 103.94 | -1.86 | 176.29 | 0.4700 | 833.0 | 709.2 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -19.92 | 103.82 | -1.97 | 175.94 | 0.4596 | 726.0 | 516.3 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -18.14 | 103.17 | -2.62 | 174.21 | 0.4326 | -604.0 | -427.9 | |
| 0.00 | 1.78 | 0.00 | 0.98 | -17.98 | 102.57 | -3.22 | 172.85 | 0.4311 | -869.0 | -666.5 | |
| 0.00 | 2.05 | 0.00 | 1.13 | -18.41 | 102.47 | -3.32 | 172.75 | 0.4381 | -829.0 | -657.7 | |
| 0.00 | 0.71 | 0.00 | 0.39 | -17.88 | 102.32 | -3.47 | 172.26 | 0.4300 | -833.0 | -749.6 | |
| 0.00 | 2.94 | 0.00 | 1.62 | -18.55 | 102.21 | -3.58 | 172.24 | 0.4407 | -891.0 | -657.8 | |
| 0.00 | 3.03 | 0.00 | 1.67 | -18.25 | 102.09 | -3.70 | 171.88 | 0.4363 | -990.0 | -841.4 | |
| 0.00 | 2.58 | 0.00 | 1.41 | -17.38 | 101.92 | -3.87 | 171.20 | 0.4232 | -710.0 | -632.8 | |
| 0.00 | 5.61 | 0.00 | 3.10 | -18.69 | 101.54 | -4.26 | 170.86 | 0.4444 | -796.0 | -732.2 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -18.29 | 101.45 | -4.34 | 170.52 | 0.4384 | -670.0 | -598.1 | |
| 0.00 | 0.27 | 0.00 | 0.15 | -23.05 | 100.38 | -5.41 | 170.23 | 0.5134 | -691.0 | -725.7 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -24.53 | 98.35 | -7.44 | 167.36 | 0.5407 | -609.0 | -577.5 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -20.49 | 98.18 | -7.61 | 165.04 | 0.4826 | -732.0 | -582.8 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -25.65 | 97.50 | -8.29 | 166.51 | 0.5594 | -672.0 | -544.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
