SDO HMI 2014-09-09 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 221.12 | 1038.57 | 119.10 | 560.91 | -13.85 | 96.46 | -9.33 | 157.03 | 0.3967 | -117.3 | -100.8 | |
|
previous
or next observation for the same group /

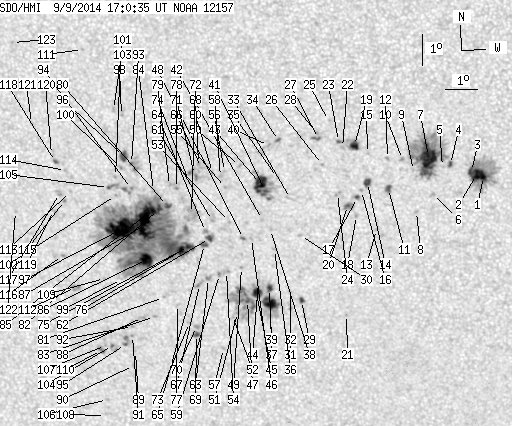

back to the solar disc SDO HMI 2014-09-09 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.33 | 75.10 | 3.33 | 39.46 | -12.28 | 104.55 | -1.24 | 176.37 | 0.3364 | 1259.0 | 394.3 | |
| 7.75 | -1.00 | 4.07 | -1.00 | -12.22 | 104.34 | -1.46 | 175.73 | 0.3356 | 1263.2 | 999999 | |
| 3.65 | -1.00 | 1.92 | -1.00 | -12.13 | 104.18 | -1.61 | 175.26 | 0.3342 | 1079.1 | 999999 | |
| 1.34 | 2.58 | 0.70 | 1.36 | -11.90 | 103.54 | -2.26 | 173.29 | 0.3316 | 1015.2 | 857.1 | |
| 0.00 | 1.43 | 0.00 | 0.75 | -11.97 | 103.29 | -2.51 | 172.59 | 0.3332 | 522.0 | 438.2 | |
| 0.00 | 2.23 | 0.00 | 1.18 | -12.87 | 102.97 | -2.83 | 172.04 | 0.3485 | 722.0 | 552.4 | |
| 26.64 | 105.12 | 13.97 | 55.09 | -11.65 | 102.86 | -2.93 | 171.19 | 0.3290 | 1234.9 | 636.9 | |
| 0.00 | 1.51 | 0.00 | 0.80 | -13.42 | 102.46 | -3.33 | 170.90 | 0.3587 | 744.0 | 560.6 | |
| 0.00 | 1.34 | 0.00 | 0.70 | -12.10 | 102.39 | -3.40 | 170.05 | 0.3375 | 342.0 | 355.2 | |
| 0.00 | 1.78 | 0.00 | 0.94 | -11.75 | 102.05 | -3.74 | 168.90 | 0.3329 | 812.0 | 646.2 | |
| 2.05 | 4.01 | 1.08 | 2.12 | -12.68 | 101.61 | -4.19 | 168.18 | 0.3494 | 1054.7 | 860.0 | |
| 0.00 | 1.51 | 0.00 | 0.80 | -11.72 | 101.59 | -4.20 | 167.54 | 0.3340 | 932.0 | 692.1 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -14.01 | 101.21 | -4.59 | 167.91 | 0.3719 | 785.0 | 663.8 | |
| 3.47 | 5.26 | 1.84 | 2.78 | -12.50 | 100.96 | -4.83 | 166.29 | 0.3487 | 980.4 | 727.8 | |
| 0.00 | 0.89 | 0.00 | 0.47 | -11.57 | 100.98 | -4.82 | 165.67 | 0.3338 | 814.0 | 604.4 | |
| 0.00 | 1.16 | 0.00 | 0.61 | -12.76 | 100.77 | -5.03 | 165.95 | 0.3536 | 838.0 | 623.2 | |
| 0.98 | 2.41 | 0.52 | 1.28 | -12.98 | 100.64 | -5.16 | 165.77 | 0.3577 | 729.3 | 382.1 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -13.56 | 100.59 | -5.20 | 166.05 | 0.3671 | 773.0 | 562.2 | |
| 4.99 | 11.05 | 2.62 | 5.80 | -11.32 | 100.58 | -5.21 | 164.34 | 0.3315 | 1063.7 | 597.3 | |
| 1.16 | 6.50 | 0.62 | 3.46 | -13.24 | 100.32 | -5.47 | 165.12 | 0.3631 | 986.2 | 723.9 | |
| 0.00 | 0.71 | 0.00 | 0.39 | -16.80 | 100.19 | -5.60 | 167.07 | 0.4192 | -780.0 | -726.1 | |
| 0.00 | 1.78 | 0.00 | 0.94 | -11.39 | 100.21 | -5.59 | 163.34 | 0.3343 | -87.0 | -55.5 | |
| 0.53 | 2.94 | 0.28 | 1.54 | -11.20 | 100.09 | -5.71 | 162.83 | 0.3319 | 835.5 | 605.9 | |
| 0.00 | 2.49 | 0.00 | 1.32 | -12.86 | 100.02 | -5.77 | 164.04 | 0.3584 | 559.0 | 514.6 | |
| 0.00 | 0.71 | 0.00 | 0.37 | -10.53 | 99.79 | -6.00 | 161.36 | 0.3229 | 697.0 | 591.8 | |
| 0.00 | 1.16 | 0.00 | 0.61 | -11.94 | 99.57 | -6.22 | 162.08 | 0.3460 | 501.0 | 419.5 | |
| 0.36 | 3.65 | 0.19 | 1.92 | -11.11 | 99.47 | -6.32 | 161.01 | 0.3336 | 867.2 | 628.9 | |
| 0.00 | 1.25 | 0.00 | 0.65 | -10.92 | 99.41 | -6.38 | 160.66 | 0.3310 | 884.0 | 683.7 | |
| 1.69 | 3.21 | 0.92 | 1.75 | -16.36 | 98.78 | -7.01 | 163.66 | 0.4181 | 796.1 | 617.5 | |
| 0.00 | 1.34 | 0.00 | 0.72 | -14.23 | 98.82 | -6.97 | 162.15 | 0.3853 | 760.0 | 615.0 | |
| 0.00 | 2.58 | 0.00 | 1.41 | -16.60 | 98.42 | -7.37 | 163.04 | 0.4233 | 753.0 | 654.3 | |
| 0.00 | 1.60 | 0.00 | 0.87 | -16.07 | 98.44 | -7.35 | 162.70 | 0.4152 | 698.0 | 675.2 | |
| 0.00 | 3.39 | 0.00 | 1.80 | -13.04 | 98.55 | -7.25 | 160.44 | 0.3685 | 453.0 | 369.7 | |
| 0.45 | 2.49 | 0.23 | 1.31 | -11.19 | 98.23 | -7.56 | 157.72 | 0.3421 | 762.2 | 537.3 | |
| 0.00 | 1.51 | 0.00 | 0.80 | -12.37 | 98.16 | -7.63 | 158.82 | 0.3604 | -602.0 | -415.5 | |
| 0.00 | 1.51 | 0.00 | 0.82 | -14.70 | 97.99 | -7.80 | 160.58 | 0.3967 | 721.0 | 606.5 | |
| 12.83 | 86.86 | 7.01 | 47.53 | -16.47 | 97.79 | -8.00 | 161.59 | 0.4245 | 1053.0 | 425.7 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -14.05 | 97.89 | -7.91 | 159.77 | 0.3875 | 579.0 | 587.9 | |
| 2.76 | 4.81 | 1.50 | 2.62 | -15.98 | 97.78 | -8.01 | 161.18 | 0.4171 | 1065.6 | 859.8 | |
| 0.00 | 1.51 | 0.00 | 0.80 | -11.36 | 97.91 | -7.88 | 157.07 | 0.3465 | 751.0 | 531.1 | |
| 1.34 | 36.44 | 0.71 | 19.39 | -12.83 | 97.77 | -8.02 | 158.31 | 0.3697 | -642.7 | -438.6 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -13.73 | 97.65 | -8.14 | 158.91 | 0.3840 | 792.0 | 700.8 | |
| 13.36 | -41.00 | 7.11 | -41.00 | -12.58 | 97.63 | -8.17 | 157.68 | 0.3667 | -1171.2 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.73 | -15.76 | 97.44 | -8.35 | 160.26 | 0.4155 | 604.0 | 432.3 | |
| 5.43 | -37.00 | 2.97 | -37.00 | -16.12 | 97.36 | -8.43 | 160.39 | 0.4214 | 1144.8 | 999999 | |
| 0.00 | 1.60 | 0.00 | 0.86 | -14.36 | 97.28 | -8.51 | 158.64 | 0.3955 | 877.0 | 672.3 | |
| 1.51 | -37.00 | 0.83 | -37.00 | -16.39 | 97.06 | -8.73 | 159.97 | 0.4270 | 867.8 | 999999 | |
| 0.45 | 1.96 | 0.24 | 1.06 | -14.36 | 97.03 | -8.77 | 158.07 | 0.3971 | 957.6 | 816.5 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -15.31 | 96.92 | -8.87 | 158.73 | 0.4117 | 863.0 | 723.2 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -12.01 | 96.99 | -8.80 | 155.49 | 0.3624 | -867.0 | -804.1 | |
| 0.00 | 2.05 | 0.00 | 1.13 | -16.79 | 96.73 | -9.07 | 159.60 | 0.4347 | -61.0 | 52.3 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -16.89 | 96.56 | -9.23 | 159.35 | 0.4371 | 348.0 | 279.2 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -13.82 | 96.61 | -9.19 | 156.58 | 0.3916 | 665.0 | 527.6 | |
| 0.00 | 3.47 | 0.00 | 1.89 | -15.45 | 96.44 | -9.35 | 157.82 | 0.4166 | 827.0 | 715.4 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -12.72 | 96.53 | -9.27 | 155.19 | 0.3760 | -960.0 | -740.2 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -12.21 | 96.51 | -9.28 | 154.57 | 0.3686 | -856.0 | -659.9 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -18.00 | 96.21 | -9.58 | 159.56 | 0.4552 | -893.0 | -717.6 | |
| 0.00 | 1.60 | 0.00 | 0.86 | -12.37 | 96.38 | -9.41 | 154.45 | 0.3719 | -965.0 | -779.4 | |
| 0.00 | 1.87 | 0.00 | 1.02 | -15.55 | 96.21 | -9.58 | 157.43 | 0.4195 | 841.0 | 731.8 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -12.25 | 96.14 | -9.66 | 153.72 | 0.3718 | -990.0 | -893.0 | |
| 0.00 | 1.78 | 0.00 | 0.96 | -13.80 | 96.07 | -9.72 | 155.35 | 0.3948 | -155.0 | -122.3 | |
| 2.32 | 4.01 | 1.25 | 2.17 | -14.38 | 95.95 | -9.84 | 155.70 | 0.4041 | 884.9 | 685.7 | |
| 0.00 | 2.94 | 0.00 | 1.61 | -15.69 | 95.86 | -9.94 | 156.81 | 0.4237 | 857.0 | 692.3 | |
| 0.00 | 2.85 | 0.00 | 1.54 | -14.16 | 95.84 | -9.96 | 155.21 | 0.4016 | 230.0 | 155.0 | |
| 2.23 | 4.10 | 1.21 | 2.22 | -14.58 | 95.78 | -10.01 | 155.55 | 0.4081 | 777.2 | 483.5 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -12.10 | 95.80 | -10.00 | 152.74 | 0.3721 | -821.0 | -751.1 | |
| 0.00 | 3.47 | 0.00 | 1.90 | -15.89 | 95.56 | -10.23 | 156.39 | 0.4285 | 825.0 | 632.2 | |
| 0.00 | 1.51 | 0.00 | 0.81 | -11.97 | 95.71 | -10.08 | 152.37 | 0.3709 | -935.0 | -832.6 | |
| 1.60 | 3.30 | 0.89 | 1.83 | -17.55 | 95.37 | -10.42 | 157.55 | 0.4535 | -950.8 | -738.8 | |
| 0.00 | 2.67 | 0.00 | 1.48 | -17.28 | 95.39 | -10.41 | 157.34 | 0.4496 | -992.0 | -798.2 | |
| 0.00 | 7.66 | 0.00 | 4.10 | -12.33 | 95.57 | -10.22 | 152.49 | 0.3771 | -968.0 | -868.0 | |
| 0.00 | 19.24 | 0.00 | 10.37 | -13.59 | 95.42 | -10.37 | 153.66 | 0.3962 | -328.0 | -463.5 | |
| 0.00 | 1.78 | 0.00 | 0.99 | -17.16 | 95.17 | -10.62 | 156.80 | 0.4491 | -875.0 | -767.0 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -12.59 | 95.40 | -10.39 | 152.43 | 0.3821 | -854.0 | -547.6 | |
| 2.94 | 478.57 | 1.60 | 260.85 | -14.66 | 95.27 | -10.52 | 154.54 | 0.4126 | 885.1 | -372.7 | |
| 4.72 | -75.00 | 2.57 | -75.00 | -14.79 | 95.04 | -10.75 | 154.20 | 0.4161 | 802.6 | 999999 | |
| 0.00 | 1.78 | 0.00 | 0.98 | -16.57 | 94.82 | -10.98 | 155.56 | 0.4429 | 534.0 | 461.0 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -12.79 | 94.98 | -10.81 | 151.75 | 0.3881 | -1008.0 | -887.1 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -12.70 | 94.77 | -11.03 | 151.16 | 0.3884 | -917.0 | -779.4 | |
| 2.05 | -75.00 | 1.11 | -75.00 | -13.34 | 94.67 | -11.12 | 151.76 | 0.3982 | -1110.3 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -16.35 | 94.38 | -11.41 | 154.49 | 0.4427 | 616.0 | 418.3 | |
| 4.37 | -75.00 | 2.36 | -75.00 | -13.48 | 94.38 | -11.41 | 151.30 | 0.4024 | -1215.5 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -16.99 | 94.05 | -11.74 | 154.49 | 0.4538 | -715.0 | -646.3 | |
| 0.00 | 2.32 | 0.00 | 1.25 | -12.87 | 94.25 | -11.54 | 150.26 | 0.3949 | -908.0 | -688.8 | |
| 5.17 | -75.00 | 2.80 | -75.00 | -13.49 | 94.19 | -11.60 | 150.90 | 0.4039 | -1386.2 | 999999 | |
| 11.94 | -75.00 | 6.54 | -75.00 | -15.12 | 93.91 | -11.88 | 152.25 | 0.4287 | 874.1 | 999999 | |
| 35.81 | -75.00 | 19.46 | -75.00 | -13.98 | 93.94 | -11.85 | 150.99 | 0.4126 | -1254.9 | 999999 | |
| 0.00 | 4.81 | 0.00 | 2.68 | -17.03 | 93.66 | -12.13 | 153.80 | 0.4570 | -841.0 | -736.9 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -18.17 | 93.35 | -12.44 | 154.36 | 0.4748 | -733.0 | -549.2 | |
| 0.00 | 1.43 | 0.00 | 0.80 | -18.64 | 93.25 | -12.54 | 154.62 | 0.4820 | -763.0 | -619.4 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -17.64 | 93.30 | -12.50 | 153.73 | 0.4679 | -856.0 | -761.6 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -17.34 | 93.32 | -12.48 | 153.47 | 0.4636 | -725.0 | -632.2 | |
| 0.53 | 7.48 | 0.29 | 4.02 | -12.02 | 93.60 | -12.19 | 147.73 | 0.3886 | -1099.0 | -818.2 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -12.83 | 93.56 | -12.23 | 148.74 | 0.3999 | -1018.0 | -921.5 | |
| 0.53 | 5.61 | 0.30 | 3.15 | -17.94 | 93.05 | -12.75 | 153.59 | 0.4738 | -864.5 | -840.5 | |
| 4.37 | 6.95 | 2.34 | 3.73 | -11.81 | 93.36 | -12.44 | 146.91 | 0.3878 | -1167.6 | -881.9 | |
| 41.78 | -75.00 | 22.79 | -75.00 | -14.13 | 93.20 | -12.59 | 149.68 | 0.4205 | -1139.1 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -10.50 | 93.35 | -12.44 | 144.94 | 0.3704 | -843.0 | -711.1 | |
| 0.00 | 0.71 | 0.00 | 0.39 | -15.79 | 93.07 | -12.73 | 151.37 | 0.4443 | 551.0 | 390.2 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -12.16 | 93.24 | -12.55 | 147.18 | 0.3935 | -906.0 | -722.0 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -12.45 | 93.07 | -12.72 | 147.23 | 0.3990 | -713.0 | -621.3 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -13.07 | 93.04 | -12.75 | 147.99 | 0.4075 | -562.0 | -447.8 | |
| 0.00 | 1.96 | 0.00 | 1.04 | -10.32 | 93.11 | -12.68 | 144.13 | 0.3702 | -751.0 | -648.7 | |
| 0.45 | 5.26 | 0.25 | 2.96 | -17.99 | 92.62 | -13.17 | 152.87 | 0.4774 | -949.4 | -707.9 | |
| 0.53 | 9.98 | 0.29 | 5.40 | -12.81 | 92.83 | -12.96 | 147.23 | 0.4059 | -842.0 | -779.3 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -19.81 | 92.30 | -13.49 | 154.08 | 0.5041 | -776.0 | -615.1 | |
| 0.00 | 0.62 | 0.00 | 0.35 | -18.00 | 92.39 | -13.40 | 152.48 | 0.4791 | -781.0 | -646.0 | |
| 0.00 | 0.62 | 0.00 | 0.36 | -20.36 | 92.19 | -13.60 | 154.39 | 0.5122 | -445.0 | -472.1 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -15.78 | 92.52 | -13.27 | 150.33 | 0.4482 | -733.0 | -533.8 | |
| 0.00 | 3.83 | 0.00 | 2.16 | -18.17 | 92.25 | -13.55 | 152.40 | 0.4824 | -707.0 | -645.0 | |
| 0.00 | 0.89 | 0.00 | 0.47 | -8.46 | 92.21 | -13.58 | 138.98 | 0.3555 | -740.0 | -606.3 | |
| 0.00 | 4.90 | 0.00 | 2.73 | -16.10 | 91.56 | -14.23 | 148.96 | 0.4600 | -757.0 | -759.2 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -12.98 | 91.61 | -14.18 | 145.07 | 0.4188 | -614.0 | -364.3 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -12.31 | 91.49 | -14.30 | 143.89 | 0.4113 | -783.0 | -624.4 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -13.28 | 91.40 | -14.39 | 145.09 | 0.4245 | -1041.0 | -912.1 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -15.06 | 91.22 | -14.58 | 147.10 | 0.4493 | -874.0 | -699.3 | |
| 0.00 | 3.47 | 0.00 | 1.90 | -13.05 | 91.25 | -14.54 | 144.51 | 0.4230 | -945.0 | -739.3 | |
| 0.71 | 2.14 | 0.39 | 1.16 | -12.03 | 91.19 | -14.61 | 142.90 | 0.4106 | -951.4 | -741.9 | |
| 0.00 | 2.94 | 0.00 | 1.61 | -13.61 | 91.03 | -14.77 | 144.86 | 0.4322 | -626.0 | -543.2 | |
| 0.00 | 0.53 | 0.00 | 0.29 | -11.81 | 91.07 | -14.72 | 142.35 | 0.4089 | -255.0 | -381.5 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -10.84 | 90.49 | -15.31 | 139.73 | 0.4028 | -721.0 | -531.2 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -13.68 | 89.80 | -16.00 | 142.77 | 0.4445 | -757.0 | -581.6 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -8.31 | 90.01 | -15.79 | 134.37 | 0.3782 | -791.0 | -603.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
