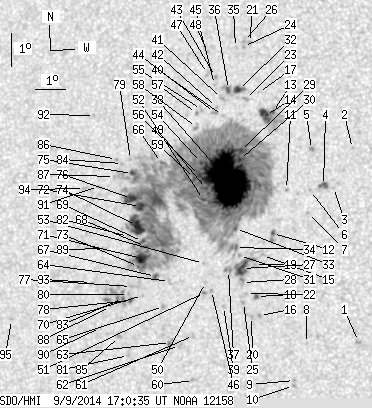

SDO HMI 2014-09-09 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 260.84 | 1446.20 | 137.51 | 763.56 | 15.72 | 87.33 | -18.46 | 63.17 | 0.3438 | 385.2 | 32.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-09 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.49 | 0.00 | 1.27 | 11.37 | 92.49 | -13.30 | 71.54 | 0.2388 | -795.0 | -785.9 | |
| 0.00 | 1.16 | 0.00 | 0.60 | 17.23 | 91.95 | -13.85 | 52.26 | 0.2904 | -608.0 | -523.0 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 16.02 | 91.42 | -14.38 | 56.76 | 0.2866 | -707.0 | -497.4 | |
| 2.49 | 4.81 | 1.29 | 2.49 | 16.07 | 91.09 | -14.70 | 57.15 | 0.2916 | 985.1 | 709.4 | |
| 0.00 | 1.87 | 0.00 | 0.97 | 17.16 | 90.61 | -15.18 | 54.81 | 0.3075 | 1060.0 | 947.4 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 15.91 | 90.68 | -15.11 | 58.30 | 0.2960 | 267.0 | 316.3 | |
| 0.00 | 1.16 | 0.00 | 0.60 | 15.24 | 90.66 | -15.13 | 60.36 | 0.2910 | -750.0 | -595.0 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 11.26 | 90.85 | -14.95 | 73.64 | 0.2648 | -896.0 | -722.2 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 10.13 | 90.52 | -15.27 | 78.07 | 0.2662 | -853.0 | -696.3 | |
| 0.00 | 1.43 | 0.00 | 0.73 | 9.98 | 90.50 | -15.30 | 78.65 | 0.2662 | -937.0 | -766.1 | |
| 0.00 | 1.25 | 0.00 | 0.65 | 15.91 | 89.90 | -15.90 | 59.46 | 0.3072 | 936.0 | 723.6 | |
| 0.89 | 4.81 | 0.46 | 2.50 | 14.56 | 89.55 | -16.25 | 63.98 | 0.3027 | -935.1 | -787.2 | |
| 0.89 | 33.23 | 0.47 | 17.46 | 18.25 | 89.23 | -16.56 | 54.10 | 0.3357 | 944.9 | 585.3 | |
| 8.73 | -13.00 | 4.59 | -13.00 | 18.15 | 89.01 | -16.79 | 54.69 | 0.3378 | 1165.7 | 999999 | |
| 0.00 | 1.87 | 0.00 | 0.97 | 13.88 | 89.27 | -16.52 | 66.40 | 0.3026 | -602.0 | -613.4 | |
| 0.00 | 1.43 | 0.00 | 0.74 | 12.06 | 89.30 | -16.50 | 72.22 | 0.2929 | -1105.0 | -838.5 | |
| 0.00 | 0.80 | 0.00 | 0.42 | 18.85 | 88.70 | -17.09 | 53.40 | 0.3479 | -550.0 | -409.1 | |
| 0.71 | 2.41 | 0.37 | 1.25 | 12.63 | 89.16 | -16.63 | 70.47 | 0.2976 | -1179.2 | -992.9 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 13.60 | 89.03 | -16.76 | 67.53 | 0.3047 | -878.0 | -652.1 | |
| 0.00 | 1.78 | 0.00 | 0.92 | 12.02 | 89.04 | -16.75 | 72.57 | 0.2968 | -946.0 | -723.5 | |
| 0.00 | 1.96 | 0.00 | 1.04 | 20.38 | 88.23 | -17.56 | 50.53 | 0.3679 | 832.0 | 668.5 | |
| 0.00 | 1.60 | 0.00 | 0.83 | 12.71 | 88.84 | -16.96 | 70.52 | 0.3031 | -935.0 | -682.5 | |
| 0.00 | 2.67 | 0.00 | 1.41 | 18.65 | 88.29 | -17.50 | 54.49 | 0.3516 | 836.0 | 485.5 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 20.25 | 88.05 | -17.75 | 51.10 | 0.3690 | 970.0 | 867.3 | |
| 0.00 | 1.16 | 0.00 | 0.60 | 12.44 | 88.76 | -17.04 | 71.47 | 0.3031 | -940.0 | -798.0 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 20.41 | 88.03 | -17.77 | 50.78 | 0.3707 | 718.0 | 631.7 | |
| 9.00 | 19.06 | 4.69 | 9.93 | 13.46 | 88.65 | -17.14 | 68.34 | 0.3097 | -1070.4 | -565.4 | |
| 0.00 | 3.21 | 0.00 | 1.67 | 13.04 | 88.68 | -17.11 | 69.63 | 0.3071 | -926.0 | -848.5 | |
| 2.85 | 1234.64 | 1.50 | 652.19 | 17.05 | 88.29 | -17.51 | 58.54 | 0.3386 | 1083.8 | 73.2 | |
| 1.60 | -29.00 | 0.84 | -29.00 | 16.78 | 88.28 | -17.51 | 59.28 | 0.3366 | 1221.7 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.60 | 13.85 | 88.53 | -17.27 | 67.28 | 0.3138 | 795.0 | 590.1 | |
| 4.19 | 14.08 | 2.22 | 7.47 | 18.92 | 88.03 | -17.77 | 54.21 | 0.3574 | 973.7 | 688.0 | |
| 1.34 | -29.00 | 0.70 | -29.00 | 14.67 | 88.33 | -17.46 | 65.08 | 0.3215 | 531.9 | 999999 | |
| 0.62 | -29.00 | 0.33 | -29.00 | 14.09 | 88.38 | -17.42 | 66.72 | 0.3174 | 878.9 | 999999 | |
| 0.00 | 1.60 | 0.00 | 0.86 | 20.21 | 87.78 | -18.01 | 51.57 | 0.3720 | 691.0 | 552.7 | |
| 1.87 | -32.00 | 0.99 | -32.00 | 18.91 | 87.69 | -18.10 | 54.70 | 0.3617 | 1011.0 | 999999 | |
| 0.00 | 5.08 | 0.00 | 2.65 | 13.39 | 88.20 | -17.59 | 69.02 | 0.3163 | -698.0 | -605.3 | |
| 165.34 | -29.00 | 86.96 | -29.00 | 16.15 | 87.94 | -17.85 | 61.38 | 0.3369 | 1417.6 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.70 | 12.29 | 88.12 | -17.67 | 72.45 | 0.3125 | -907.0 | -635.0 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 18.10 | 87.58 | -18.21 | 56.80 | 0.3566 | 901.0 | 727.4 | |
| 0.00 | 2.49 | 0.00 | 1.32 | 18.62 | 87.49 | -18.30 | 55.65 | 0.3620 | 836.0 | 678.0 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 18.34 | 87.35 | -18.44 | 56.51 | 0.3616 | 741.0 | 573.2 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 19.29 | 87.21 | -18.58 | 54.44 | 0.3713 | 855.0 | 768.6 | |
| 0.00 | 2.41 | 0.00 | 1.28 | 18.19 | 87.30 | -18.49 | 56.95 | 0.3610 | 954.0 | 765.0 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 19.05 | 87.21 | -18.59 | 55.03 | 0.3693 | 931.0 | 737.3 | |
| 0.00 | 1.34 | 0.00 | 0.70 | 12.76 | 87.70 | -18.10 | 71.35 | 0.3212 | -878.0 | -731.5 | |
| 0.00 | 2.32 | 0.00 | 1.24 | 19.38 | 86.93 | -18.86 | 54.62 | 0.3756 | 641.0 | 580.1 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 20.05 | 86.85 | -18.94 | 53.20 | 0.3825 | 649.0 | 506.3 | |
| 1.16 | -29.00 | 0.61 | -29.00 | 15.85 | 87.27 | -18.52 | 62.96 | 0.3445 | 764.4 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.65 | 13.00 | 87.48 | -18.31 | 70.82 | 0.3255 | -891.0 | -750.8 | |
| 0.00 | 1.69 | 0.00 | 0.89 | 12.69 | 87.47 | -18.32 | 71.74 | 0.3243 | -1151.0 | -929.1 | |
| 1.51 | -29.00 | 0.80 | -29.00 | 15.51 | 87.21 | -18.59 | 63.94 | 0.3434 | 581.4 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 13.57 | 87.37 | -18.42 | 69.23 | 0.3299 | -919.0 | -704.0 | |
| 1.25 | -29.00 | 0.66 | -29.00 | 16.64 | 87.03 | -18.76 | 61.16 | 0.3533 | 793.6 | 999999 | |
| 0.00 | 1.51 | 0.00 | 0.81 | 18.26 | 86.86 | -18.93 | 57.33 | 0.3676 | 810.0 | 635.2 | |
| 3.12 | -29.00 | 1.65 | -29.00 | 16.24 | 87.00 | -18.79 | 62.23 | 0.3510 | 891.0 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 18.13 | 86.71 | -19.09 | 57.83 | 0.3687 | 741.0 | 636.7 | |
| 0.00 | 3.12 | 0.00 | 1.66 | 17.70 | 86.75 | -19.04 | 58.81 | 0.3649 | 751.0 | 532.9 | |
| 1.34 | -29.00 | 0.71 | -29.00 | 16.14 | 86.85 | -18.95 | 62.66 | 0.3526 | 773.7 | 999999 | |
| 0.00 | 2.32 | 0.00 | 1.21 | 10.02 | 87.29 | -18.50 | 80.05 | 0.3187 | -696.0 | -700.8 | |
| 0.00 | 2.76 | 0.00 | 1.45 | 11.38 | 87.21 | -18.59 | 75.89 | 0.3236 | -816.0 | -647.5 | |
| 0.00 | 2.41 | 0.00 | 1.26 | 11.06 | 86.77 | -19.02 | 77.09 | 0.3296 | -844.0 | -717.3 | |
| 0.00 | 3.21 | 0.00 | 1.69 | 11.14 | 86.47 | -19.32 | 77.01 | 0.3346 | -942.0 | -786.8 | |
| 0.00 | 2.67 | 0.00 | 1.41 | 12.98 | 86.30 | -19.49 | 71.78 | 0.3437 | -784.0 | -609.0 | |
| 0.00 | 1.43 | 0.00 | 0.75 | 12.22 | 86.17 | -19.63 | 74.05 | 0.3429 | -1024.0 | -844.8 | |
| 0.36 | -29.00 | 0.19 | -29.00 | 16.59 | 85.70 | -20.09 | 62.73 | 0.3720 | 695.0 | 999999 | |
| 1.34 | 3.83 | 0.71 | 2.03 | 13.11 | 85.83 | -19.96 | 71.75 | 0.3516 | -1084.0 | -894.5 | |
| 1.87 | -29.00 | 0.99 | -29.00 | 14.01 | 85.42 | -20.37 | 69.62 | 0.3618 | -1123.5 | 999999 | |
| 1.43 | -29.00 | 0.76 | -29.00 | 14.16 | 85.31 | -20.48 | 69.32 | 0.3642 | -1202.7 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 12.52 | 85.45 | -20.34 | 73.63 | 0.3552 | -887.0 | -656.7 | |
| 8.73 | -29.00 | 4.64 | -29.00 | 13.64 | 85.32 | -20.47 | 70.68 | 0.3617 | -1236.6 | 999999 | |
| 7.22 | -29.00 | 3.85 | -29.00 | 15.22 | 85.14 | -20.65 | 66.70 | 0.3721 | -1216.7 | 999999 | |
| 0.62 | -29.00 | 0.33 | -29.00 | 13.39 | 85.25 | -20.55 | 71.39 | 0.3618 | -870.1 | 999999 | |
| 17.28 | -29.00 | 9.21 | -29.00 | 14.63 | 85.06 | -20.73 | 68.26 | 0.3703 | -1222.2 | 999999 | |
| 1.96 | -29.00 | 1.05 | -29.00 | 16.21 | 84.77 | -21.03 | 64.55 | 0.3832 | -931.5 | 999999 | |
| 9.26 | -29.00 | 4.95 | -29.00 | 15.45 | 84.82 | -20.98 | 66.40 | 0.3782 | -1164.2 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.76 | 12.78 | 85.07 | -20.73 | 73.17 | 0.3621 | -1039.0 | -770.5 | |
| 1.16 | 1.87 | 0.61 | 0.99 | 12.35 | 85.07 | -20.72 | 74.32 | 0.3606 | -1081.3 | -909.0 | |
| 0.00 | 0.89 | 0.00 | 0.48 | 16.63 | 84.65 | -21.14 | 63.63 | 0.3874 | -978.0 | -786.8 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 12.53 | 84.99 | -20.80 | 73.88 | 0.3625 | -999.0 | -891.6 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 10.69 | 85.13 | -20.66 | 78.89 | 0.3549 | -720.0 | -588.7 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 14.29 | 84.83 | -20.96 | 69.34 | 0.3721 | -821.0 | -599.5 | |
| 0.71 | 22.18 | 0.38 | 11.81 | 12.40 | 84.80 | -20.99 | 74.34 | 0.3649 | -1037.9 | -738.2 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 16.50 | 84.40 | -21.40 | 64.19 | 0.3902 | -837.0 | -703.7 | |
| 0.00 | 1.96 | 0.00 | 1.04 | 11.25 | 84.79 | -21.00 | 77.48 | 0.3616 | -828.0 | -747.3 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 16.61 | 84.18 | -21.61 | 64.11 | 0.3940 | -887.0 | -729.5 | |
| 0.00 | 1.43 | 0.00 | 0.77 | 16.09 | 84.17 | -21.62 | 65.36 | 0.3911 | -791.0 | -738.4 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 12.14 | 84.43 | -21.37 | 75.23 | 0.3700 | -552.0 | -473.9 | |
| 0.00 | 2.94 | 0.00 | 1.57 | 13.89 | 84.10 | -21.69 | 70.87 | 0.3814 | -800.0 | -469.6 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 11.49 | 84.15 | -21.65 | 77.09 | 0.3725 | -641.0 | -464.7 | |
| 0.00 | 1.43 | 0.00 | 0.77 | 15.76 | 83.67 | -22.13 | 66.57 | 0.3967 | -655.0 | -532.2 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 17.93 | 83.26 | -22.53 | 61.92 | 0.4149 | 749.0 | 647.4 | |
| 0.00 | 0.71 | 0.00 | 0.38 | 12.84 | 83.73 | -22.06 | 73.78 | 0.3830 | -524.0 | -465.8 | |
| 0.00 | 2.32 | 0.00 | 1.25 | 15.68 | 83.20 | -22.59 | 67.12 | 0.4031 | -792.0 | -613.3 | |
| 0.00 | 1.16 | 0.00 | 0.63 | 11.59 | 81.15 | -24.64 | 77.96 | 0.4193 | -698.0 | -559.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
