SDO HMI 2014-09-09 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.61 | 67.89 | 15.51 | 44.59 | 9.68 | 147.22 | 41.42 | 276.43 | 0.6583 | 106.4 | -113.3 | |
|
previous
or next observation for the same group /

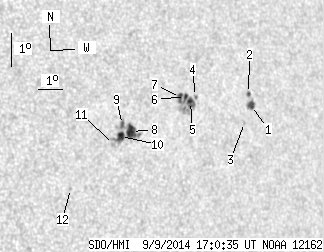

back to the solar disc SDO HMI 2014-09-09 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.39 | 5.79 | 2.35 | 4.02 | 9.69 | 150.74 | 44.95 | 276.47 | 0.7032 | -692.7 | -475.7 | |
| 0.89 | 1.87 | 0.62 | 1.30 | 10.06 | 150.68 | 44.89 | 277.00 | 0.7024 | -630.5 | -532.5 | |
| 0.00 | 1.16 | 0.00 | 0.80 | 9.20 | 150.36 | 44.57 | 275.77 | 0.6985 | -673.0 | -530.8 | |
| 0.00 | 1.60 | 0.00 | 1.07 | 10.16 | 148.44 | 42.64 | 277.16 | 0.6744 | -512.0 | -401.3 | |
| 2.41 | 26.64 | 1.60 | 17.70 | 10.03 | 148.21 | 42.41 | 276.96 | 0.6714 | -818.8 | -658.4 | |
| 1.60 | -5.00 | 1.07 | -5.00 | 10.20 | 148.03 | 42.23 | 277.22 | 0.6691 | -703.4 | 999999 | |
| 2.67 | -5.00 | 1.77 | -5.00 | 10.19 | 147.82 | 42.02 | 277.20 | 0.6664 | -858.7 | 999999 | |
| 8.20 | 14.08 | 5.26 | 9.04 | 9.33 | 145.69 | 39.90 | 275.89 | 0.6386 | 756.9 | 528.4 | |
| 0.00 | 4.10 | 0.00 | 2.62 | 9.57 | 145.37 | 39.57 | 276.27 | 0.6343 | 817.0 | 665.0 | |
| 4.45 | 9.53 | 2.84 | 6.08 | 9.21 | 145.24 | 39.44 | 275.71 | 0.6325 | 936.2 | 765.6 | |
| 0.00 | 1.96 | 0.00 | 1.24 | 8.99 | 144.93 | 39.14 | 275.36 | 0.6284 | 788.0 | 651.7 | |
| 0.00 | 1.16 | 0.00 | 0.72 | 7.80 | 143.12 | 37.32 | 273.36 | 0.6039 | 724.0 | 585.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
