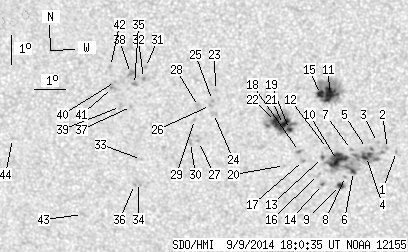

SDO HMI 2014-09-09 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.16 | 242.47 | 34.77 | 135.56 | -20.21 | 107.23 | 1.98 | 183.96 | 0.4655 | 496.0 | 267.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-09 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.50 | -20.92 | 110.63 | 5.39 | 190.54 | 0.4815 | 846.0 | 757.3 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -20.81 | 110.34 | 5.10 | 190.02 | 0.4791 | 687.0 | 577.4 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -20.60 | 110.01 | 4.76 | 189.46 | 0.4751 | 762.0 | 681.9 | |
| 4.90 | 73.49 | 2.77 | 41.53 | -21.07 | 109.66 | 4.42 | 188.63 | 0.4814 | 835.2 | 137.5 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -20.80 | 109.65 | 4.41 | 188.71 | 0.4773 | 817.0 | 730.9 | |
| 1.78 | -4.00 | 1.01 | -4.00 | -21.59 | 109.25 | 4.01 | 187.69 | 0.4883 | -754.2 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.80 | -20.83 | 109.17 | 3.93 | 187.75 | 0.4766 | 977.0 | 828.8 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -21.76 | 109.00 | 3.76 | 187.16 | 0.4904 | -553.0 | -555.7 | |
| 2.76 | 4.63 | 1.57 | 2.64 | -22.07 | 108.84 | 3.60 | 186.79 | 0.4948 | -686.3 | -412.5 | |
| 16.30 | -4.00 | 9.20 | -4.00 | -21.20 | 108.73 | 3.48 | 186.79 | 0.4815 | 818.0 | 999999 | |
| 13.72 | 50.60 | 7.59 | 27.95 | -18.95 | 108.42 | 3.18 | 186.78 | 0.4463 | 1121.8 | 570.3 | |
| 0.00 | 1.60 | 0.00 | 0.90 | -20.79 | 108.39 | 3.15 | 186.24 | 0.4746 | 855.0 | 640.4 | |
| 0.62 | 2.32 | 0.35 | 1.31 | -21.09 | 108.24 | 3.00 | 185.87 | 0.4790 | 893.6 | 759.4 | |
| 0.53 | 1.25 | 0.30 | 0.71 | -22.03 | 108.25 | 3.01 | 185.70 | 0.4932 | 747.7 | 608.1 | |
| 4.45 | -11.00 | 2.46 | -11.00 | -18.95 | 108.13 | 2.89 | 186.18 | 0.4458 | 1090.2 | 999999 | |
| 0.00 | 1.78 | 0.00 | 1.01 | -21.68 | 108.12 | 2.88 | 185.51 | 0.4877 | 479.0 | 465.5 | |
| 0.00 | 1.78 | 0.00 | 1.00 | -21.19 | 107.62 | 2.38 | 184.65 | 0.4796 | 786.0 | 619.5 | |
| 0.00 | 2.76 | 0.00 | 1.55 | -20.88 | 107.49 | 2.25 | 184.45 | 0.4747 | 884.0 | 689.9 | |
| 2.14 | 50.33 | 1.19 | 28.02 | -20.13 | 107.16 | 1.92 | 183.91 | 0.4627 | 904.2 | 670.3 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -21.36 | 107.01 | 1.77 | 183.44 | 0.4816 | 591.0 | 485.5 | |
| 7.30 | -19.00 | 4.07 | -19.00 | -19.96 | 106.96 | 1.72 | 183.53 | 0.4599 | 1124.3 | 999999 | |
| 7.66 | -19.00 | 4.26 | -19.00 | -19.86 | 106.70 | 1.46 | 183.02 | 0.4581 | 1184.9 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -18.80 | 104.78 | -0.46 | 179.01 | 0.4410 | 828.0 | 629.1 | |
| 0.00 | 4.01 | 0.00 | 2.23 | -19.58 | 104.72 | -0.52 | 178.90 | 0.4532 | 799.0 | 610.6 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -19.14 | 104.69 | -0.55 | 178.82 | 0.4464 | 967.0 | 836.8 | |
| 0.00 | 1.51 | 0.00 | 0.84 | -19.31 | 104.62 | -0.62 | 178.69 | 0.4490 | 928.0 | 797.1 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -20.53 | 104.23 | -1.01 | 177.97 | 0.4682 | 758.0 | 610.8 | |
| 0.00 | 3.74 | 0.00 | 2.07 | -19.34 | 104.24 | -1.00 | 177.88 | 0.4497 | 487.0 | 515.1 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -19.78 | 104.10 | -1.14 | 177.65 | 0.4567 | 813.0 | 766.8 | |
| 0.00 | 2.49 | 0.00 | 1.40 | -20.57 | 103.97 | -1.27 | 177.45 | 0.4689 | 844.0 | 706.0 | |
| 0.00 | 1.51 | 0.00 | 0.83 | -18.04 | 102.56 | -2.68 | 174.06 | 0.4311 | -798.0 | -683.9 | |
| 0.00 | 1.51 | 0.00 | 0.83 | -18.41 | 102.49 | -2.75 | 174.00 | 0.4370 | -867.0 | -712.5 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -21.16 | 102.38 | -2.86 | 174.40 | 0.4797 | -572.0 | -361.7 | |
| 0.00 | 2.58 | 0.00 | 1.47 | -21.95 | 102.26 | -2.98 | 174.36 | 0.4920 | -719.0 | -617.9 | |
| 0.00 | 2.58 | 0.00 | 1.42 | -18.61 | 102.20 | -3.04 | 173.43 | 0.4406 | -808.0 | -696.1 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -22.02 | 102.13 | -3.11 | 174.12 | 0.4932 | -628.0 | -521.0 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -19.35 | 102.09 | -3.15 | 173.39 | 0.4524 | -751.0 | -588.6 | |
| 0.00 | 3.92 | 0.00 | 2.15 | -18.24 | 102.08 | -3.16 | 173.06 | 0.4351 | -957.0 | -807.0 | |
| 0.00 | 2.67 | 0.00 | 1.48 | -19.35 | 101.74 | -3.50 | 172.66 | 0.4531 | -690.0 | -628.0 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -18.51 | 101.60 | -3.64 | 172.10 | 0.4403 | -815.0 | -664.1 | |
| 0.00 | 3.12 | 0.00 | 1.72 | -18.71 | 101.50 | -3.74 | 171.96 | 0.4437 | -969.0 | -844.9 | |
| 0.00 | 1.51 | 0.00 | 0.83 | -18.01 | 101.45 | -3.79 | 171.61 | 0.4328 | -796.0 | -649.8 | |
| 0.00 | 2.41 | 0.00 | 1.39 | -23.08 | 100.39 | -4.85 | 171.24 | 0.5125 | -843.0 | -650.1 | |
| 0.00 | 1.51 | 0.00 | 0.85 | -20.48 | 98.22 | -7.02 | 166.14 | 0.4802 | -811.0 | -572.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
