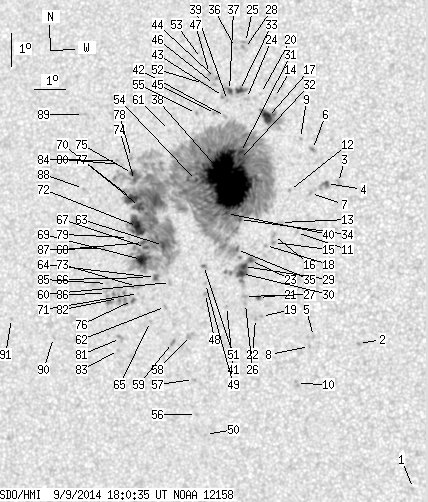

SDO HMI 2014-09-09 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 243.63 | 1478.78 | 128.05 | 778.26 | 15.64 | 87.30 | -17.94 | 62.79 | 0.3357 | 368.0 | 52.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-09 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 0.67 | 6.99 | 94.31 | -10.93 | 90.67 | 0.1890 | -220.0 | -376.0 | |
| 0.00 | 1.16 | 0.00 | 0.59 | 11.33 | 92.45 | -12.79 | 71.13 | 0.2304 | -1012.0 | -886.3 | |
| 0.00 | 2.76 | 0.00 | 1.42 | 16.20 | 91.54 | -13.70 | 55.05 | 0.2788 | -869.0 | -677.4 | |
| 1.16 | 7.22 | 0.60 | 3.73 | 16.15 | 91.15 | -14.09 | 55.87 | 0.2837 | 992.8 | 563.8 | |
| 0.00 | 1.60 | 0.00 | 0.82 | 11.50 | 91.02 | -14.22 | 72.07 | 0.2542 | -894.0 | -665.7 | |
| 0.00 | 2.58 | 0.00 | 1.34 | 17.18 | 90.62 | -14.62 | 53.82 | 0.3001 | 1117.0 | 902.2 | |
| 0.00 | 1.87 | 0.00 | 0.97 | 15.83 | 90.66 | -14.58 | 57.69 | 0.2879 | 281.0 | 323.1 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 11.19 | 90.91 | -14.33 | 73.35 | 0.2546 | -964.0 | -783.9 | |
| 0.00 | 1.16 | 0.00 | 0.60 | 17.50 | 90.20 | -15.04 | 53.64 | 0.3087 | -673.0 | -460.1 | |
| 0.00 | 1.78 | 0.00 | 0.91 | 10.06 | 90.55 | -14.69 | 77.98 | 0.2565 | -792.0 | -838.2 | |
| 0.00 | 1.87 | 0.00 | 0.97 | 14.63 | 90.29 | -14.95 | 62.01 | 0.2840 | -869.0 | -612.4 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 15.90 | 89.97 | -15.27 | 58.57 | 0.2982 | 824.0 | 713.2 | |
| 0.00 | 2.23 | 0.00 | 1.15 | 14.92 | 89.75 | -15.49 | 61.87 | 0.2939 | -944.0 | -686.1 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 18.74 | 89.23 | -16.01 | 52.03 | 0.3327 | 818.0 | 645.3 | |
| 0.00 | 2.05 | 0.00 | 1.06 | 14.31 | 89.57 | -15.67 | 64.04 | 0.2924 | -1120.0 | -718.4 | |
| 0.00 | 2.49 | 0.00 | 1.29 | 14.52 | 89.55 | -15.69 | 63.39 | 0.2941 | -967.0 | -780.5 | |
| 7.66 | 29.13 | 4.02 | 15.26 | 18.11 | 89.06 | -16.18 | 53.88 | 0.3293 | 1249.8 | 653.7 | |
| 0.00 | 1.43 | 0.00 | 0.74 | 14.21 | 89.32 | -15.93 | 64.67 | 0.2956 | 837.0 | 503.8 | |
| 0.00 | 1.16 | 0.00 | 0.60 | 12.05 | 89.33 | -15.91 | 71.74 | 0.2836 | -1039.0 | -844.8 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 18.84 | 88.76 | -16.48 | 52.52 | 0.3399 | -634.0 | -424.1 | |
| 0.89 | 2.05 | 0.46 | 1.06 | 12.62 | 89.20 | -16.04 | 69.94 | 0.2884 | -1129.8 | -905.7 | |
| 0.00 | 1.16 | 0.00 | 0.60 | 11.98 | 89.14 | -16.10 | 72.14 | 0.2863 | -871.0 | -685.9 | |
| 1.78 | 28.24 | 0.92 | 14.67 | 13.74 | 88.86 | -16.38 | 66.70 | 0.2996 | -669.1 | -693.9 | |
| 0.00 | 2.49 | 0.00 | 1.32 | 18.67 | 88.31 | -16.93 | 53.61 | 0.3442 | 686.0 | 544.6 | |
| 0.00 | 3.30 | 0.00 | 1.75 | 20.40 | 88.09 | -17.15 | 49.89 | 0.3630 | 702.0 | 613.1 | |
| 0.00 | 1.34 | 0.00 | 0.69 | 12.43 | 88.79 | -16.45 | 70.98 | 0.2938 | -984.0 | -763.2 | |
| 0.00 | 2.32 | 0.00 | 1.20 | 12.64 | 88.74 | -16.50 | 70.33 | 0.2956 | -1011.0 | -850.7 | |
| 0.00 | 2.32 | 0.00 | 1.23 | 20.21 | 88.07 | -17.17 | 50.33 | 0.3614 | 937.0 | 745.5 | |
| 3.83 | -23.00 | 1.99 | -23.00 | 13.55 | 88.65 | -16.59 | 67.53 | 0.3017 | -936.9 | 999999 | |
| 5.88 | -23.00 | 3.05 | -23.00 | 13.33 | 88.60 | -16.64 | 68.25 | 0.3013 | -1181.8 | 999999 | |
| 2.94 | 1265.82 | 1.54 | 666.58 | 17.01 | 88.27 | -16.97 | 57.93 | 0.3308 | 1057.8 | 96.4 | |
| 1.25 | -31.00 | 0.65 | -31.00 | 16.80 | 88.26 | -16.98 | 58.53 | 0.3293 | 1235.8 | 999999 | |
| 2.85 | 6.50 | 1.51 | 3.44 | 18.91 | 88.05 | -17.19 | 53.41 | 0.3497 | 1035.2 | 725.8 | |
| 1.43 | -31.00 | 0.74 | -31.00 | 14.97 | 88.41 | -16.83 | 63.48 | 0.3140 | 670.6 | 999999 | |
| 0.53 | -31.00 | 0.28 | -31.00 | 14.05 | 88.39 | -16.86 | 66.24 | 0.3087 | 872.2 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 20.23 | 87.77 | -17.47 | 50.74 | 0.3654 | 710.0 | 546.2 | |
| 1.69 | 5.08 | 0.90 | 2.69 | 18.90 | 87.72 | -17.52 | 53.92 | 0.3540 | 1044.4 | 744.7 | |
| 153.13 | -31.00 | 80.28 | -31.00 | 16.14 | 87.95 | -17.29 | 60.71 | 0.3287 | 1542.3 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 18.59 | 87.68 | -17.56 | 54.72 | 0.3518 | 992.0 | 775.4 | |
| 1.16 | -31.00 | 0.61 | -31.00 | 15.14 | 87.97 | -17.27 | 63.51 | 0.3215 | 901.5 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 12.32 | 88.18 | -17.06 | 71.88 | 0.3029 | -902.0 | -694.7 | |
| 0.00 | 1.78 | 0.00 | 0.94 | 18.10 | 87.67 | -17.57 | 55.96 | 0.3478 | 834.0 | 629.4 | |
| 0.00 | 2.23 | 0.00 | 1.18 | 18.71 | 87.54 | -17.70 | 54.64 | 0.3547 | 868.0 | 733.5 | |
| 0.00 | 1.96 | 0.00 | 1.04 | 19.25 | 87.21 | -18.03 | 53.80 | 0.3637 | 873.0 | 753.7 | |
| 0.00 | 2.32 | 0.00 | 1.23 | 18.18 | 87.32 | -17.92 | 56.23 | 0.3531 | 720.0 | 707.2 | |
| 0.00 | 1.51 | 0.00 | 0.80 | 19.07 | 87.19 | -18.05 | 54.26 | 0.3623 | 941.0 | 727.1 | |
| 0.00 | 1.69 | 0.00 | 0.90 | 19.40 | 86.99 | -18.25 | 53.76 | 0.3678 | 723.0 | 625.0 | |
| 0.00 | 1.78 | 0.00 | 0.93 | 12.68 | 87.48 | -17.76 | 71.32 | 0.3156 | -1174.0 | -984.0 | |
| 0.00 | 1.16 | 0.00 | 0.60 | 12.99 | 87.46 | -17.78 | 70.41 | 0.3173 | -826.0 | -620.8 | |
| 0.00 | 0.80 | 0.00 | 0.42 | 8.43 | 87.72 | -17.52 | 84.94 | 0.3002 | -731.0 | -621.7 | |
| 0.53 | 2.49 | 0.28 | 1.30 | 13.53 | 87.35 | -17.89 | 68.88 | 0.3216 | -968.7 | -773.3 | |
| 0.00 | 1.69 | 0.00 | 0.90 | 19.08 | 86.82 | -18.42 | 54.72 | 0.3673 | 632.0 | 496.3 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 19.85 | 86.67 | -18.58 | 53.16 | 0.3760 | 765.0 | 572.5 | |
| 1.43 | -31.00 | 0.75 | -31.00 | 16.11 | 86.90 | -18.34 | 62.08 | 0.3436 | 792.1 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 18.15 | 86.69 | -18.55 | 57.11 | 0.3615 | 712.0 | 639.0 | |
| 0.00 | 1.25 | 0.00 | 0.65 | 9.02 | 87.41 | -17.83 | 83.04 | 0.3060 | -888.0 | -568.2 | |
| 0.00 | 1.60 | 0.00 | 0.84 | 10.07 | 87.26 | -17.98 | 79.68 | 0.3104 | -846.0 | -735.4 | |
| 0.00 | 5.17 | 0.00 | 2.70 | 11.40 | 87.08 | -18.16 | 75.59 | 0.3169 | -786.0 | -760.9 | |
| 0.00 | 2.58 | 0.00 | 1.35 | 11.16 | 86.51 | -18.73 | 76.63 | 0.3252 | -1019.0 | -844.1 | |
| 0.00 | 2.32 | 0.00 | 1.22 | 12.97 | 86.31 | -18.93 | 71.39 | 0.3350 | -765.0 | -632.5 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 17.60 | 85.85 | -19.39 | 59.49 | 0.3690 | 492.0 | 288.1 | |
| 0.00 | 2.05 | 0.00 | 1.08 | 12.24 | 86.21 | -19.03 | 73.60 | 0.3337 | -958.0 | -762.8 | |
| 3.65 | -31.00 | 1.93 | -31.00 | 14.09 | 85.99 | -19.25 | 68.50 | 0.3451 | -770.4 | 999999 | |
| 1.43 | -31.00 | 0.75 | -31.00 | 13.11 | 85.81 | -19.43 | 71.39 | 0.3433 | -1072.9 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 11.77 | 85.75 | -19.49 | 75.26 | 0.3392 | -843.0 | -601.4 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 13.10 | 85.55 | -19.69 | 71.61 | 0.3474 | -898.0 | -663.5 | |
| 1.34 | -31.00 | 0.71 | -31.00 | 14.00 | 85.41 | -19.83 | 69.22 | 0.3537 | -1274.9 | 999999 | |
| 1.69 | -31.00 | 0.90 | -31.00 | 14.15 | 85.33 | -19.91 | 68.88 | 0.3556 | -1197.4 | 999999 | |
| 9.26 | -31.00 | 4.90 | -31.00 | 13.63 | 85.31 | -19.93 | 70.31 | 0.3535 | -1215.4 | 999999 | |
| 6.77 | -31.00 | 3.60 | -31.00 | 15.24 | 85.09 | -20.15 | 66.21 | 0.3648 | -1182.2 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 12.60 | 85.29 | -19.95 | 73.17 | 0.3493 | -838.0 | -643.1 | |
| 18.26 | -31.00 | 9.70 | -31.00 | 14.63 | 85.08 | -20.16 | 67.81 | 0.3617 | -1239.2 | 999999 | |
| 0.00 | 4.01 | 0.00 | 2.12 | 12.81 | 85.21 | -20.03 | 72.65 | 0.3514 | -817.0 | -851.9 | |
| 0.89 | -31.00 | 0.48 | -31.00 | 16.02 | 84.84 | -20.40 | 64.44 | 0.3729 | -456.0 | 999999 | |
| 2.14 | -31.00 | 1.14 | -31.00 | 16.24 | 84.75 | -20.49 | 64.00 | 0.3755 | -937.1 | 999999 | |
| 0.80 | 3.39 | 0.42 | 1.79 | 12.38 | 85.11 | -20.13 | 73.90 | 0.3513 | -1124.9 | -857.5 | |
| 9.26 | -31.00 | 4.94 | -31.00 | 15.47 | 84.80 | -20.44 | 65.87 | 0.3704 | -1202.5 | 999999 | |
| 0.00 | 2.14 | 0.00 | 1.14 | 16.72 | 84.67 | -20.57 | 62.88 | 0.3797 | -760.0 | -665.2 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 14.28 | 84.82 | -20.42 | 68.94 | 0.3639 | -766.0 | -547.2 | |
| 0.00 | 1.43 | 0.00 | 0.76 | 16.50 | 84.39 | -20.85 | 63.70 | 0.3823 | -851.0 | -664.2 | |
| 0.00 | 3.39 | 0.00 | 1.79 | 11.22 | 84.81 | -20.43 | 77.33 | 0.3525 | -727.0 | -705.9 | |
| 0.00 | 18.80 | 0.00 | 9.97 | 12.42 | 84.65 | -20.59 | 74.07 | 0.3588 | -828.0 | -770.8 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 10.85 | 84.77 | -20.47 | 78.37 | 0.3522 | -691.0 | -552.1 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 16.61 | 84.21 | -21.03 | 63.60 | 0.3856 | -960.0 | -764.2 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 12.86 | 84.25 | -20.99 | 73.12 | 0.3666 | -630.0 | -472.9 | |
| 0.00 | 4.28 | 0.00 | 2.27 | 12.56 | 84.24 | -21.00 | 73.94 | 0.3656 | -495.0 | -518.0 | |
| 0.00 | 1.51 | 0.00 | 0.81 | 13.92 | 84.05 | -21.19 | 70.47 | 0.3738 | -839.0 | -640.0 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 15.71 | 83.16 | -22.08 | 66.67 | 0.3958 | -746.0 | -639.4 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 17.97 | 82.88 | -22.36 | 61.68 | 0.4128 | 670.0 | 479.5 | |
| 0.00 | 1.51 | 0.00 | 0.81 | 11.15 | 82.59 | -22.65 | 78.40 | 0.3873 | -757.0 | -609.0 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 11.65 | 81.14 | -24.10 | 77.64 | 0.4111 | -778.0 | -614.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
