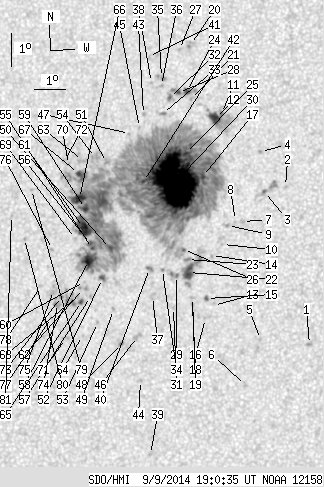

SDO HMI 2014-09-09 19:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 236.77 | 1462.39 | 124.11 | 767.35 | 15.68 | 87.30 | -17.38 | 62.05 | 0.3278 | 426.2 | 60.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-09 19:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.41 | 0.00 | 1.22 | 11.32 | 92.56 | -12.13 | 70.30 | 0.2198 | -1031.0 | -814.6 | |
| 0.00 | 1.16 | 0.00 | 0.60 | 16.10 | 91.54 | -13.15 | 54.31 | 0.2703 | -892.0 | -746.5 | |
| 0.53 | 8.28 | 0.28 | 4.27 | 15.93 | 90.87 | -13.81 | 56.09 | 0.2779 | 678.8 | 665.1 | |
| 0.00 | 1.16 | 0.00 | 0.60 | 17.14 | 90.66 | -14.03 | 52.87 | 0.2919 | 1061.0 | 935.2 | |
| 0.00 | 1.16 | 0.00 | 0.59 | 11.43 | 91.01 | -13.68 | 71.76 | 0.2452 | -868.0 | -686.0 | |
| 0.00 | 2.05 | 0.00 | 1.05 | 10.03 | 90.60 | -14.09 | 77.72 | 0.2464 | -934.0 | -782.7 | |
| 0.00 | 2.49 | 0.00 | 1.29 | 14.99 | 90.23 | -14.46 | 60.12 | 0.2794 | -816.0 | -659.1 | |
| 0.00 | 0.53 | 0.00 | 0.28 | 15.01 | 90.00 | -14.69 | 60.40 | 0.2829 | -561.0 | -544.8 | |
| 0.00 | 1.60 | 0.00 | 0.83 | 14.85 | 89.75 | -14.93 | 61.28 | 0.2853 | -1027.0 | -742.9 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 14.27 | 89.63 | -15.06 | 63.33 | 0.2830 | -765.0 | -549.3 | |
| 0.71 | 35.45 | 0.37 | 18.52 | 18.27 | 89.29 | -15.40 | 52.22 | 0.3205 | 950.6 | 517.3 | |
| 7.93 | -11.00 | 4.15 | -11.00 | 18.11 | 89.10 | -15.59 | 52.94 | 0.3214 | 1279.8 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.37 | 12.41 | 89.46 | -15.23 | 69.81 | 0.2745 | -240.0 | -203.8 | |
| 0.00 | 1.25 | 0.00 | 0.64 | 13.93 | 89.30 | -15.39 | 64.89 | 0.2857 | -633.0 | -546.0 | |
| 0.80 | 2.23 | 0.41 | 1.15 | 12.62 | 89.22 | -15.47 | 69.36 | 0.2793 | -1120.8 | -872.6 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 12.01 | 89.23 | -15.46 | 71.45 | 0.2763 | -573.0 | -503.3 | |
| 2.67 | 1216.24 | 1.39 | 638.47 | 16.32 | 88.83 | -15.86 | 58.25 | 0.3098 | 1267.6 | 107.1 | |
| 0.00 | 1.43 | 0.00 | 0.74 | 12.42 | 88.78 | -15.90 | 70.48 | 0.2852 | -988.0 | -768.4 | |
| 0.00 | 1.60 | 0.00 | 0.83 | 12.63 | 88.77 | -15.92 | 69.78 | 0.2864 | -993.0 | -868.1 | |
| 0.00 | 3.74 | 0.00 | 1.98 | 20.36 | 88.04 | -16.64 | 49.19 | 0.3563 | 754.0 | 761.5 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 18.67 | 88.22 | -16.47 | 52.93 | 0.3380 | 904.0 | 664.4 | |
| 9.09 | 28.95 | 4.71 | 14.99 | 13.39 | 88.59 | -16.09 | 67.49 | 0.2932 | -1092.1 | -568.6 | |
| 0.00 | 3.03 | 0.00 | 1.57 | 13.78 | 88.53 | -16.15 | 66.30 | 0.2964 | 725.0 | 410.5 | |
| 2.41 | 5.97 | 1.27 | 3.14 | 18.91 | 88.06 | -16.62 | 52.58 | 0.3423 | 1074.8 | 789.0 | |
| 2.94 | -17.00 | 1.54 | -17.00 | 17.01 | 88.21 | -16.47 | 57.25 | 0.3239 | 1125.8 | 999999 | |
| 0.53 | 9.26 | 0.28 | 4.81 | 14.08 | 88.38 | -16.30 | 65.54 | 0.3005 | 834.5 | 314.7 | |
| 0.00 | 1.34 | 0.00 | 0.71 | 20.20 | 87.69 | -16.99 | 50.12 | 0.3590 | 766.0 | 609.9 | |
| 1.43 | 4.99 | 0.75 | 2.63 | 18.87 | 87.80 | -16.89 | 53.07 | 0.3453 | 1075.1 | 748.8 | |
| 0.53 | 8.02 | 0.28 | 4.16 | 13.28 | 88.21 | -16.47 | 68.24 | 0.2985 | -985.3 | -638.2 | |
| 151.43 | -17.00 | 79.17 | -17.00 | 16.14 | 87.96 | -16.73 | 59.99 | 0.3207 | 1607.7 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.60 | 12.31 | 88.18 | -16.51 | 71.42 | 0.2942 | -957.0 | -745.2 | |
| 0.71 | 4.63 | 0.38 | 2.45 | 18.71 | 87.52 | -17.17 | 53.89 | 0.3476 | 1026.2 | 829.4 | |
| 0.00 | 2.67 | 0.00 | 1.41 | 18.21 | 87.34 | -17.35 | 55.39 | 0.3457 | 939.0 | 710.8 | |
| 0.00 | 1.43 | 0.00 | 0.74 | 13.45 | 87.75 | -16.94 | 68.20 | 0.3066 | -828.0 | -624.2 | |
| 0.00 | 5.17 | 0.00 | 2.74 | 19.31 | 87.19 | -17.50 | 52.92 | 0.3573 | 822.0 | 720.2 | |
| 0.00 | 1.51 | 0.00 | 0.80 | 19.07 | 87.21 | -17.47 | 53.47 | 0.3547 | 1001.0 | 794.3 | |
| 0.00 | 3.74 | 0.00 | 1.95 | 12.62 | 87.48 | -17.21 | 71.05 | 0.3066 | -838.0 | -786.3 | |
| 0.00 | 1.34 | 0.00 | 0.71 | 19.15 | 86.87 | -17.82 | 53.76 | 0.3599 | 672.0 | 483.0 | |
| 0.00 | 1.16 | 0.00 | 0.60 | 7.85 | 87.68 | -17.01 | 86.86 | 0.2915 | -647.0 | -504.6 | |
| 0.00 | 3.21 | 0.00 | 1.67 | 13.47 | 87.32 | -17.36 | 68.58 | 0.3131 | -1009.0 | -847.8 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 19.94 | 86.68 | -18.01 | 52.19 | 0.3695 | 606.0 | 510.5 | |
| 1.25 | -17.00 | 0.66 | -17.00 | 16.10 | 86.91 | -17.78 | 61.43 | 0.3355 | 804.1 | 999999 | |
| 0.00 | 1.69 | 0.00 | 0.90 | 18.15 | 86.71 | -17.98 | 56.38 | 0.3537 | 795.0 | 660.0 | |
| 0.00 | 1.16 | 0.00 | 0.60 | 10.07 | 87.25 | -17.44 | 79.46 | 0.3014 | -955.0 | -770.3 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 17.75 | 86.62 | -18.07 | 57.51 | 0.3518 | 702.0 | 479.6 | |
| 0.00 | 5.26 | 0.00 | 2.74 | 11.39 | 87.08 | -17.61 | 75.25 | 0.3080 | -877.0 | -751.4 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 17.55 | 86.30 | -18.38 | 58.40 | 0.3546 | 563.0 | 354.7 | |
| 0.45 | 1.60 | 0.23 | 0.84 | 11.16 | 86.57 | -18.11 | 76.29 | 0.3153 | -1031.8 | -886.8 | |
| 0.00 | 1.60 | 0.00 | 0.84 | 12.18 | 86.25 | -18.44 | 73.38 | 0.3241 | -959.0 | -744.0 | |
| 2.94 | -17.00 | 1.55 | -17.00 | 14.03 | 86.01 | -18.68 | 68.18 | 0.3362 | -846.5 | 999999 | |
| 0.00 | 3.74 | 0.00 | 1.98 | 16.64 | 85.63 | -19.06 | 61.51 | 0.3575 | 769.0 | 360.7 | |
| 1.69 | 4.72 | 0.89 | 2.48 | 13.11 | 85.82 | -18.87 | 70.97 | 0.3347 | -1047.6 | -709.2 | |
| 0.00 | 1.25 | 0.00 | 0.65 | 11.77 | 85.75 | -18.93 | 74.94 | 0.3304 | -888.0 | -648.6 | |
| 0.00 | 8.64 | 0.00 | 4.59 | 16.78 | 85.25 | -19.44 | 61.58 | 0.3638 | -108.0 | 4.4 | |
| 1.07 | -17.00 | 0.56 | -17.00 | 14.00 | 85.42 | -19.27 | 68.76 | 0.3451 | -1280.2 | 999999 | |
| 1.78 | -17.00 | 0.94 | -17.00 | 14.15 | 85.34 | -19.35 | 68.42 | 0.3470 | -1209.3 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 12.55 | 85.47 | -19.22 | 72.85 | 0.3378 | -1026.0 | -814.1 | |
| 8.37 | -17.00 | 4.42 | -17.00 | 13.63 | 85.32 | -19.37 | 69.87 | 0.3448 | -1225.4 | 999999 | |
| 3.92 | -17.00 | 2.08 | -17.00 | 15.21 | 85.07 | -19.61 | 65.81 | 0.3566 | -1259.4 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.42 | 12.99 | 85.24 | -19.45 | 71.74 | 0.3432 | -697.0 | -584.1 | |
| 19.15 | -17.00 | 10.14 | -17.00 | 14.63 | 85.06 | -19.63 | 67.36 | 0.3536 | -1222.8 | 999999 | |
| 0.00 | 3.30 | 0.00 | 1.74 | 12.78 | 85.22 | -19.47 | 72.35 | 0.3426 | -856.0 | -888.8 | |
| 0.00 | 4.81 | 0.00 | 2.56 | 16.67 | 84.83 | -19.86 | 62.31 | 0.3692 | -201.0 | -322.7 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 11.36 | 85.29 | -19.39 | 76.42 | 0.3364 | -794.0 | -539.8 | |
| 1.34 | 13.63 | 0.70 | 7.19 | 12.38 | 85.19 | -19.50 | 73.51 | 0.3416 | -1124.1 | -822.8 | |
| 10.87 | -17.00 | 5.77 | -17.00 | 15.50 | 84.85 | -19.84 | 65.25 | 0.3617 | -1204.0 | 999999 | |
| 2.23 | -17.00 | 1.19 | -17.00 | 16.27 | 84.73 | -19.95 | 63.41 | 0.3679 | -995.2 | 999999 | |
| 0.00 | 1.69 | 0.00 | 0.89 | 12.53 | 85.04 | -19.64 | 73.18 | 0.3443 | -1022.0 | -784.5 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 14.28 | 84.83 | -19.86 | 68.49 | 0.3554 | -764.0 | -579.3 | |
| 0.00 | 1.69 | 0.00 | 0.90 | 16.53 | 84.37 | -20.32 | 63.12 | 0.3748 | -851.0 | -709.0 | |
| 0.00 | 2.85 | 0.00 | 1.50 | 11.24 | 84.75 | -19.94 | 77.03 | 0.3448 | -753.0 | -703.2 | |
| 0.00 | 2.41 | 0.00 | 1.29 | 16.64 | 84.22 | -20.46 | 62.98 | 0.3776 | -613.0 | -412.9 | |
| 0.00 | 2.32 | 0.00 | 1.23 | 12.51 | 84.52 | -20.17 | 73.58 | 0.3524 | -790.0 | -700.7 | |
| 0.00 | 5.61 | 0.00 | 2.97 | 12.29 | 84.40 | -20.28 | 74.25 | 0.3535 | -724.0 | -634.0 | |
| 0.00 | 5.70 | 0.00 | 3.02 | 12.68 | 84.24 | -20.45 | 73.28 | 0.3574 | -544.0 | -528.1 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 13.92 | 84.10 | -20.59 | 70.04 | 0.3647 | -872.0 | -632.8 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 11.86 | 84.24 | -20.45 | 75.54 | 0.3546 | -536.0 | -480.5 | |
| 0.00 | 2.05 | 0.00 | 1.09 | 12.78 | 83.80 | -20.89 | 73.27 | 0.3646 | -502.0 | -387.7 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 15.71 | 83.22 | -21.47 | 66.18 | 0.3868 | -791.0 | -605.5 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 14.21 | 83.14 | -21.55 | 69.98 | 0.3806 | -644.0 | -512.5 | |
| 0.00 | 0.62 | 0.00 | 0.34 | 14.89 | 82.63 | -22.06 | 68.64 | 0.3913 | -712.0 | -472.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
