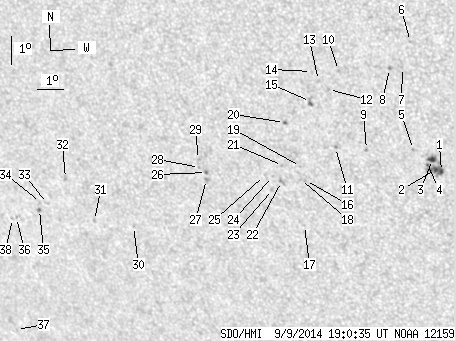

SDO HMI 2014-09-09 19:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.32 | 63.89 | 4.52 | 40.61 | -21.27 | 78.39 | -26.30 | 138.90 | 0.6238 | 180.6 | 200.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-09 19:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.16 | 20.31 | 0.70 | 12.30 | -21.25 | 83.84 | -20.85 | 144.75 | 0.5769 | 842.5 | 679.3 | |
| 1.43 | -1.00 | 0.86 | -1.00 | -21.19 | 83.64 | -21.05 | 144.44 | 0.5779 | 922.6 | 999999 | |
| 2.94 | -1.00 | 1.78 | -1.00 | -20.85 | 83.59 | -21.10 | 144.00 | 0.5745 | 975.2 | 999999 | |
| 0.36 | -1.00 | 0.22 | -1.00 | -21.03 | 83.39 | -21.30 | 143.94 | 0.5782 | 776.0 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.70 | -20.54 | 82.98 | -21.71 | 142.88 | 0.5763 | 534.0 | 434.8 | |
| 0.00 | 0.62 | 0.00 | 0.36 | -16.90 | 83.37 | -21.32 | 139.04 | 0.5328 | 555.0 | 433.0 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -17.78 | 82.98 | -21.70 | 139.65 | 0.5460 | 803.0 | 600.9 | |
| 0.00 | 1.69 | 0.00 | 1.00 | -17.83 | 82.53 | -22.16 | 139.14 | 0.5509 | 856.0 | 659.4 | |
| 0.00 | 1.25 | 0.00 | 0.76 | -20.62 | 81.32 | -23.37 | 140.96 | 0.5916 | 802.0 | 699.5 | |
| 0.00 | 0.89 | 0.00 | 0.54 | -17.99 | 80.75 | -23.94 | 137.16 | 0.5697 | -608.0 | -493.7 | |
| 0.00 | 1.34 | 0.00 | 0.83 | -20.61 | 80.23 | -24.46 | 139.68 | 0.6012 | 780.0 | 656.9 | |
| 0.00 | 0.89 | 0.00 | 0.54 | -18.65 | 80.30 | -24.39 | 137.45 | 0.5806 | -762.0 | -607.1 | |
| 0.00 | 1.43 | 0.00 | 0.87 | -18.36 | 80.00 | -24.69 | 136.74 | 0.5807 | -615.0 | -487.6 | |
| 0.00 | 0.89 | 0.00 | 0.54 | -18.08 | 79.79 | -24.89 | 136.15 | 0.5798 | -652.0 | -457.4 | |
| 0.00 | 4.10 | 0.00 | 2.51 | -19.09 | 79.60 | -25.09 | 137.18 | 0.5918 | -664.0 | -666.0 | |
| 0.00 | 1.25 | 0.00 | 0.79 | -21.81 | 78.93 | -25.76 | 139.60 | 0.6248 | 554.0 | 505.2 | |
| 0.00 | 0.71 | 0.00 | 0.46 | -23.39 | 78.57 | -26.12 | 140.94 | 0.6435 | 655.0 | 547.5 | |
| 0.00 | 0.71 | 0.00 | 0.45 | -21.79 | 78.75 | -25.93 | 139.39 | 0.6261 | 578.0 | 492.6 | |
| 0.00 | 0.71 | 0.00 | 0.45 | -21.34 | 78.84 | -25.85 | 138.98 | 0.6209 | 539.0 | 497.9 | |
| 0.36 | 1.25 | 0.22 | 0.78 | -19.86 | 78.54 | -26.15 | 136.94 | 0.6093 | -782.0 | -658.8 | |
| 0.00 | 1.16 | 0.00 | 0.73 | -21.34 | 78.19 | -26.50 | 138.29 | 0.6268 | 404.0 | 418.8 | |
| 0.00 | 3.12 | 0.00 | 1.99 | -21.90 | 78.04 | -26.65 | 138.76 | 0.6335 | 831.0 | 599.5 | |
| 0.00 | 2.05 | 0.00 | 1.32 | -22.20 | 77.65 | -27.04 | 138.69 | 0.6398 | 383.0 | 378.0 | |
| 0.00 | 0.71 | 0.00 | 0.46 | -21.75 | 77.75 | -26.94 | 138.28 | 0.6346 | 761.0 | 632.8 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -21.73 | 77.46 | -27.23 | 137.96 | 0.6371 | 569.0 | 442.8 | |
| 0.45 | 1.34 | 0.29 | 0.88 | -21.76 | 75.30 | -29.38 | 135.88 | 0.6568 | 753.6 | 656.5 | |
| 0.00 | 2.23 | 0.00 | 1.46 | -22.01 | 75.25 | -29.44 | 136.10 | 0.6595 | 720.0 | 577.8 | |
| 0.00 | 0.98 | 0.00 | 0.64 | -21.60 | 75.08 | -29.61 | 135.49 | 0.6575 | 333.0 | 342.8 | |
| 0.00 | 1.43 | 0.00 | 0.93 | -21.33 | 75.10 | -29.58 | 135.20 | 0.6549 | 717.0 | 566.1 | |
| 0.00 | 0.80 | 0.00 | 0.56 | -23.86 | 71.97 | -32.72 | 135.24 | 0.7043 | -686.0 | -560.0 | |
| 0.00 | 1.34 | 0.00 | 0.95 | -23.77 | 70.45 | -34.24 | 133.89 | 0.7167 | -558.0 | -453.2 | |
| 0.00 | 2.14 | 0.00 | 1.50 | -22.37 | 69.71 | -34.98 | 131.75 | 0.7128 | -660.0 | -533.5 | |
| 0.00 | 1.60 | 0.00 | 1.16 | -23.31 | 68.70 | -35.99 | 132.02 | 0.7288 | -696.0 | -570.5 | |
| 0.00 | 0.62 | 0.00 | 0.45 | -23.30 | 68.42 | -36.27 | 131.80 | 0.7312 | -213.0 | -348.1 | |
| 0.62 | 1.60 | 0.45 | 1.17 | -23.55 | 68.29 | -36.39 | 131.98 | 0.7340 | -668.9 | -556.8 | |
| 0.00 | 0.45 | 0.00 | 0.33 | -23.92 | 67.22 | -37.47 | 131.60 | 0.7459 | -502.0 | -479.0 | |
| 0.00 | 0.89 | 0.00 | 0.71 | -28.05 | 65.62 | -39.07 | 134.82 | 0.7866 | -424.0 | -341.7 | |
| 0.00 | 0.98 | 0.00 | 0.73 | -23.97 | 67.04 | -37.65 | 131.52 | 0.7479 | -310.0 | -277.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
