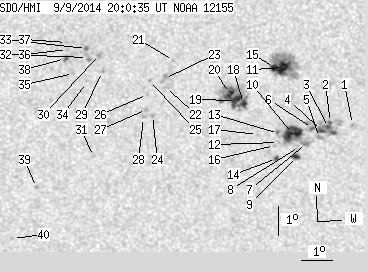

SDO HMI 2014-09-09 20:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.95 | 218.61 | 35.80 | 122.24 | -20.08 | 107.48 | 3.35 | 186.74 | 0.4653 | 501.4 | 343.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-09 20:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.25 | 0.00 | 0.71 | -20.89 | 110.73 | 6.59 | 192.83 | 0.4849 | 815.0 | 675.2 | |
| 0.89 | 23.16 | 0.50 | 13.09 | -20.81 | 110.01 | 5.87 | 191.51 | 0.4814 | 902.6 | 472.5 | |
| 1.78 | -2.00 | 1.01 | -2.00 | -20.98 | 109.95 | 5.81 | 191.32 | 0.4837 | 887.8 | 999999 | |
| 2.58 | -2.00 | 1.46 | -2.00 | -21.08 | 109.73 | 5.59 | 190.86 | 0.4846 | 737.3 | 999999 | |
| 0.00 | 3.83 | 0.00 | 2.17 | -21.32 | 109.67 | 5.53 | 190.65 | 0.4880 | -164.0 | -139.7 | |
| 0.80 | 6.86 | 0.45 | 3.87 | -21.00 | 109.43 | 5.30 | 190.32 | 0.4827 | 879.4 | 590.3 | |
| 0.00 | 4.99 | 0.00 | 2.83 | -21.52 | 109.25 | 5.12 | 189.79 | 0.4899 | -785.0 | -545.0 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -21.62 | 109.03 | 4.89 | 189.33 | 0.4909 | -393.0 | -429.9 | |
| 2.85 | 4.54 | 1.62 | 2.59 | -21.96 | 108.94 | 4.81 | 189.05 | 0.4958 | -638.8 | -440.1 | |
| 17.46 | 22.89 | 9.87 | 12.94 | -21.17 | 108.79 | 4.65 | 189.04 | 0.4835 | 798.7 | 264.2 | |
| 12.74 | 57.45 | 7.05 | 31.79 | -18.92 | 108.43 | 4.30 | 189.14 | 0.4483 | 1140.3 | 493.9 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -21.47 | 108.34 | 4.21 | 188.09 | 0.4871 | 634.0 | 476.0 | |
| 0.00 | 1.78 | 0.00 | 1.01 | -21.16 | 108.33 | 4.20 | 188.17 | 0.4824 | 822.0 | 791.9 | |
| 1.07 | 2.41 | 0.61 | 1.37 | -22.02 | 108.29 | 4.16 | 187.83 | 0.4953 | 744.6 | 618.3 | |
| 3.92 | -11.00 | 2.17 | -11.00 | -18.92 | 108.15 | 4.01 | 188.54 | 0.4475 | 1016.7 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -21.57 | 108.21 | 4.08 | 187.81 | 0.4884 | 635.0 | 578.4 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -21.19 | 107.65 | 3.52 | 186.85 | 0.4814 | 581.0 | 543.7 | |
| 3.03 | 51.49 | 1.69 | 28.70 | -20.13 | 107.18 | 3.04 | 186.19 | 0.4643 | 941.7 | 654.3 | |
| 8.19 | -18.00 | 4.57 | -18.00 | -20.02 | 106.92 | 2.78 | 185.69 | 0.4623 | 1080.4 | 999999 | |
| 7.04 | -18.00 | 3.92 | -18.00 | -19.78 | 106.72 | 2.59 | 185.34 | 0.4583 | 1175.0 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -18.66 | 104.92 | 0.78 | 181.70 | 0.4390 | 779.0 | 591.7 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -19.57 | 104.67 | 0.53 | 181.11 | 0.4532 | 802.0 | 554.4 | |
| 0.00 | 4.54 | 0.00 | 2.52 | -19.26 | 104.63 | 0.50 | 181.05 | 0.4484 | 773.0 | 765.1 | |
| 0.00 | 1.60 | 0.00 | 0.90 | -20.52 | 104.25 | 0.11 | 180.23 | 0.4679 | 759.0 | 594.0 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -19.33 | 104.15 | 0.02 | 180.04 | 0.4494 | 961.0 | 766.3 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -19.80 | 104.09 | -0.05 | 179.91 | 0.4568 | 875.0 | 767.6 | |
| 0.00 | 2.05 | 0.00 | 1.14 | -20.31 | 104.06 | -0.08 | 179.84 | 0.4647 | 857.0 | 711.3 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -20.59 | 103.96 | -0.18 | 179.65 | 0.4689 | 876.0 | 694.2 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -19.03 | 102.65 | -1.48 | 176.84 | 0.4452 | -619.0 | -554.7 | |
| 0.00 | 2.23 | 0.00 | 1.23 | -18.46 | 102.56 | -1.57 | 176.57 | 0.4364 | -877.0 | -707.2 | |
| 0.00 | 1.78 | 0.00 | 1.01 | -21.93 | 102.33 | -1.81 | 176.57 | 0.4904 | -842.0 | -599.2 | |
| 0.00 | 4.10 | 0.00 | 2.26 | -18.56 | 102.18 | -1.95 | 175.75 | 0.4384 | -808.0 | -750.1 | |
| 0.53 | 1.69 | 0.29 | 0.93 | -18.26 | 102.15 | -1.98 | 175.64 | 0.4336 | -1009.3 | -888.5 | |
| 0.00 | 0.62 | 0.00 | 0.35 | -19.40 | 102.14 | -2.00 | 175.81 | 0.4516 | -551.0 | -487.9 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -19.10 | 101.73 | -2.41 | 174.89 | 0.4474 | -703.0 | -494.4 | |
| 0.00 | 1.51 | 0.00 | 0.83 | -18.29 | 101.55 | -2.59 | 174.32 | 0.4350 | -695.0 | -585.4 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -18.06 | 101.52 | -2.62 | 174.20 | 0.4314 | -757.0 | -628.1 | |
| 1.07 | 2.32 | 0.59 | 1.28 | -18.59 | 101.48 | -2.66 | 174.25 | 0.4399 | -938.8 | -763.5 | |
| 0.00 | 1.43 | 0.00 | 0.82 | -23.02 | 100.44 | -3.69 | 173.29 | 0.5094 | -853.0 | -693.0 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -24.83 | 99.59 | -4.55 | 172.28 | 0.5377 | -660.0 | -469.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
