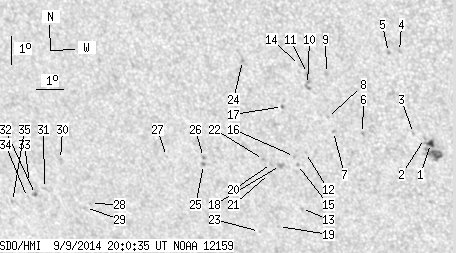

SDO HMI 2014-09-09 20:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.38 | 64.61 | 2.11 | 40.91 | -21.29 | 78.30 | -25.83 | 139.43 | 0.6200 | 154.2 | 202.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-09 20:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.76 | 19.24 | 1.66 | 11.61 | -20.85 | 83.59 | -20.55 | 144.72 | 0.5701 | 948.7 | 710.4 | |
| 0.00 | 0.71 | 0.00 | 0.43 | -20.69 | 83.40 | -20.73 | 144.30 | 0.5697 | 672.0 | 510.1 | |
| 0.00 | 1.25 | 0.00 | 0.75 | -20.54 | 83.04 | -21.09 | 143.67 | 0.5710 | 533.0 | 458.9 | |
| 0.00 | 1.25 | 0.00 | 0.73 | -17.78 | 82.94 | -21.19 | 140.33 | 0.5413 | 814.0 | 625.4 | |
| 0.00 | 1.16 | 0.00 | 0.68 | -17.83 | 82.56 | -21.58 | 139.89 | 0.5455 | 812.0 | 668.2 | |
| 0.00 | 1.25 | 0.00 | 0.76 | -20.63 | 81.26 | -22.88 | 141.55 | 0.5874 | 889.0 | 695.1 | |
| 0.00 | 0.89 | 0.00 | 0.55 | -20.61 | 80.24 | -23.90 | 140.33 | 0.5962 | 828.0 | 701.9 | |
| 0.00 | 0.62 | 0.00 | 0.38 | -20.14 | 80.10 | -24.03 | 139.64 | 0.5926 | 551.0 | 361.7 | |
| 0.00 | 2.05 | 0.00 | 1.24 | -18.65 | 80.31 | -23.83 | 138.10 | 0.5754 | -734.0 | -615.7 | |
| 0.00 | 4.63 | 0.00 | 2.83 | -19.06 | 79.58 | -24.56 | 137.75 | 0.5864 | -646.0 | -667.4 | |
| 0.00 | 1.07 | 0.00 | 0.65 | -18.69 | 79.64 | -24.50 | 137.36 | 0.5821 | -853.0 | -783.8 | |
| 0.00 | 1.07 | 0.00 | 0.67 | -21.39 | 79.10 | -25.03 | 139.93 | 0.6142 | 310.0 | 218.5 | |
| 0.00 | 1.07 | 0.00 | 0.69 | -23.36 | 78.57 | -25.56 | 141.49 | 0.6385 | 591.0 | 527.1 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -18.43 | 79.40 | -24.74 | 136.77 | 0.5819 | -557.0 | -531.7 | |
| 0.00 | 1.34 | 0.00 | 0.84 | -21.82 | 78.73 | -25.40 | 140.01 | 0.6218 | 747.0 | 573.9 | |
| 0.00 | 0.89 | 0.00 | 0.56 | -21.55 | 78.68 | -25.46 | 139.64 | 0.6196 | 486.0 | 466.6 | |
| 0.00 | 1.16 | 0.00 | 0.72 | -19.86 | 78.56 | -25.58 | 137.56 | 0.6039 | -770.0 | -770.2 | |
| 0.00 | 3.47 | 0.00 | 2.21 | -21.89 | 78.11 | -26.03 | 139.41 | 0.6280 | 821.0 | 679.4 | |
| 0.00 | 0.98 | 0.00 | 0.64 | -24.05 | 77.58 | -26.56 | 141.18 | 0.6535 | 643.0 | 497.1 | |
| 0.00 | 2.23 | 0.00 | 1.42 | -21.84 | 77.79 | -26.35 | 139.02 | 0.6303 | 492.0 | 558.7 | |
| 0.00 | 1.16 | 0.00 | 0.74 | -22.20 | 77.64 | -26.49 | 139.26 | 0.6350 | 629.0 | 481.4 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -21.72 | 77.52 | -26.61 | 138.60 | 0.6315 | 665.0 | 599.2 | |
| 0.00 | 0.71 | 0.00 | 0.47 | -24.27 | 76.82 | -27.32 | 140.64 | 0.6619 | 354.0 | 357.6 | |
| 0.00 | 1.07 | 0.00 | 0.66 | -18.38 | 77.39 | -26.75 | 134.50 | 0.6011 | -737.0 | -614.8 | |
| 0.00 | 1.60 | 0.00 | 1.05 | -22.04 | 75.25 | -28.89 | 136.67 | 0.6548 | 714.0 | 632.8 | |
| 0.00 | 1.16 | 0.00 | 0.75 | -21.79 | 75.30 | -28.83 | 136.44 | 0.6521 | 801.0 | 677.8 | |
| 0.00 | 0.36 | 0.00 | 0.24 | -21.85 | 73.90 | -30.23 | 135.19 | 0.6654 | 476.0 | 450.2 | |
| 0.00 | 1.25 | 0.00 | 0.88 | -23.72 | 70.47 | -33.67 | 134.30 | 0.7114 | -357.0 | -432.4 | |
| 0.00 | 1.34 | 0.00 | 0.94 | -23.88 | 70.22 | -33.91 | 134.27 | 0.7148 | -156.0 | -274.5 | |
| 0.00 | 1.16 | 0.00 | 0.81 | -22.25 | 69.70 | -34.43 | 132.05 | 0.7070 | -666.0 | -498.9 | |
| 0.00 | 1.43 | 0.00 | 1.02 | -23.33 | 68.74 | -35.39 | 132.50 | 0.7236 | -664.0 | -501.9 | |
| 0.62 | 2.76 | 0.45 | 1.99 | -23.57 | 68.30 | -35.83 | 132.43 | 0.7293 | -680.4 | -554.5 | |
| 0.00 | 1.34 | 0.00 | 0.96 | -23.16 | 68.19 | -35.95 | 131.90 | 0.7274 | -593.0 | -524.0 | |
| 0.00 | 0.62 | 0.00 | 0.45 | -23.71 | 67.93 | -36.20 | 132.30 | 0.7335 | -597.0 | -465.3 | |
| 0.00 | 1.25 | 0.00 | 0.92 | -23.90 | 67.25 | -36.88 | 132.01 | 0.7408 | -519.0 | -428.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
