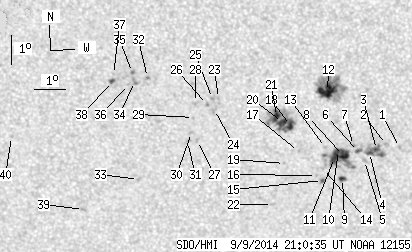

SDO HMI 2014-09-09 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.74 | 210.51 | 31.82 | 117.86 | -20.15 | 107.57 | 3.98 | 188.01 | 0.4677 | 584.4 | 393.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-09 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.61 | -20.90 | 110.76 | 7.18 | 193.92 | 0.4871 | 878.0 | 705.0 | |
| 0.00 | 2.76 | 0.00 | 1.56 | -20.78 | 110.33 | 6.75 | 193.18 | 0.4839 | 724.0 | 624.5 | |
| 1.78 | 17.55 | 1.01 | 9.94 | -20.95 | 110.01 | 6.43 | 192.50 | 0.4853 | 857.2 | 437.8 | |
| 2.05 | -3.00 | 1.16 | -3.00 | -21.05 | 109.79 | 6.21 | 192.03 | 0.4861 | 708.3 | 999999 | |
| 0.00 | 2.41 | 0.00 | 1.36 | -21.32 | 109.64 | 6.06 | 191.63 | 0.4897 | -145.0 | -134.9 | |
| 0.98 | 4.36 | 0.55 | 2.47 | -21.01 | 109.43 | 5.85 | 191.37 | 0.4844 | 817.4 | 644.5 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -20.80 | 109.26 | 5.68 | 191.14 | 0.4807 | 916.0 | 754.9 | |
| 8.82 | 38.93 | 4.99 | 22.04 | -21.14 | 108.95 | 5.37 | 190.40 | 0.4849 | 822.6 | 50.5 | |
| 2.05 | 3.65 | 1.17 | 2.08 | -21.93 | 108.94 | 5.36 | 190.09 | 0.4968 | -731.1 | -527.4 | |
| 1.87 | -8.00 | 1.06 | -8.00 | -20.97 | 108.78 | 5.20 | 190.15 | 0.4819 | 1092.0 | 999999 | |
| 7.48 | -8.00 | 4.23 | -8.00 | -21.21 | 108.66 | 5.08 | 189.83 | 0.4851 | 554.4 | 999999 | |
| 14.97 | 54.78 | 8.29 | 30.34 | -18.96 | 108.36 | 4.78 | 190.13 | 0.4501 | 1117.7 | 548.4 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -20.86 | 108.35 | 4.77 | 189.38 | 0.4791 | 789.0 | 624.9 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -21.58 | 108.31 | 4.73 | 189.04 | 0.4899 | 600.0 | 469.9 | |
| 0.80 | 2.23 | 0.46 | 1.27 | -21.99 | 108.29 | 4.71 | 188.87 | 0.4961 | 810.0 | 619.8 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -21.82 | 108.09 | 4.51 | 188.55 | 0.4930 | 776.0 | 661.4 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -20.99 | 107.48 | 3.90 | 187.65 | 0.4791 | 759.0 | 510.4 | |
| 4.45 | 43.47 | 2.49 | 24.25 | -20.09 | 107.20 | 3.62 | 187.36 | 0.4649 | 905.3 | 749.2 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -21.39 | 107.04 | 3.46 | 186.68 | 0.4845 | 740.0 | 533.7 | |
| 4.72 | -18.00 | 2.64 | -18.00 | -19.99 | 106.94 | 3.36 | 186.87 | 0.4628 | 1159.6 | 999999 | |
| 5.52 | -18.00 | 3.08 | -18.00 | -19.78 | 106.75 | 3.16 | 186.52 | 0.4593 | 1202.8 | 999999 | |
| 0.00 | 1.51 | 0.00 | 0.87 | -22.81 | 106.68 | 3.10 | 185.68 | 0.5053 | 777.0 | 570.7 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -19.16 | 104.88 | 1.30 | 182.75 | 0.4473 | 843.0 | 714.9 | |
| 0.00 | 3.47 | 0.00 | 1.93 | -19.53 | 104.75 | 1.17 | 182.45 | 0.4530 | 633.0 | 657.1 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -19.16 | 104.69 | 1.11 | 182.35 | 0.4471 | 843.0 | 719.3 | |
| 0.00 | 1.60 | 0.00 | 0.89 | -19.36 | 104.53 | 0.95 | 181.99 | 0.4502 | 1064.0 | 846.7 | |
| 0.00 | 1.51 | 0.00 | 0.85 | -20.59 | 104.21 | 0.63 | 181.27 | 0.4691 | 688.0 | 554.6 | |
| 0.00 | 2.32 | 0.00 | 1.28 | -19.30 | 104.15 | 0.56 | 181.19 | 0.4489 | 566.0 | 618.9 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -19.80 | 104.08 | 0.50 | 181.04 | 0.4568 | 832.0 | 630.6 | |
| 0.00 | 1.43 | 0.00 | 0.80 | -20.31 | 104.02 | 0.44 | 180.89 | 0.4648 | 873.0 | 693.9 | |
| 0.00 | 2.67 | 0.00 | 1.50 | -20.62 | 103.89 | 0.31 | 180.62 | 0.4695 | 681.0 | 545.4 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -18.45 | 102.62 | -0.97 | 177.89 | 0.4359 | -903.0 | -790.2 | |
| 0.00 | 1.87 | 0.00 | 1.06 | -21.93 | 102.30 | -1.28 | 177.56 | 0.4900 | -744.0 | -631.3 | |
| 0.00 | 2.76 | 0.00 | 1.52 | -18.59 | 102.20 | -1.38 | 177.00 | 0.4383 | -943.0 | -796.0 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -18.29 | 102.14 | -1.44 | 176.83 | 0.4336 | -1015.0 | -929.6 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -18.69 | 102.01 | -1.57 | 176.60 | 0.4400 | -759.0 | -604.3 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -18.35 | 101.54 | -2.05 | 175.52 | 0.4353 | -721.0 | -561.8 | |
| 1.25 | 2.41 | 0.69 | 1.32 | -18.59 | 101.50 | -2.08 | 175.48 | 0.4390 | -924.9 | -770.5 | |
| 0.00 | 2.14 | 0.00 | 1.23 | -22.98 | 100.48 | -3.10 | 174.35 | 0.5078 | -860.0 | -660.7 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -20.48 | 98.21 | -5.37 | 169.32 | 0.4749 | -654.0 | -578.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
