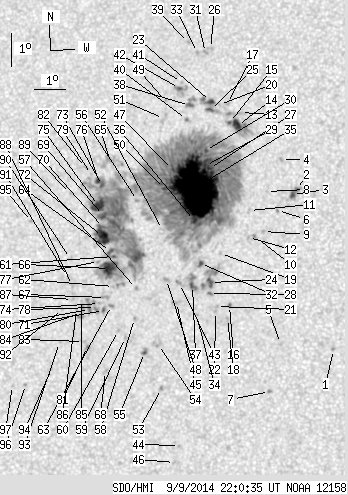

SDO HMI 2014-09-09 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 248.92 | 1465.38 | 129.39 | 762.43 | 15.74 | 87.31 | -15.72 | 59.67 | 0.3046 | 404.1 | 73.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-09 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 0.67 | 11.40 | 92.63 | -10.40 | 67.25 | 0.1928 | -914.0 | -744.5 | |
| 0.71 | 8.55 | 0.36 | 4.38 | 16.23 | 91.22 | -11.81 | 51.10 | 0.2535 | 1111.8 | 680.4 | |
| 2.23 | -2.00 | 1.14 | -2.00 | 16.07 | 91.11 | -11.92 | 51.86 | 0.2536 | 954.9 | 999999 | |
| 0.00 | 1.51 | 0.00 | 0.78 | 17.13 | 90.68 | -12.35 | 49.53 | 0.2698 | 894.0 | 753.0 | |
| 0.00 | 1.43 | 0.00 | 0.72 | 11.54 | 90.96 | -12.07 | 69.31 | 0.2201 | -567.0 | -582.9 | |
| 0.00 | 1.43 | 0.00 | 0.73 | 15.57 | 90.65 | -12.38 | 54.46 | 0.2549 | -831.0 | -613.4 | |
| 0.00 | 1.69 | 0.00 | 0.86 | 10.08 | 90.67 | -12.36 | 76.10 | 0.2181 | -1028.0 | -872.4 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 16.14 | 90.26 | -12.76 | 53.42 | 0.2655 | 705.0 | 430.9 | |
| 0.00 | 1.69 | 0.00 | 0.87 | 14.92 | 90.24 | -12.79 | 57.46 | 0.2548 | -821.0 | -536.0 | |
| 0.00 | 1.69 | 0.00 | 0.87 | 14.76 | 89.97 | -13.06 | 58.53 | 0.2574 | -915.0 | -826.0 | |
| 0.00 | 2.32 | 0.00 | 1.19 | 15.55 | 89.76 | -13.27 | 56.31 | 0.2671 | 562.0 | 529.9 | |
| 0.00 | 1.51 | 0.00 | 0.78 | 14.73 | 89.78 | -13.25 | 58.99 | 0.2599 | -742.0 | -590.0 | |
| 0.00 | 2.14 | 0.00 | 1.11 | 18.54 | 89.25 | -13.78 | 48.60 | 0.3025 | 651.0 | 540.8 | |
| 6.50 | 28.77 | 3.38 | 14.93 | 18.14 | 89.18 | -13.85 | 49.79 | 0.2992 | 1221.4 | 518.3 | |
| 0.71 | -14.00 | 0.37 | -14.00 | 18.22 | 88.91 | -14.12 | 50.08 | 0.3034 | 1031.9 | 999999 | |
| 0.45 | 1.60 | 0.23 | 0.82 | 12.65 | 89.29 | -13.74 | 67.19 | 0.2526 | -1092.0 | -881.5 | |
| 0.00 | 1.43 | 0.00 | 0.74 | 18.81 | 88.80 | -14.23 | 48.78 | 0.3108 | -390.0 | -230.2 | |
| 0.00 | 1.25 | 0.00 | 0.64 | 12.25 | 89.24 | -13.79 | 68.73 | 0.2510 | -927.0 | -721.1 | |
| 0.00 | 1.43 | 0.00 | 0.73 | 14.22 | 88.91 | -14.12 | 62.17 | 0.2686 | -591.0 | -320.8 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 18.77 | 88.54 | -14.49 | 49.36 | 0.3136 | 790.0 | 604.0 | |
| 0.00 | 1.16 | 0.00 | 0.59 | 12.61 | 88.88 | -14.15 | 67.89 | 0.2587 | -964.0 | -759.0 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 12.45 | 88.85 | -14.18 | 68.48 | 0.2582 | -950.0 | -759.2 | |
| 2.67 | 17.91 | 1.40 | 9.35 | 18.85 | 88.23 | -14.80 | 49.70 | 0.3183 | 1017.0 | 582.6 | |
| 3.03 | 21.56 | 1.56 | 11.08 | 13.33 | 88.64 | -14.39 | 65.62 | 0.2667 | -1223.3 | -620.5 | |
| 1.87 | -23.00 | 0.98 | -23.00 | 18.61 | 88.25 | -14.77 | 50.29 | 0.3156 | 903.9 | 999999 | |
| 0.00 | 2.67 | 0.00 | 1.41 | 20.49 | 88.08 | -14.95 | 46.06 | 0.3371 | 287.0 | 397.1 | |
| 0.98 | 1207.72 | 0.51 | 628.52 | 16.80 | 88.37 | -14.66 | 55.00 | 0.2971 | 1303.7 | 122.5 | |
| 0.45 | 2.14 | 0.23 | 1.10 | 12.99 | 88.63 | -14.40 | 66.81 | 0.2648 | -1144.0 | -915.7 | |
| 0.27 | -27.00 | 0.14 | -27.00 | 16.88 | 88.23 | -14.80 | 54.98 | 0.2997 | 1319.3 | 999999 | |
| 1.60 | -27.00 | 0.83 | -27.00 | 17.34 | 88.20 | -14.83 | 53.76 | 0.3043 | 903.7 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.03 | 20.36 | 87.93 | -15.10 | 46.63 | 0.3375 | 920.0 | 735.6 | |
| 1.60 | 5.52 | 0.83 | 2.85 | 13.89 | 88.29 | -14.74 | 64.17 | 0.2757 | 818.9 | 354.8 | |
| 0.00 | 1.78 | 0.00 | 0.94 | 20.35 | 87.66 | -15.37 | 47.12 | 0.3406 | 828.0 | 686.2 | |
| 0.00 | 1.25 | 0.00 | 0.64 | 12.34 | 88.25 | -14.78 | 69.58 | 0.2671 | -872.0 | -658.7 | |
| 165.70 | -27.00 | 85.94 | -27.00 | 16.20 | 87.96 | -15.07 | 57.40 | 0.2976 | 1622.5 | 999999 | |
| 0.27 | -27.00 | 0.14 | -27.00 | 15.20 | 88.00 | -15.03 | 60.38 | 0.2891 | 1183.0 | 999999 | |
| 1.96 | 11.85 | 1.01 | 6.10 | 13.22 | 88.07 | -14.96 | 66.74 | 0.2747 | -1036.2 | -280.8 | |
| 1.43 | 8.55 | 0.75 | 4.48 | 18.71 | 87.55 | -15.48 | 51.25 | 0.3255 | 1068.8 | 732.0 | |
| 0.00 | 1.69 | 0.00 | 0.89 | 20.65 | 87.33 | -15.70 | 47.01 | 0.3477 | 701.0 | 573.2 | |
| 0.36 | 2.05 | 0.19 | 1.07 | 18.27 | 87.49 | -15.54 | 52.46 | 0.3222 | 955.8 | 790.6 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 19.41 | 87.22 | -15.81 | 50.08 | 0.3365 | 659.0 | 519.2 | |
| 0.98 | 11.49 | 0.51 | 6.04 | 19.22 | 87.17 | -15.86 | 50.62 | 0.3353 | 883.3 | 718.6 | |
| 0.00 | 3.65 | 0.00 | 1.88 | 13.27 | 87.65 | -15.38 | 67.09 | 0.2815 | -867.0 | -711.5 | |
| 0.00 | 1.16 | 0.00 | 0.59 | 8.37 | 87.90 | -15.13 | 84.74 | 0.2605 | -879.0 | -786.6 | |
| 0.00 | 3.12 | 0.00 | 1.61 | 12.69 | 87.59 | -15.44 | 69.12 | 0.2792 | -907.0 | -773.8 | |
| 0.00 | 1.60 | 0.00 | 0.82 | 7.85 | 87.76 | -15.27 | 86.75 | 0.2625 | -872.0 | -674.2 | |
| 1.07 | -27.00 | 0.56 | -27.00 | 16.73 | 87.17 | -15.86 | 57.13 | 0.3130 | 947.9 | 999999 | |
| 0.00 | 2.49 | 0.00 | 1.29 | 13.37 | 87.23 | -15.80 | 67.23 | 0.2886 | -1096.0 | -865.5 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 18.84 | 86.74 | -16.28 | 52.25 | 0.3371 | 638.0 | 459.1 | |
| 1.16 | -27.00 | 0.60 | -27.00 | 16.14 | 86.96 | -16.07 | 59.11 | 0.3113 | 889.1 | 999999 | |
| 0.00 | 4.19 | 0.00 | 2.20 | 18.28 | 86.73 | -16.30 | 53.66 | 0.3322 | 720.0 | 489.3 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 14.89 | 86.99 | -16.04 | 62.75 | 0.3017 | -130.0 | -124.4 | |
| 0.00 | 1.87 | 0.00 | 0.96 | 10.07 | 87.26 | -15.77 | 78.64 | 0.2742 | -996.0 | -779.1 | |
| 0.00 | 1.96 | 0.00 | 1.01 | 11.40 | 87.09 | -15.94 | 74.04 | 0.2813 | -833.0 | -742.0 | |
| 0.89 | 3.30 | 0.46 | 1.70 | 11.14 | 86.66 | -16.37 | 75.26 | 0.2873 | -1053.0 | -884.1 | |
| 0.00 | 1.60 | 0.00 | 0.84 | 15.74 | 86.10 | -16.93 | 61.39 | 0.3206 | -591.0 | -495.7 | |
| 0.00 | 1.51 | 0.00 | 0.79 | 13.07 | 86.28 | -16.75 | 69.23 | 0.3016 | -1038.0 | -812.8 | |
| 0.00 | 1.43 | 0.00 | 0.74 | 12.16 | 86.27 | -16.76 | 72.16 | 0.2974 | -873.0 | -686.6 | |
| 0.00 | 1.34 | 0.00 | 0.69 | 11.57 | 86.02 | -17.01 | 74.28 | 0.2991 | -798.0 | -684.6 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 11.78 | 85.78 | -17.25 | 73.79 | 0.3036 | -897.0 | -749.8 | |
| 0.80 | -27.00 | 0.42 | -27.00 | 14.01 | 85.46 | -17.57 | 67.16 | 0.3192 | -1257.0 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.65 | 13.10 | 85.53 | -17.50 | 69.84 | 0.3134 | -772.0 | -621.4 | |
| 0.00 | 2.05 | 0.00 | 1.07 | 12.53 | 85.50 | -17.53 | 71.64 | 0.3111 | -1033.0 | -849.3 | |
| 1.87 | -27.00 | 0.98 | -27.00 | 14.16 | 85.35 | -17.68 | 66.83 | 0.3217 | -1197.9 | 999999 | |
| 0.00 | 14.08 | 0.00 | 7.42 | 16.90 | 85.11 | -17.92 | 59.50 | 0.3432 | -42.0 | 33.4 | |
| 13.90 | -27.00 | 7.26 | -27.00 | 13.65 | 85.36 | -17.67 | 68.36 | 0.3188 | -1204.1 | 999999 | |
| 0.00 | 3.65 | 0.00 | 1.91 | 12.76 | 85.29 | -17.74 | 71.09 | 0.3154 | -938.0 | -875.3 | |
| 0.00 | 2.14 | 0.00 | 1.11 | 10.52 | 85.44 | -17.59 | 78.07 | 0.3051 | -745.0 | -566.3 | |
| 3.56 | -27.00 | 1.87 | -27.00 | 15.25 | 85.03 | -18.00 | 64.07 | 0.3330 | -1193.5 | 999999 | |
| 0.27 | -27.00 | 0.14 | -27.00 | 14.88 | 85.06 | -17.97 | 65.06 | 0.3302 | -1194.7 | 999999 | |
| 0.71 | 2.14 | 0.37 | 1.12 | 12.37 | 85.26 | -17.77 | 72.34 | 0.3143 | -1028.4 | -935.5 | |
| 15.32 | -27.00 | 8.03 | -27.00 | 14.61 | 85.05 | -17.98 | 65.85 | 0.3287 | -1220.9 | 999999 | |
| 1.43 | -27.00 | 0.75 | -27.00 | 16.16 | 84.91 | -18.11 | 61.70 | 0.3406 | -104.5 | 999999 | |
| 0.00 | 1.51 | 0.00 | 0.79 | 12.57 | 85.11 | -17.92 | 71.82 | 0.3175 | -1035.0 | -767.2 | |
| 11.05 | -27.00 | 5.81 | -27.00 | 15.55 | 84.84 | -18.19 | 63.46 | 0.3377 | -1245.9 | 999999 | |
| 2.05 | -27.00 | 1.08 | -27.00 | 16.31 | 84.77 | -18.26 | 61.48 | 0.3438 | -1018.8 | 999999 | |
| 0.00 | 1.51 | 0.00 | 0.79 | 13.84 | 84.98 | -18.05 | 68.13 | 0.3255 | -659.0 | -490.3 | |
| 0.00 | 4.99 | 0.00 | 2.61 | 12.45 | 84.99 | -18.04 | 72.30 | 0.3188 | -961.0 | -814.4 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 16.48 | 84.52 | -18.51 | 61.31 | 0.3485 | -832.0 | -704.8 | |
| 0.71 | 6.24 | 0.37 | 3.26 | 12.38 | 84.80 | -18.23 | 72.65 | 0.3215 | -972.0 | -751.4 | |
| 0.36 | 2.49 | 0.19 | 1.30 | 11.26 | 84.81 | -18.22 | 76.08 | 0.3173 | -934.0 | -727.0 | |
| 0.00 | 1.78 | 0.00 | 0.94 | 16.69 | 84.30 | -18.73 | 61.03 | 0.3531 | -785.0 | -672.8 | |
| 0.00 | 2.41 | 0.00 | 1.26 | 11.40 | 84.67 | -18.36 | 75.72 | 0.3200 | -633.0 | -544.1 | |
| 0.00 | 6.77 | 0.00 | 3.54 | 12.28 | 84.55 | -18.48 | 73.14 | 0.3251 | -545.0 | -649.5 | |
| 0.00 | 0.71 | 0.00 | 0.37 | 12.64 | 84.52 | -18.51 | 72.07 | 0.3270 | -560.0 | -429.0 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 12.33 | 84.38 | -18.65 | 73.10 | 0.3279 | -633.0 | -507.7 | |
| 0.00 | 1.34 | 0.00 | 0.70 | 12.66 | 84.22 | -18.80 | 72.24 | 0.3317 | -536.0 | -475.1 | |
| 0.00 | 1.96 | 0.00 | 1.03 | 13.08 | 84.19 | -18.84 | 71.03 | 0.3340 | -686.0 | -552.9 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 15.88 | 83.88 | -19.15 | 63.61 | 0.3538 | -705.0 | -612.5 | |
| 0.00 | 2.23 | 0.00 | 1.17 | 13.90 | 84.06 | -18.97 | 68.81 | 0.3399 | -861.0 | -596.7 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 13.35 | 84.01 | -19.02 | 70.41 | 0.3381 | -582.0 | -435.2 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 12.35 | 83.92 | -19.11 | 73.38 | 0.3352 | -442.0 | -289.0 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 11.34 | 83.90 | -19.13 | 76.34 | 0.3322 | -651.0 | -550.9 | |
| 0.00 | 0.71 | 0.00 | 0.37 | 10.55 | 83.69 | -19.34 | 78.81 | 0.3334 | -782.0 | -648.5 | |
| 0.00 | 1.34 | 0.00 | 0.71 | 14.97 | 82.67 | -20.36 | 67.12 | 0.3664 | -818.0 | -687.0 | |
| 0.00 | 1.43 | 0.00 | 0.75 | 10.03 | 82.87 | -20.16 | 80.63 | 0.3454 | -753.0 | -558.0 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 9.98 | 82.45 | -20.58 | 80.89 | 0.3521 | -759.0 | -532.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
