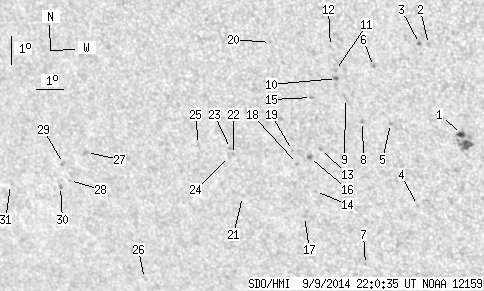

SDO HMI 2014-09-09 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.11 | 63.17 | 1.86 | 39.59 | -21.38 | 78.52 | -24.51 | 140.98 | 0.6095 | 161.2 | 258.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-09 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.58 | 20.22 | 1.54 | 12.10 | -20.87 | 83.65 | -19.38 | 146.28 | 0.5608 | 997.4 | 727.8 | |
| 0.00 | 1.78 | 0.00 | 1.04 | -17.86 | 82.91 | -20.12 | 141.88 | 0.5324 | 836.0 | 635.6 | |
| 0.00 | 1.34 | 0.00 | 0.78 | -17.84 | 82.61 | -20.42 | 141.44 | 0.5349 | 834.0 | 742.5 | |
| 0.00 | 0.89 | 0.00 | 0.55 | -23.41 | 81.73 | -21.30 | 146.42 | 0.6050 | 598.0 | 462.4 | |
| 0.00 | 1.43 | 0.00 | 0.86 | -20.60 | 81.24 | -21.79 | 142.86 | 0.5778 | 836.0 | 657.4 | |
| 0.00 | 1.34 | 0.00 | 0.80 | -18.69 | 80.93 | -22.10 | 140.26 | 0.5597 | -815.0 | -615.5 | |
| 0.00 | 1.16 | 0.00 | 0.75 | -25.62 | 79.44 | -23.59 | 145.91 | 0.6462 | 654.0 | 507.8 | |
| 0.00 | 1.43 | 0.00 | 0.87 | -20.58 | 80.26 | -22.77 | 141.64 | 0.5860 | 699.0 | 535.1 | |
| 0.00 | 3.03 | 0.00 | 1.84 | -19.83 | 79.79 | -23.24 | 140.21 | 0.5822 | -606.0 | -540.5 | |
| 0.53 | 1.51 | 0.32 | 0.92 | -19.16 | 79.58 | -23.45 | 139.17 | 0.5772 | -815.7 | -671.2 | |
| 0.00 | 0.98 | 0.00 | 0.59 | -18.89 | 79.58 | -23.45 | 138.86 | 0.5744 | -853.0 | -696.5 | |
| 0.00 | 1.25 | 0.00 | 0.75 | -18.10 | 79.53 | -23.50 | 137.81 | 0.5666 | -589.0 | -507.3 | |
| 0.00 | 1.43 | 0.00 | 0.89 | -21.63 | 78.60 | -24.43 | 140.87 | 0.6115 | 822.0 | 601.1 | |
| 0.00 | 0.89 | 0.00 | 0.57 | -23.11 | 78.14 | -24.89 | 141.95 | 0.6305 | 618.0 | 451.0 | |
| 0.00 | 1.25 | 0.00 | 0.77 | -19.86 | 78.59 | -24.44 | 138.84 | 0.5935 | -930.0 | -711.6 | |
| 0.00 | 2.67 | 0.00 | 1.68 | -21.93 | 78.15 | -24.88 | 140.70 | 0.6184 | 857.0 | 756.3 | |
| 0.00 | 1.34 | 0.00 | 0.86 | -24.02 | 77.55 | -25.48 | 142.27 | 0.6445 | 716.0 | 559.5 | |
| 0.00 | 1.25 | 0.00 | 0.79 | -22.16 | 77.67 | -25.36 | 140.43 | 0.6249 | 685.0 | 561.6 | |
| 0.00 | 0.98 | 0.00 | 0.62 | -21.72 | 77.58 | -25.45 | 139.84 | 0.6213 | 598.0 | 527.5 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -18.08 | 77.43 | -25.60 | 135.37 | 0.5869 | -466.0 | -324.1 | |
| 0.00 | 0.36 | 0.00 | 0.23 | -23.45 | 75.38 | -27.65 | 139.44 | 0.6570 | 578.0 | 507.2 | |
| 0.00 | 1.51 | 0.00 | 0.98 | -21.99 | 75.37 | -27.66 | 137.83 | 0.6434 | 680.0 | 523.7 | |
| 0.00 | 1.07 | 0.00 | 0.69 | -21.79 | 75.31 | -27.72 | 137.54 | 0.6421 | 871.0 | 753.2 | |
| 0.00 | 1.60 | 0.00 | 1.04 | -22.07 | 75.21 | -27.82 | 137.76 | 0.6456 | 472.0 | 400.7 | |
| 0.00 | 1.60 | 0.00 | 1.05 | -21.72 | 74.14 | -28.89 | 136.31 | 0.6521 | 430.0 | 357.9 | |
| 0.00 | 2.05 | 0.00 | 1.47 | -26.67 | 70.72 | -32.31 | 138.55 | 0.7237 | 511.0 | 298.0 | |
| 0.00 | 2.76 | 0.00 | 1.90 | -22.30 | 69.73 | -33.30 | 133.03 | 0.6972 | -687.0 | -540.9 | |
| 0.00 | 0.62 | 0.00 | 0.44 | -23.35 | 68.76 | -34.27 | 133.40 | 0.7139 | -686.0 | -599.3 | |
| 0.00 | 2.23 | 0.00 | 1.56 | -22.76 | 68.69 | -34.34 | 132.70 | 0.7101 | -762.0 | -593.5 | |
| 0.00 | 1.60 | 0.00 | 1.14 | -23.59 | 68.32 | -34.71 | 133.32 | 0.7196 | -696.0 | -614.8 | |
| 0.00 | 0.62 | 0.00 | 0.46 | -23.68 | 66.26 | -36.77 | 131.85 | 0.7383 | -529.0 | -472.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
