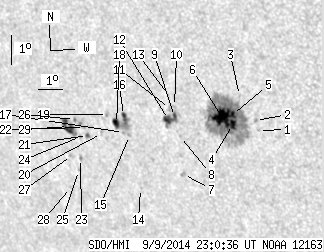

SDO HMI 2014-09-09 23:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.82 | 233.68 | 36.58 | 160.11 | -16.11 | 65.24 | -37.24 | 122.67 | 0.6921 | 224.4 | 165.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-09 23:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.25 | 0.00 | 0.82 | -16.19 | 68.00 | -34.48 | 124.70 | 0.6637 | 724.0 | 509.1 | |
| 0.00 | 1.43 | 0.00 | 0.94 | -15.86 | 67.95 | -34.53 | 124.25 | 0.6620 | 695.0 | 594.3 | |
| 0.00 | 1.25 | 0.00 | 0.82 | -15.08 | 67.49 | -34.99 | 122.89 | 0.6617 | 161.0 | 151.4 | |
| 4.72 | 155.02 | 3.15 | 103.75 | -16.06 | 67.02 | -35.46 | 123.82 | 0.6732 | 1008.5 | 360.4 | |
| 3.03 | -4.00 | 2.02 | -4.00 | -15.73 | 67.09 | -35.39 | 123.44 | 0.6703 | 1235.0 | 999999 | |
| 20.31 | -4.00 | 13.61 | -4.00 | -15.86 | 66.68 | -35.80 | 123.30 | 0.6756 | 1027.9 | 999999 | |
| 0.00 | 2.49 | 0.00 | 1.75 | -17.89 | 64.67 | -37.81 | 124.42 | 0.7096 | 675.0 | 533.3 | |
| 0.00 | 0.89 | 0.00 | 0.62 | -16.63 | 64.86 | -37.62 | 122.99 | 0.6997 | 491.0 | 398.4 | |
| 2.49 | 13.10 | 1.72 | 9.05 | -15.98 | 64.76 | -37.71 | 122.12 | 0.6967 | 836.9 | 522.9 | |
| 0.00 | 1.43 | 0.00 | 0.98 | -15.65 | 64.84 | -37.64 | 121.75 | 0.6939 | 321.0 | 346.9 | |
| 0.00 | 1.69 | 0.00 | 1.17 | -15.73 | 64.62 | -37.86 | 121.71 | 0.6967 | 419.0 | 417.5 | |
| 5.61 | -9.00 | 3.88 | -9.00 | -16.10 | 64.50 | -37.98 | 122.09 | 0.7002 | 716.8 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.43 | -15.27 | 64.68 | -37.80 | 121.17 | 0.6932 | 434.0 | 358.9 | |
| 0.00 | 0.62 | 0.00 | 0.45 | -18.52 | 62.74 | -39.74 | 123.89 | 0.7325 | 483.0 | 408.3 | |
| 0.00 | 1.16 | 0.00 | 0.83 | -16.77 | 62.76 | -39.72 | 121.79 | 0.7222 | -550.0 | -470.0 | |
| 1.60 | 19.60 | 1.14 | 13.98 | -16.12 | 62.67 | -39.81 | 120.94 | 0.7194 | -683.3 | -610.6 | |
| 0.00 | 1.07 | 0.00 | 0.77 | -16.69 | 62.53 | -39.95 | 121.55 | 0.7240 | -755.0 | -662.7 | |
| 4.54 | -16.00 | 3.26 | -16.00 | -16.41 | 62.31 | -40.17 | 121.07 | 0.7247 | -898.7 | 999999 | |
| 0.00 | 1.69 | 0.00 | 1.22 | -16.14 | 62.01 | -40.47 | 120.56 | 0.7264 | -579.0 | -497.0 | |
| 0.00 | 1.69 | 0.00 | 1.23 | -16.80 | 61.59 | -40.89 | 121.11 | 0.7343 | -698.0 | -655.1 | |
| 0.98 | 2.41 | 0.72 | 1.77 | -16.92 | 60.97 | -41.51 | 120.88 | 0.7411 | -778.4 | -683.3 | |
| 0.00 | 0.71 | 0.00 | 0.52 | -16.66 | 60.91 | -41.57 | 120.54 | 0.7403 | -774.0 | -741.9 | |
| 0.00 | 1.51 | 0.00 | 1.13 | -17.72 | 60.44 | -42.04 | 121.53 | 0.7506 | -795.0 | -664.2 | |
| 0.00 | 1.07 | 0.00 | 0.79 | -16.98 | 60.65 | -41.83 | 120.77 | 0.7446 | -717.0 | -541.7 | |
| 0.00 | 0.62 | 0.00 | 0.47 | -18.14 | 60.23 | -42.25 | 121.90 | 0.7549 | -576.0 | -475.4 | |
| 0.45 | 3.74 | 0.33 | 2.75 | -16.43 | 60.55 | -41.93 | 120.05 | 0.7428 | -684.8 | -711.5 | |
| 0.00 | 2.05 | 0.00 | 1.54 | -17.66 | 60.07 | -42.40 | 121.24 | 0.7539 | -184.0 | -302.9 | |
| 0.00 | 0.98 | 0.00 | 0.75 | -18.75 | 59.70 | -42.78 | 122.31 | 0.7632 | -428.0 | -287.1 | |
| 9.09 | 15.59 | 6.75 | 11.58 | -16.69 | 60.22 | -42.26 | 120.17 | 0.7474 | -645.1 | -487.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
