SDO HMI 2014-09-09 23:42:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.15 | 214.21 | 28.70 | 120.08 | -20.07 | 107.47 | 5.38 | 190.77 | 0.4701 | 410.4 | 352.2 | |
|
previous
or next observation for the same group /

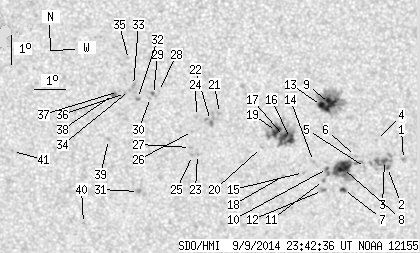

back to the solar disc SDO HMI 2014-09-09 23:42:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.41 | 0.00 | 1.37 | -20.86 | 110.90 | 8.81 | 196.93 | 0.4932 | 834.0 | 645.0 | |
| 0.53 | 20.14 | 0.30 | 11.44 | -21.12 | 110.39 | 8.30 | 195.85 | 0.4949 | -289.8 | 395.5 | |
| 1.43 | -2.00 | 0.81 | -2.00 | -20.88 | 110.28 | 8.19 | 195.79 | 0.4909 | 897.0 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -20.19 | 109.98 | 7.89 | 195.65 | 0.4795 | 624.0 | 402.8 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -21.11 | 109.67 | 7.58 | 194.55 | 0.4918 | 299.0 | 219.1 | |
| 0.00 | 1.51 | 0.00 | 0.86 | -20.73 | 109.33 | 7.24 | 194.12 | 0.4849 | 772.0 | 536.4 | |
| 1.69 | 3.56 | 0.97 | 2.04 | -21.85 | 108.99 | 6.90 | 192.92 | 0.5003 | -734.3 | -542.5 | |
| 17.11 | 37.78 | 9.70 | 21.45 | -21.13 | 108.92 | 6.83 | 193.16 | 0.4894 | 686.7 | 169.3 | |
| 11.76 | 51.86 | 6.53 | 28.79 | -18.91 | 108.41 | 6.32 | 193.30 | 0.4543 | 1109.1 | 528.1 | |
| 0.45 | -8.00 | 0.25 | -8.00 | -21.12 | 108.43 | 6.34 | 192.25 | 0.4876 | 898.4 | 999999 | |
| 0.00 | 1.60 | 0.00 | 0.91 | -21.53 | 108.32 | 6.23 | 191.85 | 0.4934 | 775.0 | 598.9 | |
| 0.00 | 2.85 | 0.00 | 1.63 | -21.88 | 108.30 | 6.21 | 191.67 | 0.4985 | 638.0 | 497.4 | |
| 4.37 | -9.00 | 2.43 | -9.00 | -18.97 | 108.16 | 6.06 | 192.75 | 0.4544 | 1014.3 | 999999 | |
| 0.00 | 1.69 | 0.00 | 0.96 | -20.87 | 107.97 | 5.88 | 191.48 | 0.4825 | 700.0 | 517.8 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -21.25 | 107.66 | 5.57 | 190.74 | 0.4872 | 620.0 | 553.5 | |
| 4.10 | 50.79 | 2.30 | 28.38 | -20.08 | 107.20 | 5.10 | 190.32 | 0.4682 | 911.0 | 659.2 | |
| 3.39 | -16.00 | 1.89 | -16.00 | -20.01 | 107.00 | 4.91 | 189.96 | 0.4666 | 1146.0 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.81 | -21.37 | 106.98 | 4.89 | 189.41 | 0.4873 | 683.0 | 546.1 | |
| 5.52 | -16.00 | 3.08 | -16.00 | -19.83 | 106.74 | 4.65 | 189.50 | 0.4633 | 1146.2 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -20.37 | 106.27 | 4.18 | 188.38 | 0.4704 | 643.0 | 550.5 | |
| 0.00 | 1.69 | 0.00 | 0.94 | -19.21 | 104.89 | 2.80 | 185.91 | 0.4498 | 717.0 | 615.5 | |
| 0.00 | 6.06 | 0.00 | 3.36 | -19.44 | 104.61 | 2.52 | 185.27 | 0.4530 | 849.0 | 779.7 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -20.59 | 104.21 | 2.11 | 184.23 | 0.4703 | 744.0 | 552.8 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -19.30 | 104.16 | 2.07 | 184.35 | 0.4502 | 647.0 | 614.1 | |
| 0.00 | 1.51 | 0.00 | 0.85 | -20.63 | 104.05 | 1.95 | 183.90 | 0.4707 | 763.0 | 567.5 | |
| 0.00 | 0.53 | 0.00 | 0.30 | -19.81 | 104.04 | 1.94 | 184.01 | 0.4580 | 692.0 | 565.0 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -20.35 | 103.98 | 1.89 | 183.81 | 0.4664 | 812.0 | 637.3 | |
| 0.00 | 0.62 | 0.00 | 0.34 | -18.45 | 102.94 | 0.85 | 181.85 | 0.4359 | -679.0 | -515.1 | |
| 0.00 | 2.41 | 0.00 | 1.32 | -18.55 | 102.78 | 0.69 | 181.50 | 0.4374 | -834.0 | -682.5 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -18.66 | 102.69 | 0.59 | 181.29 | 0.4390 | -324.0 | -487.2 | |
| 0.00 | 2.32 | 0.00 | 1.31 | -21.86 | 102.30 | 0.21 | 180.40 | 0.4886 | -916.0 | -704.0 | |
| 0.00 | 1.96 | 0.00 | 1.08 | -18.69 | 102.27 | 0.18 | 180.39 | 0.4394 | -858.0 | -797.5 | |
| 0.00 | 2.05 | 0.00 | 1.12 | -18.25 | 102.14 | 0.05 | 180.11 | 0.4325 | -956.0 | -777.5 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -18.42 | 102.02 | -0.08 | 179.83 | 0.4351 | -955.0 | -770.6 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -17.38 | 101.99 | -0.11 | 179.76 | 0.4187 | -541.0 | -584.6 | |
| 0.00 | 1.51 | 0.00 | 0.83 | -18.52 | 101.89 | -0.20 | 179.56 | 0.4367 | -897.0 | -694.7 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -18.45 | 101.67 | -0.43 | 179.07 | 0.4357 | -824.0 | -664.3 | |
| 0.80 | 2.49 | 0.44 | 1.37 | -18.55 | 101.51 | -0.59 | 178.73 | 0.4374 | -892.3 | -782.5 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -20.07 | 101.34 | -0.75 | 178.46 | 0.4612 | -784.0 | -608.0 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -22.97 | 100.50 | -1.59 | 177.09 | 0.5061 | -854.0 | -618.9 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -20.50 | 98.24 | -3.85 | 172.30 | 0.4716 | -705.0 | -565.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
