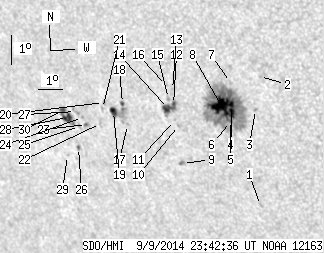

SDO HMI 2014-09-09 23:42:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.55 | 219.99 | 33.39 | 149.83 | -16.11 | 65.29 | -36.80 | 122.97 | 0.6875 | 244.2 | 180.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-09 23:42:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.69 | 0.00 | 1.15 | -19.08 | 67.47 | -34.62 | 128.20 | 0.6856 | 210.0 | 209.1 | |
| 0.00 | 0.89 | 0.00 | 0.58 | -14.76 | 68.34 | -33.76 | 123.41 | 0.6460 | -379.0 | -311.3 | |
| 0.00 | 1.25 | 0.00 | 0.82 | -15.86 | 67.98 | -34.11 | 124.58 | 0.6575 | 811.0 | 665.3 | |
| 2.76 | 143.99 | 1.83 | 95.88 | -15.77 | 67.08 | -35.01 | 123.77 | 0.6665 | 1207.8 | 393.2 | |
| 4.99 | -4.00 | 3.32 | -4.00 | -16.03 | 67.03 | -35.06 | 124.07 | 0.6689 | 1006.3 | 999999 | |
| 0.62 | -4.00 | 0.42 | -4.00 | -16.34 | 66.93 | -35.17 | 124.38 | 0.6720 | 457.4 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.76 | -15.04 | 67.18 | -34.91 | 122.90 | 0.6605 | 245.0 | 234.1 | |
| 18.98 | -4.00 | 12.65 | -4.00 | -15.83 | 66.68 | -35.41 | 123.55 | 0.6712 | 1022.8 | 999999 | |
| 0.00 | 2.41 | 0.00 | 1.68 | -17.89 | 64.68 | -37.41 | 124.70 | 0.7055 | 689.0 | 546.6 | |
| 0.00 | 1.34 | 0.00 | 0.92 | -16.63 | 64.83 | -37.27 | 123.24 | 0.6960 | 473.0 | 384.1 | |
| 0.00 | 0.62 | 0.00 | 0.43 | -16.48 | 64.70 | -37.39 | 122.96 | 0.6963 | 557.0 | 501.9 | |
| 1.16 | 13.10 | 0.79 | 9.00 | -15.95 | 64.78 | -37.31 | 122.35 | 0.6922 | 892.2 | 568.7 | |
| 0.00 | 0.89 | 0.00 | 0.61 | -15.45 | 64.85 | -37.24 | 121.77 | 0.6884 | 547.0 | 401.3 | |
| 6.06 | -12.00 | 4.17 | -12.00 | -16.10 | 64.55 | -37.54 | 122.38 | 0.6956 | 746.9 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.40 | -15.76 | 64.63 | -37.47 | 122.01 | 0.6927 | 474.0 | 375.7 | |
| 0.00 | 0.98 | 0.00 | 0.67 | -15.34 | 64.64 | -37.45 | 121.48 | 0.6900 | 439.0 | 364.5 | |
| 0.00 | 1.07 | 0.00 | 0.76 | -16.77 | 62.74 | -39.35 | 122.02 | 0.7184 | -651.0 | -464.0 | |
| 0.80 | 19.60 | 0.57 | 13.92 | -16.08 | 62.70 | -39.39 | 121.16 | 0.7148 | -775.7 | -627.8 | |
| 4.28 | -18.00 | 3.05 | -18.00 | -16.38 | 62.26 | -39.83 | 121.25 | 0.7211 | -965.8 | 999999 | |
| 0.00 | 1.51 | 0.00 | 1.08 | -16.12 | 61.92 | -40.18 | 120.71 | 0.7232 | -658.0 | -546.8 | |
| 0.00 | 1.34 | 0.00 | 0.96 | -16.32 | 61.82 | -40.27 | 120.90 | 0.7253 | -591.0 | -503.4 | |
| 0.00 | 1.96 | 0.00 | 1.42 | -16.83 | 61.61 | -40.48 | 121.39 | 0.7303 | -685.0 | -568.7 | |
| 0.62 | 1.96 | 0.46 | 1.43 | -16.92 | 61.00 | -41.09 | 121.13 | 0.7369 | -832.0 | -676.4 | |
| 0.00 | 0.89 | 0.00 | 0.65 | -16.69 | 60.89 | -41.20 | 120.80 | 0.7368 | -843.0 | -757.1 | |
| 0.00 | 1.51 | 0.00 | 1.11 | -17.01 | 60.68 | -41.41 | 121.05 | 0.7406 | -632.0 | -469.8 | |
| 0.80 | 1.96 | 0.60 | 1.45 | -17.72 | 60.44 | -41.65 | 121.76 | 0.7469 | -731.6 | -609.6 | |
| 0.00 | 2.85 | 0.00 | 2.09 | -16.52 | 60.64 | -41.45 | 120.44 | 0.7384 | -764.0 | -752.3 | |
| 5.52 | 14.35 | 4.08 | 10.59 | -16.75 | 60.24 | -41.85 | 120.48 | 0.7436 | -643.0 | -479.3 | |
| 0.00 | 0.62 | 0.00 | 0.47 | -18.04 | 59.88 | -42.22 | 121.80 | 0.7540 | -535.0 | -467.1 | |
| 1.96 | -28.00 | 1.45 | -28.00 | -16.54 | 60.09 | -42.00 | 120.13 | 0.7440 | -662.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
