SDO HMI 2014-09-10 03:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.10 | 57.32 | 22.41 | 41.21 | 9.75 | 147.17 | 46.89 | 276.57 | 0.7261 | 52.7 | 131.1 | |
|
previous
or next observation for the same group /

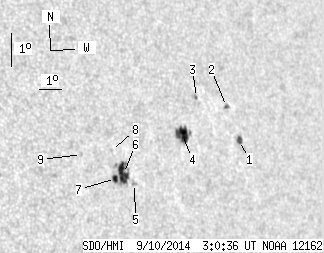

back to the solar disc SDO HMI 2014-09-10 03:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.58 | 4.28 | 2.00 | 3.31 | 9.79 | 151.00 | 50.72 | 276.72 | 0.7704 | -565.6 | -370.6 | |
| 0.71 | 2.23 | 0.55 | 1.71 | 10.86 | 150.61 | 50.33 | 278.11 | 0.7659 | -633.9 | -522.9 | |
| 0.00 | 1.25 | 0.00 | 0.93 | 11.27 | 149.27 | 48.99 | 278.65 | 0.7509 | 481.0 | 358.5 | |
| 12.57 | 18.36 | 9.23 | 13.50 | 10.22 | 148.39 | 48.11 | 277.24 | 0.7408 | -748.6 | -395.7 | |
| 0.00 | 2.76 | 0.00 | 1.94 | 8.95 | 145.99 | 45.72 | 275.43 | 0.7127 | 442.0 | 319.1 | |
| 12.39 | 25.76 | 8.65 | 17.98 | 9.29 | 145.57 | 45.29 | 275.90 | 0.7074 | 687.9 | 467.7 | |
| 2.85 | -6.00 | 1.98 | -6.00 | 9.17 | 145.20 | 44.92 | 275.72 | 0.7029 | 862.4 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.99 | 10.03 | 145.17 | 44.90 | 276.94 | 0.7025 | 580.0 | 445.6 | |
| 0.00 | 1.25 | 0.00 | 0.85 | 10.02 | 143.88 | 43.61 | 276.93 | 0.6865 | 621.0 | 490.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
