SDO HMI 2014-09-10 03:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.44 | 217.29 | 36.92 | 144.49 | -16.09 | 65.30 | -34.97 | 124.27 | 0.6678 | 217.1 | 143.0 | |
|
previous
or next observation for the same group /

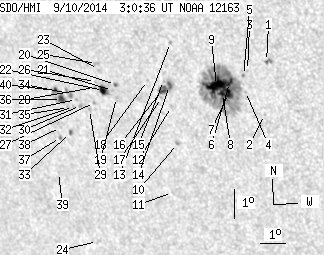

back to the solar disc SDO HMI 2014-09-10 03:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.36 | 3.48 | 0.23 | 2.19 | -14.86 | 68.65 | -31.63 | 125.27 | 0.6230 | -629.2 | -543.5 | |
| 0.00 | 0.80 | 0.00 | 0.52 | -16.62 | 68.27 | -32.01 | 127.26 | 0.6405 | 542.0 | 406.6 | |
| 0.00 | 0.71 | 0.00 | 0.46 | -15.21 | 67.89 | -32.39 | 125.09 | 0.6340 | 650.0 | 544.6 | |
| 0.00 | 0.89 | 0.00 | 0.57 | -15.91 | 67.69 | -32.59 | 125.85 | 0.6413 | 509.0 | 512.6 | |
| 0.00 | 1.07 | 0.00 | 0.69 | -15.38 | 67.71 | -32.57 | 125.18 | 0.6372 | 963.0 | 857.0 | |
| 3.48 | 145.38 | 2.25 | 94.68 | -15.65 | 67.14 | -33.14 | 125.07 | 0.6454 | 1183.3 | 324.7 | |
| 5.88 | -6.00 | 3.82 | -6.00 | -16.02 | 67.03 | -33.25 | 125.46 | 0.6492 | 999.5 | 999999 | |
| 4.46 | -6.00 | 2.91 | -6.00 | -16.04 | 66.80 | -33.47 | 125.30 | 0.6518 | 796.1 | 999999 | |
| 22.28 | -6.00 | 14.52 | -6.00 | -15.79 | 66.62 | -33.65 | 124.83 | 0.6520 | 983.7 | 999999 | |
| 0.00 | 1.78 | 0.00 | 1.21 | -17.84 | 64.69 | -35.59 | 125.95 | 0.6866 | 729.0 | 573.2 | |
| 0.00 | 0.71 | 0.00 | 0.50 | -19.52 | 64.08 | -36.20 | 127.53 | 0.7042 | 368.0 | 346.8 | |
| 0.00 | 0.89 | 0.00 | 0.60 | -16.62 | 64.73 | -35.55 | 124.45 | 0.6779 | 383.0 | 345.4 | |
| 0.00 | 1.25 | 0.00 | 0.82 | -14.50 | 65.12 | -35.16 | 122.00 | 0.6597 | 626.0 | 528.4 | |
| 1.96 | 10.25 | 1.31 | 6.86 | -15.92 | 64.80 | -35.48 | 123.62 | 0.6725 | 916.9 | 667.1 | |
| 0.00 | 0.71 | 0.00 | 0.48 | -15.78 | 64.60 | -35.68 | 123.28 | 0.6737 | 471.0 | 459.1 | |
| 4.46 | -14.00 | 2.99 | -14.00 | -16.08 | 64.50 | -35.78 | 123.60 | 0.6768 | 741.2 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.72 | -16.35 | 64.40 | -35.88 | 123.87 | 0.6796 | 424.0 | 354.2 | |
| 0.00 | 0.80 | 0.00 | 0.54 | -15.82 | 63.97 | -36.31 | 122.89 | 0.6808 | 403.0 | 290.3 | |
| 0.00 | 1.07 | 0.00 | 0.74 | -16.49 | 62.60 | -37.68 | 122.78 | 0.6995 | -358.0 | -355.3 | |
| 0.53 | 1.60 | 0.37 | 1.10 | -16.06 | 62.65 | -37.62 | 122.28 | 0.6962 | -812.0 | -695.1 | |
| 0.00 | 0.80 | 0.00 | 0.55 | -16.27 | 62.49 | -37.79 | 122.43 | 0.6992 | -767.0 | -653.4 | |
| 5.35 | 8.65 | 3.72 | 6.00 | -16.30 | 62.12 | -38.16 | 122.22 | 0.7033 | -892.8 | -568.7 | |
| 0.00 | 0.71 | 0.00 | 0.49 | -15.62 | 62.08 | -38.20 | 121.34 | 0.6996 | -599.0 | -583.5 | |
| 0.00 | 1.52 | 0.00 | 1.13 | -21.48 | 60.42 | -39.86 | 127.25 | 0.7515 | 540.0 | 436.3 | |
| 0.00 | 2.41 | 0.00 | 1.66 | -15.42 | 62.04 | -38.24 | 121.07 | 0.6989 | -663.0 | -515.8 | |
| 0.00 | 0.80 | 0.00 | 0.56 | -16.02 | 61.86 | -38.41 | 121.71 | 0.7043 | -617.0 | -570.8 | |
| 0.00 | 1.25 | 0.00 | 0.88 | -16.73 | 61.66 | -38.62 | 122.45 | 0.7107 | -712.0 | -663.6 | |
| 0.00 | 0.89 | 0.00 | 0.62 | -16.23 | 61.78 | -38.50 | 121.91 | 0.7064 | -598.0 | -479.0 | |
| 0.00 | 1.34 | 0.00 | 0.94 | -16.98 | 61.39 | -38.89 | 122.59 | 0.7149 | -637.0 | -464.3 | |
| 0.00 | 1.43 | 0.00 | 1.01 | -16.88 | 61.05 | -39.23 | 122.24 | 0.7178 | -859.0 | -712.4 | |
| 0.00 | 0.89 | 0.00 | 0.63 | -16.69 | 60.93 | -39.34 | 121.93 | 0.7179 | -754.0 | -659.6 | |
| 0.00 | 1.07 | 0.00 | 0.76 | -16.94 | 60.75 | -39.53 | 122.12 | 0.7212 | -563.0 | -392.2 | |
| 0.89 | 1.96 | 0.64 | 1.42 | -17.82 | 60.39 | -39.89 | 122.96 | 0.7300 | -782.1 | -636.9 | |
| 0.00 | 4.37 | 0.00 | 3.10 | -16.51 | 60.69 | -39.59 | 121.56 | 0.7194 | -760.0 | -669.4 | |
| 0.00 | 1.69 | 0.00 | 1.21 | -16.99 | 60.53 | -39.75 | 122.04 | 0.7237 | -538.0 | -376.9 | |
| 3.83 | 7.04 | 2.75 | 5.05 | -16.74 | 60.30 | -39.97 | 121.60 | 0.7246 | -768.4 | -456.2 | |
| 0.00 | 1.60 | 0.00 | 1.17 | -18.03 | 59.92 | -40.36 | 122.91 | 0.7358 | -549.0 | -413.2 | |
| 0.00 | 0.89 | 0.00 | 0.65 | -17.69 | 60.01 | -40.27 | 122.57 | 0.7330 | -526.0 | -362.9 | |
| 0.00 | 0.62 | 0.00 | 0.46 | -19.23 | 59.48 | -40.80 | 124.06 | 0.7470 | -285.0 | -345.6 | |
| 1.96 | 4.90 | 1.41 | 3.52 | -16.46 | 60.13 | -40.15 | 121.15 | 0.7249 | -691.0 | -348.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
